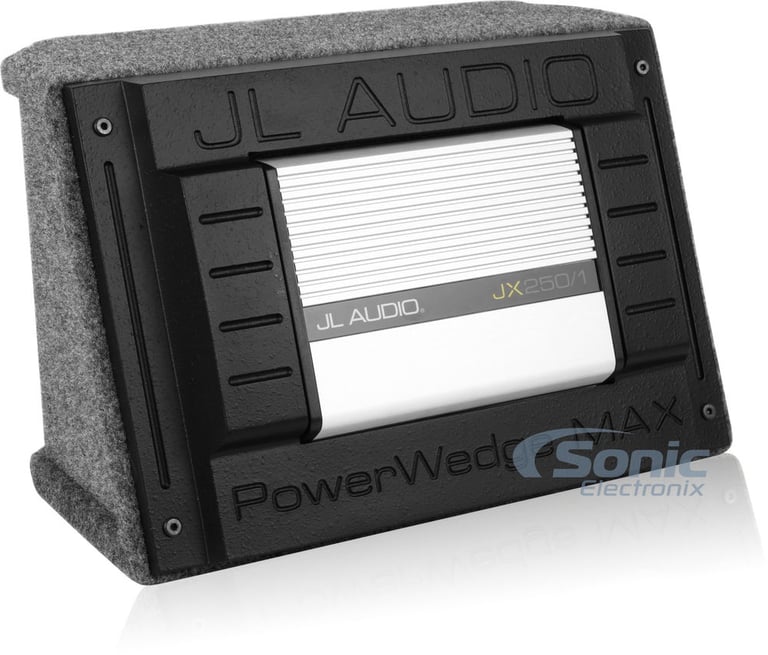

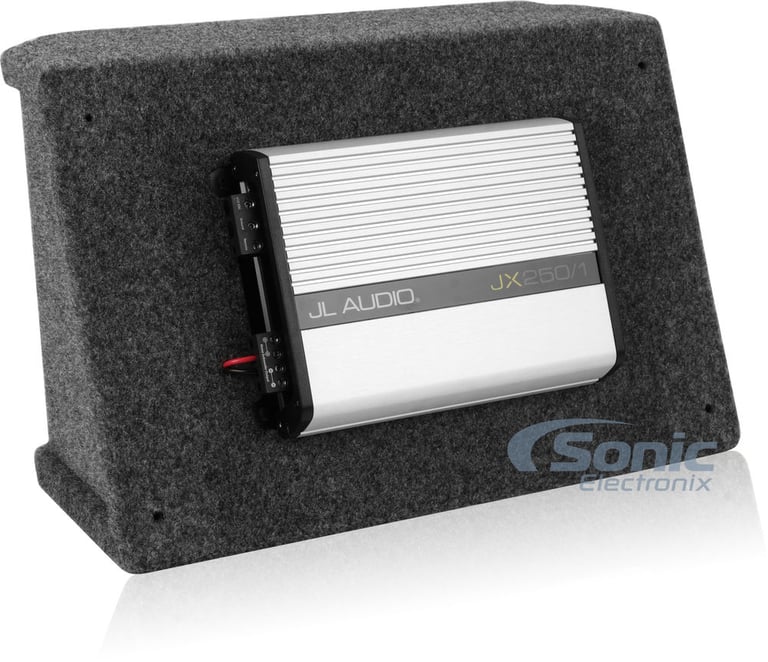

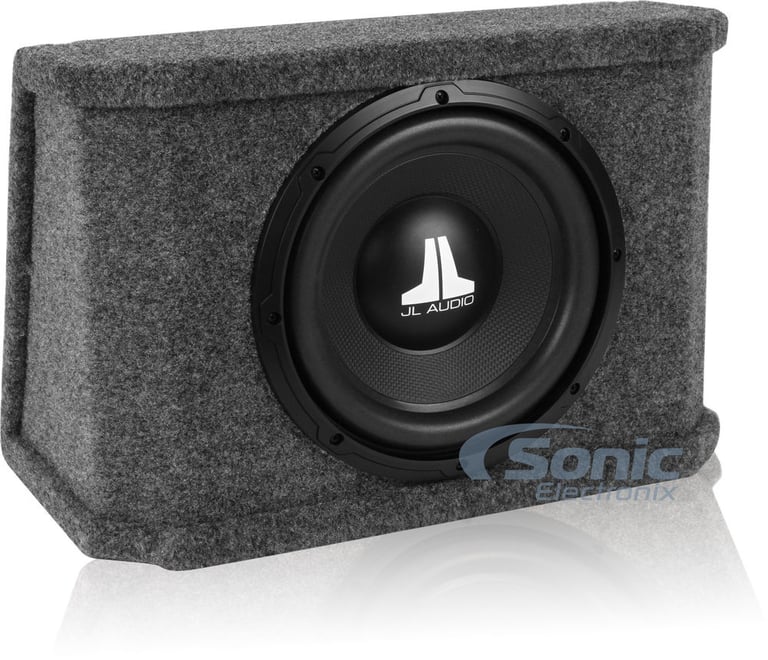

JL Audio PWM110-JXWXv2

Powered Subwoofer System with Single 10WXv2-4 Subwoofer Driver & Sealed Enclosure

JL Audio
Shop all JL Audio
highlight-star-icon

• Powered Subwoofer System
• JL audio J2250.1 monoblock amplifier
• Sealed Subwoofer Enclosure
• Single 4 ohm WX Series Car Subwoofer
• 175 Watts RMS @ 4 ohm

Learn more about the pwm110jxwxv2

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-6502 main

Metra 70-6502 Wiring Harness

Install a new car stereo in select 2002-2010 vehicles from Dodge, Chrysler, Jeep

17
99-6506 main

Metra 99-6506 Dash Kit

Install a new Single-DIN car stereo in select 2004-2008 Pacifica

1
-12.12%

$28.99

List price $32.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
ZS35CX main

Hifonics ZS35CX

250W Peak (50W RMS) 3.5” Zeus Series 2-way 4-ohm Coaxial Car Speakers

10
FKB113 main

MB Quart FKB113

180W Peak (90W RMS) 5.25" Formula Series 2-Way 4-ohm Coaxial Car Speakers

4
-57.15%

$29.99

List price $69.99

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Description


JL Audio brand icon

Authorized dealer

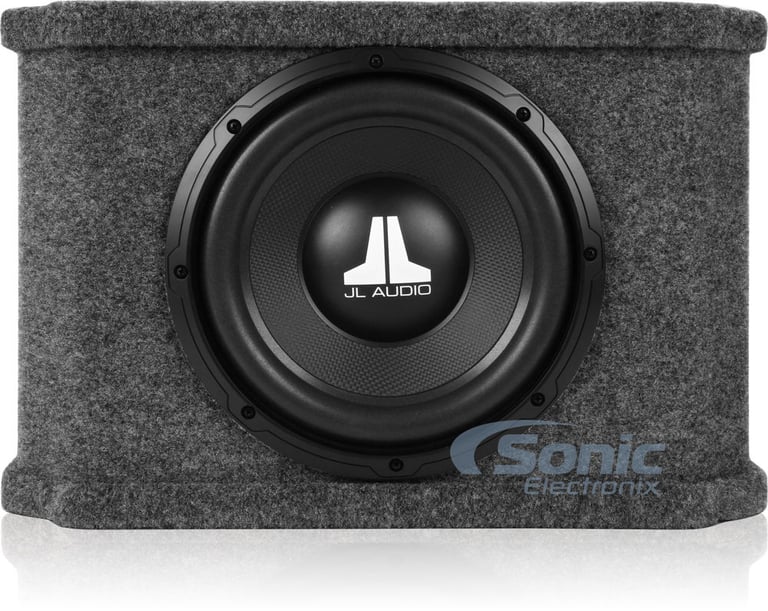

Subwoofer Features:

JL Audio 10WXv2-4

10" Single 4 ohm WX Series Car Subwoofer

  • Power Handling:
    • RMS: 200 Watts
  • Impedance: 4 ohm
  • Proprietary dynamic motor analysis (DMA) improves motor behavior
  • Elevated frame cooling delivers cold air above the top plate to the voice coil
  • resists breakdown under extreme conditions
  • Integrated foam rear gasket which provides an optimal seal
  • Polypropylene cone material
  • Foam surround type
  • Frequency response: 25-250Hz
  • Sensitivity: 86.06dB
  • 2 Year Manufacturer's Warranty

General Enclosure Features:

  • Sealed Subwoofer Enclosure
  • Subwoofer mounting depth: 4-13/16"
  • Subwoofer cutout diameter: 9-1/16"
  • Dimensions: 18-13/16"W x 12-3/8"H x 11-3/4"D

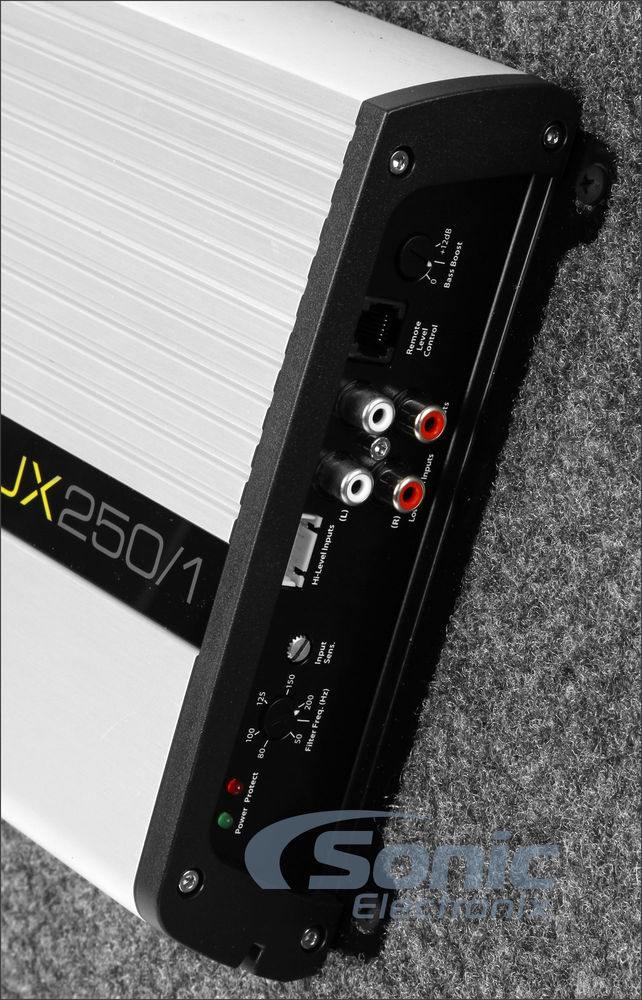

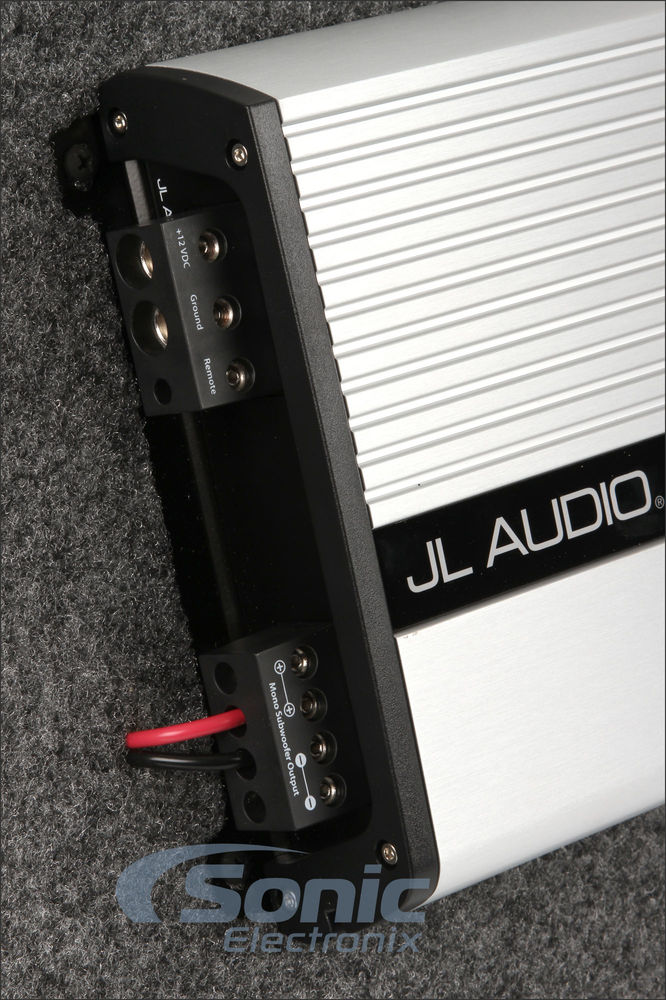

Amplifier Specifications:

  • JL audio JX250/1 monoblock amplifier
  • 175 Watts RMS @ 4 ohm
  • Variable low-pass crossover from 60-240Hz

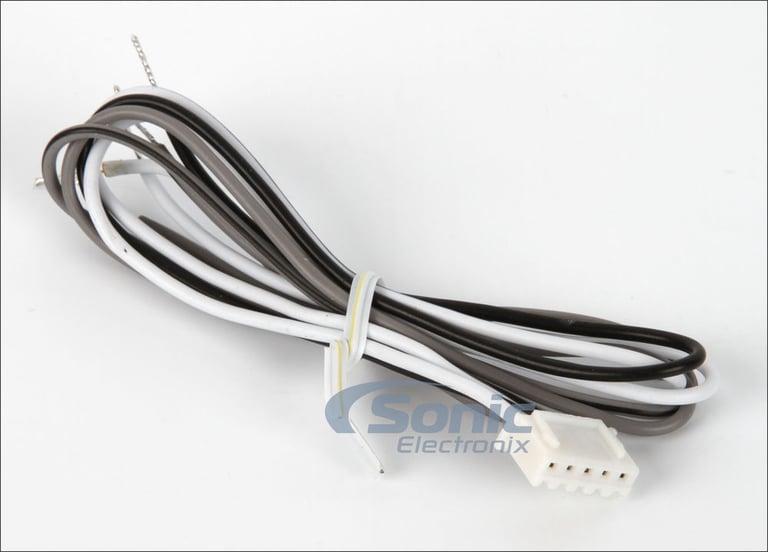

  • Speaker level inputs
  • Preamp Outputs

Product history:

JL Audio PWM110-JXWXv2 thumbnail
(newest, current model)
JL Audio PWM110-WXJX thumbnail
(previous model, replaced by JL Audio PWM110-JXWXv2)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
175 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
60 - 240 Hz
Bass Boost
0 - 9 dB
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
200 watts
Total RMS Power Handling
200 watts
Woofer Surround
Polypropylene
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86.06 dB
Frequency Response
25 - 250 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
12-3/8"
Width
18-13/16"
Depth
11-3/4"
Wood Thickness
3/4"
Number of Terminals
1
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PWM110-JXWXv2

Weight:

34.00lbs

Internal SKU:

pwm110jxwxv2

Internal Product ID:

42801
