Audiobahn A16000J

1800W Single-Channel Monoblock Intake Series Car Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

Monoblock Class AB Intake Series Car Amplifier • 900W x 1 Chan @ 4 Ohm • 1800W x 1 Chan @ 2 Ohm • Bass Boost On/Off Switch • High Gloss Chrome-Plated Finish • Cobalt Blue Illumination • Air Intake Fan

Learn more about the a16000j

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

44
-21.92%

$17.95

List price $22.99

FD1423B main

Scosche FD1423B / FD1423 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Lincoln (Black)

25
-18.81%

$12.95

List price $15.95

ZS525CX main

Hifonics ZS525CX

400W Peak (60W RMS) 5.25” Zeus Series 2-way 4-ohm Coaxial Car Speakers

7
-31.05%

$19.99

List price $28.99

XED525C main

Cerwin-Vega XED525C

500W Peak (60W RMS) 5.25” XED Series 2-Way 4-ohm Component Speaker System

8
-16.67%

$59.99

List price $71.99

XED52 main

Cerwin-Vega XED52

550W Peak (60W RMS) 5.25" XED Series 2-Way Coaxial 4-ohm Speakers

7
-16.67%

$44.99

List price $53.99

CV62BM main

Cerwin-Vega CV62BM

6.2” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-16.67%

$169.99

List price $203.99

Product Highlights


Monoblock Class AB Intake Series Car Amplifier • 900W x 1 Chan @ 4 Ohm • 1800W x 1 Chan @ 2 Ohm • Bass Boost On/Off Switch • High Gloss Chrome-Plated Finish • Cobalt Blue Illumination • Air Intake Fan

Description


Audiobahn A16000J Intake Series Car Amplifier

Sonic Electronix is now carrying Audiobahn's new 2011 amplifiers. The Intake Series features the same attractive appearance you are used to from Audiobahn with the included flame fan grilles. The intake series also comes equipped with an air-induction groove and a air intake fan that will keep the amps temperature at a safe operating level, a high gloss chrome plated finish to add to the eye catching appearance, and a 3-way protection circuitry which includes thermal, short circuit, and overload protection. Available in mono, 2-channel, 4-channel, and even 5-channel configurations. Combine the stunning looks with the performance and you have yourself a winner.

Digital DC Input Voltage

Audiobahn Intake Amplifiers feature an on-board cobalt blue digital volt meter which allows a quick assessment of your vehicle’s charging voltage to the amplifier. During normal operation, the display should read between 11.5V and 14.4V. A LO or HI readout indicates a problem that requires attention.

Air Intake Fan

Audiobahn’s Intake Series of amplifiers were made to be ultra-durable and allow for installation versatility. Since heat weakens the inner workings of any electrical component, attention was put into the placement of the air-induction groove and air intake fan. These design components help force cooler outside air into the chassis of the amplifier and help to maintain its optimum operating temperature.

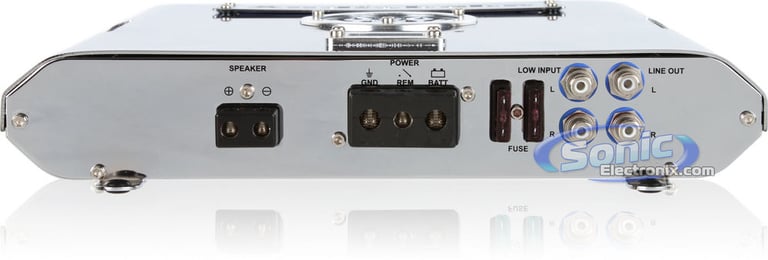

Nickel-Plated Block Terminals

Audiobahn uses nickel-plated block terminals to ensure increased productivity and maintaining proper connection. Because nickel is an ideal electrical conductor, the flow of power is essential in maintaining proper current flow through power connections. The nickel-plated block terminals provide a more efficient power transfer from output terminals to speakers and subwoofers and make a more solid and secure connection for all wires. Each terminal block is also encased in black ABS plastic to prevent short circuits and accidental wire entanglement.

Product Features
  • Monoblock Class AB Intake Series Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 900 watts x 1 chan.
    • 2 ohm: 1800 watts x 1 chan.
  • PWM MOSFET power supply

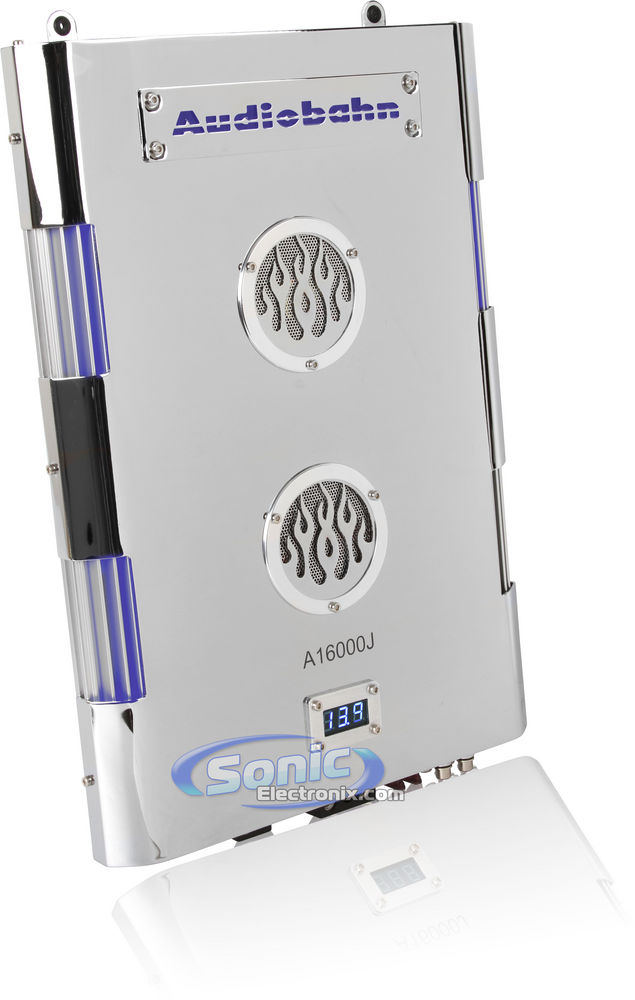

  • Large display volt meter with blue illumination
  • Bass Boost (0-18 dB)
  • High gloss chrome-plated finish
  • Mono channel operation
  • Throughput RCA connections
  • Cobalt blue illumination
  • Double-Sided glass epoxy circuit board
  • Air-Induction groove and air intake fan help force cooler outside air into the chassis of the amplifier and help to maintain its optimum operating temperature
  • Chrome flame fan grilles for an enhanced appearance
  • 3-way Protection Circuitry: Thermal, Short Circuit and Overload
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-Plated RCA level inputs
  • Nickel-Plated block terminals
  • Input Sensitivity: 200mV-8V

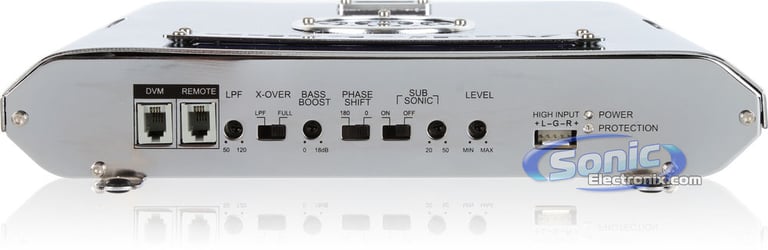

  • Variable Low-Pass Filter (50-120 Hz, 18 dB/octave)
  • Subsonic Filter (20-50 Hz)
  • THD: 0.02%
  • Signal-To-Noise Ratio: >100 dB
  • Dimensions: 15-5/8"L x 11-3/16"W x 2-1/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Product history:

Audiobahn A16000J thumbnail
(newest, current model)
Audiobahn A16000V thumbnail
(previous model, replaced by Audiobahn A16000J)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
900 watts x 1 channel
RMS Power @ 2 ohms
1800 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total RMS Power Output
1800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Full (AP)
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
40A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

A16000J

Weight:

12.00lbs

Internal SKU:

a16000j

Internal Product ID:

33633
