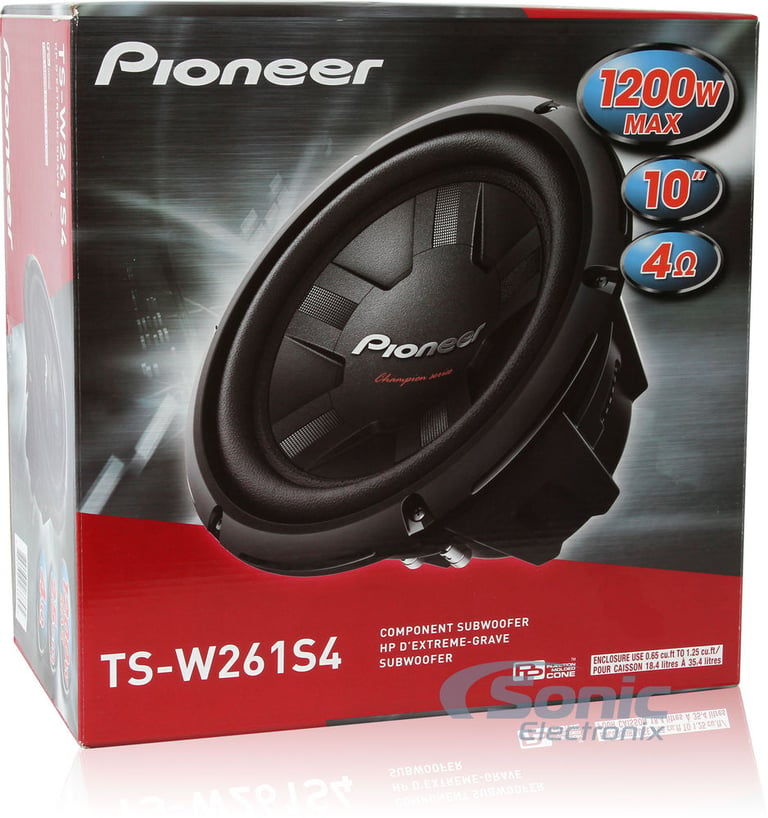

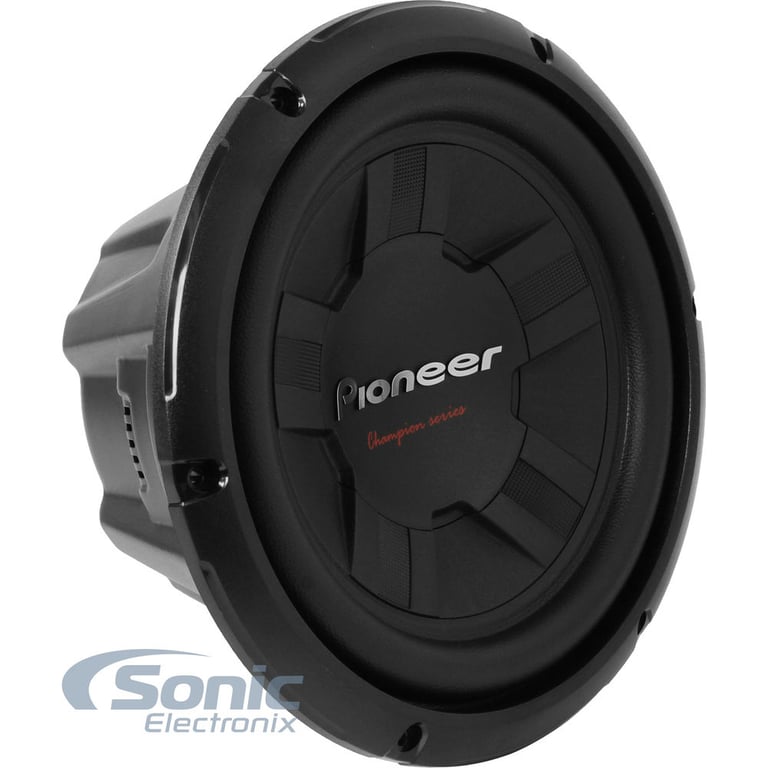

Pioneer TS-W261S4

1200W 10" Champion Series Single 4 ohm Car Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• Peak Power: 1200W
• RMS Power: 350W
• IMPP Composite Cone
• Dual Layer Fiber Reinforced Elastic Polymer Surround

Learn more about the tsw261s4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
95-7353CH main

Metra 95-7353CH Dash Kit

Install a new Double-DIN car stereo in select 2012-2015 Rio (Charcoal)

3
-46.95%

$25.99

List price $48.99

HWH1140 main

PAC HWH1140

Install a New Car Stereo in select 2010-2018 vehicles from Hyundai, Kia

-54.17%

$11.00

List price $24.00

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

206
Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

15
-25.50%

$298.00

List price $399.99

OEMADAPT6.5 main

DS18 OEMADAPT6.5

Universal 6.5" Speaker Mounting Adapters

Limited time!
XAV-AX6000 main

Sony XAV-AX6000

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (Sirius XM Ready)

10
-21.71%

$548.00

List price $699.99

ESP65 main

NVX ESP65

360W Peak (120W RMS) 6.5" E-Series 2 Way Coaxial Car Speakers

14
-18.19%

$44.99

List price $54.99

Product Highlights


• Peak Power: 1200W
• RMS Power: 350W
• IMPP Composite Cone
• Dual Layer Fiber Reinforced Elastic Polymer Surround

Description


Pioneer brand icon

Authorized dealer

General Features:

  • 10" Single 4 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 350 watts

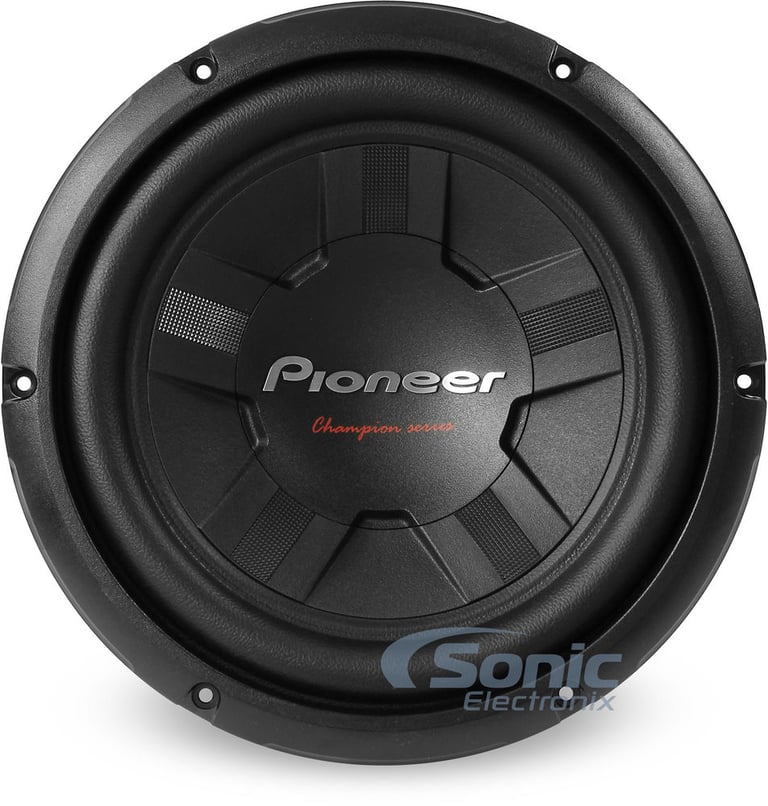

  • Newly redesigned injection molded polypropylene composite cone
    • Delivers a durable cone structure for accurate powerful bass
  • Dual layer fiber reinforced elastic polymer surround

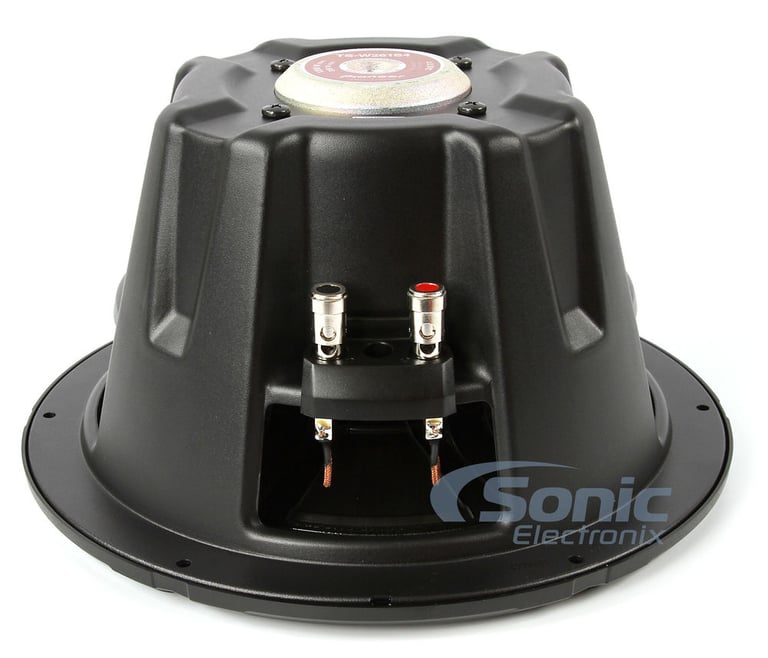

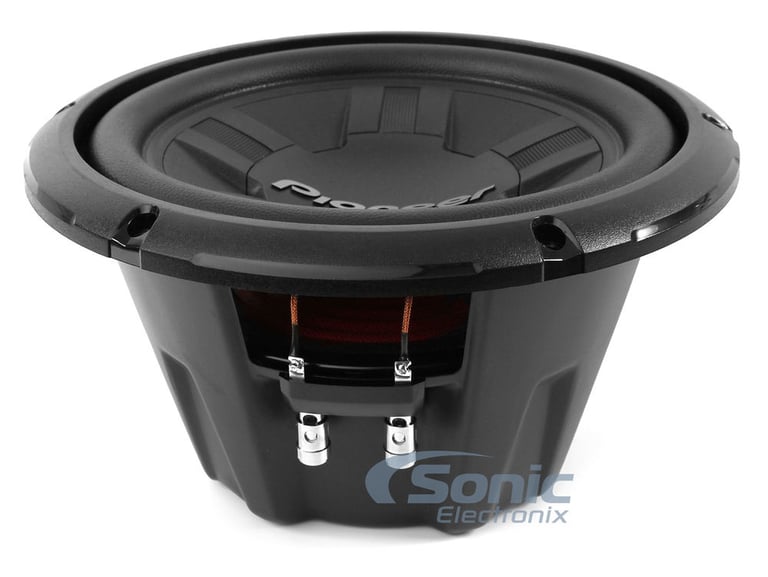

  • Highly rigid, fully enclosed single piece basket
  • Resigned spider assembly allows the subwoofer to produce more accurate, rich bass
  • Top-mount depth: 5.5"
  • Frequency Response: 20 - 125 Hz
  • Sensitivity: 93dB
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer TS-W261S4 thumbnail
(newest, current model)
Pioneer TS-W260S4 thumbnail
(previous model, replaced by Pioneer TS-W261S4)
Pioneer TS-W259S4 thumbnail
(previous model, replaced by Pioneer TS-W260S4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W261S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W261S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W261S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W261S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
350 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 125 Hz
Sensitivity
93 dB
Xmax (millimeters)
9.3 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.8 cubic feet
Optimum Ported Box Volume
1.1 cubic feet
Top-Mount Depth (Mounting Depth)
5.5"
Cutout Diameter
9.3"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
45 Hz
Equivalent Compliance (Vas)
18.6 liters
Total Speaker Q Value (Qts)
.85
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W261S4

Weight:

11.60lbs

Internal SKU:

tsw261s4

Internal Product ID:

91074
