Name: MTX RFL404 R/B
Brand: MTX
SKU: LS-rfl404-RB
Price: 109.95 USD
Availability: Discontinued

by MTX

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

Product videos

Product highlights

4-Channel RFL Series Car Amplifier • Patented Pure N-Channel Technology • Smart Engage Circuitry • JackStands Included • Built-In Active Fan Cooling Technology • CEA-2006 Compliant Amplifier • Preamp RCA Outputs

Learn more about the LS-rfl404-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

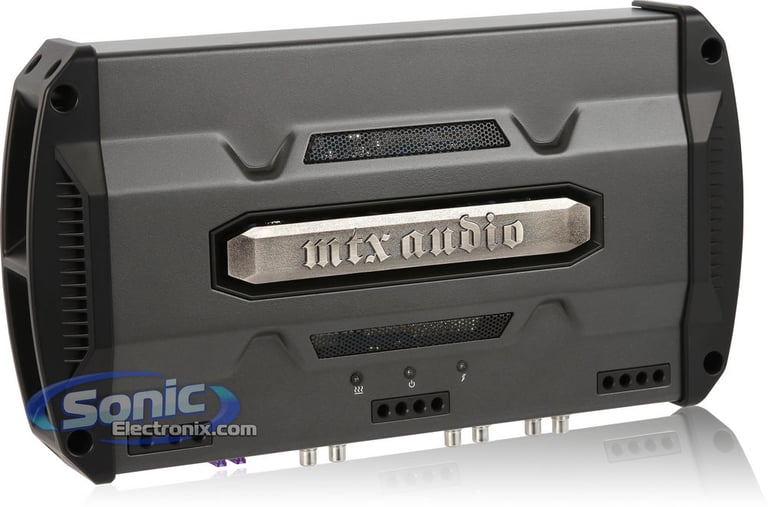

MTX RFL404 4-Channel Amplifier

MTX Audio has designed their RFL series of amplifiers to not only be able to deliver constant power but also stay cool with their integrated Active Fan Cooling technology. This helps the MTX RFL404 Amplifier put out impressive power ratings without getting hot and shutting down. The harder the amp is being driven, the harder the fan will work to make sure each component doesn't heat too much with it's active cooling.

RFL series amplifiers are built into a gloss black finish chassis to maintain style along with it's unique output. With tuning adjustments to ensure you'll get only the best frequencies from your sound system, this amplifier will be sure to compliment any compatible audio system.

With the JackStands you can mount each RFL amplifier on top of each other to achieve a compact, integrated audio system that maintains consistency. The RFL404 4-Channel amplifier is sure pack a huge punch in your vehicle.

Product Features

4-Channel RFL Series Car Amplifier
RMS Power Rating:

4 ohm: 50 watts x 4 chan.
2 ohm: 100 watts x 4 chan.
Bridged, 4 ohm: 200 watts x 2 chan.

Max power output: 200 watts x 4 chan.
Patented Pure N-Channel technology
LED power, overheat, and voltage indicators
Smart Engage circuitry automatic turn-on circuitry
Bridgeable operation

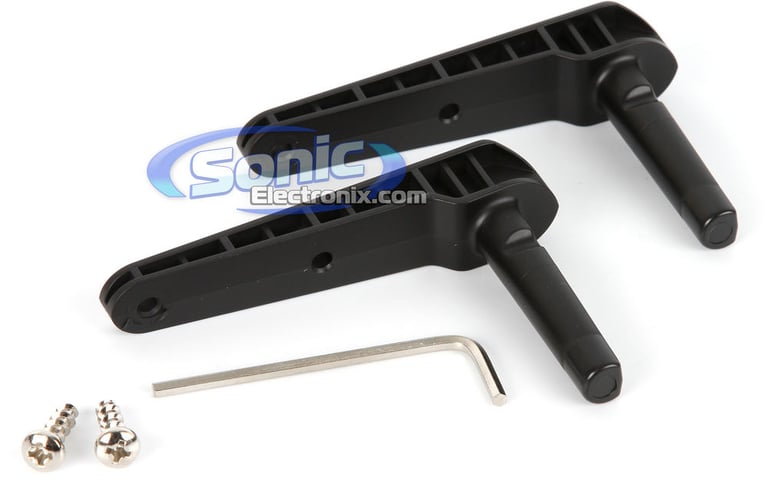

JackStands are included, which are mounting platforms that enables a user to mount up to three amplifiers
Preamp RCA outputs
Stereo gain control
Built-in active fan cooling technology adjusts fan speed according to the usage of the amplifier
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:
- High level: 5V-250mV
Variable high-pass filter (40-8000 Hz, 12 dB/octave)
Variable low-pass filter (40-5000 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency Response: 20-20000 Hz
THD (Total Harmonic Distortion): < 1%
Signal-to-Noise Ratio: 75 dB
Dimensions: 14-11/16"L x 8"W x 2-3/8"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-Day Manufacturer’s warranty

Extend your MTX warranty to 2 Years when you install your new MTX amplifier with a compatible STREETWIRES amplifier kit! For a limited time, you can register your MTX amplifier and power kit to qualify for an additional 1 year of coverage. This offer is only available through authorized MTX Dealer in the United States of America or Canada and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: StreetWires ZN5K-04, StreetWires ZN5K-08, StreetWires ZN3K-04, StreetWires ZN3KI-04, StreetWires ZN3K-08, StreetWires ZN3KI-08

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channel

RMS Power @ 2 ohms

100 watts x 4 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

200 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

800 watts

Total RMS Power Output

400 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

40 - 8000 Hz

Low-Pass Crossover Frequency

40 - 5000 Hz

Signal-to-Noise Ratio

75 dB

Remote bass/level controller

Fuse Rating

35A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
