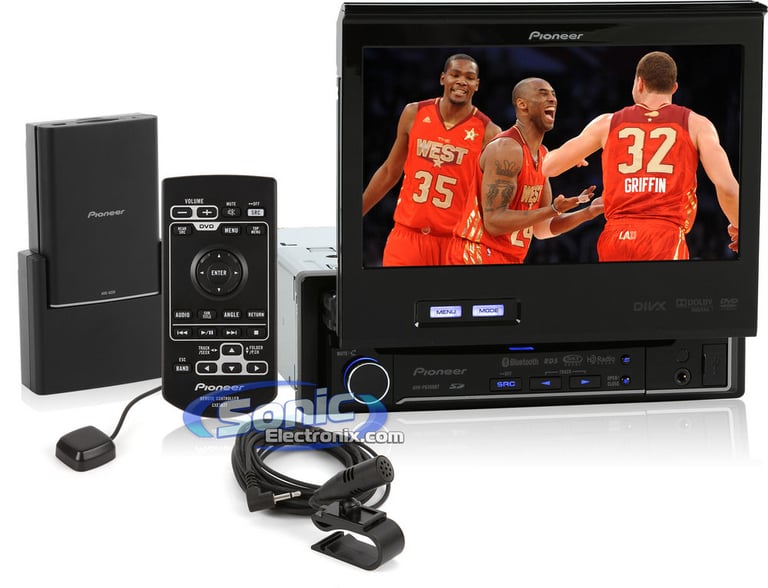

Pioneer AVH-P6300BT & AVIC-U220 Navigation Package

Single DIN 7" LCD Touchscreen with DVD/CD/MP3 Player with USB/iPod Controls, Aux Input, & Bluetooth

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

Single DIN DVD Receiver w/ 7" Flip-Out Display • LCD Touchscreen Monitor • 50W x 4 Chan Max • 22W x 4 Chan RMS • 8-Band Graphic EQ • PandoraLink • 3 Sets of 4V Preamp Outputs • Built-In Bluetooth • Includes Navigation Module

Learn more about the avhp6300bt_avicu220

We apologize

This item has been discontinued


Loading...
SHFD03B main

Scosche SHFD03B

Speaker Harness for select 1998-2019 vehicles from Ford, Mazda, Lincoln

8
-18.50%

$8.99

List price $11.03

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

Club 9632 main

JBL Club 9632 (SPKCB9632AM)

510W Peak (170W RMS) 6x9" Club Series 3-way 3-ohm Coaxial Car Speaker

3
-20.59%

$134.95

List price $169.95

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Product Highlights


Single DIN DVD Receiver w/ 7" Flip-Out Display • LCD Touchscreen Monitor • 50W x 4 Chan Max • 22W x 4 Chan RMS • 8-Band Graphic EQ • PandoraLink • 3 Sets of 4V Preamp Outputs • Built-In Bluetooth • Includes Navigation Module

Description


Pioneer brand icon

Authorized dealer










General Features:

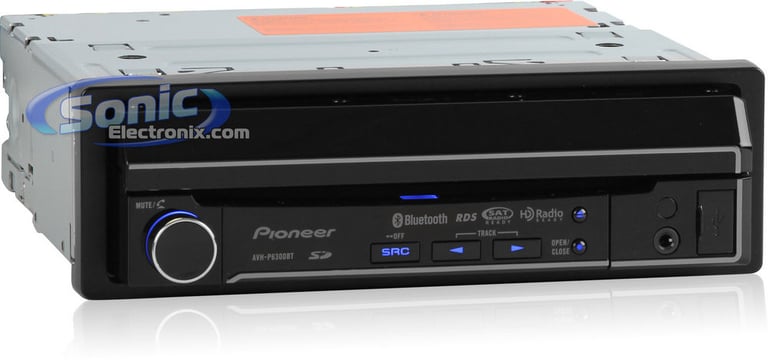

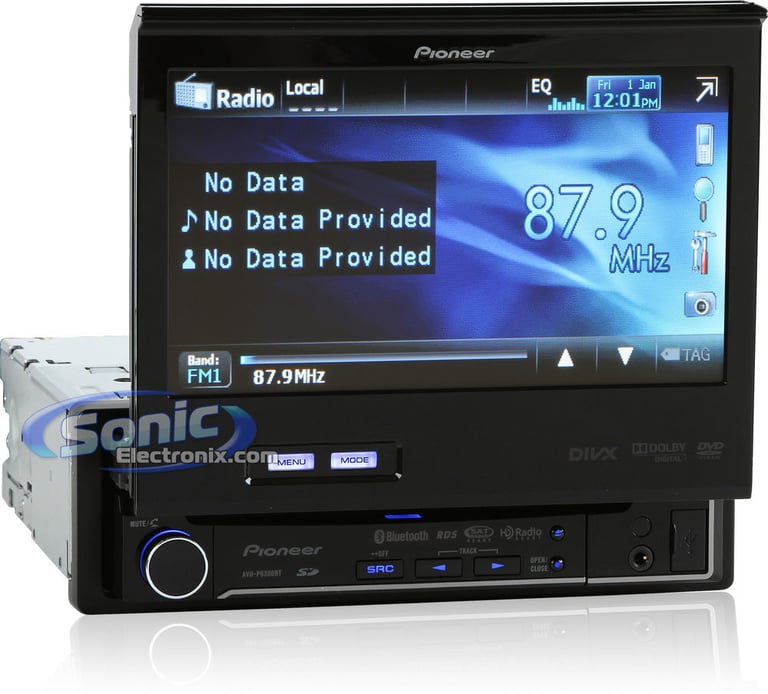

  • Single DIN 7" TFT-LCD Touchscreen Monitor and multimedia receiver

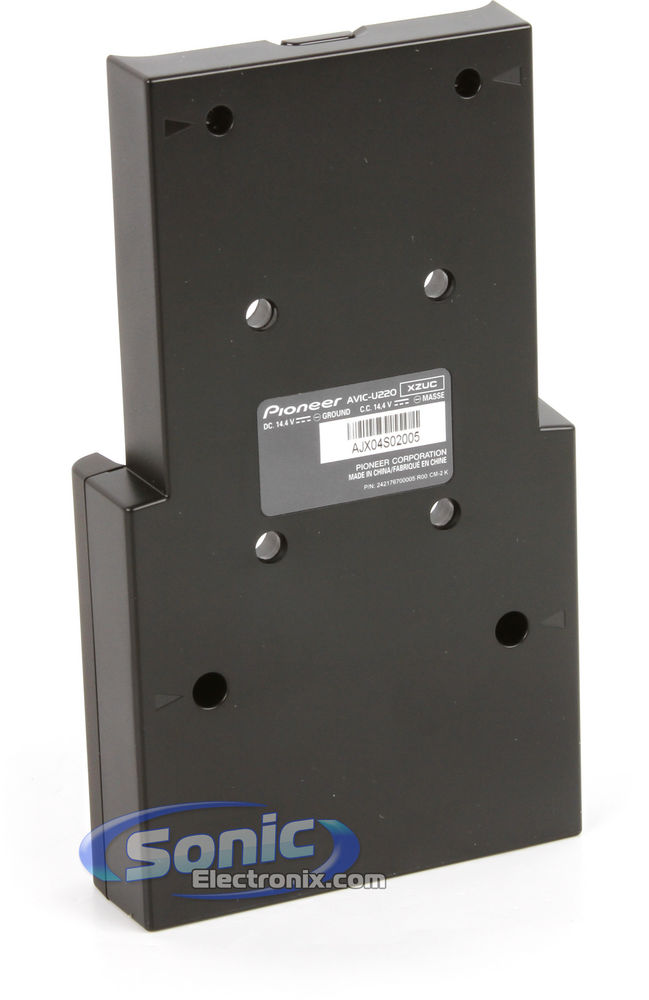

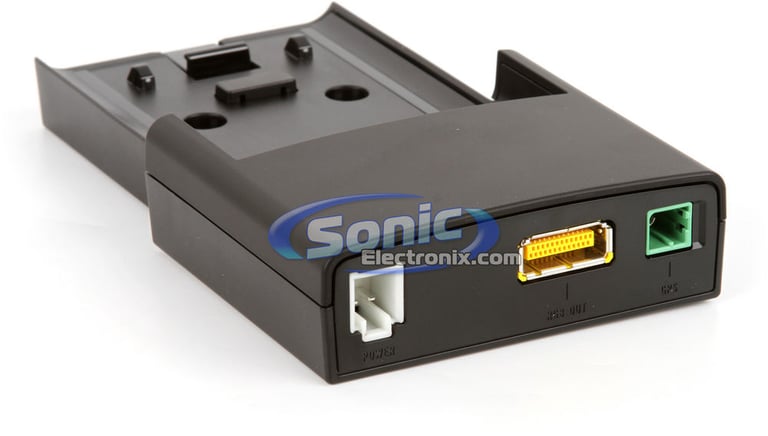

  • Combo Includes Pioneer AVIC-U220 Add-on Navigation Module
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone

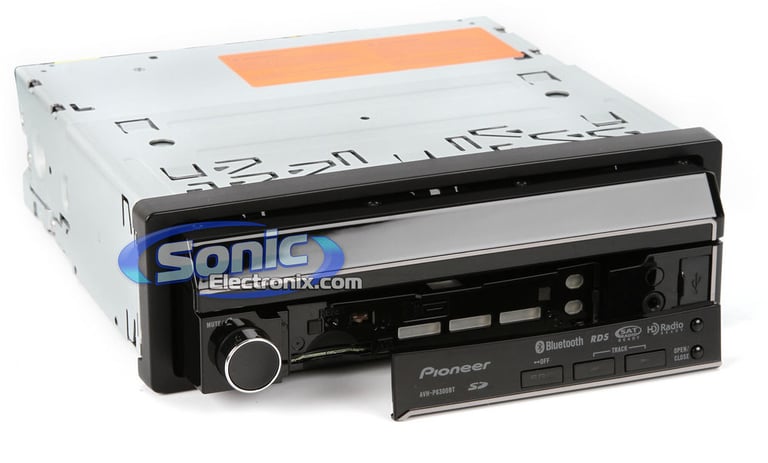

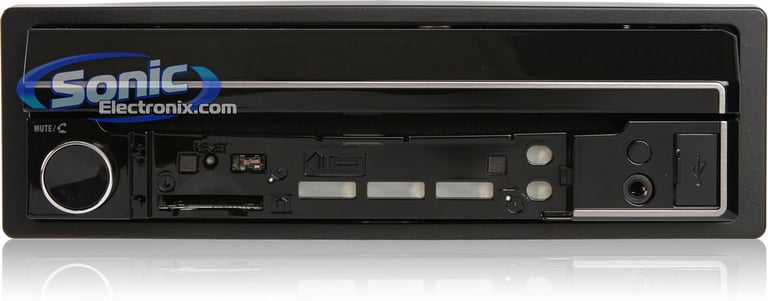

  • Motorized, flip-out screen with detachable face for security
  • 7" Full color LCD display

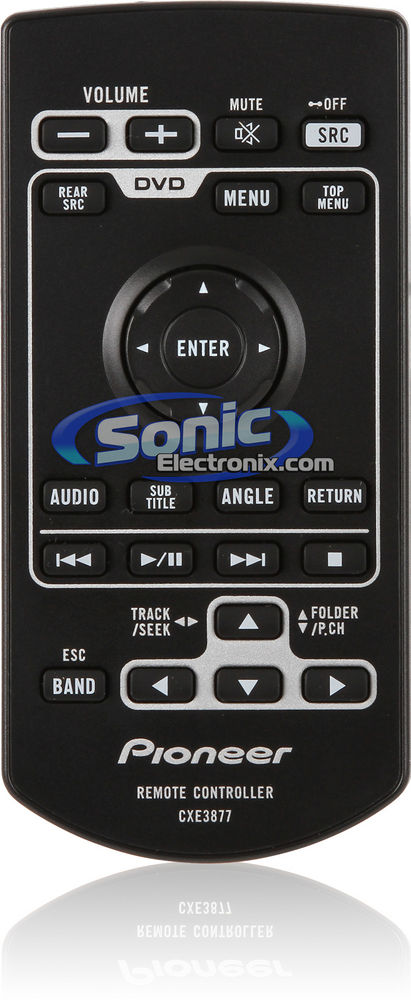

  • Wireless remote control included
  • Variable button lighting
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS (Pioneer Certified): 22 watts x 4 channels
    • RMS (CEA Certified): 14 watts x 4 channels
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year Sonic Electronix warranty

Playback and Audio Features:

  • Playback of DVD, VCD, DivX, CD, CD-R, CD-RW, MP3, WMA, AAC, and JPEG
  • Playback of Region 1 DVD discs
  • Supertuner IIID tuner with 18FM/6AM presets
  • Radio data system (RDS) displays radio broadcast information such as artist, title and album
  • EEQ (Easy EQ) 8-band graphic equalizer with 7 selectable tone curves (5 Preset, 2 User)
  • 3-Mode loudness control
  • Sonic Center Control adjusts for particular listening positions
  • Auto Equalizer Compatible: Pioneer CD-MC20 required and sold separately for automatic audio equalization inside the car
  • Advanced Sound Retrieval technology restores the lost frequencies that come with digital compression of music
  • High-pass crossover (50/63/80/100/125Hz)
  • Subwoofer crossover (50/63/80/100/125Hz)
  • Source Level Adjustment (SLA) enables the adjustment of volume levels between sources
  • APP Mode is more compatible with smartphone applications
  • PandoraLink integrates your car stereo with your iPhone and Pandora Internet Radio
  • Dolby Digital and Dolby Pro Logic audio decoders

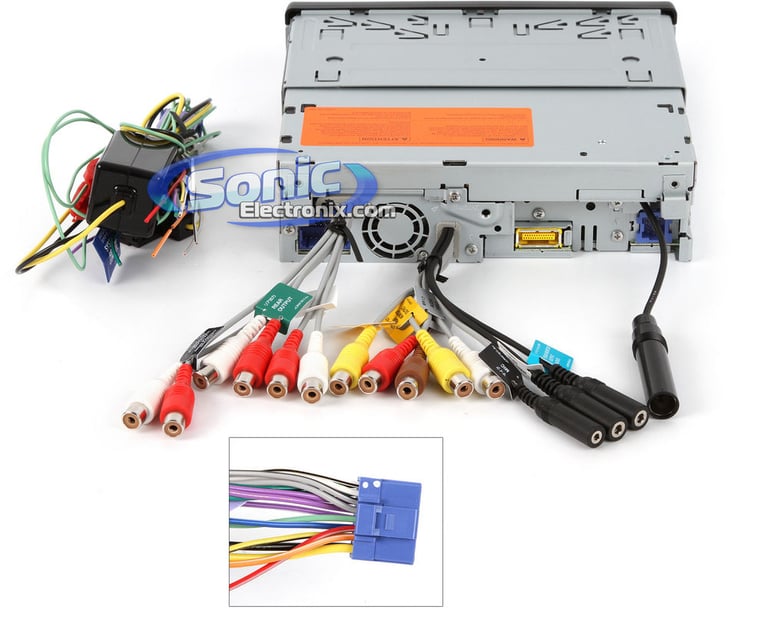

Expandability Options:

  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)
  • Integrated Bluetooth: Enables phones, headsets, and portable devices to be paired for phone-call streaming and hands free calling with included voice microphone
  • Navigation Ready: Pioneer AVIC-U220 required and included in this combo!
  • HD Radio Ready: Pioneer GEX-P20HD required and sold separately
  • SIRIUS or XM Satellite Radio Ready: A subscription is required for service as well as purchase of either the SIRIUS Radio Package or Pioneer GEX-P920XM
  • iPod/iPhone Ready: Pioneer CD-IU50V required and sold separately
  • Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
  • Front-panel USB input: USB Port allows connection to digital devices such as MP3 players, thumb drives, flash drives, etc.
  • Rear auxiliary input: 1 set of RCA Audio/Video Inputs
  • Rear auxiliary output: 1 set of Audio/Video Outputs (Video: RCA Composite. Audio 3.5mm stereo minijack)
  • Rear video input: Rear video input for rear view cameras with a RCA composite input, however the Pioneer ND-BC4 is recommended
  • Front panel SD/SDHC card slot for playback of digital media
  • Steering wheel remote ready: PAC SWi-PS or the Axxess ASWC required and sold separately

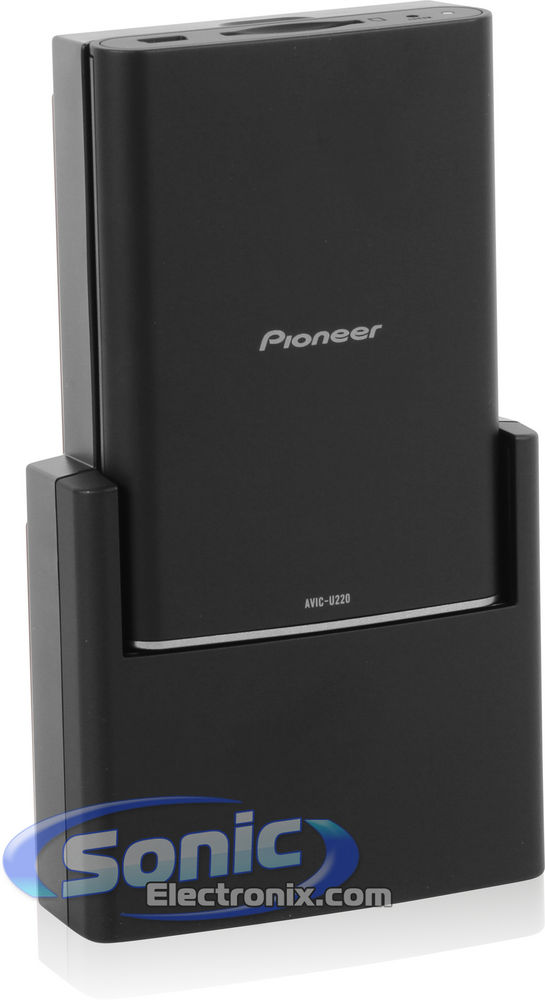

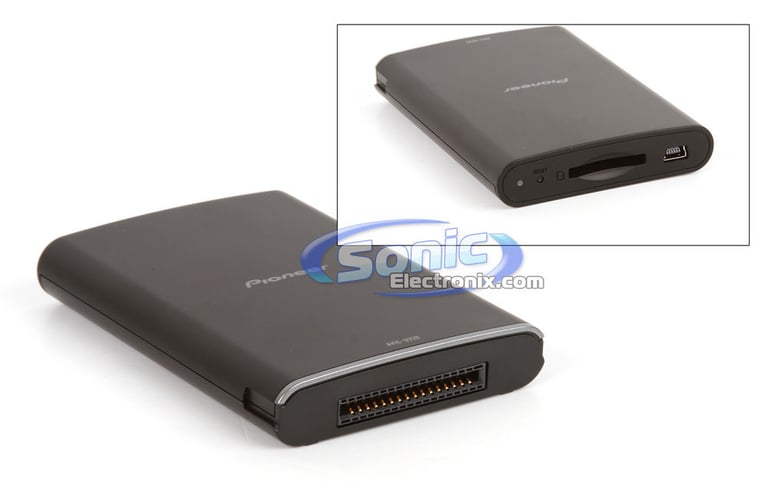

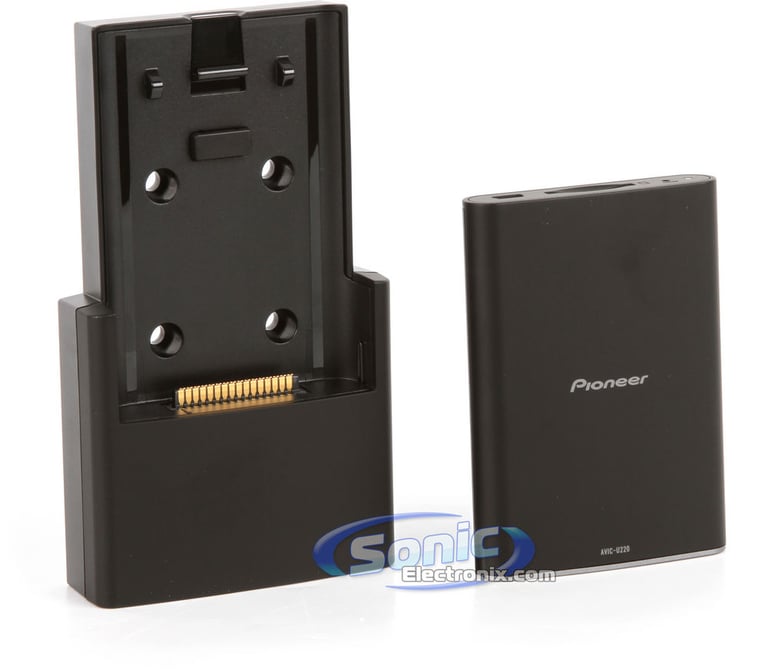

Navigation Features:

  • Fast and simple installation
  • Compact size fits in smaller locations behind dashes and panels

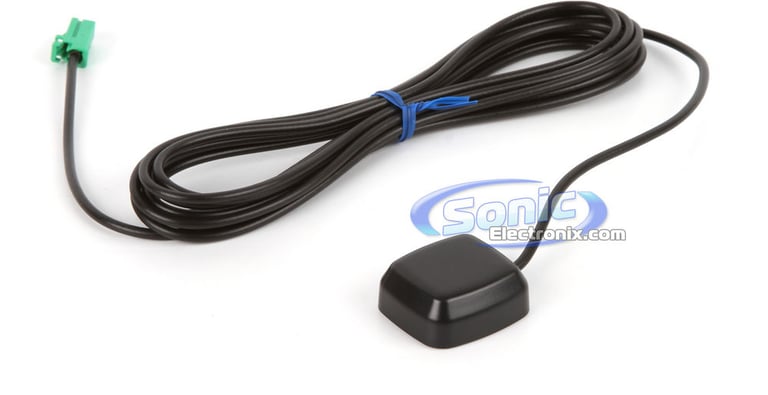

  • Includes the GPS satellite antenna
  • Comes pre-installed with maps for the entire United States and Canada
  • Over 12 million points of interest for convenient traveling
  • Navigation system is displayed on the units video screen
  • Voice prompts with turn-by-turn guidance make the navigation system convenient and safe
  • Multi-destination planning allows you to set a route with several destinations
  • Quickly reroutes if turns are missed
  • Compatible with the Pioneer AVIC Feeds system
  • Internal trip computer
  • SD card slot and USB input will allow future map updates
  • 20-channel GPS receiver
  • Dimensions: 6-3/4"L x 3-3/8"W x 1-1/8"H

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking
  • Bluetooth version 2.0 certified
  • Bluetooth range up to 32.8 ft.
  • Works with most Bluetooth enabled cell phones

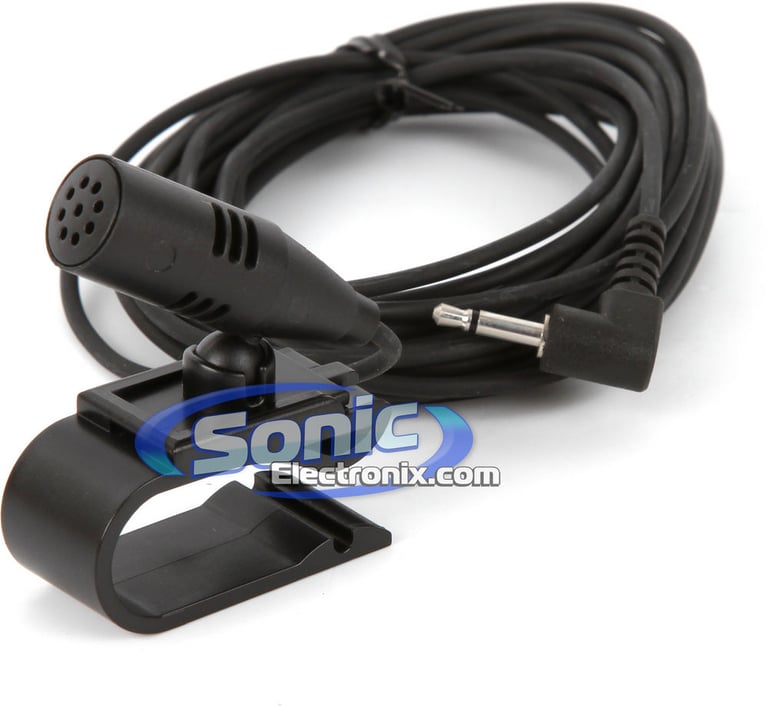

  • Includes a external wired microphone for distortion-free talking

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

D9-MST2015L-64GB small

Dynavin D9-MST2015L-64GB

• Replaces the 4" factory screen with a 10" touchscreen
• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(2)

$899.99

List price $899.99

D9-SP-MOST-64GB small

Dynavin D9-SP-MOST-64GB

• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(1)

$769.99

List price $699.99

D9-SLK small

Dynavin D9-SLK

• Custom Fit Bluetooth Digital Multimedia Receiver
• Compatible with select 2004-2010 vehicles from Mercedes-Benz
• 7" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• Built-in Navigation via Dynaway
• 3 sets of 3 volts preamp outputs
• 16-Band Equalizer

$935.99

List price $799.99

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
8-Band graphic equalizer with 7 preset tone curves
Display Type
TFT-LCD Display
Touchscreen
Yes
Display Adjustment
Black Level
Brightness
Color
Contrast
Dimmer
Hue
RGB Dot Adjust
Temperature
Expandability Features
Inputs
Audio/Video (Rear)
Auxiliary (Front)
Auxiliary (Rear)
Backup Camera
Outputs
Composite Video (RCA)
3.5mm MiniJack Audio
Memory Card Slot
SD
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
  • PAC SWI-PSv1: Pioneer Specific, Manual Programming Interface
  • Axxess ASWC: Universal, Automatic Programming Interface
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Navigation Features
Map Database
Tele Atlas
Maps
Complete 50 USA
Canada
Map Dimensional Display
2D
3D
Points of Interest
12 Million
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

AVH-P6300BT_AVIC-U220

Weight:

9.87lbs

Internal SKU:

avhp6300bt_avicu220

Internal Product ID:

34071

Product and How-to Videos


Customer Ratings & Reviews


Pioneer AVH-P6300BT & AVIC-U220 Navigation Package thumbnail image

5 star
63%
4 star
16%
3 star
9%
2 star
6%
1 star
6%



Durability
4.6
Value
4.2
Features
4.1
Design
4.3
Usability
4.2

Customer Reviews

Sort by:

Loading...

Poor Value

The following review is for AVIC-U220, which is a part of the bundle you are viewing.

I have used the product 10 times and out of the 10 only 6 times has it had the address i was looking for. All Pioneer will tell you is that you have to be 100 percent correct with the address. Even then it wouldnt work. I would not buy this product.

By Hubbs on September 30, 2011

54 found this helpful


Needs a Major Overhaul

The following review is for AVIC-U220, which is a part of the bundle you are viewing.

Don't get me wrong, the AVIC-U220 does what it says it does, it just doesn't look like it's as update as it should be for 2012. It's dated and looks more like a GPS unit from a decade ago. The roads are just lines, and there's no effort made to embellish the experience. If you're hoping for something that will look like Google maps or anything your smartphone can deliver, keep looking, this is not the unit for you. You also can't enter information while the vehicle is on the move, even if the passenger's doing it, even with the handbrake bypass. It detects GPS movement and there's no way around it.

That being said, if all you care about is a device that will get you from point A to point B, the AVIC-U220 does the job. Knowing what I know now, would I buy it again? Nope. I'd spend the extra bucks and get a head unit with it's own nav.

By Max on March 2, 2012

50 found this helpful


Great GPS

The following review is for AVIC-U220, which is a part of the bundle you are viewing.

This GPS unit integrates well with the Pioneer head units. Easy to use and navigate. Somewhat different from Garmin but integrated with the dvd units. If you use a tom tom or something other than Garmin, you'll love this add on.

By Miles on August 6, 2011

51 found this helpful


Good buy

The following review is for AVIC-U220, which is a part of the bundle you are viewing.

Good buy, but navigation could be better.

By Mrm on October 3, 2011

48 found this helpful


Pretty Sweet

The following review is for AVIC-U220, which is a part of the bundle you are viewing.

Well let me start off by saying next time I purchase a deck it will probably be a navi deck. This deck is pretty sweet I will list pros and cons.

Pros:
-you get navi in your car
-it is pretty accurate and the deck zooms in when you are turning a corner which for some intersections this function becomes so valuable
-price is pretty good

cons
-I wish it would tell you the address at all times or atleast when you get there, you input the address but then you never see it again
-some highways it will tell you to get off and then throw you back on the highway
-overall its pretty cool and I like it

I do recommend.

By Evilsin on July 22, 2011

50 found this helpful


Good unit!

The following review is for AVIC-U220, which is a part of the bundle you are viewing.

I would recommend this unit to anyone who is looking for a quality system for a great price. Bought two of them. One was for me (a low-end user) with the steering wheel controls and XM. The other was for my 17 year old son who pushes the sound system to its max. We are both very satisfied with the Pioneer system.

By Theresa on July 26, 2011

49 found this helpful


good and bad, but still cool

The following review is for AVIC-U220, which is a part of the bundle you are viewing.

The Pioneer Avic-u220 is a pretty decent gps unit considering that it is my first one, but on my next purchase i will most likely get an all in one unit. The unit is very useful and I would reconmend it to anyone looking for a basic GPS unit.

By d'ville on March 5, 2012

47 found this helpful


Works Great!

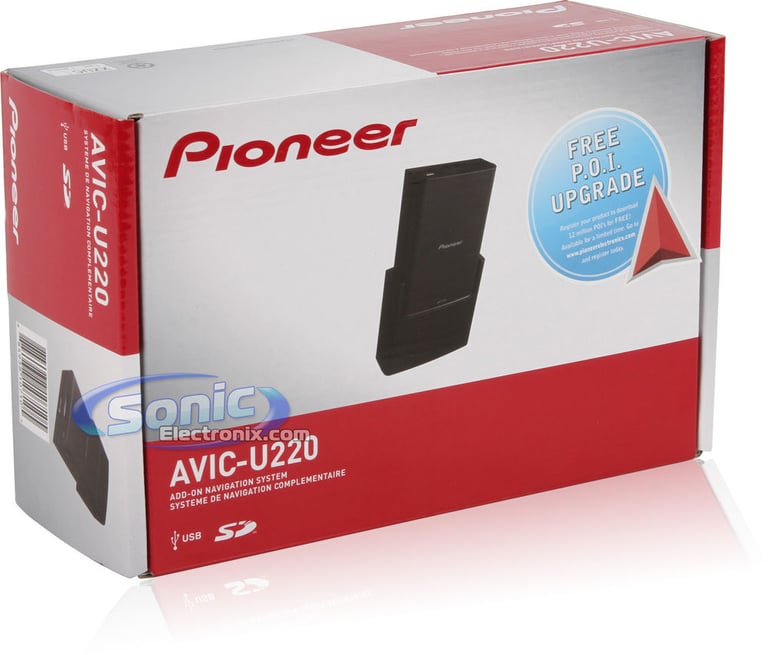

The following review is for AVIC-U220, which is a part of the bundle you are viewing.

The nav system works great. Easy to navigate and read. Very user friendly.

By Michael on February 23, 2012

48 found this helpful


GPS add-on for Pioneer AVH-P4200DVD

The following review is for AVIC-U220, which is a part of the bundle you are viewing.

Though I didn't absolutely need a GPS, I figured it would make sense to buy the unit and get it installed simultaneously with the Pioneer AVH-P4200DVD and Sirius radio adapter. The unit has basic functionality found in most GPS units but not much more. Biggest disappointment was that it did not have a built-in speedometer as even my cell phone GPS does.

By Carl on September 28, 2011

47 found this helpful


Good, but not great

The following review is for AVIC-U220, which is a part of the bundle you are viewing.

I have had other gps devices before and this is hands down the worst one I've had. The interface is not too bad but not as slick as say a Tom Tom, where it really falls down is the add ons, there are no, I repeat no free map updates, pioneer seems to annually offer an add on that you can buy to update the maps. Poi's is another thing, mine came with a offer for free points of intrest update (downloadable), I have placed three orders for it, several phone calls to pioneer, and still have not got the bloody download.

Another point that is just dumb is that you cannot program the device unless you are stopped with the e-brake on, this does not take into account that you may have passengers that are doing it for you, you can do favorites at least though.

Not updateable without an expensive update, weird interface, add on apps seem to be non existent (in Canada anyways), if your planning on a deck and u220 purchase I would skip this one and go for a name brand gps add in like Garmin or Tom Tom.

By Nep on October 4, 2011

46 found this helpful




No picture

Pioneer AVIC-N3 (DEFECTIVE - NO GUARANTEES - ALL SALES FINAL)

Core Unit without Face Plate

$75.00

List price $0.00

2-WG2520_A162-10CP small

Loaded Clarion Dual Bass Package for Select 2000-06 Chevy Silverado/GMC Sierra

2) Clarion WG2520 10" WG Series 1000W Car Subwoofers + 10" Subwoofer Enclosure for 2000-06 Chevrolet Silverado/GMC Sierra

(57)

$275.92

List price $389.96

AVIC-D3+CD-i200+CD-BTB200 small

Combo: Pioneer AVIC-D3 + CD-i200 + CD-BTB200

Double DIN 6.1" TFT-LCD Touchscreen DVD/CD/MP3 Receiver with GPS Navigation System PLUS iPod Adapter Cable Included AND Bluetooth Kit Included

(1)

$809.99

List price $1519.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Lincoln MKZ

2004 Volvo XC70

2024 Nissan Leaf

2017 Dodge Ram ProMaster 2500

2019 Nissan Frontier

2003 Kia Sorento

2018 Nissan Rogue

2021 Mazda CX-30

1985 Audi Quattro

2008 Ford Expedition EL

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
