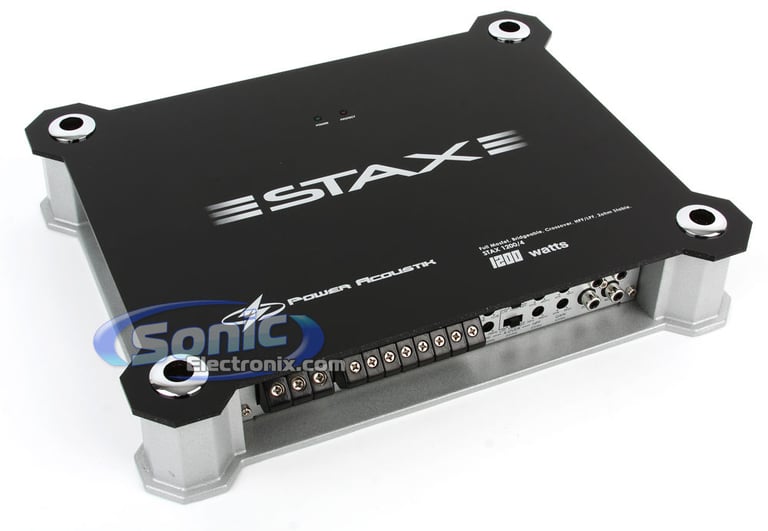

Power Acoustik STAX 1200/4 (STAX1200/4)

1200W Max, 4-Channel Class A/B STAX Series Amplifier

Product videos
highlight-star-icon

STAX 4-Channel Class A/B Car Amplifier • 100 Watts x 4 Chan. @ 4 Ohm • 125 Watts x 4 Chan. @ 2 Ohm • 1200 Watts Max • 3-Way System Protection Circuitry • MOSFET Power Supply • LED Power And Protect Indicators •

Learn more about the stax12004

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

HONK828 main

American International HONK828

Single DIN Stereo Dash Kit for select 1986-2012 vehicles from Honda, Acura, Isuzu

4
-50.03%

$16.99

List price $34.00

70-1720 main

Metra 70-1720 Wiring Harness

Install a new car stereo in select 1986-2005 vehicles from Honda, Acura, Isuzu

13
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

FKB116 main

MB Quart FKB116

240W Peak (120W RMS) 6.5" Formula Series 2-Way 4-ohm Coaxial Car Speakers

12
-56.26%

$34.99

List price $79.99

Limited time!
DMH-W3000NEX main

Pioneer DMH-W3000NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, and Wireless Apple CarPlay and Android Auto (Sirius XM Ready)

1
-22.22%

$419.99

List price $540.00

480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17

Product Highlights


STAX 4-Channel Class A/B Car Amplifier • 100 Watts x 4 Chan. @ 4 Ohm • 125 Watts x 4 Chan. @ 2 Ohm • 1200 Watts Max • 3-Way System Protection Circuitry • MOSFET Power Supply • LED Power And Protect Indicators •

Description


Power Acoustik brand icon

Authorized dealer

General Features
  • STAX 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 125 watts x 4 chan.
    • Bridged, 4 ohm: 250 watts x 2 chan.
  • Max power output: 1200 watts
  • MOSFET power supply
  • LED power and protect indicators
  • Bass Boost/EQ details (0-12 dB bass boost at 45 Hz)
  • 4/3/2 channel operation
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

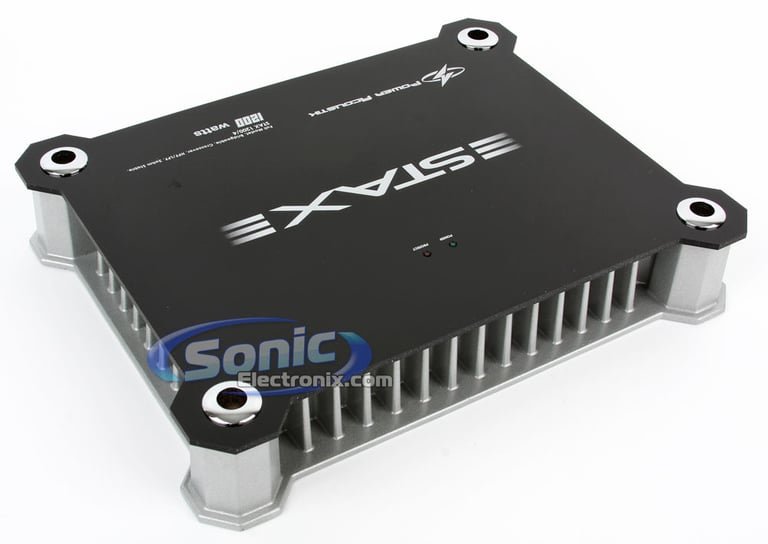

  • Heavy duty aluminum alloy heatsink for maximum heat dissipation

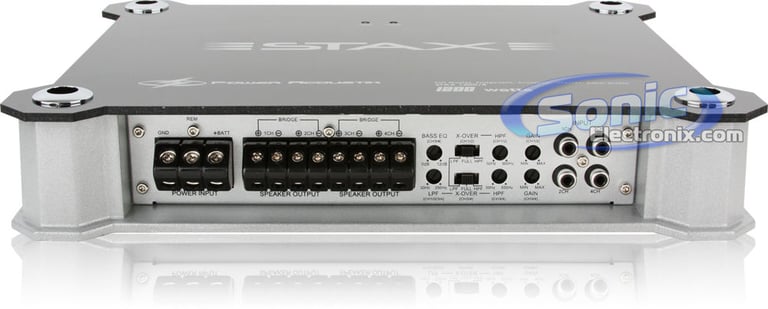

  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Frequency response: 10-30,000 Hz
  • Dimensions: 12-3/8"L x 9-5/8"W x 2-1/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Check out the STAX1200/4 blog post for more details.

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
250 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
97 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
50A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

STAX1200/4

Weight:

10.00lbs

Internal SKU:

stax12004

Internal Product ID:

17512

Product and How-to Videos


Customer Ratings & Reviews


Power Acoustik STAX 1200/4 (STAX1200/4) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4.5
Usability
4.8

Customer Reviews

Sort by:

Loading...

STAX1200/4 Nice Nice Nice

Ive had one of these for about 3 years now started out using it on midrange then i upgraded to some crazy loud pro audio 8 ohm band mids which are like 250W RMS each so I switched the amp over to my tweeters this amp is clean just as clean as the Alpine PDX-F4 and can run on as low as 10.5 volts surprisingly it never gets hot at all!! Im not a scientist but i think this amp is well power rated and is great for its price!!

By Mittchy Shotta on September 14, 2011

6 found this helpful


Great amp

This is a great amp I have it bridged to two channels pushing two Power Acoustik PEN-12W in a custom bandpass box and they pound I also have another stacked going into 4 Infinity full range speakers, I recommend an equalizer for a setup like mine tho otherwise your gonna have a hell of a time setting things up I have a Boss AVA-1204 7-Band Equalizer and everything sounds amazing!!!! I highly recommend this amp mainly because it can be stacked, it sounds great, and its affordable.

By Jared on May 27, 2011

7 found this helpful


OMG I LOVE THIS THINK

This amp is amazing and its half the price of the big brands and is rated for more power and it puts it down.

Pros

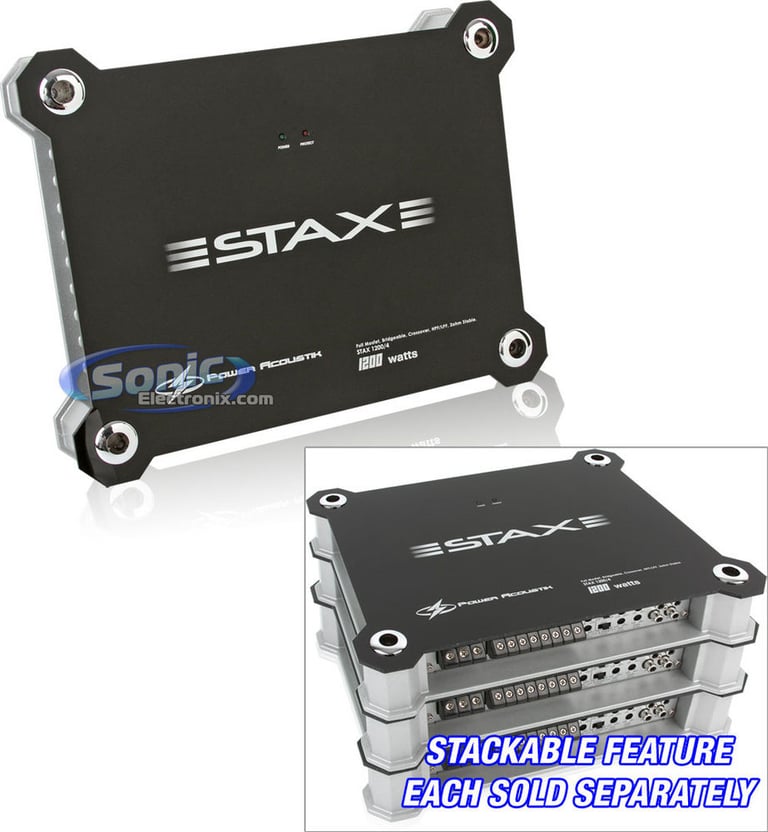

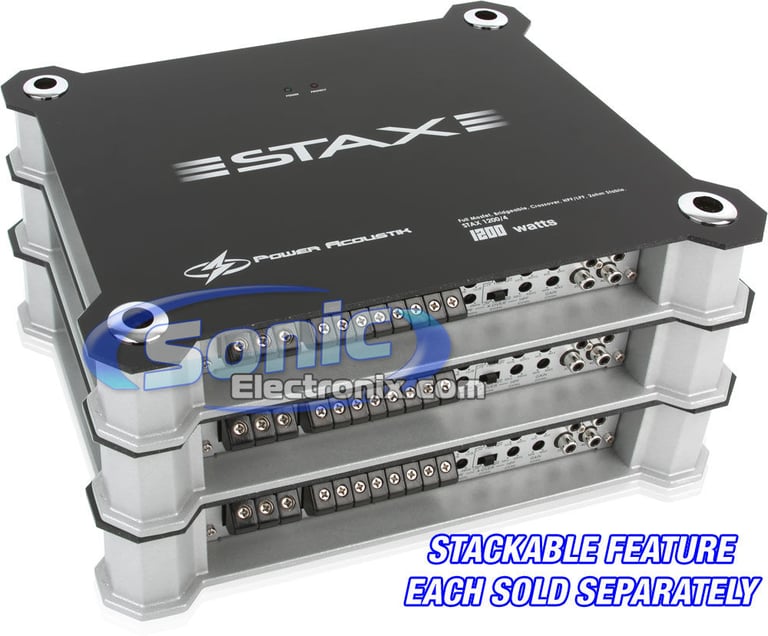

- They are stackable
- The price is great for budget builds
- Has the quality of a high end amp
- The amp board mounts to a aluminum plate which acts a heat sink
- Runs very cool
- Puts out clean power

Cons
- Doesn't have hex terminal screws

By Travis on March 11, 2011

6 found this helpful


WICKED!!!!!

Great purchase. The clarity of this amp is excellent, and it's not even turned all the way up. If I turn it half way, WOW!!! Ear piercing sound. A recommended purchase to all. BTW, you need to have a 4 way RCA cable to run a 4 way sound system and make sure your deck has a 4 way plus your sub. Luckily I researched this. I did not know that.

By MADA on August 12, 2010

5 found this helpful




E3-2 small

Encore E3 1-way Car Alarm

1-way 3-Channel Car Alarm with (2) 4-Button Transmitters and 2 Stage Shock Sensors

(3)

$39.99

List price $199.99

DEH-P5500MP small

Pioneer DEH-P5500MP

$209.99

List price $279.99

99-5814HG small

Metra 99-5814HG

Single DIN or Double DIN Stereo Dash Kit for select 2008-2012 vehicles from Ford, Mercury, Mazda (High Gloss Black)

$42.99

List price $78.99

VPLBPS small

Victor Fitness VPLBPS

100% Top-Grain Leather 7mm Thick 4" Wide to 2.5" Taper Heavy-Duty Dual Prong Pink Weightlifting Belt for Women made with Vegetable Tanned Leather (Small)

$19.99

List price $79.99

NE101S_R2D210 small

NVX NE101S w/ Rockford Fosgate Prime R2D2-10

Single 10" Sealed 3/4" MDF Black Carpeted Subwoofer Enclosure – 0.65 Cu. Ft. with Polyfil and NVX Logo w/10" Prime Series Dual 2-ohm Car Subwoofer

(24)

$155.98

List price $213.98

DEQ-P8000 small

Pioneer DEQ-P8000

5.1 Channel Digital Audio Processor with Dolby« Digital / DTSÖ / Dolby« Pro-Logic« II

$399.99

List price $499.99

AVIC-U250 small

Pioneer AVIC-U250

Add-On GPS Navigation System for Select Stereos

(1)

$349.99

List price $449.99

2H15-3.4-BLACK small

Sonic Sub Box: 2H15-3.4 (Black)

Dual 15" Hatchback MDF Enclosure

(2)

$54.99

List price $159.99

HB 2 15-GRAY small

Ground Shaker HB 2 15-GRAY

15" Dual Sealed Hatchback Subwoofer Box

$99.95

List price $149.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1997 Honda CR-V

1986 Mazda 626

2002 Mazda Protege

2015 MINI Cooper

2017 Ram 2500

2002 Mitsubishi Eclipse

2024 Jeep Gladiator

2009 GMC Acadia

2015 Ford Explorer

2002 Ford Explorer

Vehicle
Store
Delete

2007 Harley Davidson FXD Dyna Super Glide

Vehicle
Store
Delete

2018 Can-Am Defender HD8

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
