Product highlights

X-Program Monoblock Class AB Amplifier • 300W • Dual Speaker Terminals • Preamp RCA outputs • 3-Way System Protection Circuitry • Speaker-Level Inputs • Variable Bass Boost • Variable Low-Pass Filter • Phase Shift

Learn more about the xa10

NVX - Worth the Envy - Direct to Consumer Car Audio

Other Ram C/V owners bought

Product Highlights

Description

Authorized dealer

X-Program by DLS: Born to Play

The DLS X-Program was designed for those that love their music and love to listen at high levels. This specialized line from DLS has everything you need for a high-end, audiophile sound system. With precise engineering, these items still offer complete control of your audio and help you preserve the sound quality. The X-Program from DLS is a Sonic Electronix exclusive and is the perfect blend of performance and price. Just like the rest of the DLS products, the X-Program is designed and engineered by DLS in Sweden.

Born with Extreme Technology

X-Program amplifiers use class AB technology that is either all on or all off, so these amplifiers have low heat build-up in idle positions and are nearly 90% efficient. These full range analogue class AB amplifiers produce incredible power from a compact package so you can fit them almost anywhere, even under your front seat! All X-Program amplifiers are 4-ohm and 2-ohm stable so you can maximize you’re wiring options for speakers or subwoofers. Low-pass and high-pass filters allow you to tune your system just right by feeding your speakers only the frequencies they can handle, which reduces distortion. Phase shift of 180 degrees allows you to keep your subwoofer in phase with your speakers for the best tonal accuracy. Wrapping everything up, the silver finned heat sink is elegant and efficient removing any harmful heat generated from intense musical sessions. X-Program amplifiers were born to play rough, don’t let their compact size fool you.

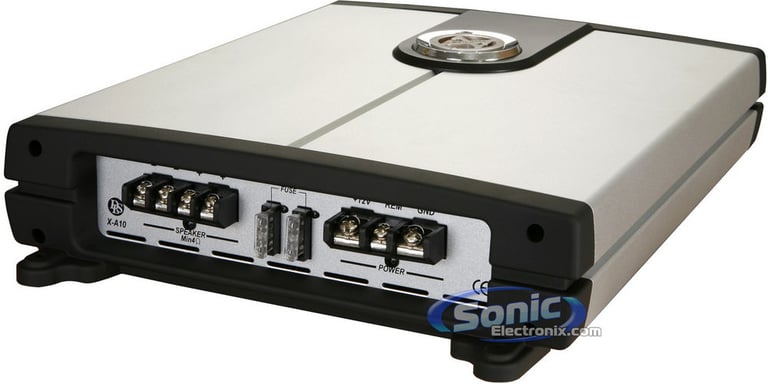

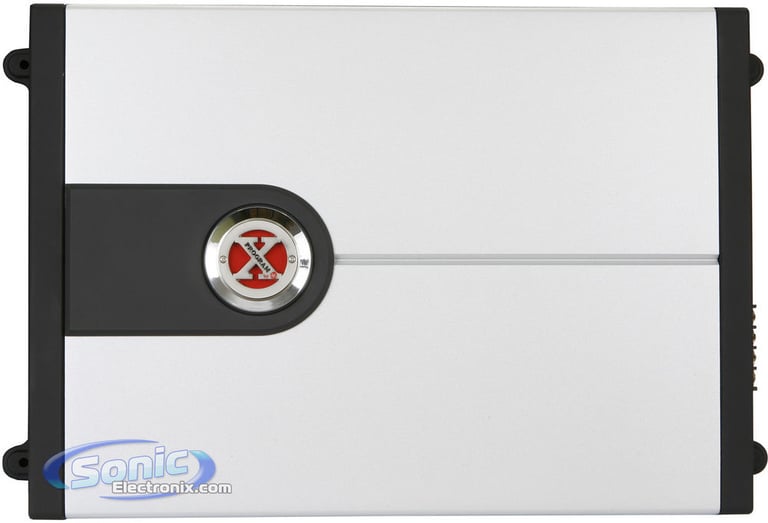

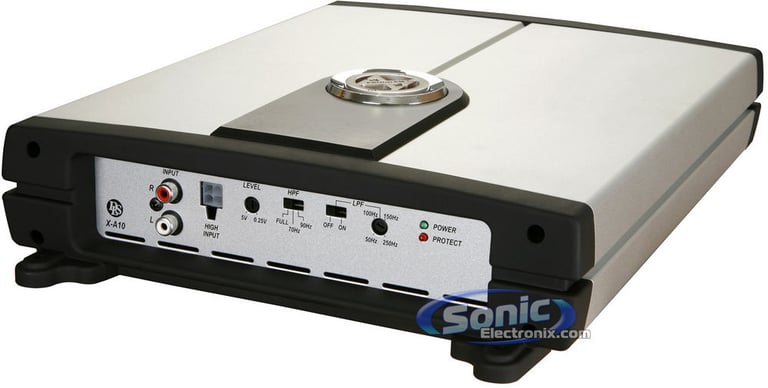

X-Program Monoblock Class AB Amplifier
RMS Power Rating:
- 4 ohm: 200 watts x 1 chan.
- 2 ohm: 300 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost)
Soft Start Turn-on
Mono channel operation
Speaker-level inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heatsink sink for extreme heat dissipation
Gold-plated RCA level inputs
Gold-plated screw terminals
Input sensitivity:
- High level: 0.25mV-5V
Variable low-pass filter (50-250 Hz, 18 dB/octave)
Subsonic filter (25 Hz)
Phase Shift: 0-180°
Damping factor: >80
Frequency response: 20-30,000 Hz
Dimensions: 14"L x 10"W x 2-13/16"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty
