Product highlights

Previously installed, used and wires cut
• RMS 75 x 1 @ 4 ohm
• Features Rockford Fosgate's Class-BR Topology
• CEA-2006 Compliant

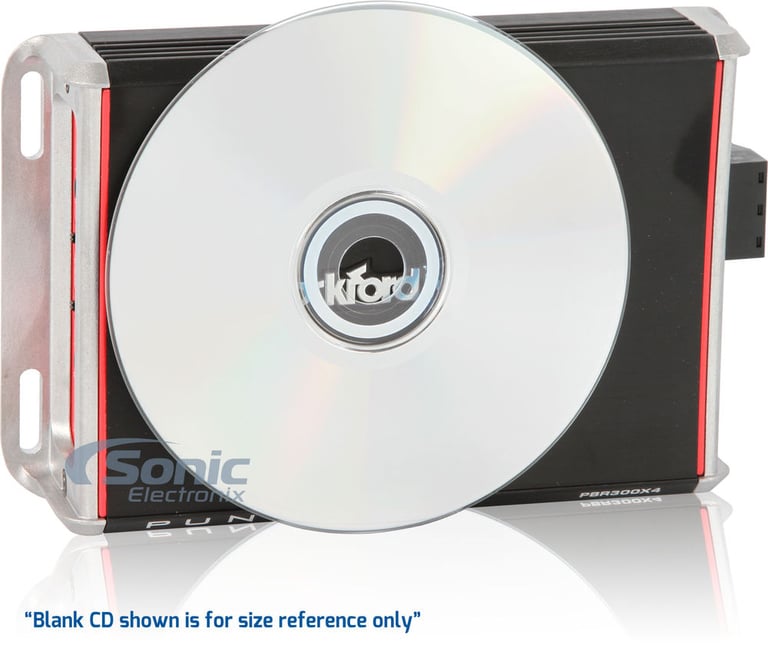

• Ultra Compact Chassis
• Boosted Rail Design
• Dimensions: 6.75"L x 4.25"W x 1.53"H

Learn more about the LS-pbr300x4-OBIra227891

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

PBR300X4 - 300 Watt Amplifier with Boosted Rail Technology

To achieve higher efficiency with lower distortion, Rockford's BR topology combines, Cycle-by-Cycle, an indirectly coupled high/low voltage rail linear topology with a switched high/low voltage linear rail topology. This combination yields an unsurpassed power density (watts per cubic inch). In addition, this patented technology allows the chassis design to be much smaller than traditional sized amplifier - 1.53" x 4.25" x 6.75" - making this amp a great solution for smaller stealth installations, motorcycles and recreational vehicles. In fact, now, with the introduction of the Rockford Fosgate RFKHD9813, installing the PBR300X4 into select 1998 - 2013 Harley Davidson motorcycles has never been easier. With unparalleled technology, flexible installation options, and big power from such a small footprint Rockford Fosgate has ensured that everyone can put a little Punch in any system.

MEHSA³ - Max Efficiency Heat Sink Application

MEHSA3 is a proprietary process that yields up to five times better heat transfer than traditional FET mounting techniques, using the exact same components. A multi-layer insulated metal substrate operating with minimal thermal resistance spreads heat both downward & outward to quickly dissipate heat from each device across the heatsink. This process allows Rockford Fosgate to squeeze more watts per cubic inch from every output device as well as provide consistent thermal stability. The higher power handling results in a 20% reduction in thermal impedance.

DSM - Discrete Surface Mounted Components

An industry-leading manufacturing process, DSM utilizes high-speed robotics, high-quality 1% tight-tolerance parts and large board traces. The discrete components are laser etched to meet a particular value and a very low tolerance. This lower tolerance improves the efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature. These superior components are used by aerospace, automotive, and cellular manufacturers.

Item Condition: Open Box Incomplete

Previously installed, used, and wires cut

General Features:

Punch Series BR Full Range 4-Channel Car Amplifier
RMS Power Rating:
- 4 ohm: 75 watts x 4 chan.
  This amplifier is only capable of operation at 4-Ohm
Features Rockford Fosgate's Class-BR Topology
CEA-2006 compliant amplifier

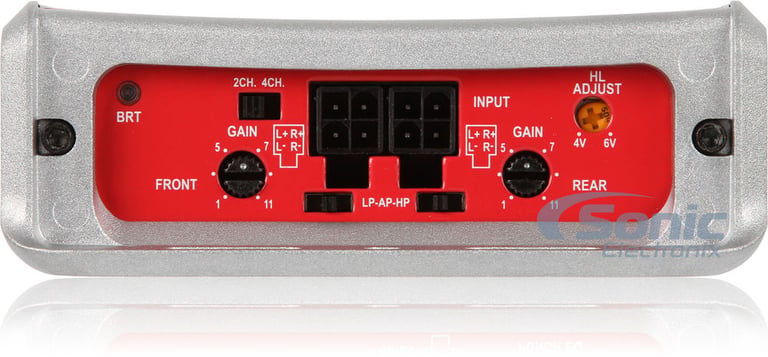

2/4 channel input switch
Ultra compact chassis
MOSFET output stage
Boosted Rail amp technology
Convection cooling design
Extruded aluminum heat sink

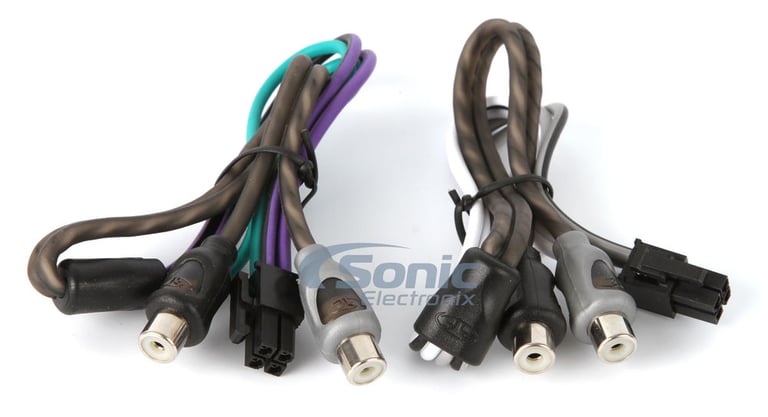

Low level RCA input connection
High level speaker input connection
12dB / Octave Butterworth crossover
Selectable High-Pass / Low-Pass Filter @ 80 Hz
Detachable Compression Terminals
LED power (blue) and protect (red) indicators
Variable 4-6 volt hi level DC offset voltage input turn-on control
Features MEHSA3 (Maximum Efficiency Heat Sink Application - gen. 3)
Perfect for smaller stealth installations
Great for motorcycles and recreational vehicles
Wiring w/ Mounting Plate for Harley-Davidson Motorcycles Available: Rockford Fosgate RFKHD9813

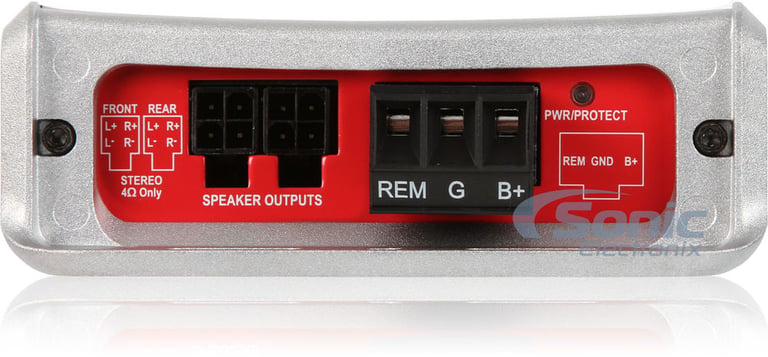

16 Gauge speaker wire output terminals
10 gauge OFC power and ground wiring is recommended for installation.
1-year Manufacturer's Warranty

Get a 1 Year Extended Warranty by adding a qualifying amp kit to order:

Amplifier Specifications:

Input sensitivity:

Low level: 150mV - 4V
High level: 400mV - 11V

Operating voltage: 9 - 16 VDC
Recommended fuse rating: 50 A x 1
(not included)
Max. current draw (13.8V Sinewave): 40 A
Average current draw (13.8V Music): 20 A
Frequency response: 20 - 20,000 Hz, +/- 1 dB
Total harmonic distortion: <1.0%
Signal to Noise Ratio: ≥100 dB
CMRR: >55 dB @ 1 kHz
Damping Factor: >200
High-Pass: Selectable 80Hz @ 12dB/Octave
Low-Pass: Selectable 80Hz @ 12dB/Octave
CEA-2006 Power Rating: 75W x 4 @ 4Ω ≤1.0% THD+N
Weight: 3.038 lbs
Dimensions: 6.75"L x 4.25"W x 1.53"H

Check out the Rockford Fosgate Punch PBR500X1 Owner's Manual

Check out the Class-BR Amplifier Installation Advisory From Rockford Fosgate

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

Amplifier Specifications

Series

Punch BR Series

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

300 watts

Maximum Input Gauge Size

10 AWG

Minimum Impedance Unbridged

4 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<1.0%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

Fixed 80 Hz

Low-Pass Crossover Frequency

Fixed 80 Hz

Signal-to-Noise Ratio

100 dB

Remote bass/level controller

Fuse Rating

30A X 1 In-Line Fuse Recommended

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
