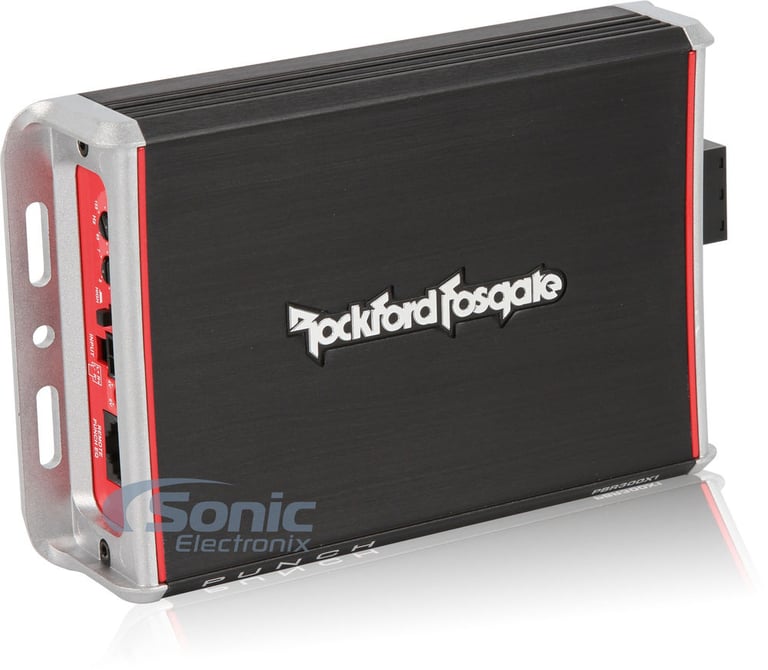

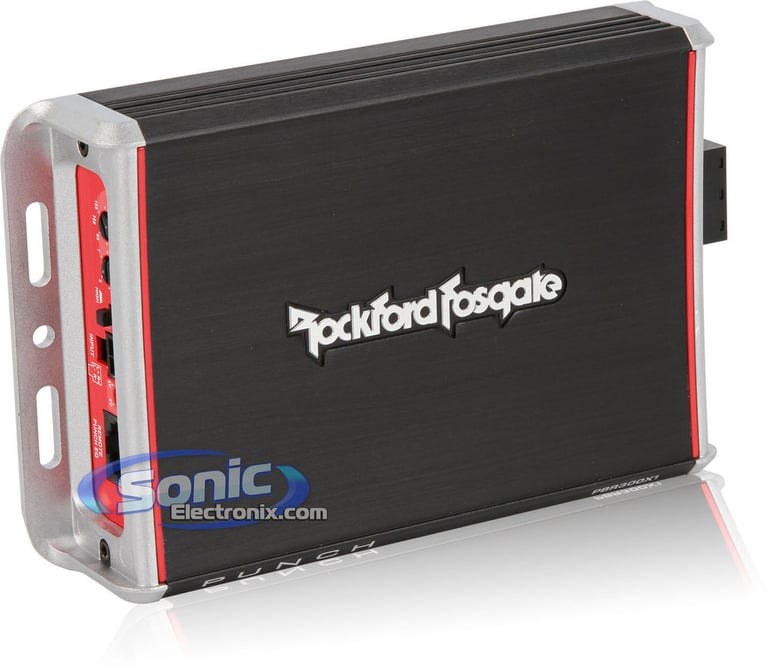

Rockford Fosgate PBR300X1 (Open Box, Damaged Packaging)

Open Box 924W Max 1-Channel Monoblock Class BR Punch Boosted Rail Amplifier

Lowest price in 30 days
Product videos
highlight-star-icon

Punch Series BR Mono Block Car Amplifier • 75W at 4 Ohm • 150W at 2 Ohm • 300W at 1 Ohm • Ultra Compact Chassis • High Level Speaker Input • NOMAD Protection Circuitry • CEA-2006 Compliant

Learn more about the LS-pbr300x1-OB

We apologize

This item has been discontinued

Product Highlights


Punch Series BR Mono Block Car Amplifier • 75W at 4 Ohm • 150W at 2 Ohm • 300W at 1 Ohm • Ultra Compact Chassis • High Level Speaker Input • NOMAD Protection Circuitry • CEA-2006 Compliant

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Damaged Packaging Only:
A Brand New with Damaged Packaging product is an untouched, unused product, but has damaged original packaging. While the product should be untouched and perfect condition, select packaging materials, such as original protective wrapping, if any, maybe missing or damaged. The original manufacturer warranty, if any, still applies, with warranty details included in the listing description or comments. Instructions are included. Product is suitable for presenting as a gift so long as recipient appreciates a great item, not packaging.
Product Features:
  • Punch Series BR Mono Block Car Amplifier
  • Item Condition: Open Box
  • RMS Power Rating:
    • 4 ohm: 75 watts x 1 chan.
    • 2 ohm: 150 watts x 1 chan.
    • 1 ohm: 300 watts x 1 chan.
  • Max Power: 924 watts x 1 chan.

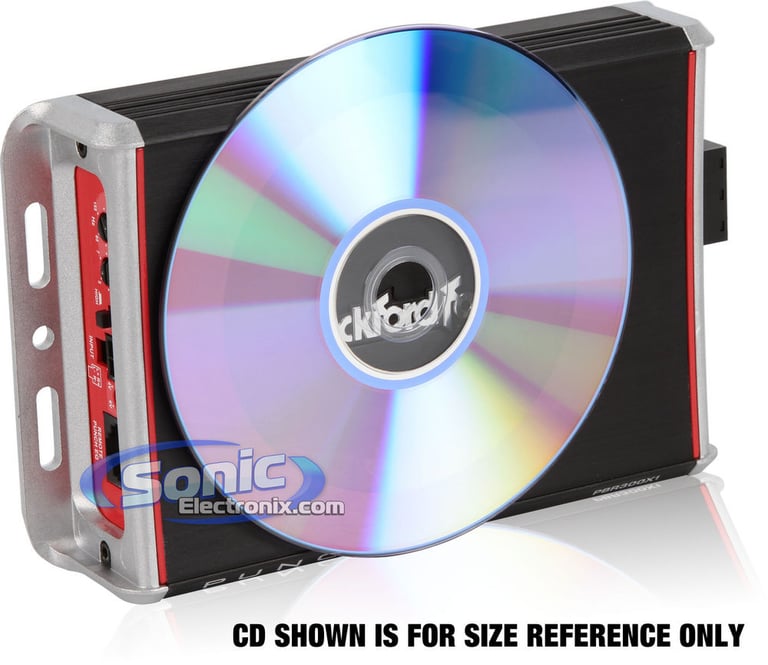

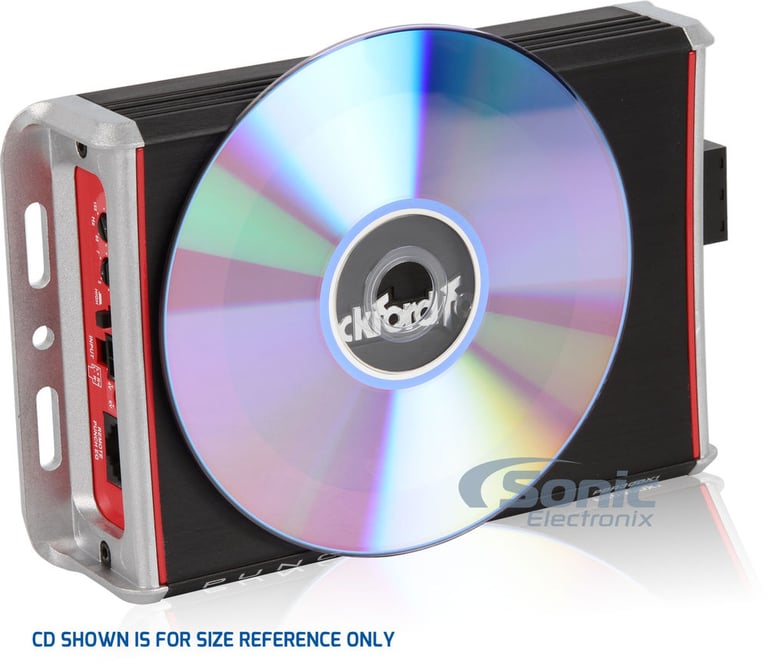

  • Ultra compact chassis

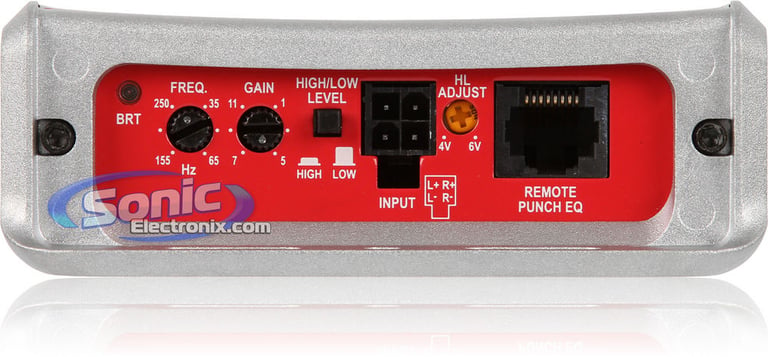

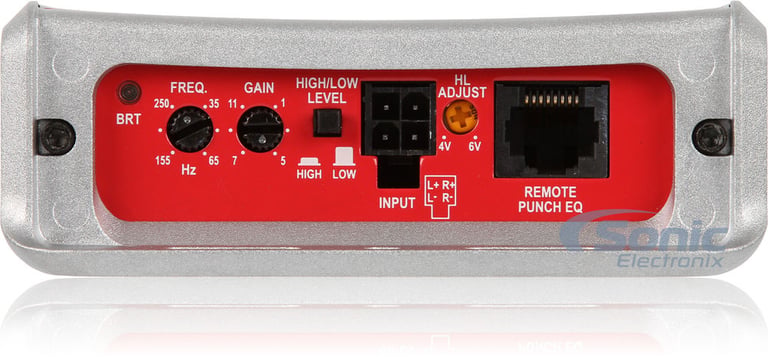

  • Remote bass level input (remote level control sold separately)
  • LED power and protect indicators
  • Mono channel operation
  • Optional PEQ provides 0dB to +18dB @ 45Hz

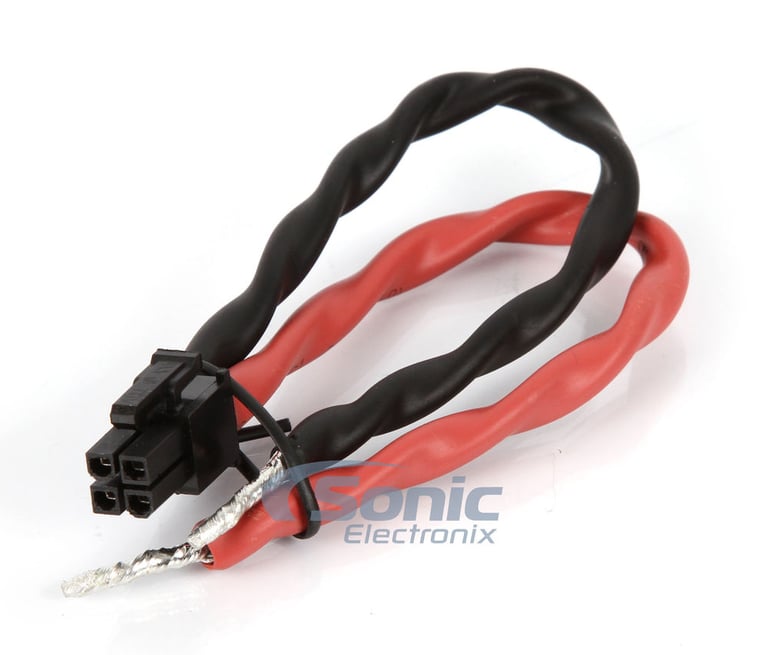

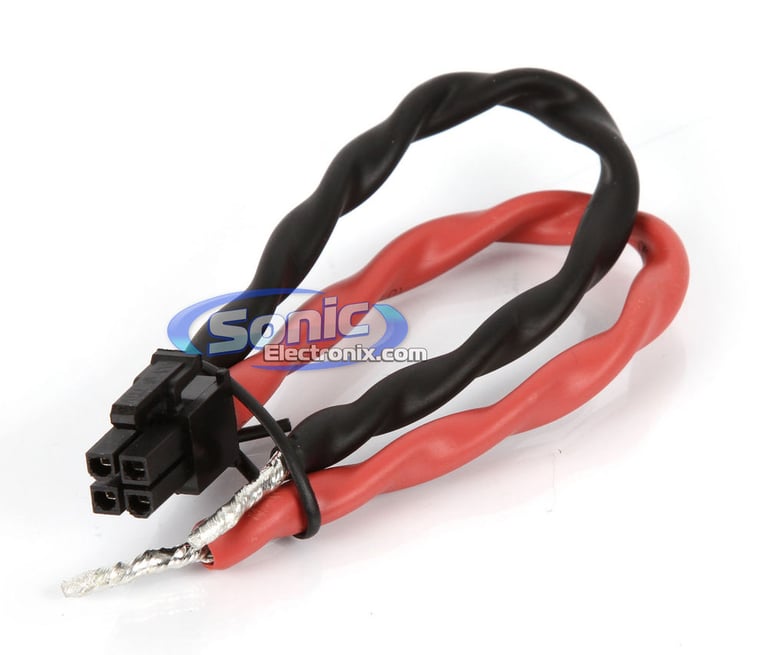

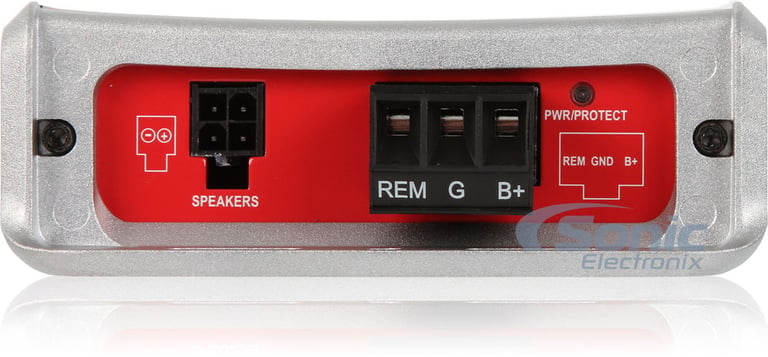

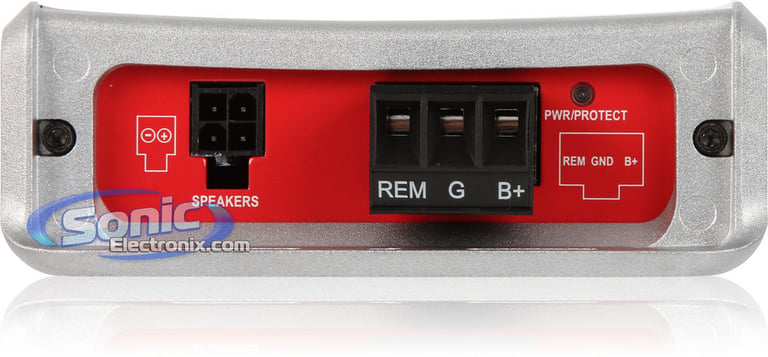

  • High level speaker input connection

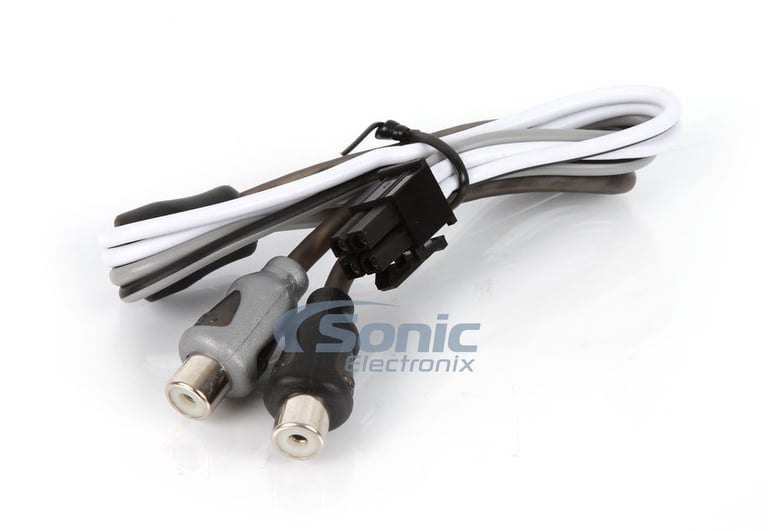

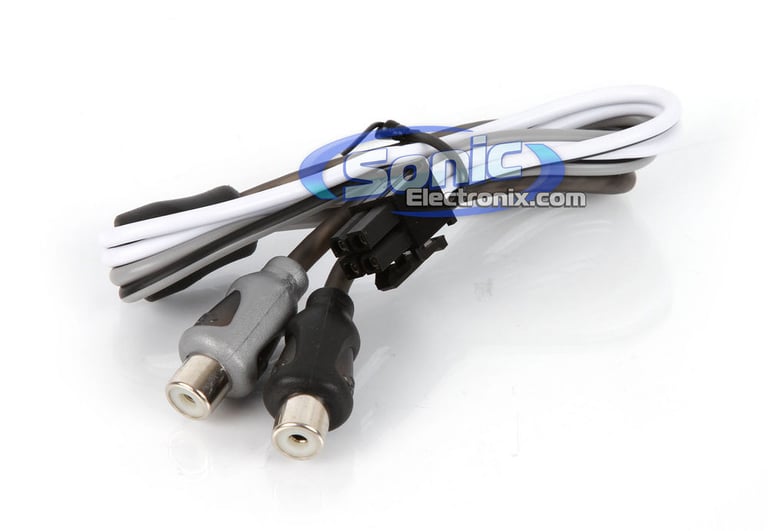

  • Low level RCA input connection
  • NOMAD protection circuitry
  • Convection cooling design
  • Extruded aluminum heat sink
  • Input sensitivity:
    • Low level: 150mV-4V
    • High level: 400mV-11V
  • Variable DC offset sensitivity
  • Built-in 12dB/octave Butterworth crossover
  • Crossover frequency: 35-250 Hz
  • Frequency response: 20-250 Hz
  • Damping factor: >200
  • CEA-2006 compliant amplifier
  • Frequency response: 20-250 Hz
  • Dimensions: 6-3/4"L x 4-1/4"W x 1-1/2"H
  • 10 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-Year Sonic Electronix Warranty

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
75 watts x 1 channel
RMS Power @ 2 ohms
150 watts x 1 channel
RMS Power @ 1 ohm
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
BR
Number of Channels
1 - Mono
Total Peak Power Output
924 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
10 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
< 0.2%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Signal-to-Noise Ratio
105 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
External Battery Fuse Rating 30A
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

PBR300X1-OB

Weight:

2.58lbs

Internal SKU:

LS-pbr300x1-OB

Internal Product ID:

52877

Product and How-to Videos


  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Rockford Fosgate PBR300X1 (Open Box, Damaged Packaging) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.9
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

It's so small and powerful!

The following review is for PBR300X1, which is a part of the bundle you are viewing.

Okay, so get over the "That's what she said"-ish title, this amp fears no man! It is the size of my palm for crying out loud! The RF PBR300X1 is a fantastic amp for your system. Being that it is 1 ohm stable producing 300 watts RMS (my amp birthing sheet gave it a 327 RMS!), it matches the RF P3S-1X12 or P3S-1X10 to a tee! Being that I opted for the 12, I am more than satisfied. Do yourself a favor and get the RF PEQ bass knob and true 10 AWG OFC wire (like the Kicker DPK10, idea?) to power this little war-horse. So, what are you waiting for? PUT IT IN THE CART!

By Will on November 29, 2013

80 found this helpful


Great for powering small factory subs

The following review is for PBR300X1, which is a part of the bundle you are viewing.

Ran it in an 2010 Honda Ridgeline. Replaced factory radio with double din and installed the amp behind the stereo. Powers factory sub great. An easy fix/upgrade when needing to run factory sub with aftermarket radio.

By Jon on July 16, 2014

76 found this helpful


This little amp is a beast!

The following review is for PBR300X1, which is a part of the bundle you are viewing.

I have this hooked up to an RE Audio SRi 10" in a 1.5ft3 probox and this thing slams. You can hear it down the street. Birth sheet said 94 watts at 4ohms, 175 watts at 2ohms, 304 watts at 1ohm, and a max of 911 watts. I recommend getting the PEQ remote because there are no adjustments of the +18db punch eq other than from the optional remote. I can't wait for the release of the PBR300X4 to hook up my highs, just ordered a new set of power RF T1652 to go with my 525s.

By rollnbluntz on June 5, 2011

76 found this helpful


Great amp! Great price! Fantastic seller!

The following review is for PBR300X1, which is a part of the bundle you are viewing.

Small, powerful, maintenance free and does not get stressed pushing the Rockford 1 ohm 10" slim design subwoofer. Great product

By Pjhernandez3 on September 16, 2013

73 found this helpful


Little Giant Amp

The following review is for PBR300X1, which is a part of the bundle you are viewing.

I use Rockford Fosgate PBR300X1 for drive sub woofer box. It's very compact with high power. Enough for drive bass power. It's a good choice.

By Narong on February 23, 2012

75 found this helpful


This amp rocks

The following review is for PBR300X1, which is a part of the bundle you are viewing.

I really like this amp alot. I have two of these in my car running two 2011 P3 12s. (One to each sub wired at 1ohm). These slam! I custom built a box to spec for the subs and no-one believes me that they are taking only 300 watts RMS each. People cant believe the power these little guys can push. They sound great and can fit in tight spaces. You would almost have to hear it to believe it, they did SO much better than I had expected. I also paired these with a PEQx3 and are run through a 360.2.

By Nate on October 8, 2011

72 found this helpful


Rockford Fosgate Punch PBR300x1

The following review is for PBR300X1, which is a part of the bundle you are viewing.

I was planning on using only one Rockford punch amp in my Saturn Sky project. But after hooking everything up in the basement and seeing how well the Punch PBR 300x1 drove my sub-woofer. I decided to replace the new Kenwood amp I purchase with a second RockFord Punch PBR 300x2. I couldn't believe the difference this amp made on my door speakers. I would high recommend these amps, especially if you have minimal installation space.

By John on May 4, 2014

75 found this helpful


Small Package Amp that Rocks

The following review is for PBR300X1, which is a part of the bundle you are viewing.

This amplifier has been fantastic. So much clean POWER from such a small package. Easy to mount, easy to hide, it's just a great piece of audio engineering. I would HIGHLY recommend this amplifier to anyone in need of a very solid amp, in a very small package.

By Soundmaven on January 16, 2012

71 found this helpful


Punch!

The following review is for PBR300X1, which is a part of the bundle you are viewing.

These little amps are fantastic! This is the first mono version 300x1. Running 2 10s in parallel for 2 ohm loaf. Amp only gets warm to the touch when run hard. So small it will hide in small spaces for a stealth installation. Also the PLC2 makes this amp even better, easy thump control for changing music.

By Paxton on April 14, 2018

15 found this helpful


good amp for hybrid

The following review is for PBR300X1, which is a part of the bundle you are viewing.

Used in 2010 Prius. Seems to have plenty of power for the subwoofer, and does not draw much power at all. I really like that all the connections are removable. Great price on sale!

By A on August 3, 2020 Checkmark Icon Verified purchase
