Name: Rockford Fosgate R1200-1D Open Box Complete
Brand: Rockford Fosgate
SKU: ls-r12001d-obc6
Price: 226.99 USD
Availability: Discontinued

by Rockford Fosgate

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

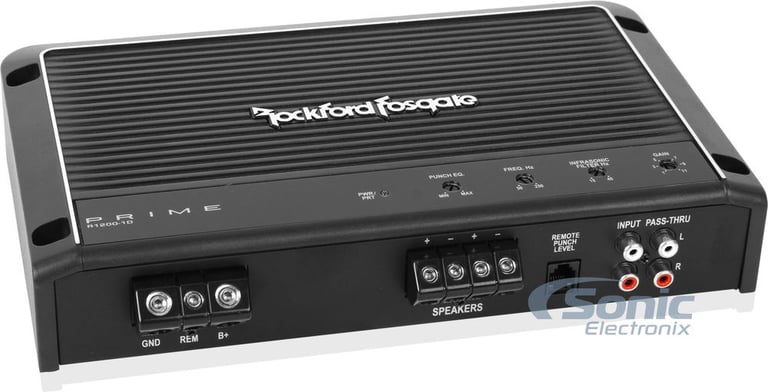

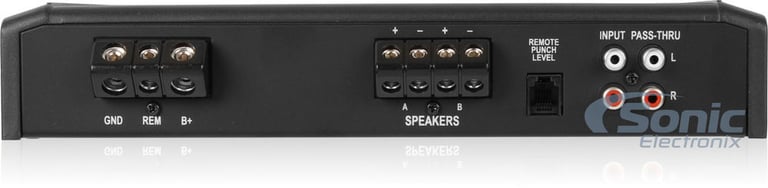

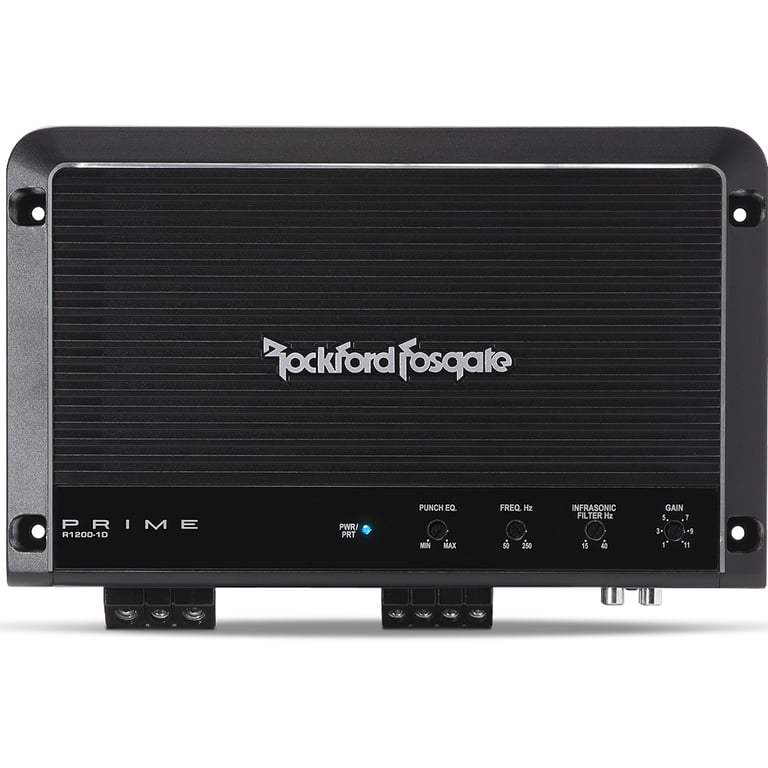

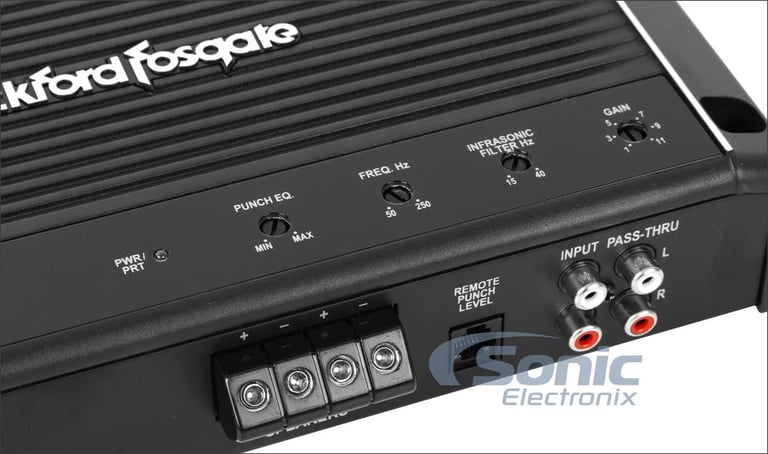

Rockford Fosgate R1200-1D Open Box Complete Image 1 — Rockford Fosgate R1200-1D Open Box Complete

Rockford Fosgate R1200-1D Open Box Complete Image 2 — Rockford Fosgate R1200-1D Open Box Complete

Rockford Fosgate R1200-1D Open Box Complete Image 3 — Rockford Fosgate R1200-1D Open Box Complete

Rockford Fosgate R1200-1D Open Box Complete Image 4 — Rockford Fosgate R1200-1D Open Box Complete

Rockford Fosgate R1200-1D Open Box Complete Image 5 — Rockford Fosgate R1200-1D Open Box Complete

Rockford Fosgate R1200-1D Open Box Complete Image 6 — Rockford Fosgate R1200-1D Open Box Complete

Rockford Fosgate R1200-1D Open Box Complete Image 7 — Rockford Fosgate R1200-1D Open Box Complete

Rockford Fosgate R1200-1D Open Box Complete Image 8 — Rockford Fosgate R1200-1D Open Box Complete

Product highlights

• Open Box Complete
• RMS: 400W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total RMS Power: 1200W
• CEA-2006 Compliant
• Tuned Bass EQ: 0 to +18 dB
• Class D Circuitry
• Dimensions: 6-3/4"L x 11-1/16"W x 2"H

Learn more about the ls-r12001d-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

A part that is fully functional but shows no sign of use outside of installation.

General Features:

Rockford Fosgate Prime Series R1200-1D
Class-D 1-Ohm Stable Monoblock Amplifier
RMS Power Rating:

4 ohm: 400 watts x 1 chan.
2 ohm: 800 watts x 1 chan.
1 ohm: 1200 watts x 1 chan.

CEA-2006 Compliant Amplifier
Pulse Width Modulated MOSFET power supply

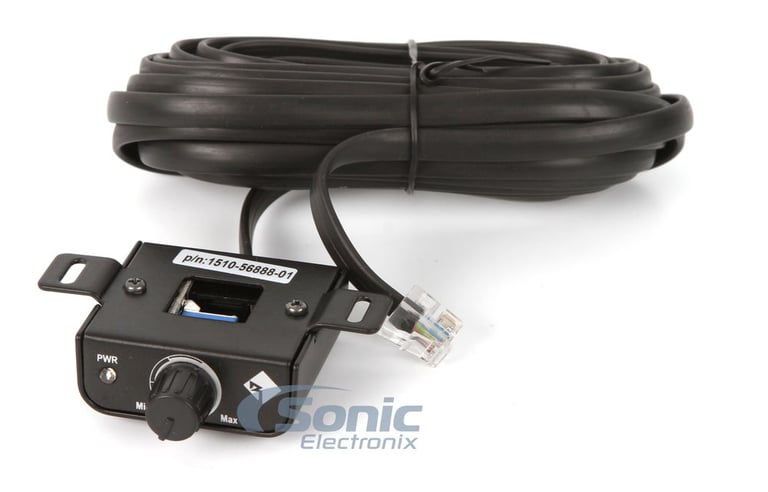

Wired remote bass level control included
LED power (green) and protect (red) indicators
Soft start turn-on
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Input sensitivity: 150mV - 4V
Frequency Response: 20 - 250Hz
Total Harmonic Distortion (THD): <1.0%
Signal to Noise Ration: 100dB
Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
Subsonic (infrasonic) filter: 15 - 40 Hz , 12 dB/octave
Variable Bass Boost: 0 to +18 dB bass boost at 45 Hz
Fuse Rating: 150A x 1 (recommended, not included)
12 AWG speaker wire gauge outputs
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Weight: 7.825 lbs
Dimensions: 11.06"W x 6.77"L x 1.97"H
Also Found As: Prime 1200 Watt, R12001D, R1200, R12001
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

400 watts x 1 channel

RMS Power @ 2 ohms

800 watts x 1 channel

RMS Power @ 1 ohm

1200 watts x 1 channel

Amplifier Specifications

Series

Prime Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

2400 watts

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

1.0%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

100 dB

Remote bass/level controller

Yes

Fuse Rating

150A In-Line Fuse Required

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
