FLI Audio Frequency 10 (FF10-F4)

10" Single 4 ohm Frequency Series Car Subwoofer

FLI Audio
Shop all FLI Audio
Product videos
highlight-star-icon

10" Frequency Series Subwoofer • Single 4 Ohm • 1000W Max • 300W RMS • Polypropylene Cone with FLI EYE Technology • Heavy Roll Butyl Rubber Surround • 49 Oz Ferrite Magnet • Dual Spider Design

Learn more about the ff10f4

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

C3-525 main

JL Audio C3-525

300W Peak (150W RMS) 5.25" C3 Series 2-Way 4-ohm Component Speaker System

2

Product Highlights


10" Frequency Series Subwoofer • Single 4 Ohm • 1000W Max • 300W RMS • Polypropylene Cone with FLI EYE Technology • Heavy Roll Butyl Rubber Surround • 49 Oz Ferrite Magnet • Dual Spider Design

Description


FLI Audio brand icon

Authorized dealer

Reaching an Improved Frequency with FLI Audio

The new Frequency series subwoofers from FLI Audio have been improved for a better and more accurate bass reproduction. The come available in a 10" or 12" woofer size and feature an injection molded Electroplated woofer cone that will create a more articulate and faster bass. The use of a Butyl rubber will deliver improved frequency response as well as added woofer protection from high excursion levels. The woofers are rated at 300W RMS for the 10" and 400W RMS for the 12" giving you enough power to really hit those lower frequencies. The single 4 ohm voice coil make them easy to wire to a monoblock amplifier of even a 2-channel amplifier at the bridged impedance giving the subwoofers versatility in wiring. If you are looking for a dependable woofer that will sound great and not break the bank then FLI Audio's Frequency series subwoofers are the way to go.

  • 10" Single 4 Ohm Frequency Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 300 watts
    • Minimum input: 150 watts
  • Impedance: 4 Ohm
  • One piece absorbing polypropylene cone with FLI EYE technology
  • Heavy roll butyl rubber surround
  • New rubber gasket design
  • Dual spider for smoother movement and greater linearity
  • Enhanced voice coil surround

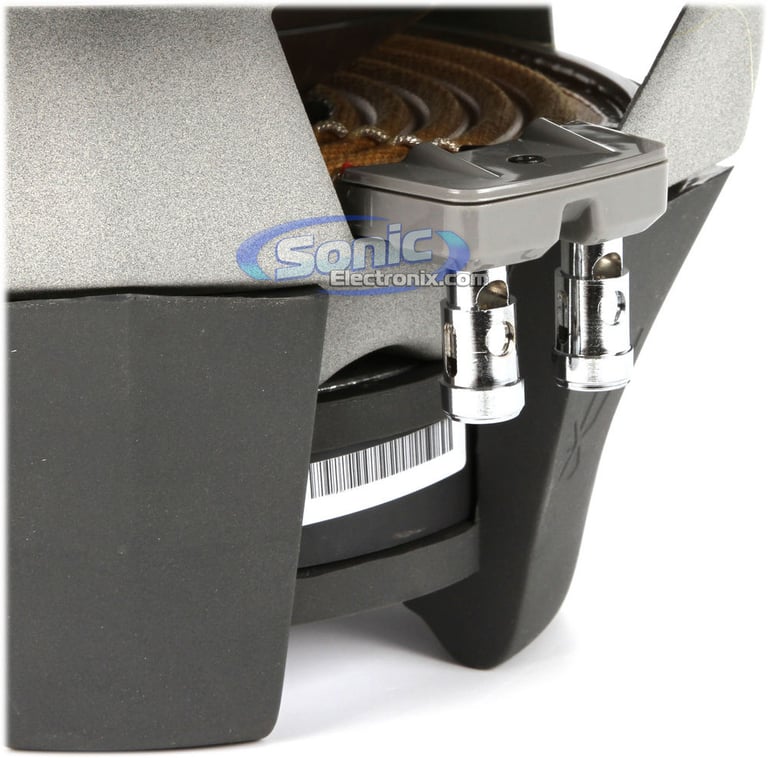

  • Nickel plated spring terminals
  • 2” Dual layer aluminium voice coil
  • 49 Oz Ferrite magnet is 5-1/2" in diameter and 3/4" thick
  • Frequency response: 30-1,700 Hz
  • Sensitivity: 89 dB
  • Mounting Depth: 5"
  • Cut Diameter: 9-1/4"
  • Other search terms: Frequency10
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

FLI Audio FF10-F4 thumbnail
(newest, current model)
FLI Audio FF10-F2 thumbnail
(previous model, replaced by FLI Audio Frequency 10 (FF10-F4))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 FLI Audio Frequency 10 (FF10-F4) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 FLI Audio Frequency 10 (FF10-F4) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 FLI Audio Frequency 10 (FF10-F4) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 FLI Audio Frequency 10 (FF10-F4) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

186
-38.19%

$255.08

List price $412.71

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Frequency Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
30 - 1,700 Hz
Sensitivity
89 dB
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

FF10-F4

Weight:

9.50lbs

Internal SKU:

ff10f4

Internal Product ID:

34952

Product and How-to Videos


Customer Ratings & Reviews


FLI Audio Frequency 10 (FF10-F4) thumbnail image

5 star
0%
4 star
67%
3 star
33%
2 star
0%
1 star
0%



Durability
4
Value
4.4
Features
3.7
Design
4
Usability
3.7

Customer Reviews

Sort by:

Loading...

NOT BAD AT ALL

The reason why i recomend these cuz they say 300 rms that is continiously but i have a compitition orion hcca amp 1200 max hooked up to it by mobile one profesional's my gain being turned more then half way up and this single 10 is taking it like a pro no distortion or sign of smoke or smell from the voice coil and honestly people ask wut do i have in my honda accord lx 1994 dynamic surrounded n i say guess they say intro 12's not a 12 but 12's i believe that's enough said n im upgrading and geting two more cuz 3 of them gone do damage i've had complates on just this one 10 in my hood and i never turned it up half way going through my hood either i high recomend this sub. If not u dont have the rite setup. Point blank period.

By BANGER 10" on August 3, 2011

18 found this helpful


So far has been a decent subwoofer

This subwoofer has been working pretty well for me. According to the specs I am underpowering it a bit, only supplying about 200-225 watts RMS. It still hits pretty hard and provides the backend fill I was craving in my car. The best thing about the woofer is how cheap it is. Wow, I purchased through sonic, and I have been happy with that purchase.

I currently have it in a .79 sealed enclosure, and it seems to use the space in the box well. Right away in the beginning there was this strange "click" noise on deeper notes. I originally thought, "Wow, what a POS." However, this click noise has went away, and I think it had something to do with breaking in the subwoofer.

This is FLI audio stuff, and unless you think a fly looks nice on your woofer it is pretty dang ugly. I've never been a fan of FLI audio's looks, but it has been doing well for me in the sound department.

I had one thing that really peaved the heck out of me. The screws that came with the sub had a hex head on them. I didn't have the right size hex driver bit. So, I had to run down to the nearest hardware store to find said bit and make a special little purchase. I wish they just would have used standard screws, but whatever I guess! That's why I knock the sub on ease of use.

Overall a decent cheap subwoofer. It seems as if FLI audio goes on sale quite a bit on Sonic so you might want to be on the look out!

By Wayne on January 6, 2012

16 found this helpful


Great sound

I got two of these subs plus a 12" JL AUDIO sub and when i installed the two FLI AUDIO subs in it made my bass multiply by 4. They are amazing subs, I recommend these for good sounding subs for a very great price.

By Jr on December 6, 2011
