Sony XAV-72BT

7" In-Dash Double DIN Multimedia DVD/MP3/WMA/AAC Receiver with Built-in Bluetooth and iPod Control

Sony
Shop all Sony
Product videos
highlight-star-icon

In-Dash DVD, CD, AM/FM Multimedia • Built-In Bluetooth • SenseMe Music Application • 7" Touchscreen with Gestures Commands • 52W x 4 Chan. Max • 17W x 4 Chan. RMS • Advanced Sound Engine • 7-Band EQ • Center Speaker Optimizer

Learn more about the xav72bt

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

D9-MST2015L-64GB main

Dynavin D9-MST2015L-64GB

10.1" Custom-Fit Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto for select 2015-2023 Mustang (SiriusXM Ready)

2
CP1-FRD2 main

PAC CP1-FRD2

CAN-Bus Plug-and-Play Harness for 24-pin Connector at OBD2 Gateway Module in select 2014-2024 vehicles from Ford

-34.18%

$52.00

List price $79.00

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

99-5838CH main

Metra 99-5838CH Dash Kit

Single DIN or Double DIN Stereo Dash Kit and Harness for select 2015-2023 Mustang

1
-32.12%

$559.99

List price $824.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Product Highlights


In-Dash DVD, CD, AM/FM Multimedia • Built-In Bluetooth • SenseMe Music Application • 7" Touchscreen with Gestures Commands • 52W x 4 Chan. Max • 17W x 4 Chan. RMS • Advanced Sound Engine • 7-Band EQ • Center Speaker Optimizer

Description


Sony brand icon

Authorized dealer









General Features:

  • In-dash DVD, AM/FM, CD, MP3, WMA, AAC Multimedia Receiver
  • Built-in Bluetooth technology supports hands-free calling and audio streaming
  • SenseMe intuitive music application

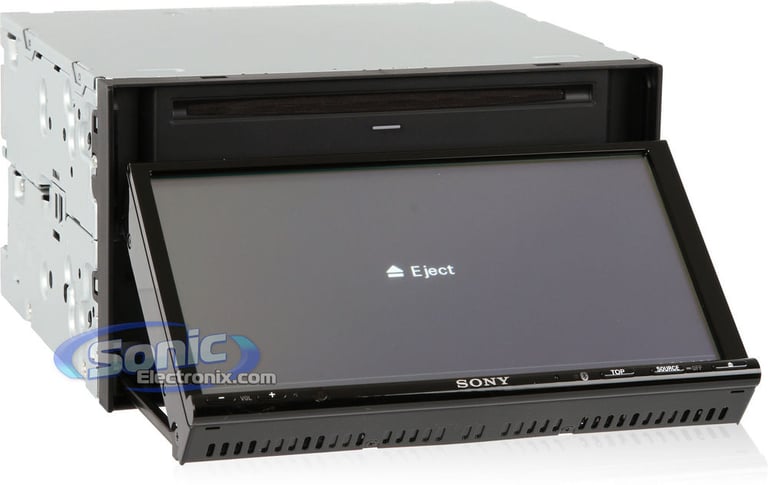

  • Fixed display face with slot-loading disc

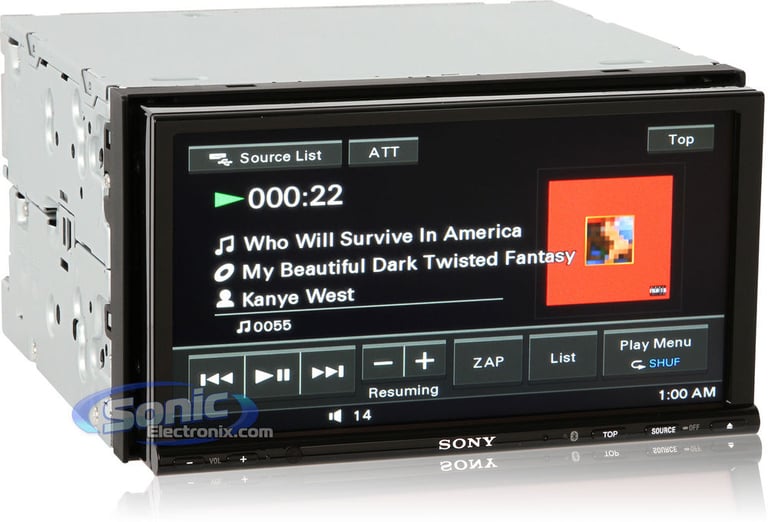

  • 7" Full color display
  • Responsive touchscreen display
  • Gesture commands allow the user to operate the unit with command stroke on the display
  • Wireless remote control sold separately
  • White button lighting
  • Adjustable background settings for day, night, and auto
  • Picture EQ allows the user to select the color settings appropriate to their vehicle (4 presets, 2 user)
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 52 watts x 4 channels
    • RMS: 17 watts x 4 channels
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year SonicElectronix.com warranty

Playback and Audio Features:

  • Playback of DVD, DVD-R, DVD-RW, DVD+R, DVD+RW, MPEG-4, CD, CD-R, CD-RW, MP3, WMA, AAC, JPEG
  • Playback of Region 1 DVD discs
  • Multi-CODEC playback allows playback of MP3 and WMA files burned onto CDs or DVDs
  • AM/FM tuner with 18FM/12AM presets
  • 24-bit Digital-to-analog converter for higher quality sound
  • Sony sound processor for less distortion
  • S-MOSFET IC for smooth signal transmission
  • Large capacitors for deep bass
  • On-board low-pass and high-pass filters
  • Adjustable loudness settings
  • EQ7 Stage 2: 7-band parametric equalizer with 8 tone curves (7 presets and 1 custom)
  • Advanced Sound Engine (ASE) with Intelligent Time Alignment (ITA) for incredible sound reproduction
  • Center Speaker Optimizer (CSO) creates a virtual 5.1 listening experience
  • Rear Bass Enhancer (RBE) places a low-pass filter on the rear speaker to allow the rear speaker to act as a subwoofer
  • Radio Data System (RDS) displays music track information when listening to compatible radio stations
  • Dolby Digital compatible with Dynamic Range Compression (DRC) to make the sound clear at low volumes
  • Zappin plays music in 6, 9, or 30-second clips until you find the song you're looking for

Expandability Options:

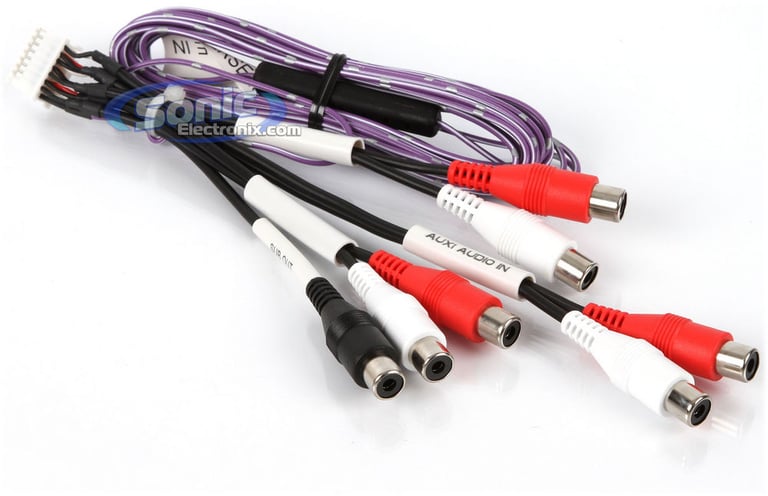

  • 3 Sets of 4V preamp outputs (front, rear, and mono-subwoofer channel)
  • SIRIUS Satellite Radio Ready: Sony SIRIUS Package required and sold separately, along with a SIRIUS subscription
  • Integrated Bluetooth: Enables phones, headsets, and portable devices can be paired for audio streaming and hands free calling with included voice microphone
  • iPod/iPhone Ready:
    • Audio: Standard USB-to-iPod cable will work, however Sony recommends the Sony RC-100IP.
    • Audio/Video: RC-202IPV required and sold separately for audio and video playback Sony RC-202IPV.
  • HD Radio Ready: Sony XT-100HD required and sold separately

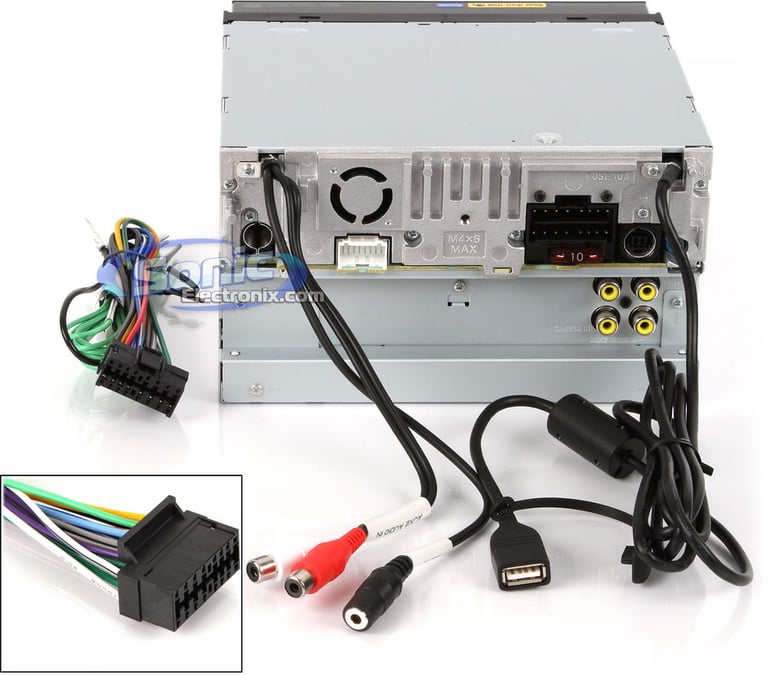

  • Rear auxiliary input: 2 sets of Composite RCA Video inputs
  • Rear auxiliary input: 1 set of Composite RCA Audio inputs
  • Rear USB port for playback of digital media from flash drives, thumb drive, select external hard drives, etc
  • Rear audio/video output: 1 RCA composite audio/video output on the back of the unit for connection to external monitors and displays
  • Rear video input: Rear video input for rear view cameras with a RCA composite input, however the Sony XA-R800C is recommended
  • Rear video output: 1 RCA composite video output on the back of the unit for connection to external monitors and displays
  • Steering wheel remote ready: PAC SWI-PSv1 or the Axxess ASWC required and sold separately
  • CD Changer control

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 2.0+EDR Certified
  • Bluetooth range up to 32.8 ft.
  • Supports A2DP audio streaming for wireless playback of iPods, iPhones, cell phones, and other Bluetooth audio devices
  • Bluetooth profiles supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via bluetooth
    • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
  • Works with most Bluetooth enabled cell phones

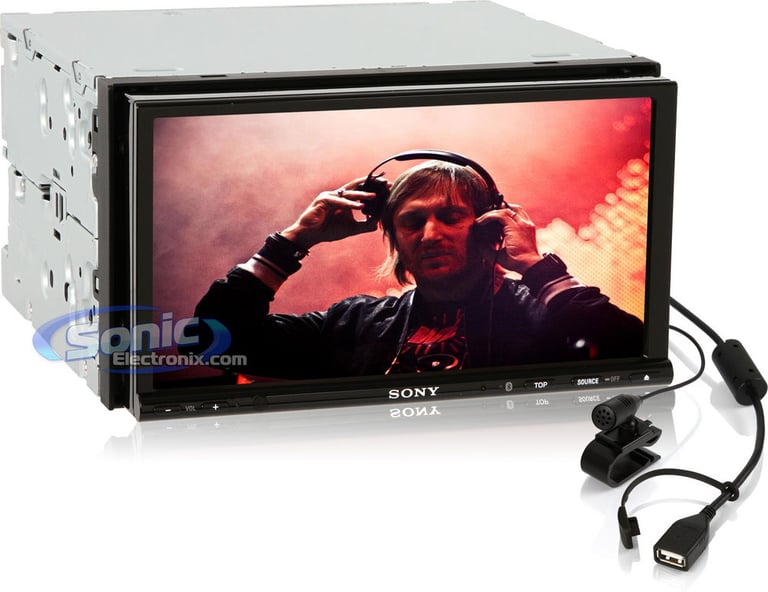

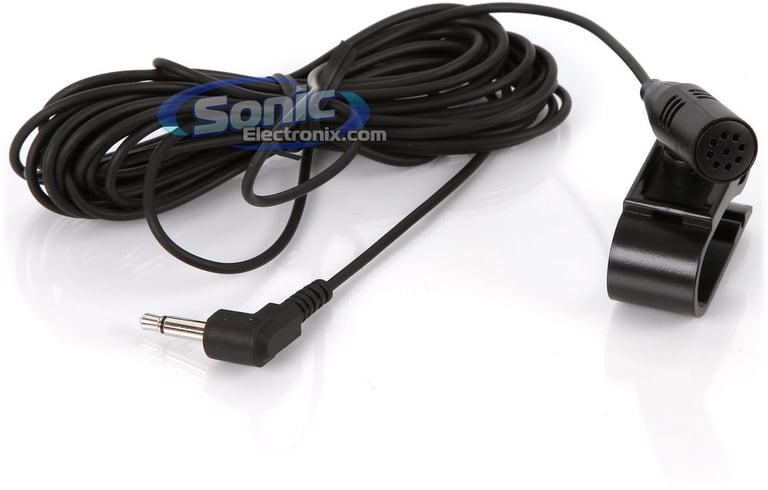

  • Includes a external wired microphone for crystal-clear talking

Product history:

Sony XAV-72BT thumbnail
(newest, current model)
Sony XAV-70BT thumbnail
(previous model, replaced by Sony XAV-72BT)
