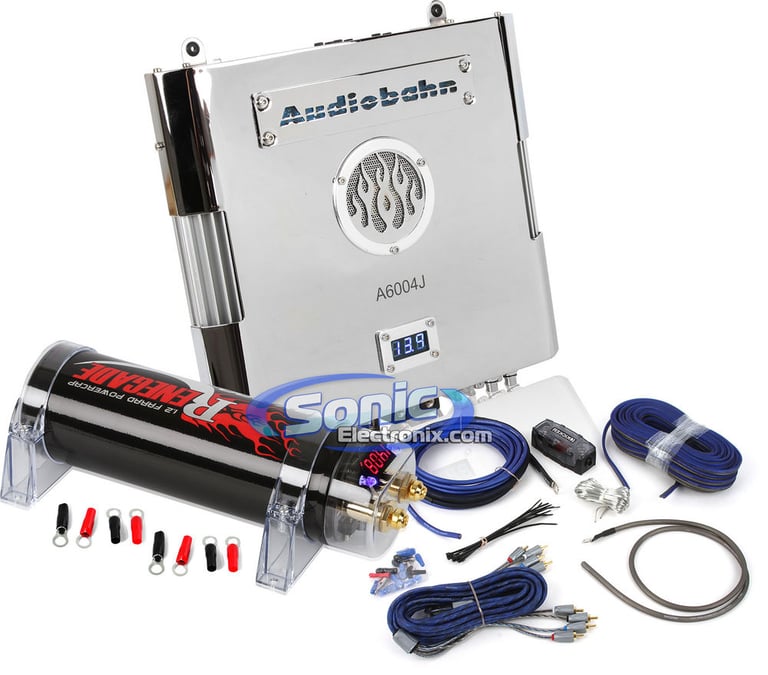

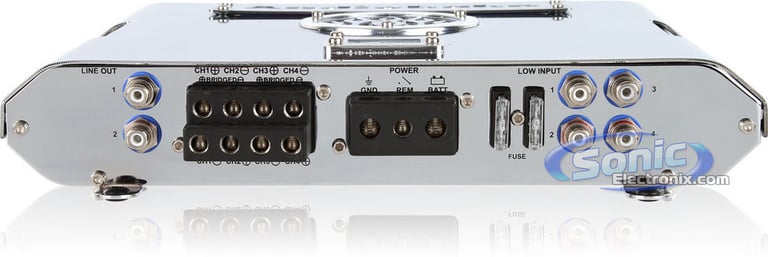

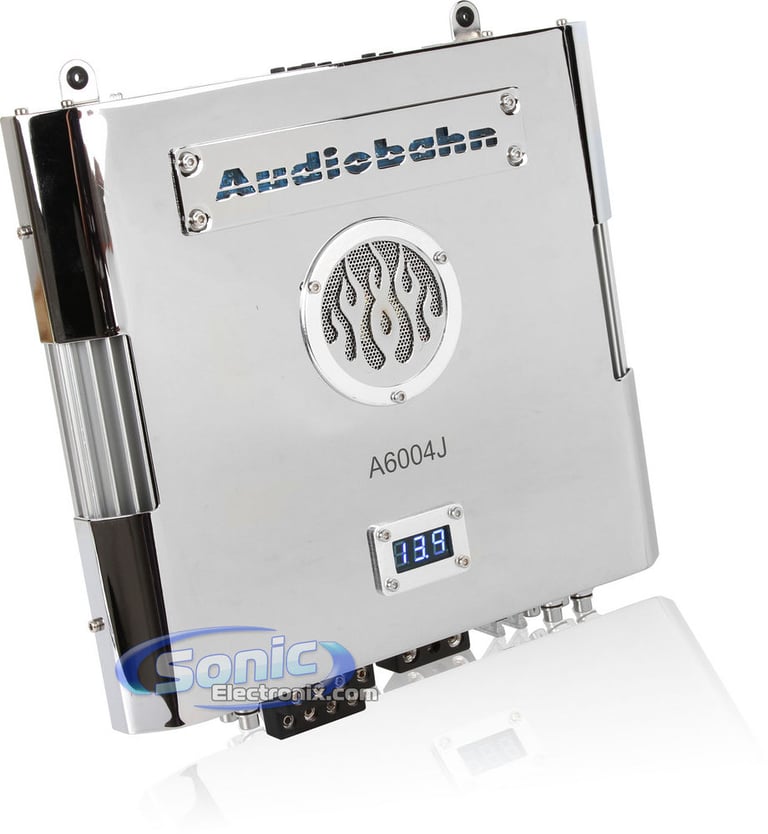

Audiobahn A6004J + Amplifier Kit

800W Max , 4 Channel Class AB Intake Series Car Amplifier + 8 Gauge Amplifier Kit + 1 Farad Cap

EXCLUSIVE
Product videos
highlight-star-icon

4-Channel Class AB Intake Series Car Amplifier • PWM MOSFET Power Supply • 3-way Protection Circuitry • Variable Low-Pass Filter • Subsonic Filter • RX1200 Digital 1.2 Farad Capacitor • Bright LED Voltage Display • For Systems up to 1200 Watts

Learn more about the a6004j_09zck84

We apologize

This item has been discontinued


Loading...
40-NI12 main

Metra 40-NI12

Antenna Adapter for select 2005-2025 vehicles from Nissan, Infiniti, Acura

31
-28.59%

$9.99

List price $13.99

70-7552 main

Metra 70-7552 Wiring Harness

Install a new car stereo in select 2007-2024 vehicles from Nissan, Subaru, Suzuki

34
-15.40%

$10.99

List price $12.99

95-7621 main

Metra 95-7621 Dash Kit

Install a new Double-DIN car stereo in select 2014-2019 Versa and Versa Note (Matte Black)

2
-10.72%

$24.99

List price $27.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

DCPA723W main

Dual DCPA723W

7” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto

4
-16.67%

$239.99

List price $287.99

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Product Highlights


4-Channel Class AB Intake Series Car Amplifier • PWM MOSFET Power Supply • 3-way Protection Circuitry • Variable Low-Pass Filter • Subsonic Filter • RX1200 Digital 1.2 Farad Capacitor • Bright LED Voltage Display • For Systems up to 1200 Watts

Description


Audiobahn and Kicker Bundle

Looking to add some power to your system? Sonic Electronix has created a bundle ideal for anyone looking to add an amplifier to their system. Included in this combo is an Audiobahn A6004J 4-Channel Amplifier. This amplifier is perfect for those looking to power up their high end speakers or even two Single Voice Coil 4 Ohm subs at the bridged impedance. We have also included a high quality Kicker 09ZCK84 amplifier kit to get the best signal and performance out of your brand new amplifier. The Kicker 8 gauge amplifier kit will have everything you need for complete installation. Protecting your system is just as important as anything else. The Renegade RX1200 1.2 Farad MKII Power Capacitor will ensure that your audio system is protected from excessive power drainage during those long listening sessions. This quality bundle comes with an affordable price, making it a must for anyone looking to add some power to their system.

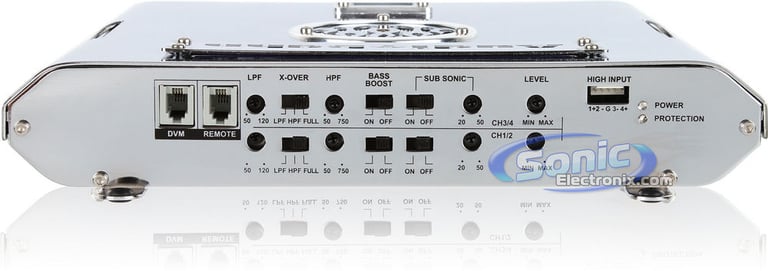

Audiobahn A6004J Features:
  • 4-Channel Class AB Intake Series Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 200 watts x 4 chan.
    • Bridged @ 4 Ohm: 400 watts x 2 chan.
  • PWM MOSFET power supply
  • Large display volt meter with blue illumination
  • Bass Boost on/off switch
  • High gloss chrome-plated finish
  • 4-channel operation
  • Throughput RCA connections
  • Cobalt blue illumination
  • Double-Sided glass epoxy circuit board
  • Air-Induction groove and air intake fan help force cooler outside air into the chassis of the amplifier and help to maintain its optimum operating temperature
  • Chrome flame fan grilles for an enhanced appearance
  • 3-way Protection Circuitry: Thermal, Short Circuit and Overload
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-Plated RCA level inputs
  • Nickel-Plated block terminals
  • Input Sensitivity: 200mV-8V
  • Variable Low-Pass Filter (50-120 Hz, 18 dB/octave)
  • Variable High-Pass Filter (50-750 Hz, 18 dB/octave)
  • Subsonic Filter (20-50 Hz)
  • Frequency Response: 10-40,000 Hz
  • THD: 0.02%
  • Signal-To-Noise Ratio: >100 dB
  • Dimensions: 9-7/8"L x 11-3/16"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation.
  • 1-year Manufacturer's warranty

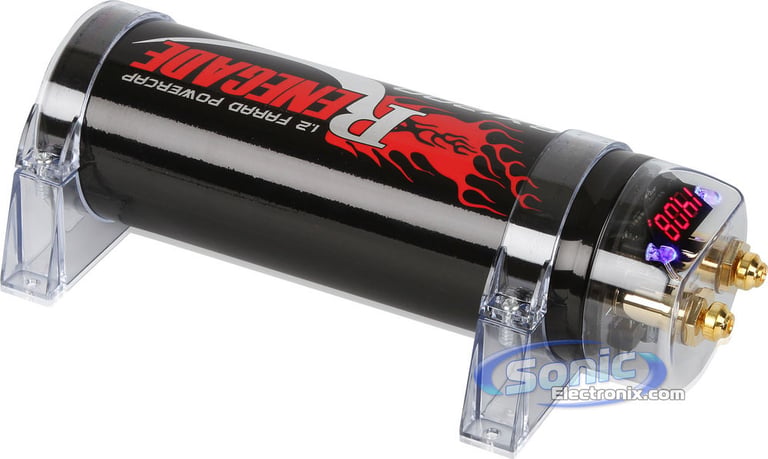

Renegade RX1200 Features:
  • Digital 1.2 Farad Capacitor
  • True 1.2 Farad Capacitor for systems up to 1200 watts

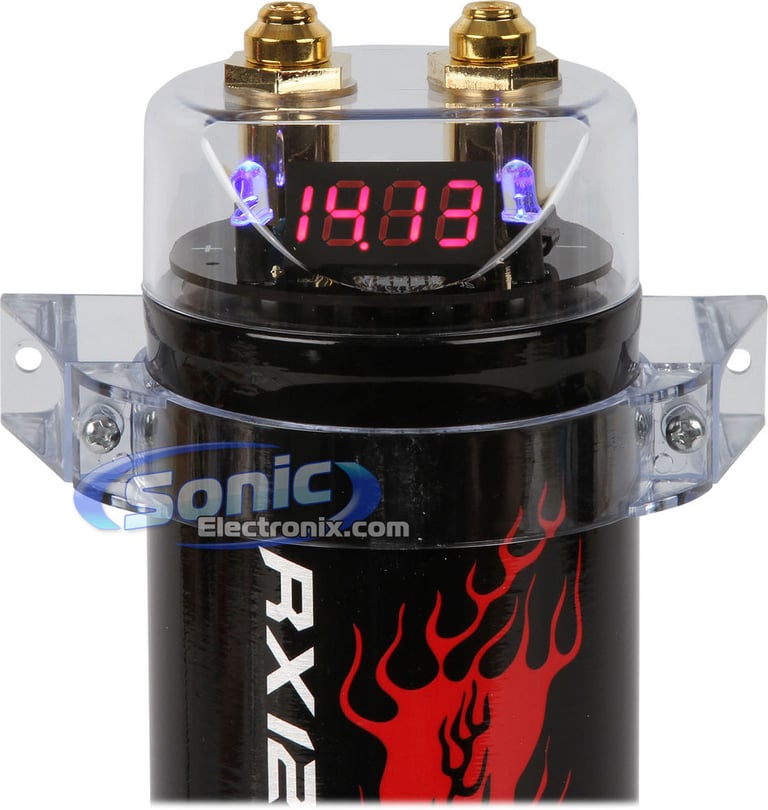

  • Bright LED voltage display
  • Gold plated terminals
  • Operating voltage: 12-16V DC
  • Uses ring terminals for use with any gauge of power/ground cable
  • Includes mounting hardware for a secure installation
  • Color is Black
  • Dimensions: 3"L x 3"W x 10-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Kicker 09ZCK84 Features:
  • Complete 8 Gauge Z-Series 4-Channel Amplifier Installation Kit
  • 500 Watts max
  • Direct-connect engineering
  • Fewer connections for less signal distortion
  • Twisted-pair technology eliminates noise for crystal clear sound
  • Hyper-flex cable and wire
  • Full spec cable is true to gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Kicker 09ZCK84 Includes:

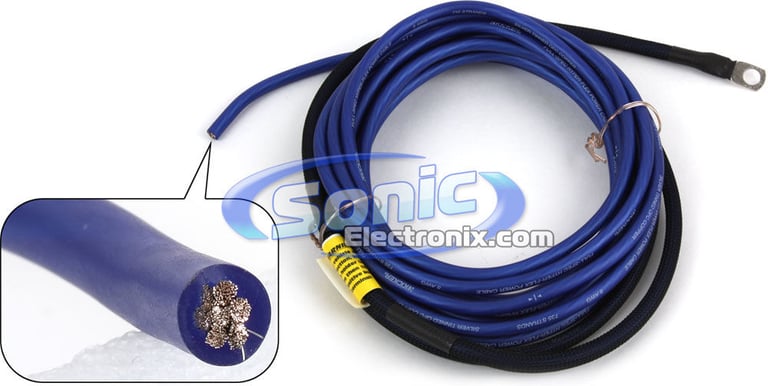

  1. 20ft(6.1m) Blue 8AWG power wire

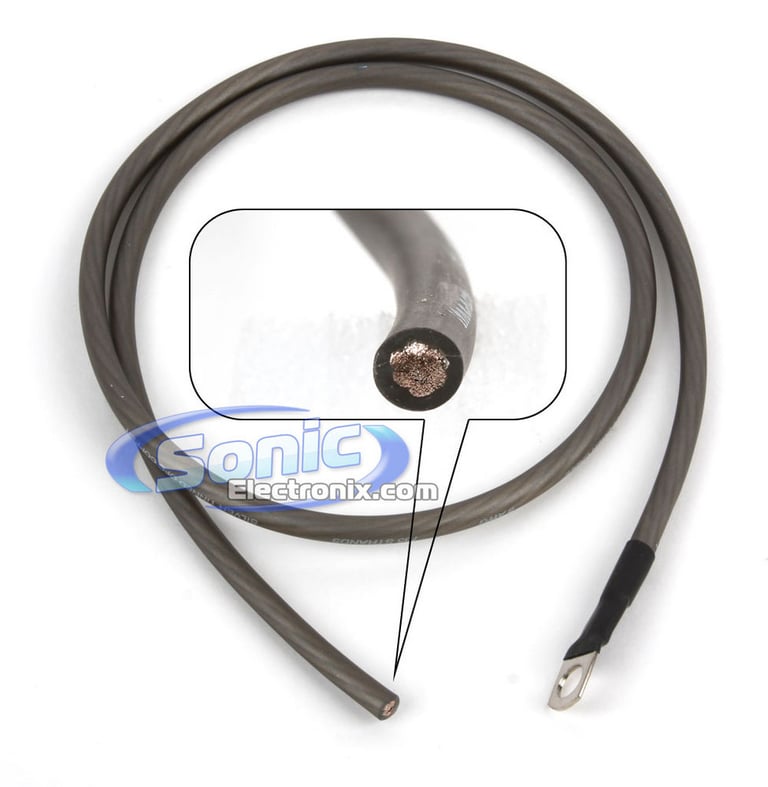

  2. 3ft(0.9m) Black 8AWG ground wire
  3. 20ft(6.1m) Blue 18AWG remote lead wire

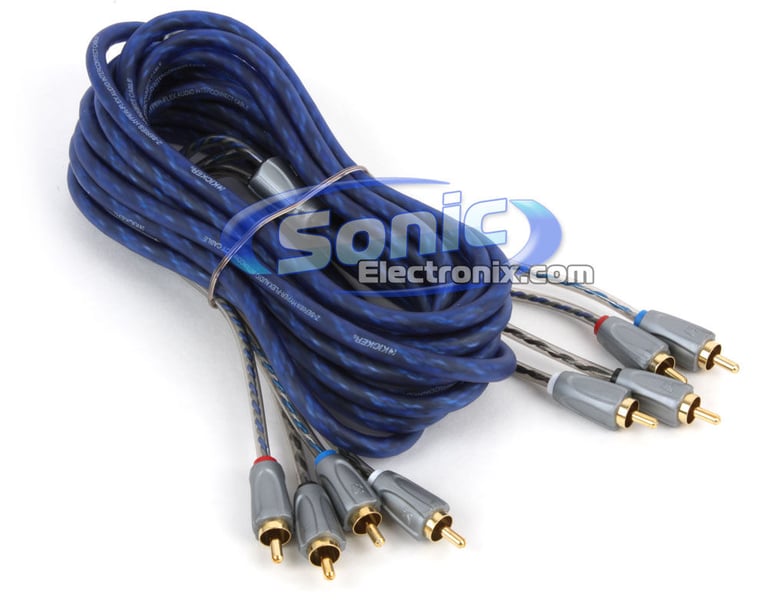

  4. 16.4(5m) Blue, black, and gray 4 Channel RCA cable

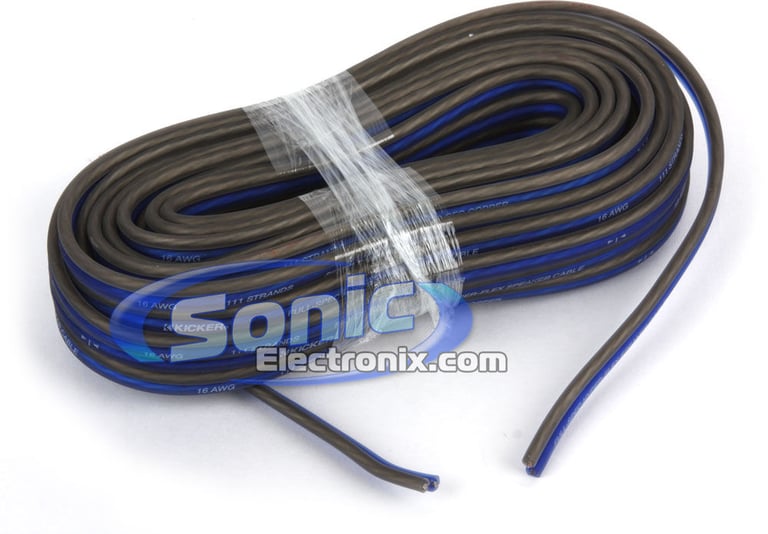

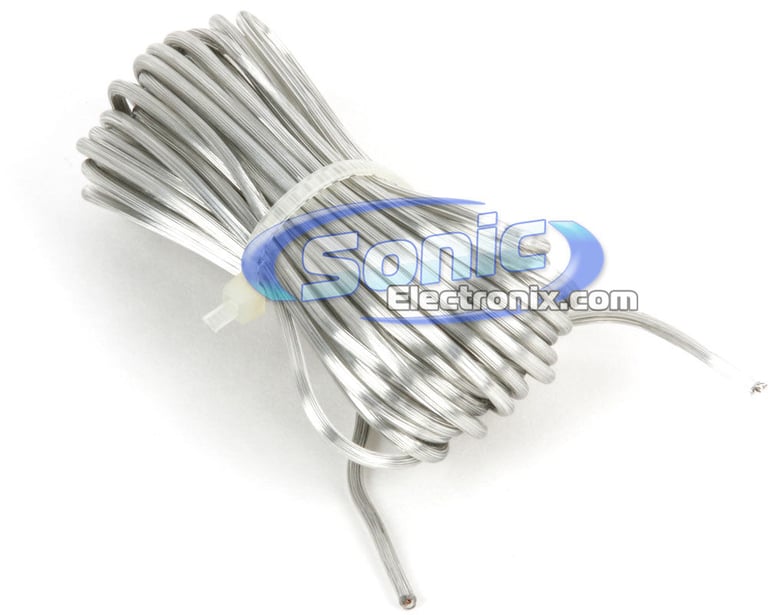

  5. 60ft(18.3m) Blue and gray 16AWG speaker cable

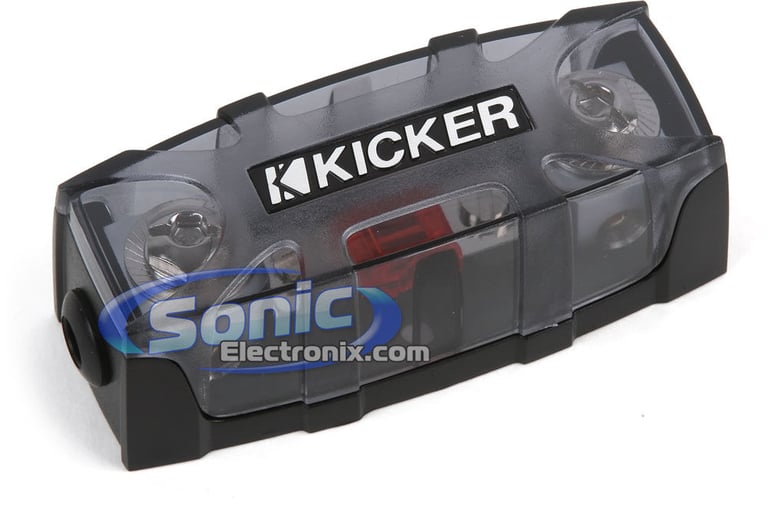

  6. 1 Kicker 09FHS Fuse holder with 50 amp AFS fuse

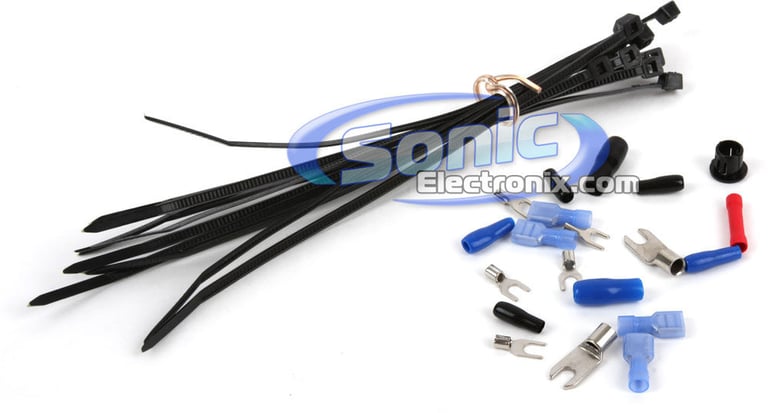

  7. Black rubber firewall grommet
  8. 2 8AWG Spade terminals
  9. 5 18AWG Spade terminals
  10. 4 Female quick disconnect connectors
  11. Black zip ties
  12. Red butt connector

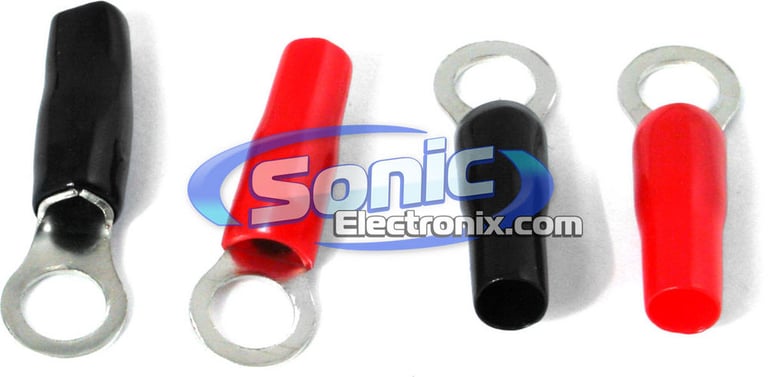

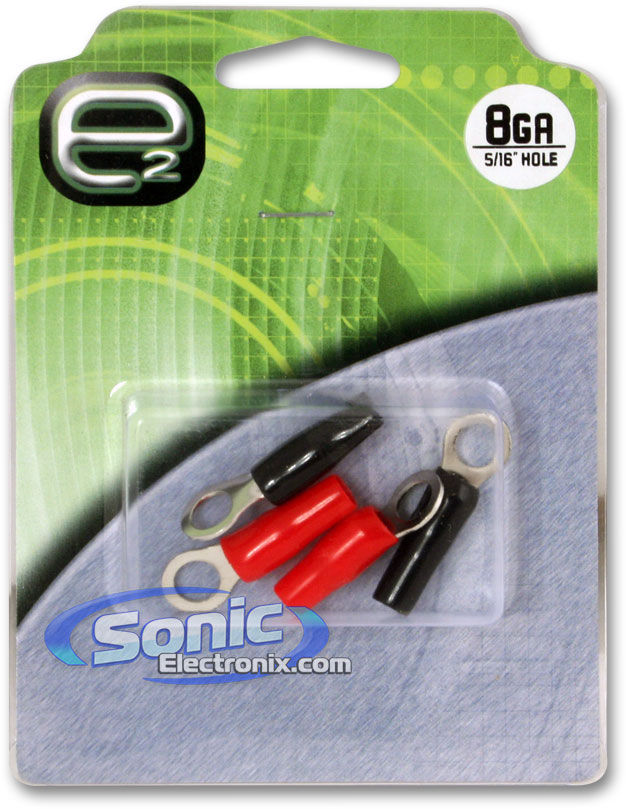

Scosche ERTC8-4 Features:
  • 4 pack of 8 Gauge Ring Terminals
  • 4 Pieces: 2 black, 2 red
  • Platinum Plated

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
800 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
On/Off Switch
Remote bass/level controller
No
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
60 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
AFS
Fuse Size
50A
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

A6004J_09ZCK84

Weight:

18.94lbs

Internal SKU:

a6004j_09zck84

Internal Product ID:

35784

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn A6004J + Amplifier Kit thumbnail image

5 star
91%
4 star
0%
3 star
0%
2 star
0%
1 star
9%



Durability
4.3
Value
4.8
Features
4.9
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Excellent Quality

The following review is for 09ZCK84, which is a part of the bundle you are viewing.

I'm using this wiring to power my 4 channel amp in a full size crew cab truck. There is plenty of wire to run all the way from the head unit around the door sills to under the back seat. Very impressed with the quality of the cables and Sonic's delivery and prices.

By Scott on November 3, 2011

20 found this helpful


Good Product

The following review is for 09ZCK84, which is a part of the bundle you are viewing.

I used this kit to wire up my amp in my boat. Lots of wire and great quality made this an easy choice for me. Love the Kicker stuff!

By Ron on September 23, 2010

19 found this helpful


quality at its best

The following review is for 09ZCK84, which is a part of the bundle you are viewing.

Good kit, enough to wire 1 4-channel amp. Quality of product is superb, I highly recommend this.

By Daniel on March 19, 2012

14 found this helpful


great

The following review is for ERTC8-4, which is a part of the bundle you are viewing.

Great product, does as it should, only con is a little too thinly made.

By p on March 3, 2012

15 found this helpful


good basic connector

The following review is for ERTC8-4, which is a part of the bundle you are viewing.

Does the job for a fair price.

By MARK on February 7, 2012

14 found this helpful


e2 ERTC8-4

The following review is for ERTC8-4, which is a part of the bundle you are viewing.

Does what it says it will!

By Damon on September 6, 2011

15 found this helpful


Great Product

The following review is for ERTC8-4, which is a part of the bundle you are viewing.

The ring terminals are top notch, wont rust or corrode. Crimps easy and holds tight.

By David on April 23, 2008

12 found this helpful


Junk

The following review is for RX1200, which is a part of the bundle you are viewing.

Used it for one weekend before it fried!

By tibor on February 2, 2012

7 found this helpful


Great amp

The following review is for A6004J, which is a part of the bundle you are viewing.

I bought this amp and i love it. It hasnt heated up yet and ive ran it for an hr and a half multiple times. the volt meter works good and amp looks good too. I fully recommend this amp. Im planning on buying another for installing 2 more sets of speakers.

By MA on March 23, 2011

5 found this helpful


Pretty Nice....

The following review is for A6004J, which is a part of the bundle you are viewing.

Amazeing look's with great sound. I love the blue LED's , it give's it a nice custom look and it perform's as well. A MUST BUY,THANKS TO SONIC.....

By Frankie on April 6, 2012

3 found this helpful



CXX2404 small

Boss CXX2404

1200W Class AB 4-Channel Chaos EXXtreme Series Amplifier

(1)

$119.99

List price $469.99

CB-MNT-STICKY small

Cobra Sticky Dash Pad

Universal Super Sticky Anti-Slip Dash Pad for GPS, Cell Phone, Sunglasses and More

(2)

$3.99

List price $29.99

MS-BT100 small

Fusion MS-BT100

Bluetooth Audio Adapter with RCA Outputs

(7)

$69.99

List price $69.99

CS46CX_ACC_KIT small

Crunch CS46CX with Speaker Installation Kit

125W RMS 4x6" 2-Way Coaxial Car Speakers + 4x6” Foam Speaker Rings + Sound Dampening, Roller and Panel Removal Kit

(150)

$59.82

List price $98.70

ST69CX small

Cerwin Vega ST69CX

500W Peak (250W RMS) 6x9" Stroker Series 2 Way Coaxial 4-ohm Marine Speakers

(1)

$217.49

List price $289.99

BBX-T600 small

Alpine BBX-T600

300W Peak (140W RMS) BBX Series Class-A/B 2 Channel Amplifier

$129.95

List price $190.00

ALP-HRN-CAMCH small

Alpine ALP-HRN-CAMCH

Connect Rear View Camera in select 2007-2018 vehicles from Jeep Stereo with Display

(1)

$29.95

List price $40.00

H65A small

Diamond Audio H65A

300W Peak (150W RMS) 6.5" HEX Series 2-Way 4-ohm Component Speaker System

$769.99

List price $719.99

PSS-23WRA2 small

Alpine PSS-23WRA2

Amplified Sound System Upgrade Kit for select 2018-2023 Wrangler (JL) and Gladiator

$1699.95

List price $2040.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Nissan Versa Note

2002 Chevrolet Corvette

2009 Scion xD

2018 Lexus IS300

2015 Ford Explorer

2010 Lexus LS460

2018 GMC Terrain

2003 Subaru Baja

2014 Audi Allroad

1996 Cadillac DeVille

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
