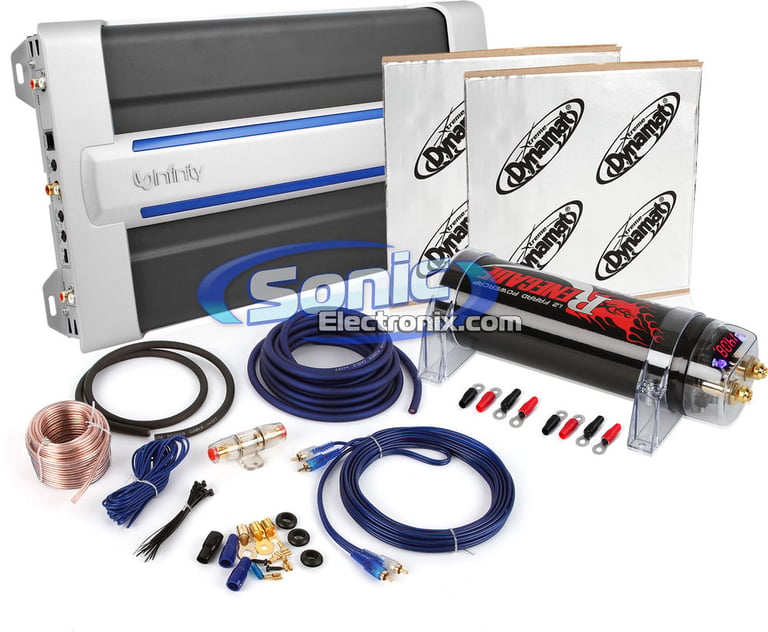

Infinity 5350A + Amplifier Kit

800W Max , Reference Series Class AB 5-Channel Amplifier + 4 Gauge Amplifier Kit + 1F Cap + Dynamat

Infinity
Shop all Infinity
EXCLUSIVE
Product videos
highlight-star-icon

Reference Series Class AB 5-Channel Amplifier • MOSFET Power Supply • 5-way Protection Circuitry • Variable Low-Pass Filter • CEA-2006 Compliant Amplifier • RX1200 Digital 1.2 Farad Capacitor • Bright LED Voltage Display • For Systems up to 1200 Watts

Learn more about the 5350a_ak4

We apologize

This item has been discontinued


Loading...
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

99-9109B main

Metra 99-9109B

Single DIN or Double DIN Stereo Dash Kit for select 2006-2013 A3

1
-39.59%

$28.99

List price $47.99

LAI10 main

Scosche LAI10 Wiring Interface

Install new car stereo and retain steering wheel audio controls in select 2004-2023 vehicles from Audi

MVH-S522BS main

Pioneer MVH-S522BS

Single DIN Digital Media Bluetooth Receiver with Bluetooth and SiriusXM Ready

4
-10.53%

$169.99

List price $190.00

DDX9907XR main

Kenwood eXcelon DDX9907XR

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

2
-14.36%

$1,199.00

List price $1400.00

Product Highlights


Reference Series Class AB 5-Channel Amplifier • MOSFET Power Supply • 5-way Protection Circuitry • Variable Low-Pass Filter • CEA-2006 Compliant Amplifier • RX1200 Digital 1.2 Farad Capacitor • Bright LED Voltage Display • For Systems up to 1200 Watts

Description


Infinity brand icon

Authorized dealer

Infinity and The Install Bay Bundle

Looking to add some power to your system? Sonic Electronix has created a bundle ideal for anyone looking to add an amplifier to their system. Included in this combo is an Infinity Reference 5350a 5-Channel Amplifier. This amplifier is perfect for those looking to power up their high end speakers and subwoofers all with the same amplifier. We have also included a high quality The Install Bay AK4 amplifier kit to get the best signal and performance out of your brand new amplifier. The Install Bay 4 gauge amplifier kit will have everything you need for complete installation. Protecting your system is just as important as anything else. The Renegade RX1200 1.2 Farad MKII Power Capacitor will ensure that your audio system is protected from excessive power drainage during those long listening sessions. Also in this package some Dynamat 10415 sound dampening to minimize any distortion from the speakers. The Dynamat will improve the all around quality of sound in your vehicle. This quality bundle comes with an affordable price, making it a must for anyone looking to add some power to their system.

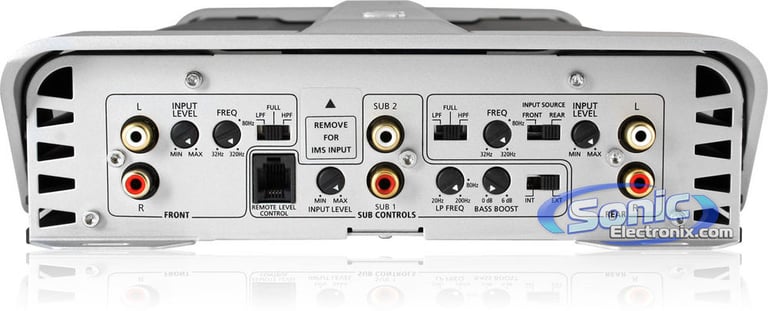

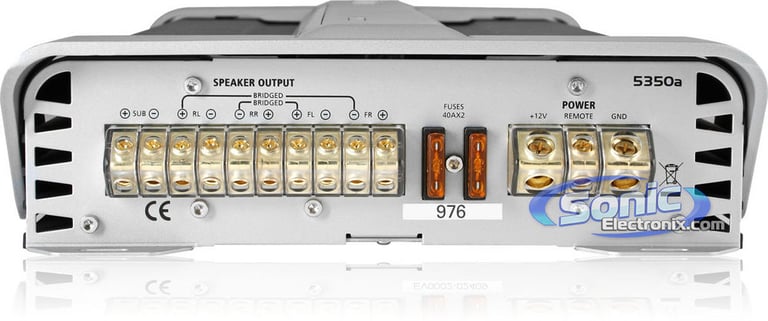

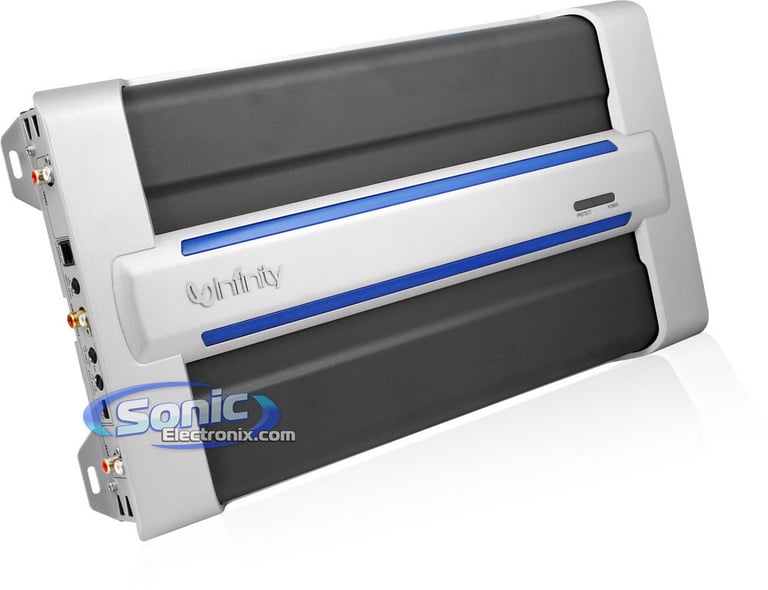

Infinity Reference 5350a Features:
  • Reference Series Class AB 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 chan. + 150 watts x 1 chan.
    • 2 ohm: 60 watts x 4 chan. + 300 watts x 1 chan.
    • Bridged, 4 ohm: 120 watts x 2 chan. (for the 4 channels) + 300 watts x 1 chan.
  • Max power output: 89 watts x 4 chan. + 444 watts x 1 chan. (approx. for sub channel)
  • MOSFET power supply
  • LED power and protection indicators
  • Tuned Bass EQ (0-6 dB bass boost at 50 Hz)
  • DC, overheat, over or under voltage, and short circuit amplifier protection
  • Gold-plated RCA level inputs
  • Variable high-pass filter (32-320 Hz, 12 dB/octave)
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20000 Hz
  • Efficiency: 85 dB
  • Dimensions: 9"L x 16-9/16"W x 2-11/16"H
  • 4-gauge power and ground leads recommended.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

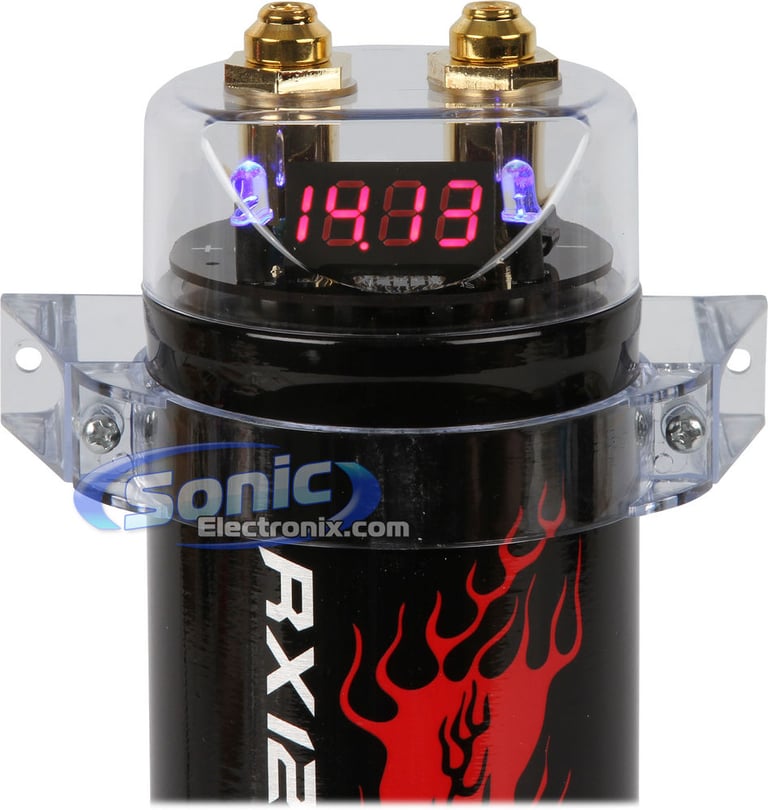

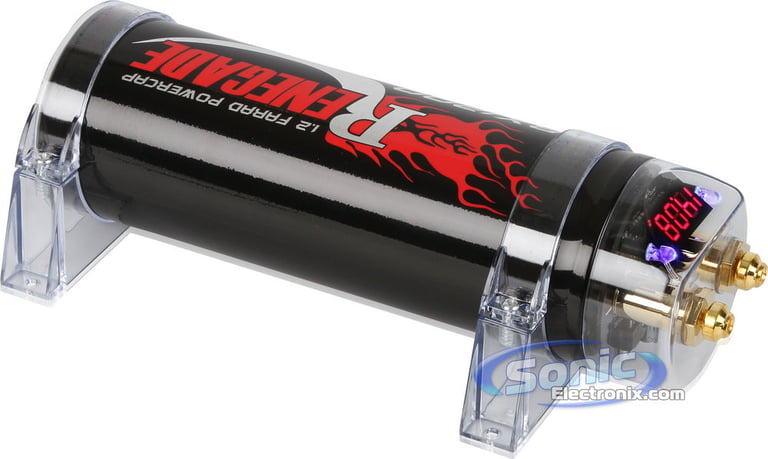

Renegade RX1200 Features:
  • Digital 1.2 Farad Capacitor
  • True 1.2 Farad Capacitor for systems up to 1200 watts
  • Bright LED voltage display
  • Gold plated terminals
  • Operating voltage: 12-16V DC
  • Uses ring terminals for use with any gauge of power/ground cable
  • Includes mounting hardware for a secure installation
  • Color is Black
  • Dimensions: 3"L x 3"W x 10-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

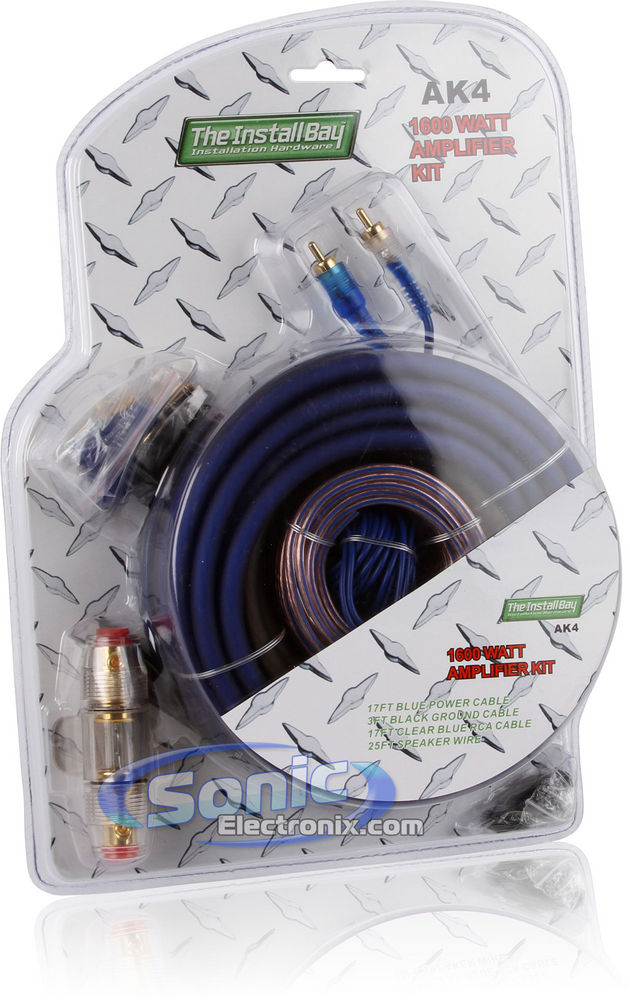

The Install Bay AK4 Features:
  • Complete 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
  • Perfect for 1600 watts amplifier setup
  • Includes everything that you need to install a single amplifier

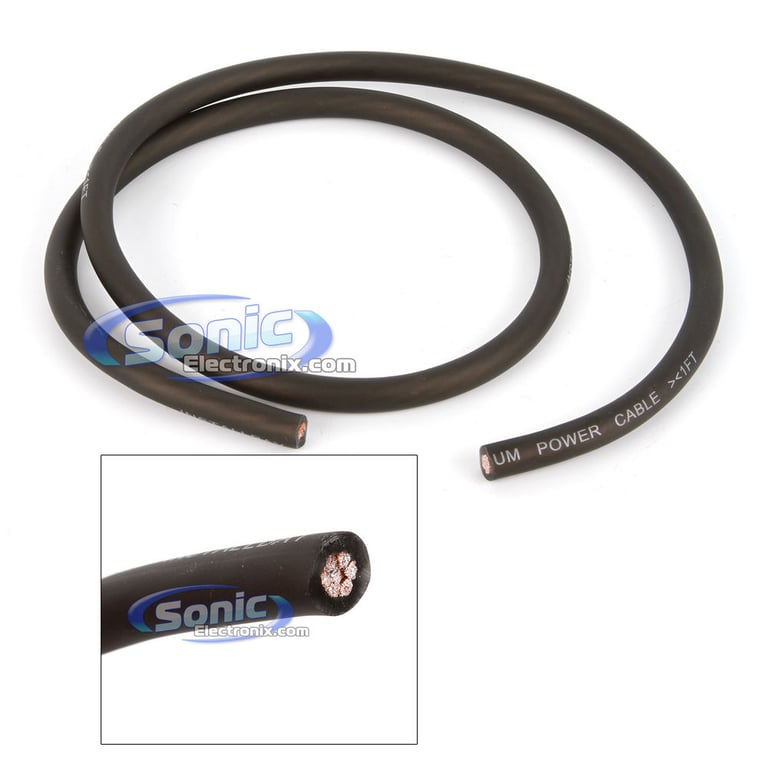

  • Premium power and ground cable
  • 1-year Manufacturer's warranty
The Install Bay Includes:

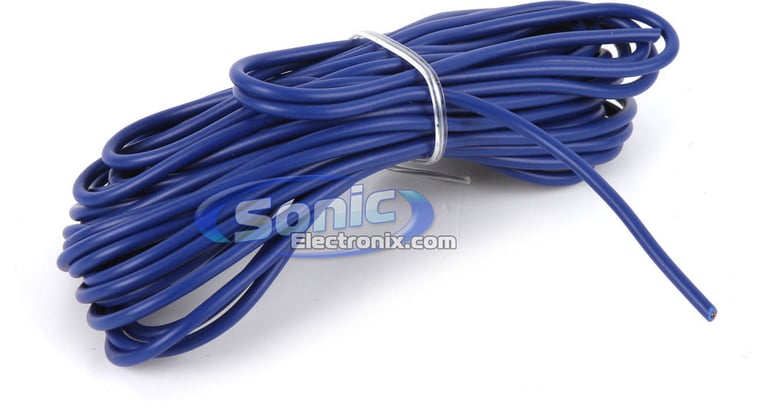

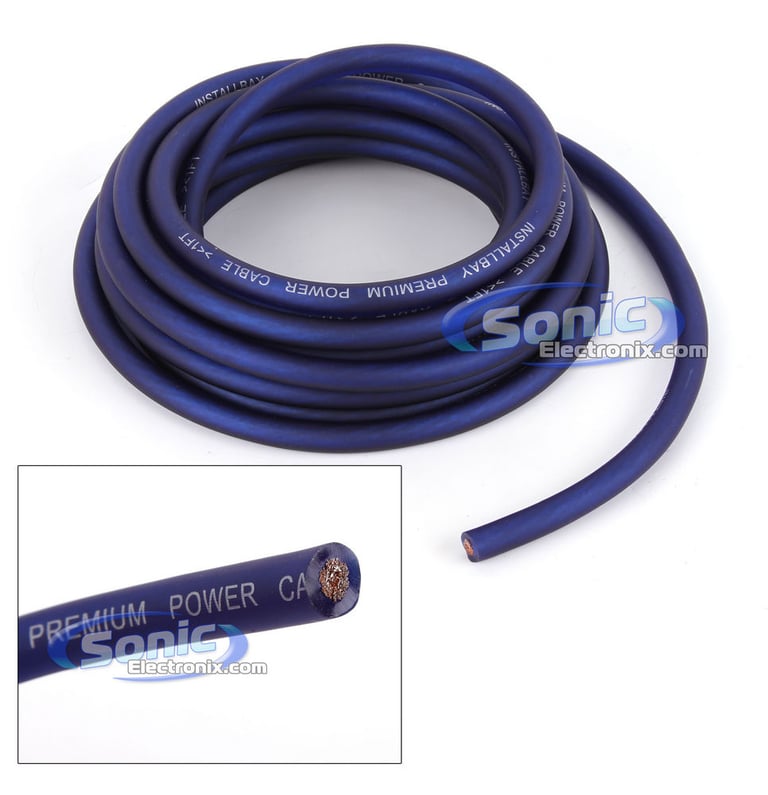

  1. 17 ft. of Blue power cable
  2. 3 ft. of Black ground cable

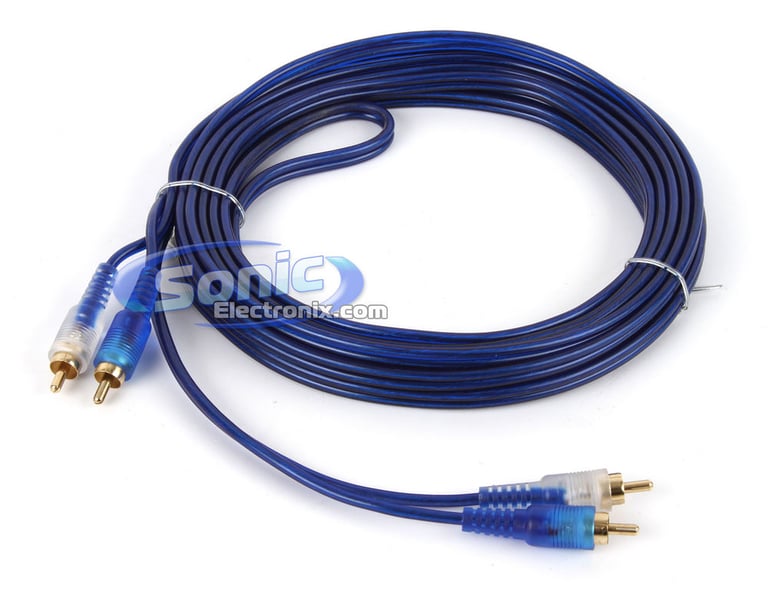

  3. 17 ft. of Clear/blue RCA cable

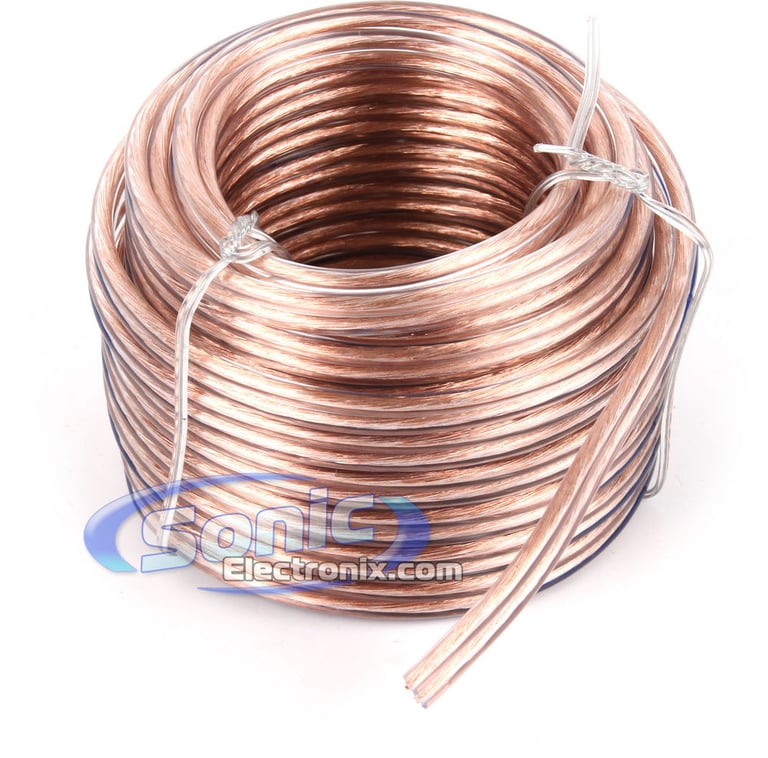

  4. 25 ft. of Speaker wire
  5. 17 ft. of Remote turn-on wire

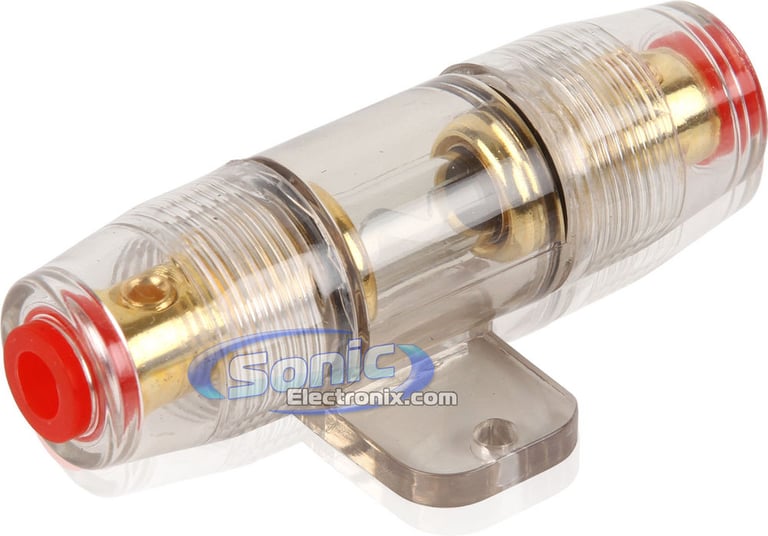

  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse

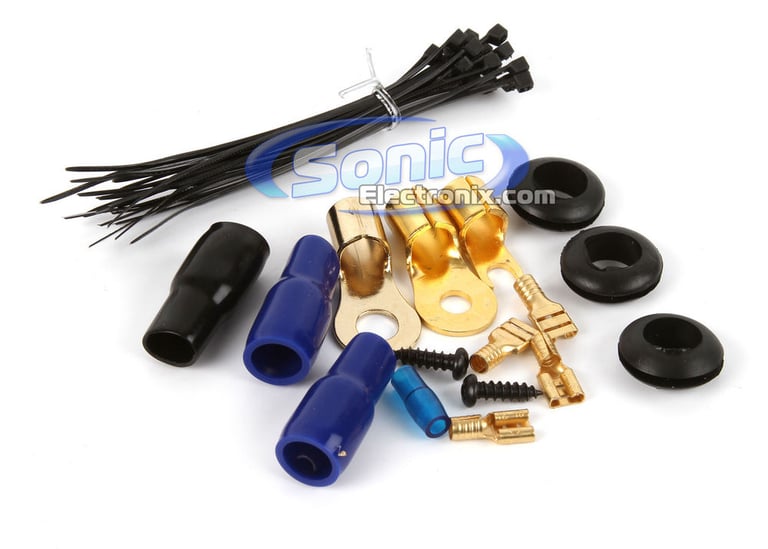

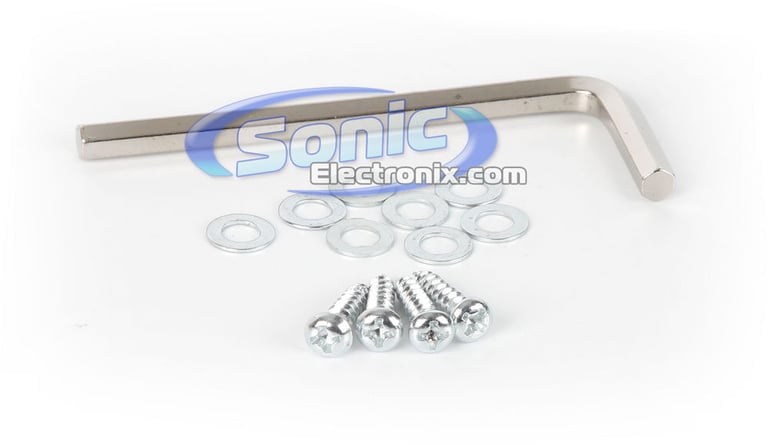

  8. Installation hardware

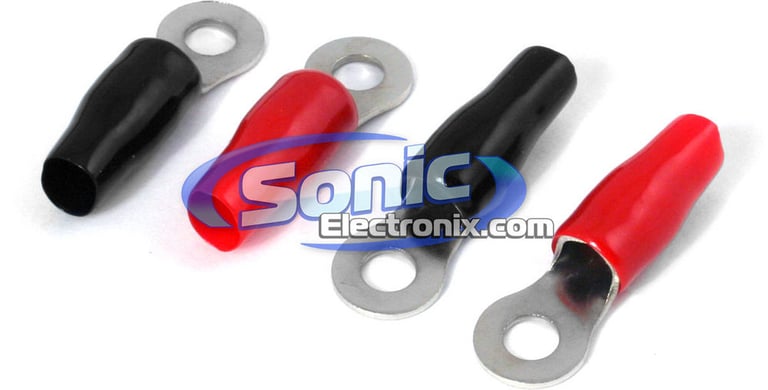

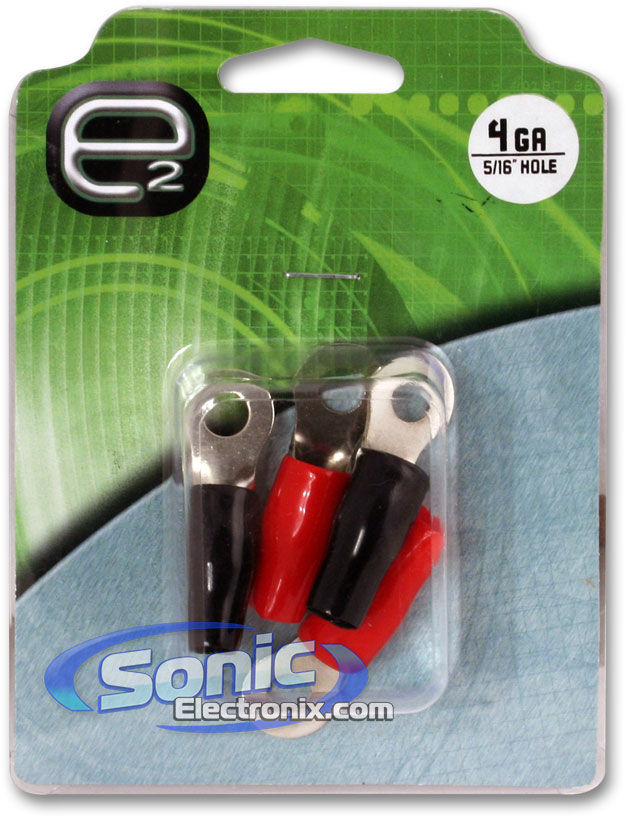

Scosche ERTC4-4 Features: (2 Included)
  • 4 pack of 4 Gauge Ring Terminals
  • 4 Pieces: 2 black, 2 red
  • Platinum Plated

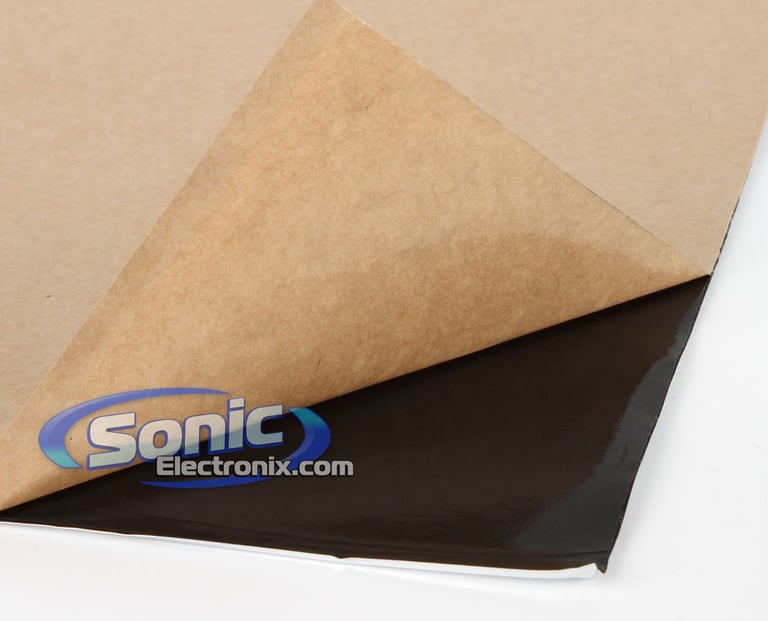

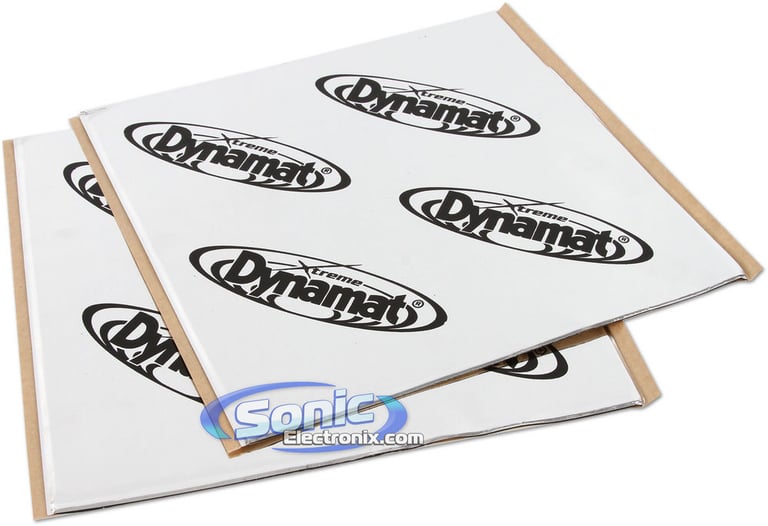

Dynamat Xtreme Speaker Kit 10415 Features: (2 Included)
  • Eliminates Speaker Panel Distortion
  • Contains two 10" x 10" Sheets
  • Stops Vibration, Rattles, and Squeaks
  • No SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(9)

$259.99

List price $323.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

46CXA6605t small

Kicker CXA660.5T (46CXA6605T)

• 65 watts x 4 channel + 150 watts x 1 channel @ 4 ohm
• 90 watts x 4 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 660 watts
• Class A/B 2 ohm Stable 5-Channel Amplifier

$449.99

List price $479.99

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
60 watts x 4 channel
Bridged RMS Power
120 watts x 2 channel
Peak Power Output
89 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
150 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Peak Power Output
444 watts x 1 channel
Amplifier Specifications
Amplifier Class
AB / D
Number of Channels
5-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
540 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fuse Rating
40A x 2
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
25 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
AGU
Fuse Size
60A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

5350A_AK4

Weight:

25.39lbs

Internal SKU:

5350a_ak4

Internal Product ID:

35804

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Infinity 5350A + Amplifier Kit thumbnail image

5 star
62%
4 star
26%
3 star
8%
2 star
1%
1 star
1%



Durability
4.5
Value
4.7
Features
4.4
Design
4.6
Usability
4.7

Customer Reviews

Sort by:

Loading...

See the difference!

The following review is for 10415, which is a part of the bundle you are viewing.

I have these installed in my 2003 Mitsubishi Eclipse and I can tell the difference. My back panels and front panels used to vibrate and rattle, but with these in, you can tell the difference.

I turn my volume up, and it doesn't get anymore distorted. Sound flows straight out of the speaker and rattling is gone.

EASY INSTALL!

For $13, you get enough Dynamat for a pair of speakers, and its worth every last penny. Dynamat should charge more because these are worth it

By Marcus on October 17, 2007

131 found this helpful


good value

The following review is for 10415, which is a part of the bundle you are viewing.

It is very heavy duty material. Easy to use. Only thing is, for both vehicle doors to be covered; you need quite alot of it. It can be expensive.

By jett on November 20, 2011

116 found this helpful


Works Great!

The following review is for 10415, which is a part of the bundle you are viewing.

Easy to use!

By Richard on July 12, 2011

115 found this helpful


Works well but the price is a bit too

The following review is for 10415, which is a part of the bundle you are viewing.

Dynamat extreme is the original deadener and the product works well. It's a little thin compared to competition. And the price is just way too high for what has become a commodity in mobile audio

By Donnie E on March 26, 2013

111 found this helpful


has it all

The following review is for AK4, which is a part of the bundle you are viewing.

Kit has everything you need for a hassle free installation, I was thinking I wasn't going to need it, but was glad I had it after things got going.

By steven on September 10, 2012

110 found this helpful


Great Value!!!

The following review is for AK4, which is a part of the bundle you are viewing.

If your looking for an amp install kit with all of the necessities that doesn't cost and arm and a leg this is it. The kit came with everything needed to get power to my amp the length was perfect for a extended cab pickup. The RCA's lack a little but I just used these single channel RCA's to run my sub amp and I bought some Streetwire 4 ch RCA's for the 4 ch amp and it's turned out great. I've always had good luck with Install Bay products!!! I would recommend to any one in search of a good Amp Install Kit!!!

By Dalton on October 5, 2013

106 found this helpful


Love

The following review is for AK4, which is a part of the bundle you are viewing.

I bought this my my 2007 jetta. It work really good the it was easy to put on. I would buy this again.

By Kiera on February 1, 2013

109 found this helpful


dynamat

The following review is for 10415, which is a part of the bundle you are viewing.

great product! a lil pricy for what it is but it definately makes a difference

By chris on April 3, 2011

111 found this helpful


Dynamat

The following review is for 10415, which is a part of the bundle you are viewing.

This really took out the rattles that were being caused by my front door speakers. I was skeptical but it worked great. Sound improved volumes.

By Ramiro on May 29, 2010

110 found this helpful


2nd time with this install bay kit

The following review is for AK4, which is a part of the bundle you are viewing.

its a great kit for the price. I bought it once for a buddys Suby and then for my father in laws econoline van. never had a problem with either. sonic can be slow at shipping. but if on a budget this kit kicks butt for the price....not much online can compare for a 4 gauge and price. never a problem with feed back or crappy rca. might have to get a few better connectors but hey its a given. anyways great kit. also great for a basic systems. I wouldn't run more then 100 amps of power max.

By marklar on September 17, 2013

104 found this helpful



AK4 main

Install Bay 4 Gauge Amplifier Power Wiring Kit (AK4)

• 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
• Perfect for 1600 Watts Amplifier Setup
• 17ft. Blue Power Cable
• 3ft. Black Ground Cable
• 17ft. Blue RCA Cable

(119)

$57.99

List price $64.99

10415 main

Dynamat Xtreme Speaker Kit 10415

• Dynamat Xtreme Speaker Kit
• 1.38 Square Feet Total
• Two 10" x 10" Sheets
• Eliminates Speaker Panel Distortion, Vibrations, Rattles, and Squeaks

(24)

$25.95

List price $31.19


PSA4.2500D small

Soundstream PSA4.2500D

2500W Peak (800W RMS) Class D 4-Channel Marine, Powersports, and Motorcycle Amplifier

$189.99

List price $189.99

V2908 small

Visonik V2908

(1)

$379.99

List price $999.99

V2518 small

** CLOSEOUT!! ** Visonik V2518

$169.99

List price $387.99

MM600.2V small

Memphis MM600.2V

600W RMS Class D MM Series 2-Channel Marine Amplifier with Bass Remote

$399.95

List price $519.95

EB141BL small

Kicker EB141BL (Blue EB141 - 09EB141BL)

Blue, Advanced Full-Range Earbuds (Monitors/In-Ear Headphones) w/ Comply Foam Tips (EB141 09EB141)

(1)

$34.99

List price $79.95

MH DNA ON WHT CA WW small

Monster DNA - White/Teal

Advanced Pillow Soft Noise Isolating Headphones w/ Standard & Apple iPhone ControlTalk Cable w/ Mic

$149.95

List price $229.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Audi A3

2002 Ford Escape

2017 Nissan Altima

2023 Ford Expedition

1985 Buick Century

1969 Cadillac DeVille

2000 Dodge Ram 3500 Van

2021 Subaru Impreza

2022 Subaru Ascent

2017 Tesla Model X

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
