Pioneer GM-DX975 | 2000 Watts Class D 5-Channel Amplifier

Pioneer GM-DX975

2000 Watts Class D 5-Channel Amplifier w/ Gold-plated RCA Terminals and Bass Boost Remote

2000 Watts Class D 5-Channel Amplifier w/ Gold-plated RCA Terminals and Bass Boost Remote

• 75 Watts RMS x 4 @ 4 ohms + 350 watts RMS x 1
• 100 Watts RMS x 1 @ 2 ohms + 600 watts RMS x 1
• 1200 Watts RMS x 1 @ 1 ohm
• 5-channel operation
• CEA-2006 Compliant/Preamp Outputs/LPF
• HQ Sound Parts
• Gold-plated RCA connections
• 12-7/16"W x 2"H x 7-7/8"D

List price $419.99
Save: $50.00

$369.99

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Pioneer

Authorized dealer

The Complete Package

Pioneer’s 5-channel amplifier produces great power in an all-in-one solution designed to deliver big sound without sacrificing space. Best for any vehicle including compact vehicles and pickup trucks with limited real estate, the GM-DX975 also offers installation versatility for a variety of other applications including boats and ATVs/UTVs.

Packs a Punch

The 5-channel amplifier is rated at 2000W max with the A and B channels rated at 75 watts x 4 (RMS) and the subwoofer output rated at 600W at 2 (RMS). Compared to similarly priced multi-channel amplifiers, the variable crossover networks on the GM-DX975 offer increased versatility and give users more control. The GM-DX975 also features block terminals for a cleaner installation and direct cable contact to minimize resistance.

Turn Up the Bass

The GM-DX975 also features a Bass Boost Remote for optimal bass level adjustment according to listening preferences and music characteristics.

General Features:

  • Pioneer GM-DX975
  • Class 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 75 watts x 4 chan. + 350 watts RMS x 1 chan.
    • 2 ohms: 100 watts x 4 chan. + 600 watts RMS x 1 chan.
  • CTA-2006 Compliant Amplifier
  • Wired remote bass level control included
  • High Quality Textured Aluminum Panel and Tough Frame
  • 5-channel operation
  • Gold-plated RCA Terminals
  • HQ Sound Parts
  • Frequency Response: 10 Hz to 50000 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ratio: > 94dB
  • Variable low-pass filter: 40-240 Hz, 12 dB/octave
  • Variable Bass Boost: 0 to 18 dB bass boost at 50 Hz
  • Fuse Rating: 30A x 3
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: "12-7/16"W x "2"H x "7-7/8"D
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty


  • Check out the Pioneer GM-DX975 Owner's Manual

    FEATURES & SPECS
    Power Specifications - Full Range Channels
    RMS Power @ 4 ohms
    75 watts x 4 channels
    RMS Power @ 2 ohms
    100 watts x 4 channels
    Bridged RMS Power
    200 watts x 2 channels
    Power Specifications - Subwoofer Channel
    RMS Power @ 4 ohms
    350 watts x 1 channels
    RMS Power @ 2 ohms
    600 watts x 2 channels
    Amplifier Specifications
    Amplifier Series
    GM Series (Pioneer)
    Marine Certified
    No
    Amplifier Class
    D
    Number of Channels
    5
    Total Peak Power Output
    2000 watts
    Maximum Input Gauge Size
    4 AWG
    Minimum Impedance Unbridged
    4 ohms
    Minimum Impedance Bridged
    Not Bridgeable
    THD at Rated RMS Power
    .05%
    Speaker Level Inputs
    Yes
    Preamp Outputs
    No
    Built-in Crossover
    Low-Pass (LP)
    High-Pass (HP)
    High-Pass Crossover Frequency
    40 - 500 Hz
    Low-Pass Crossover Frequency
    40 - 500 Hz
    Signal-to-Noise Ratio
    > 94dB dB
    Bass Boost
    0 - 18 dB
    Bass/Gain Remote
    Yes
    Fan Cooled
    No
    Fuse Rating
    30A x 3
    Total Fuse Rating
    90
    Strappable
    No
    CEA-2006 Compliant
    Yes
    Sonic Certified Amplifier
    Not Tested
    Amp Bluetooth Connectivity
    No
    Hi-Res Certified
    No
    Authorized Dealer
    Authorized Dealer
    Authorized Dealer

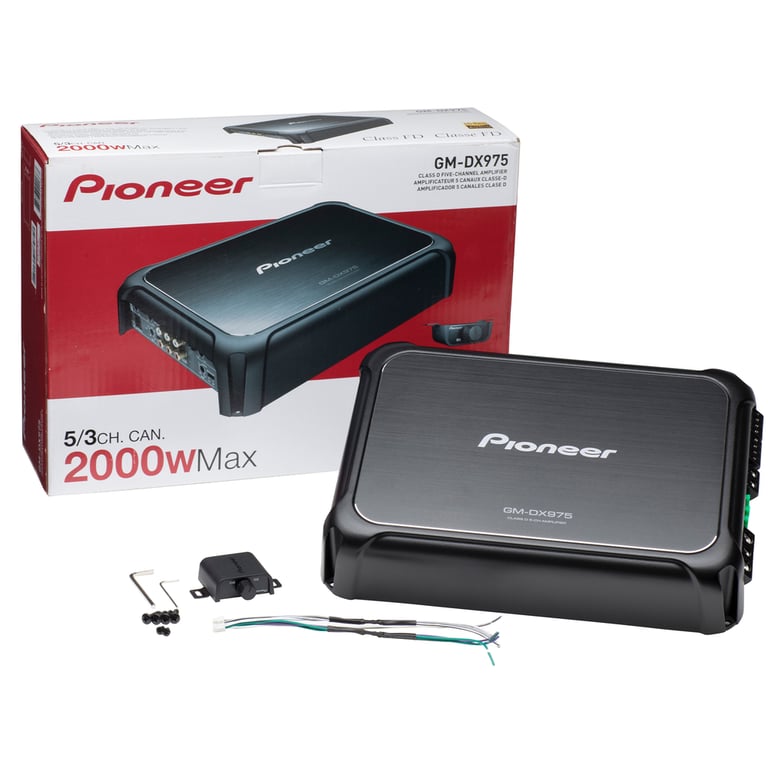

    What is in the box?
    WITB: Amplifiers
    Amplifier
    Wired gain knob (wire separate)
    Mounting screws (6)
    Three spare fuses
    Allen wrench
    Paperwork
    User manual
    Warranty/Registration card
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Sonic Electronix
