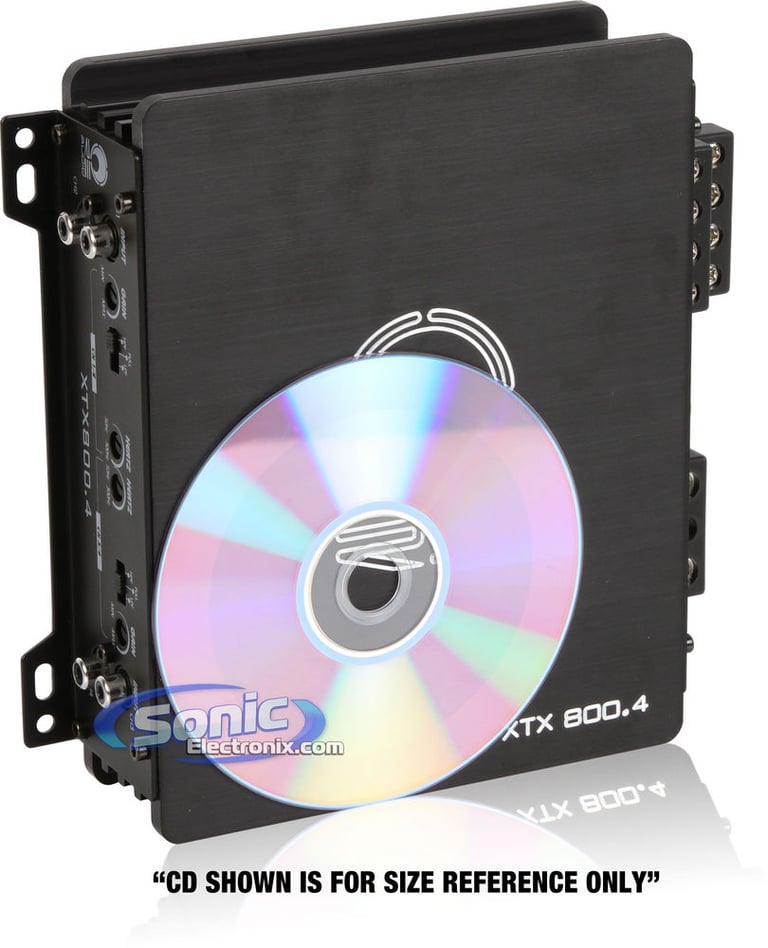

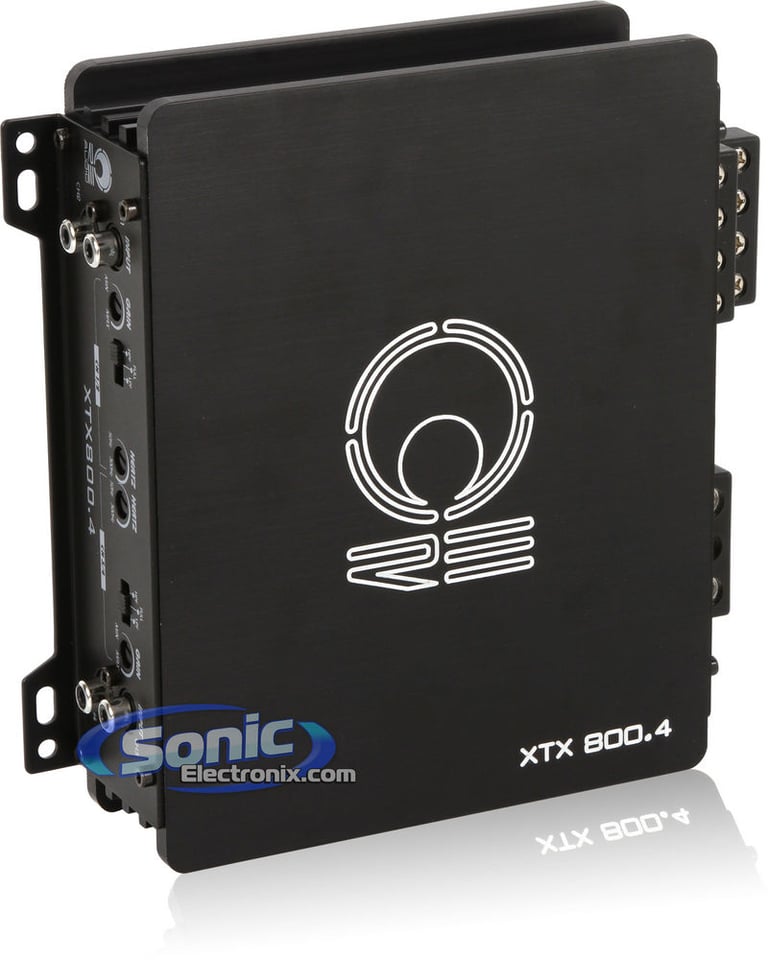

RE Audio XTX-800.4 (XTX800.4) R/B Image 1 — RE Audio XTX-800.4 (XTX800.4) R/B

RE Audio XTX-800.4 (XTX800.4) R/B Image 2 — RE Audio XTX-800.4 (XTX800.4) R/B

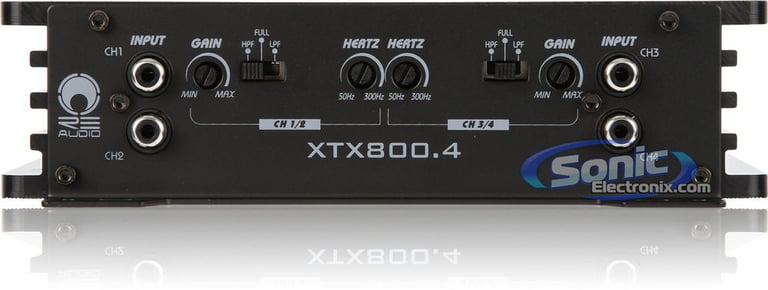

RE Audio XTX-800.4 (XTX800.4) R/B Image 3 — RE Audio XTX-800.4 (XTX800.4) R/B

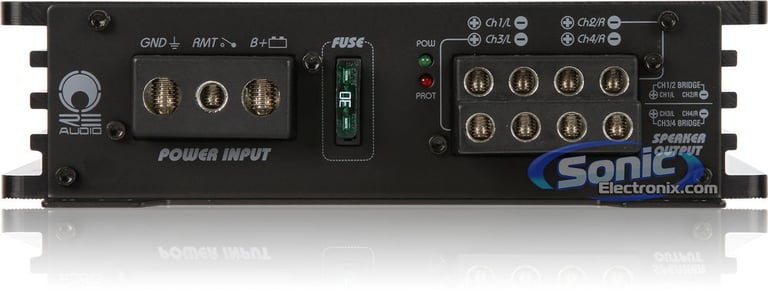

RE Audio XTX-800.4 (XTX800.4) R/B Image 4 — RE Audio XTX-800.4 (XTX800.4) R/B

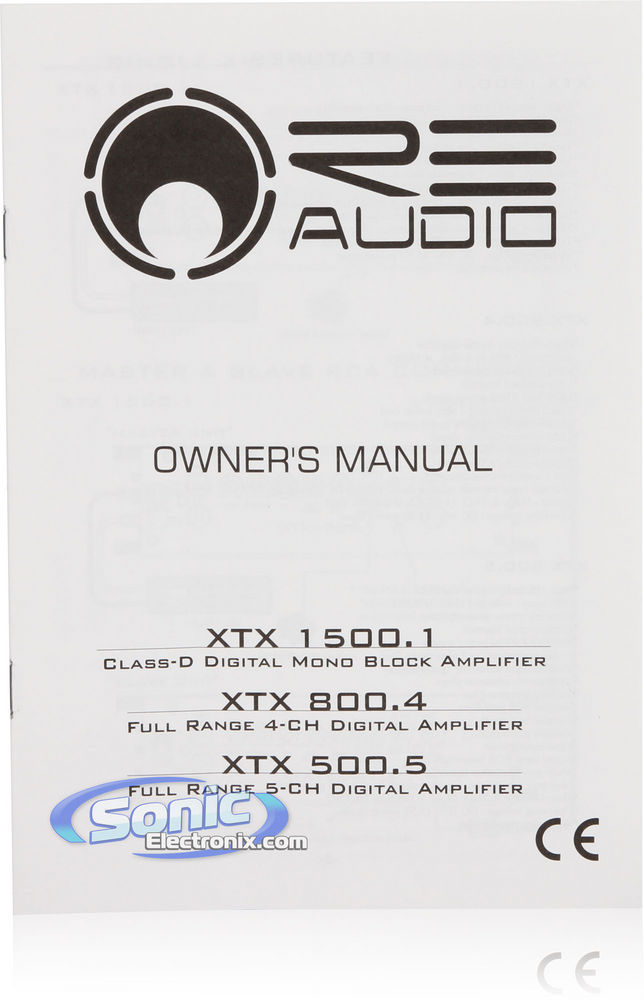

RE Audio XTX-800.4 (XTX800.4) R/B Image 5 — RE Audio XTX-800.4 (XTX800.4) R/B

RE Audio XTX-800.4 (XTX800.4) R/B Image 6 — RE Audio XTX-800.4 (XTX800.4) R/B

Product videos

Product highlights

XTX Series 4-Channel Full Range Digital Car Amplifier • 800W Dynamic • 2-Way System Protection • Brushed Aluminum Alloy Convection Cooled Heatsink • Variable High/Low-Pass Filter • Selectable Bass Boost

Learn more about the LS-xtx8004-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Buy with the Realm LS6c + LS6cx LS Speakers and Save $50.00!

Click here to buy the combo package!

RE Audio XTX Series Delivers Clean and Efficient Power

The XTX800.4 is perfect for when wanting to supply sufficient power to a pair of RE Audio car speakers, or any other after market speakers that require 60 to 70 watts RMS at 4 ohms.

The Digital age is here which means the Analog era is a thing of the past. We at Sonic Electronix are happy to be carrying RE Audio’s 2011 XTX Full Range Digital Series of amplifiers that are sure to meet any needs. The XTX series has multi-channel amplifiers available along with Monoblock amplifiers. All XTX series amplifiers feature a variable low-pass filter allowing you to better fine tune certain frequencies in your car audio system to get a sound that better suits you. The 2-way protection circuitry system well protect the amplifiers from any short circuit or thermal heat overload. This protection ensures the safety of your amplifier, devices, and vehicle at all times. All XTX series amplifiers feature a Pulse Width Modulated MOSFET power supply for increased efficiency and performance. RE Audio’s XTX series amplifiers all produce a clean stream of current while decreasing any distortion that is caused by cross frequencies or even from the engine of your car. If you are looking for a reliable, powerful and efficient amplifier, RE Audio’s XTX series amplifiers are the perfect choice for any installation and situation.

Product Features:

XTX Series 4-Channel Full Range Digital Car Amplifier
RMS Power Rating (14.4V):
- 4 ohm: 60 watts x 4 chan.
- 2 ohm: 90 watts x 4 chan.
- Bridged, 4 ohm: 180 watts x 2 chan.
Dynamic power output: 800 watts
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
4/3/2 channel operation
2-Way System Protection circuitry (thermal and short circuit)
Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation
Nickel-plated RCA level inputs
Nickel-plated 12AWG screw terminals
Input sensitivity:
- Low level: 200mV-6V
Variable high-pass filter (50-300 Hz, 24 dB/octave)
Variable low-pass filter (50-300 Hz, 24 dB/octave)
Signal to noise ration: 90dB
Frequency response: 10-30,000 Hz
Dimensions: 5-15/16"L x 7-1/2"W x 1-15/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-Day Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 4 channel

RMS Power @ 2 ohms

90 watts x 4 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

180 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

800 watts

Total RMS Power Output

360 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.1%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 300 Hz

Low-Pass Crossover Frequency

50 - 300 Hz

Signal-to-Noise Ratio

90 dB

Remote bass/level controller

Fuse Rating

30A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
