Crossfire BMF1014

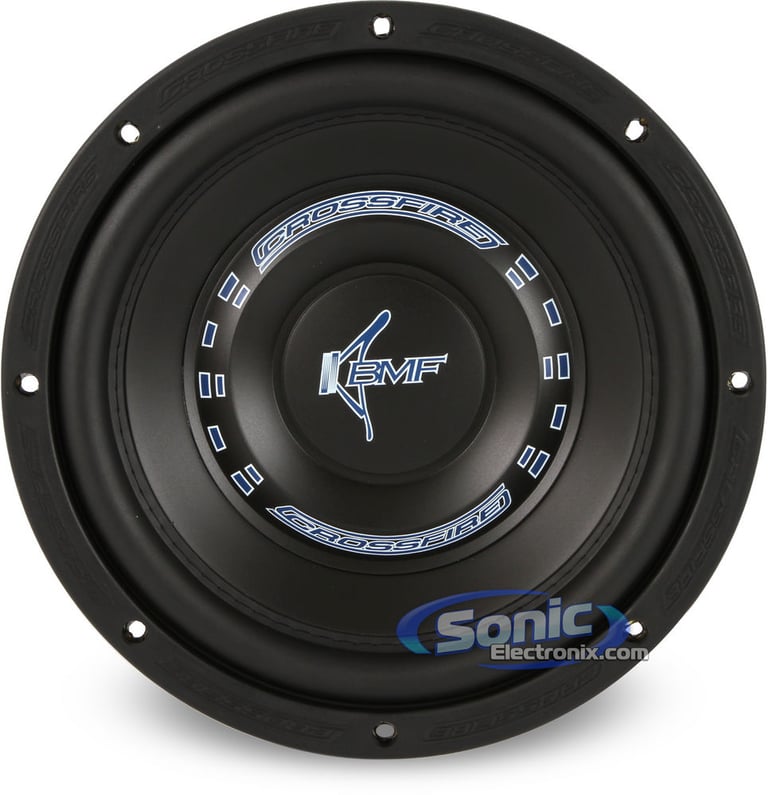

10" Dual 2 ohm BMF Series Car Subwoofer

Crossfire
Shop all Crossfire
Product videos
highlight-star-icon

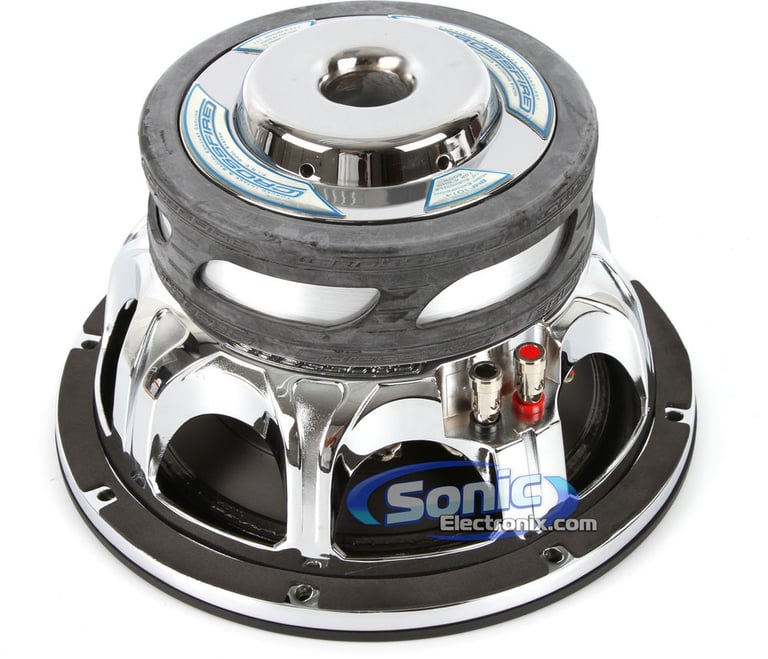

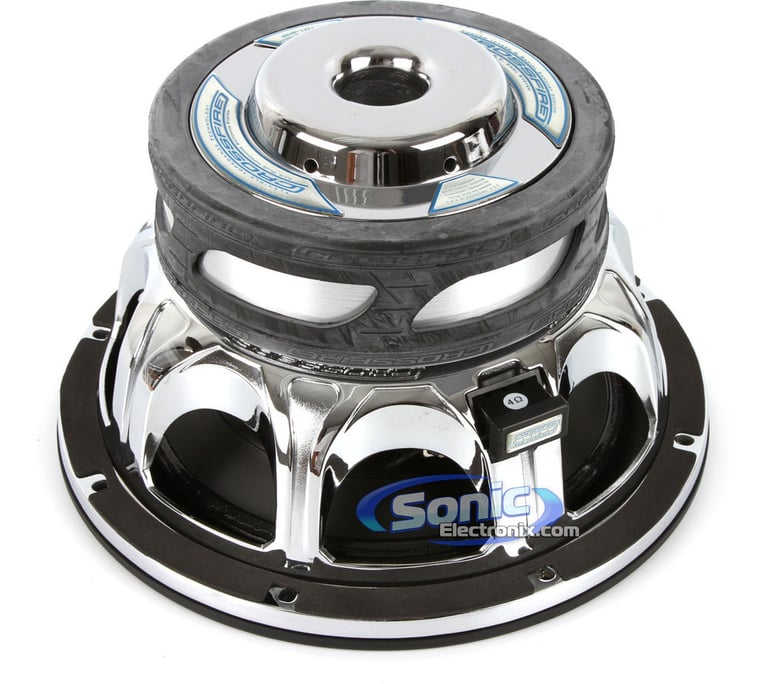

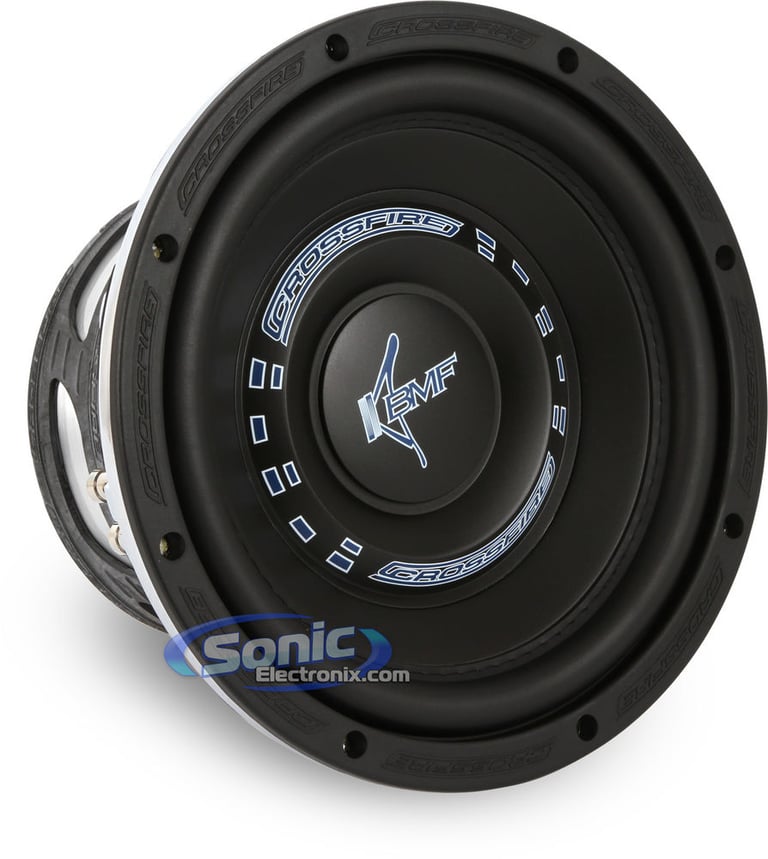

10" Dual 2 Ohm BMF Series Car Subwoofer • 800W Max • 400W RMS • Co-polymer Cone Material • Stitched Rubber Surround • Flexible Impedance Technology • Chrome Cast Aluminum Frame • Dual Stacked 85 oz Magnet Structure

Learn more about the bmf1014

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
MEX-N5300BT main

Sony MEX-N5300BT

Single DIN CD Receiver with Bluetooth and Built-in NFC

82

$158.00

List price $159.99

Product Highlights


10" Dual 2 Ohm BMF Series Car Subwoofer • 800W Max • 400W RMS • Co-polymer Cone Material • Stitched Rubber Surround • Flexible Impedance Technology • Chrome Cast Aluminum Frame • Dual Stacked 85 oz Magnet Structure

Description


Premium Bass with Crossfire

Sonic Electronix is excited to introduce the BMF Subwoofer Series from Crossfire. Available in 10" 12" and 15" models, these subwoofers feature a co-polymer cone and stitched rubber surround, increasing the rigidity and optimum performance of the subwoofers. Ranging from 400-600 watts RMS, the subwoofers will produce deep,clean hitting bass in any vehicle. The "FIT" dual voice coil impedance selector will allow for instant series or parallel voice-coil configuration when wiring dual voice coils. This will allow quick and easy wiring installation when dealing with either the dual 2 or dual 4 ohm versions. Spring loaded compression input terminals will create a secure and reliable connection each and every single time. Designed to work in either sealed or ported enclosures, perfect for those seeking sound quality or sound pressure level. These high-end, high-quality BMF series subwoofers function like a premium subwoofer at an affordable price. >

  • 10" Dual 2 Ohm BMF Series Car Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: 2 Ohm

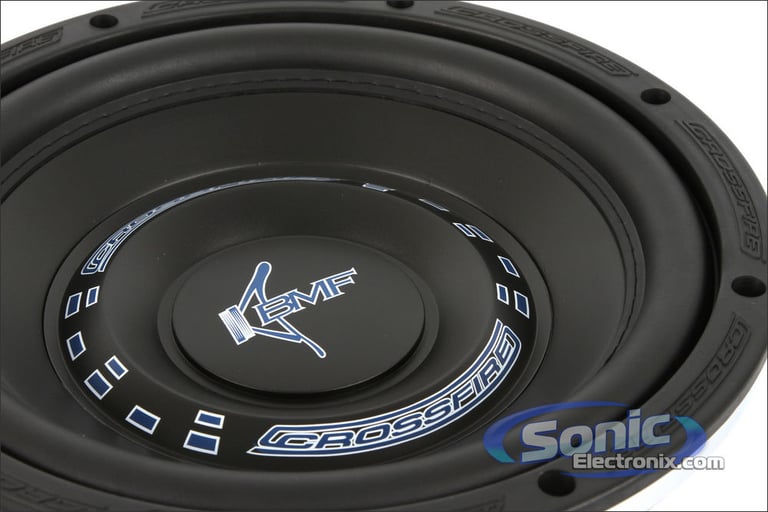

  • Co-polymer cone material
  • Stitched rubber surround
  • Proprietary chrome aluminum cast frame
  • Flexible Impedance Technology (FIT)

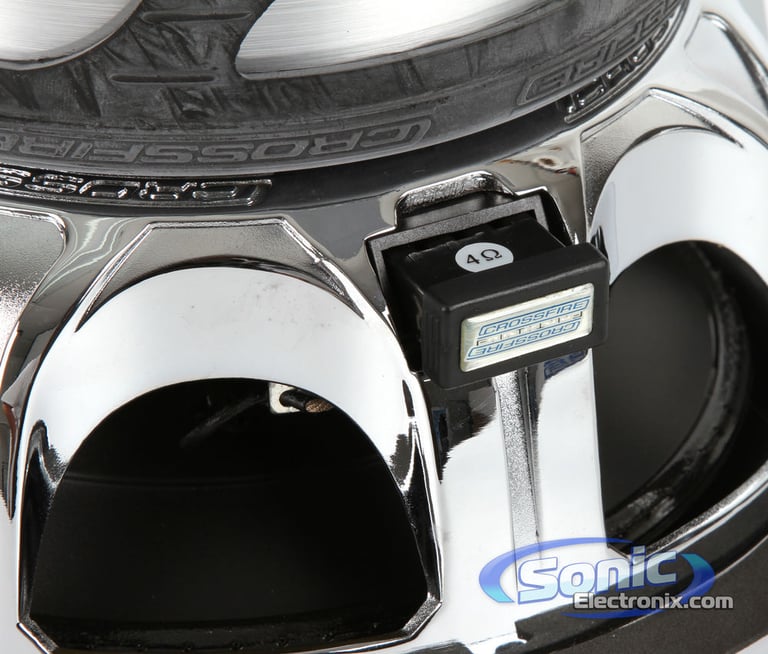

  • Dual Voice Coil (DVC) impedance selector
  • Chromed signature etched back plate
  • Chrome plated extended/vented back plate

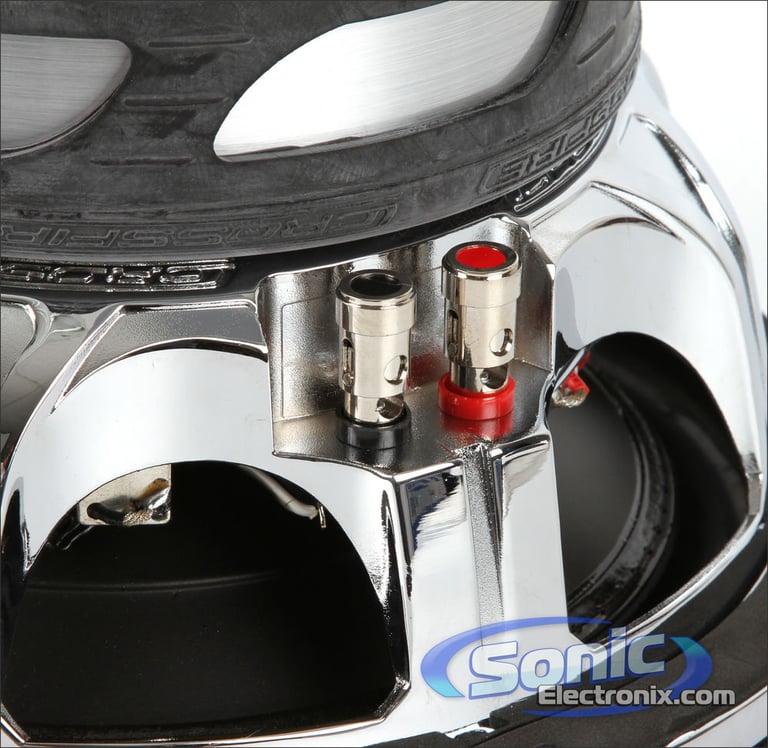

  • Compression nickel-plated sprig loaded input terminals
  • Designed for both vented and sealed enclosures
  • 2-1/2" 4 Layer Dual 2 Ohm Kapton voice coil
  • Dual 85 oz. ceramic stacked magnet structure
  • Frequency response: 20-250 Hz
  • Sensitivity: 83.4 dB
  • Xmax: 14mmm
  • Mounting depth: 5-7/8"
  • Cutout dimensions: 9-1/2"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Crossfire BMF1014 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Crossfire BMF1014 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Crossfire BMF1014 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Crossfire BMF1014 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
BMF Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 250 Hz
Sensitivity
83.4 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Copolymer
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.35 cubic feet
Maximum Sealed Box Volume
1.10 cubic feet
Minimum Ported Box Volume
0.8 cubic feet
Maximum Ported Box Volume
1.80 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BMF1014

Weight:

18.50lbs

Internal SKU:

bmf1014

Internal Product ID:

36224

Product and How-to Videos


Customer Ratings & Reviews


Crossfire BMF1014 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Just Like JLs

I own 2 of this subs and they're loud. They're loud and clear just like JL subs. I bough em like new in a pawn shop apparently the guys there never heard of the brand so they sold them to me for 60 bucks the pair. When i saw how much they were i was like damn they're expensive but worth it.

By Jose on May 23, 2011

12 found this helpful


10" Crossfire BMF

My BMF came Brand New as described, in perfect working condition, and still sounds as good as the first day I installed it!

Great Price on a Great Product!!

By DBDragCars on July 13, 2012

4 found this helpful
