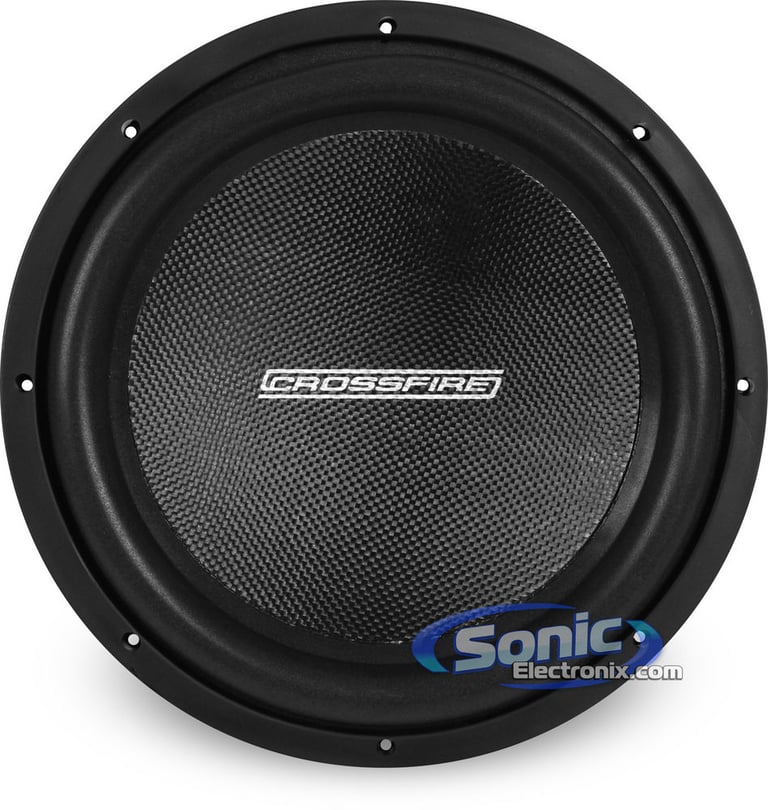

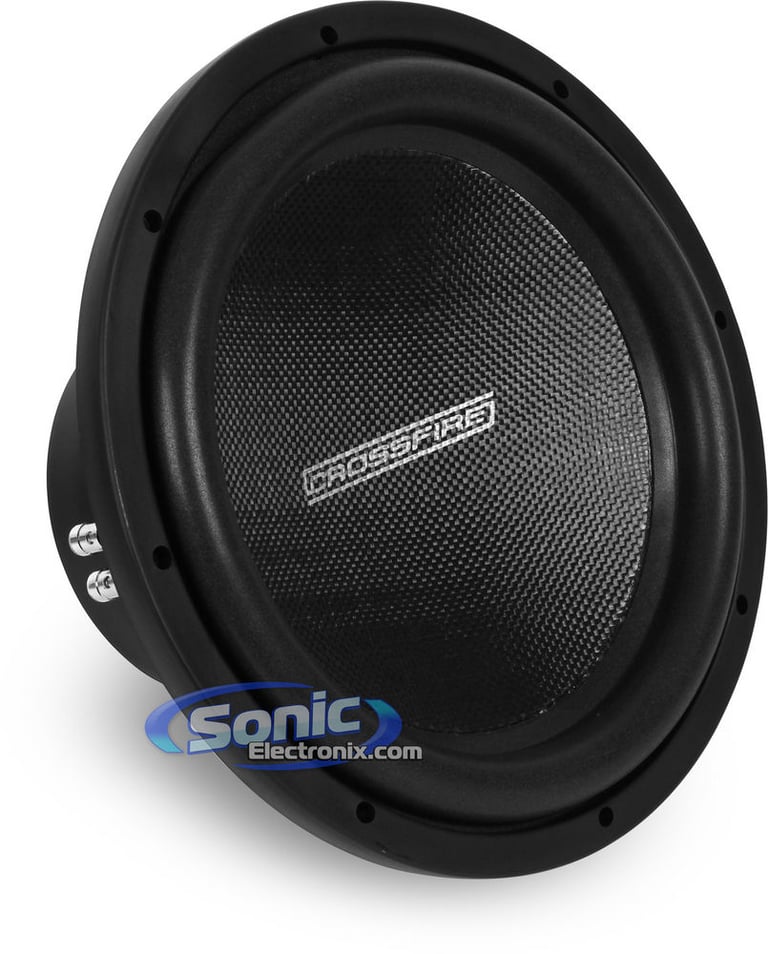

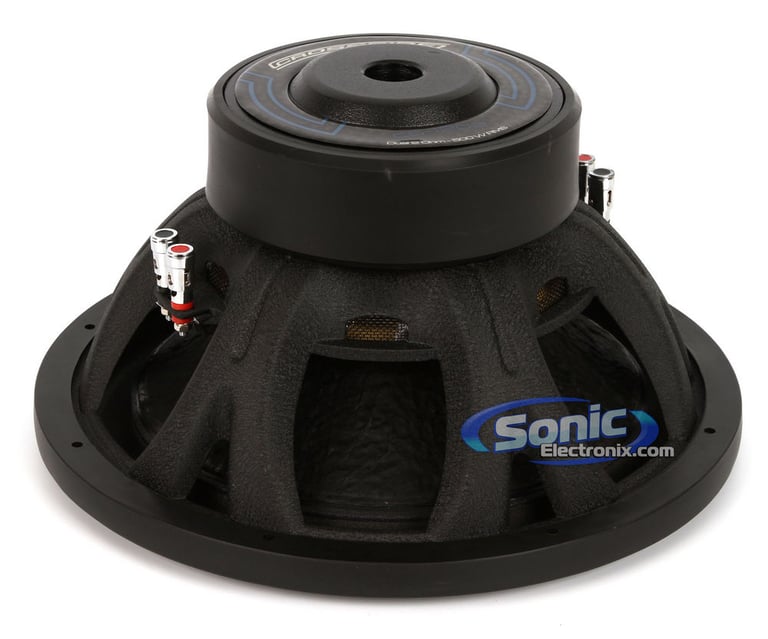

Crossfire C5 12D2

12" Dual 2 ohm C5 Series Car Subwoofer

Crossfire
Shop all Crossfire
Product videos
highlight-star-icon

12" Dual 2 Ohm C5 Series Subwoofer • 1000W Max • 500W RMS • Injection Molded Polypropylene Woofer Cone • Foam Composite Woofer Surround • Spring Loaded Push Terminals • Dual 120 oz Ceramic Magnets • Designed for Small Enclosures

Learn more about the c512d2

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


12" Dual 2 Ohm C5 Series Subwoofer • 1000W Max • 500W RMS • Injection Molded Polypropylene Woofer Cone • Foam Composite Woofer Surround • Spring Loaded Push Terminals • Dual 120 oz Ceramic Magnets • Designed for Small Enclosures

Description


Get Started with Crossfire

Are you looking to add bass without waking the neighbors? Well Sonic Electronix is excited to introduce the low-wattage C5 series subwoofers from Crossfire. These subwoofers are rated 500 watts RMS, giving you the right amount of bass without the worry of drowning out your system. The subwoofers feature an injection molded polypropylene woofer cone and foam composite surround for rigidity and enhanced performance. Designed with spring loaded push terminals for easy and quick installation, along with dual stacked 120 oz. magnet structure for increased performance and better frequency range. The C5 subwoofers are capable of high excursion levels while still maintaining a clean, crisp and deep bass. Equipped with 2.5" Aluminum high-temperature voice coils for increased stability and thermal handling, the C5 series subwoofers are perfect for anyone looking to add a little bass into their car.

  • 12" Dual 2 Ohm C5 Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: 2 Ohm
  • Injection Molded Polypropylene (IMPP) woofer cone material
  • Foam composite woofer surround
  • Rubberized trim ring
  • Designed for small enclosures
  • High excursion capability
  • Spring loaded push terminals
  • 2.5" Dual 2 ohm aluminum high-temperature voice coil
  • Dual 120 oz. ceramic stacked magnet structure
  • Resonance frequency: 29 Hz
  • 21mm Peak-to-peak excursion
  • Mounting depth: 6"
  • Cutout dimensions: 11-4/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Crossfire C5 12D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Crossfire C5 12D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Crossfire C5 12D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Crossfire C5 12D2 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
C5 Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Xmax (millimeters)
21 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.2 cubic feet
Maximum Sealed Box Volume
1.2 cubic feet
Minimum Ported Box Volume
2.1 cubic feet
Maximum Ported Box Volume
2.1 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11-4/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29 Hz
Equivalent Compliance (Vas)
68 liters
Total Speaker Q Value (Qts)
0.44
Electrical Q Value (Qes)
0.51
Electrical Resistance of Voice Coil (Re)
.09 ohm
Mechanical Q Value (Qms)
3.14
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C5 12D2

Weight:

13.50lbs

Internal SKU:

c512d2

Internal Product ID:

36232

Product and How-to Videos


  • Crossfire C5 Subwoofers | Car Audio Sub w/ Carbon Fiber!
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
