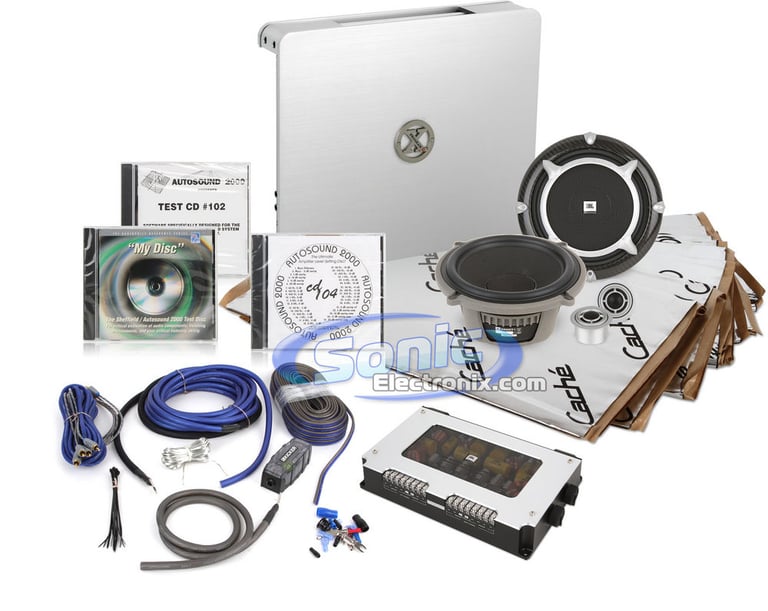

760W JBL + DLS Audiophile Speaker Package

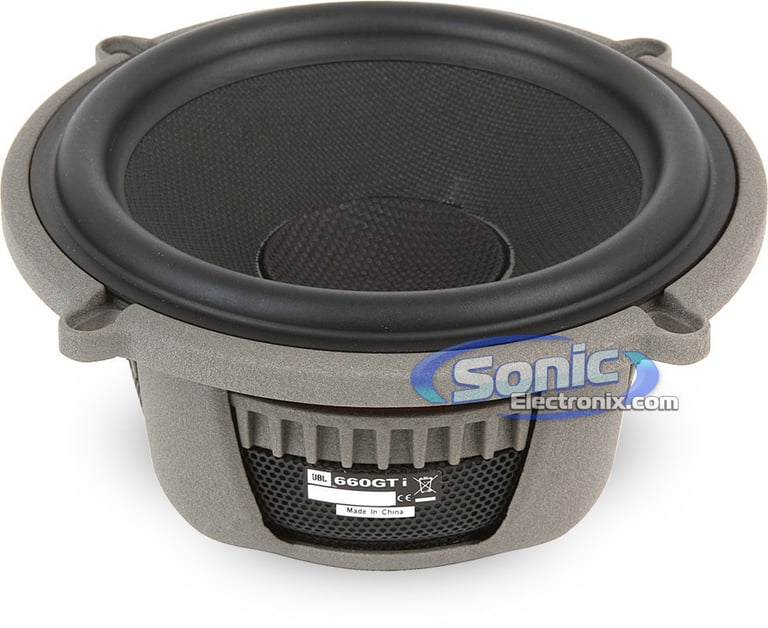

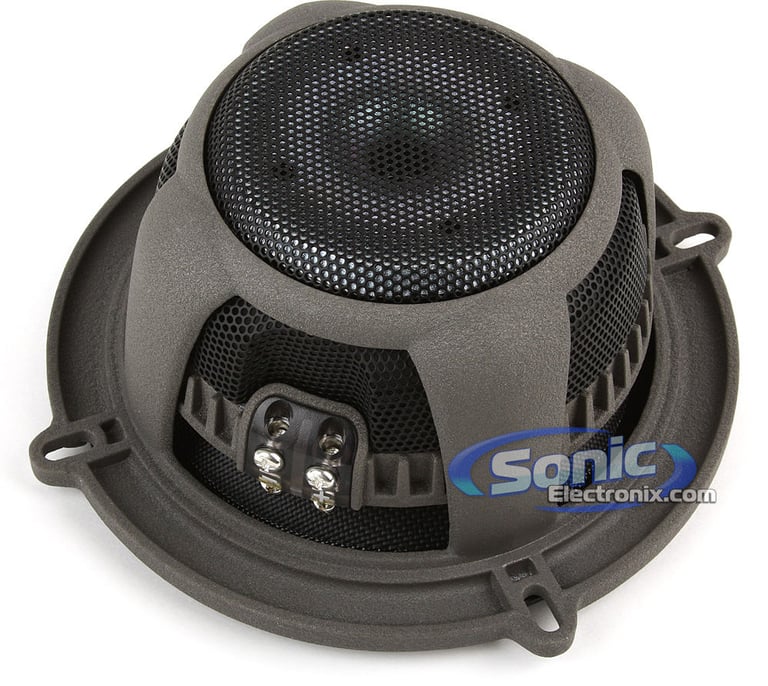

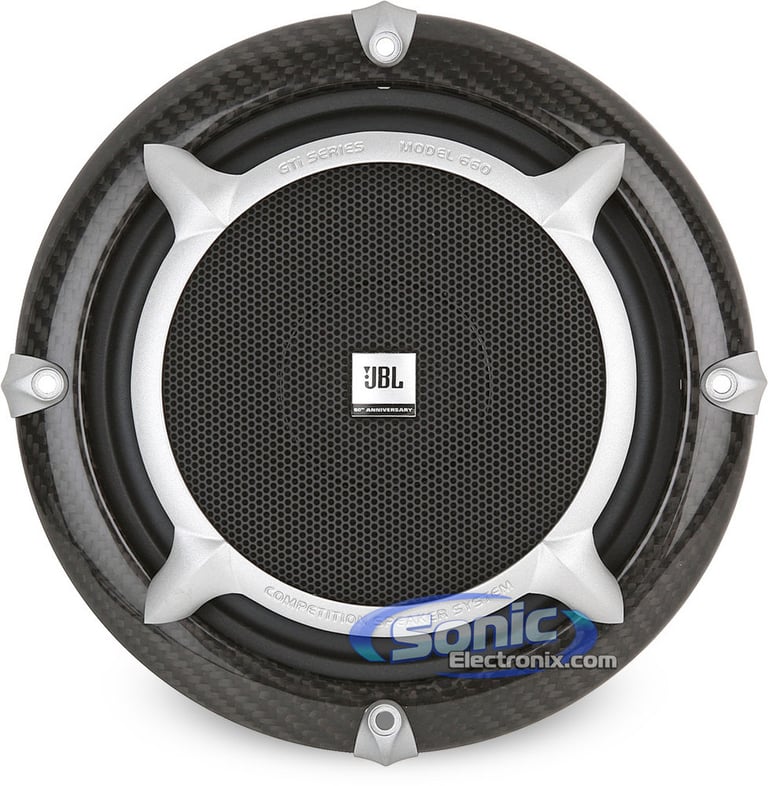

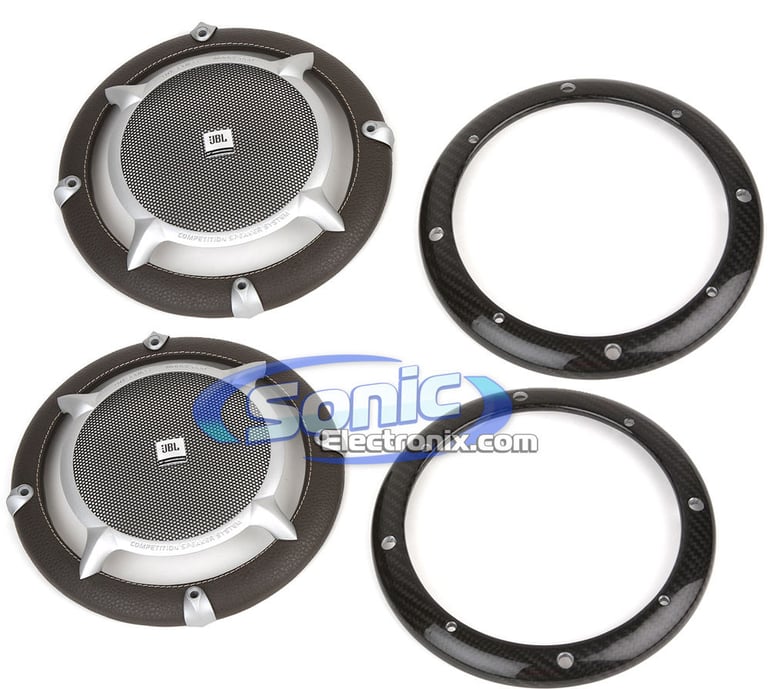

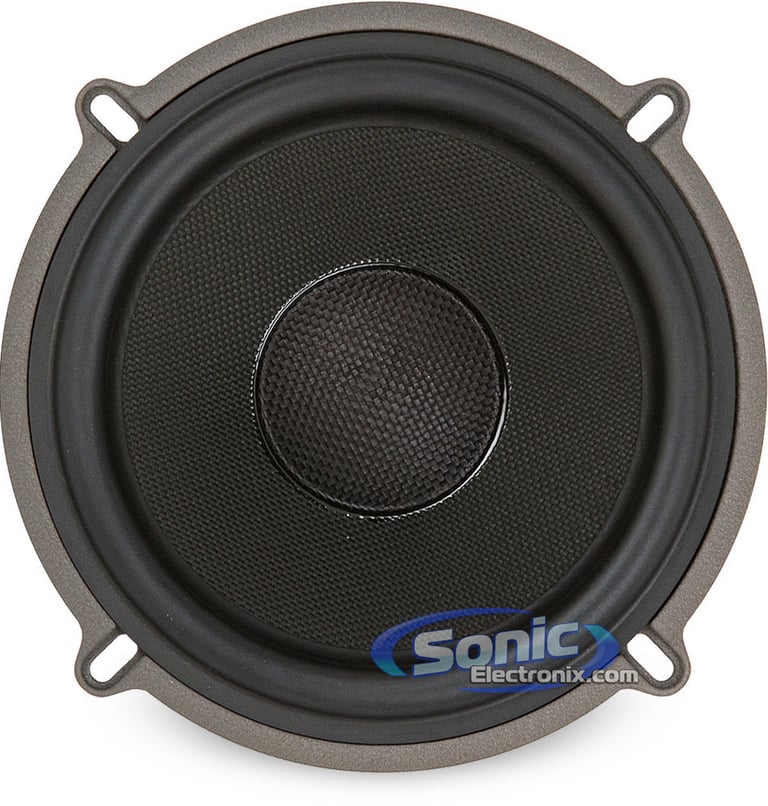

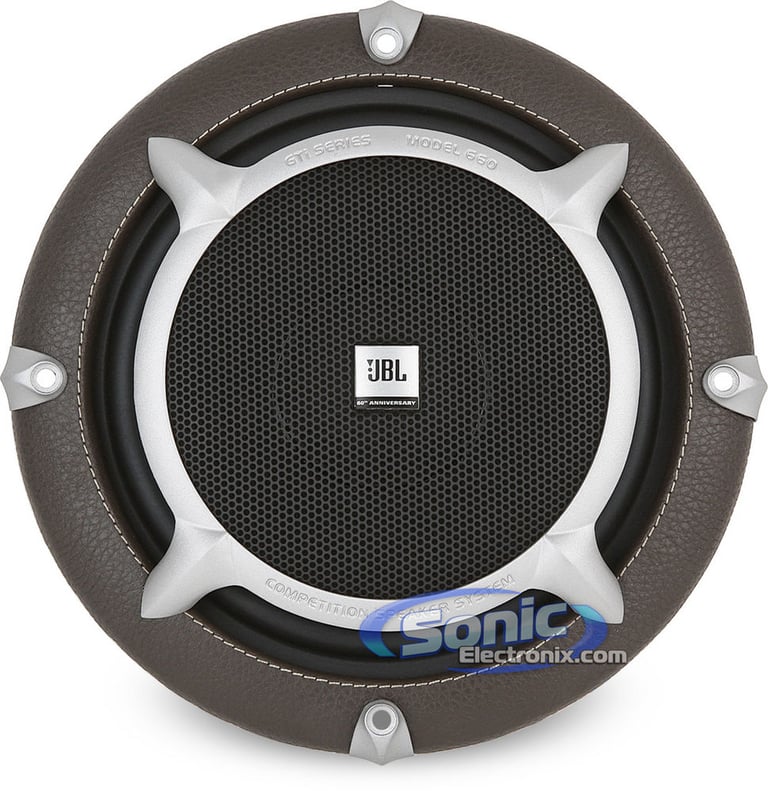

• 6-1/2" GTi Series Special Edition 2-way Component Speakers System
• Power Handling:
• Peak: 1200 watts per set / 600 watts each side
• RMS: 300 watts per set / 150 watts each side
• Kevlar® cone woofer and dustcap
• NBR (Nitrile Butadiene Rubber) surround (also known as Nitrile Butylene)

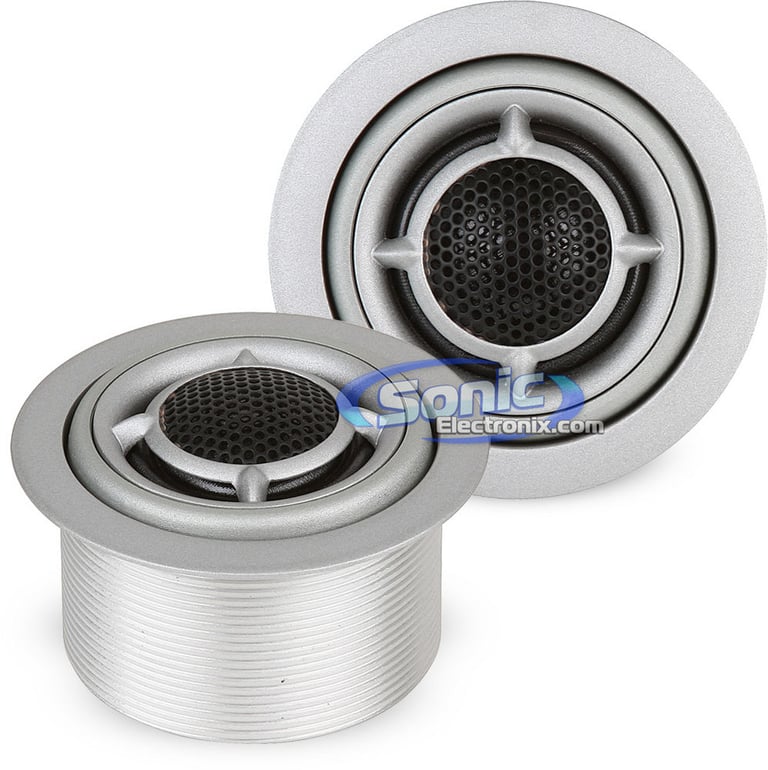

• 2-1/4" High quality dome tweeters
• Cast aluminum basket frame: Ensures protection of sensitive internal components as well as providing structural integrity for the motor and moving assembly
• Nomex® Spider: Maintains linearity of motor movement
• Spider-Landing Vents: Greatly reduce distortion from any unwanted mechanical noise
• Copper Polepiece Cap: Not only will it provide additional linearity support, but it is also designed to reduce intermodulation distortion
• Polished and Flared Polepiece Vent: Maximizes air movement flowing in and out of the speaker, allowing for greater cooling, performance, and minimal distortion
• Vented Gap Cooling Ports: In conjunction with the Polepiece Vent, the design allows air to pass through the voice coil-- effectively cooling it while in operation
• Flux Stabilization Ring: Stabilizes static magnetic field, minimizing coil inductance when voice coil moves inward

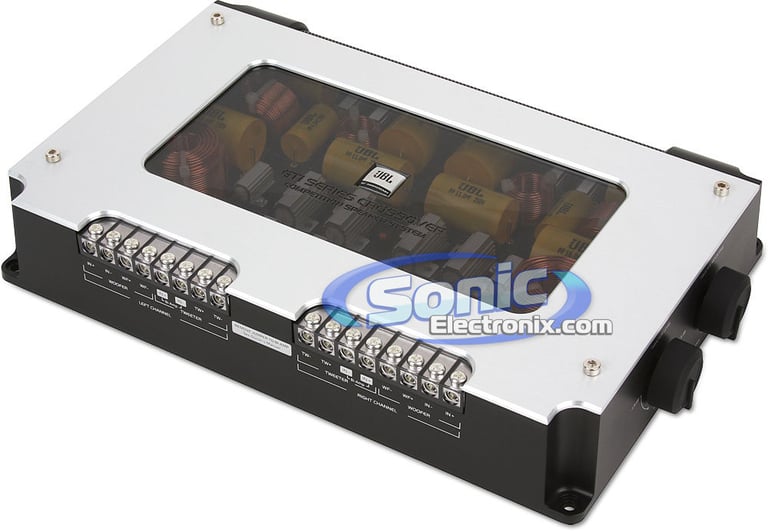

• Competition-Level Crossover: Features low-loss, low-ESR polypropylene capacitors, tweeter level adjustment, frequency contour (waveguide) controls, and bi-amp capable terminals
• 35° Wide listening window (compared to 30° with other speakers)
• 4 ohm impedance
• 2" Premium quality aluminum edge-wound voice coil that virtually eliminates any distortion at the lowest frequencies and highest power handling
• Neodymium Magnet Structure: Optimizes performance thanks to its high flux density; also provides additional space for proper internal cooling due to its compact size
• Designed to be Bi-amped channel for each midwoofer and for each tweeter
• Top-mount depth: 3-1/16"
• Authorized Internet Dealer
• 2-year Manufacturer's warranty

Includes Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

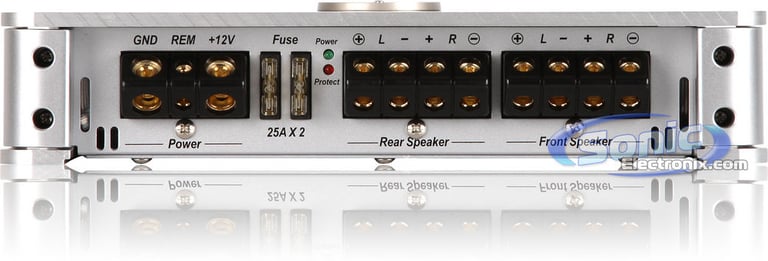

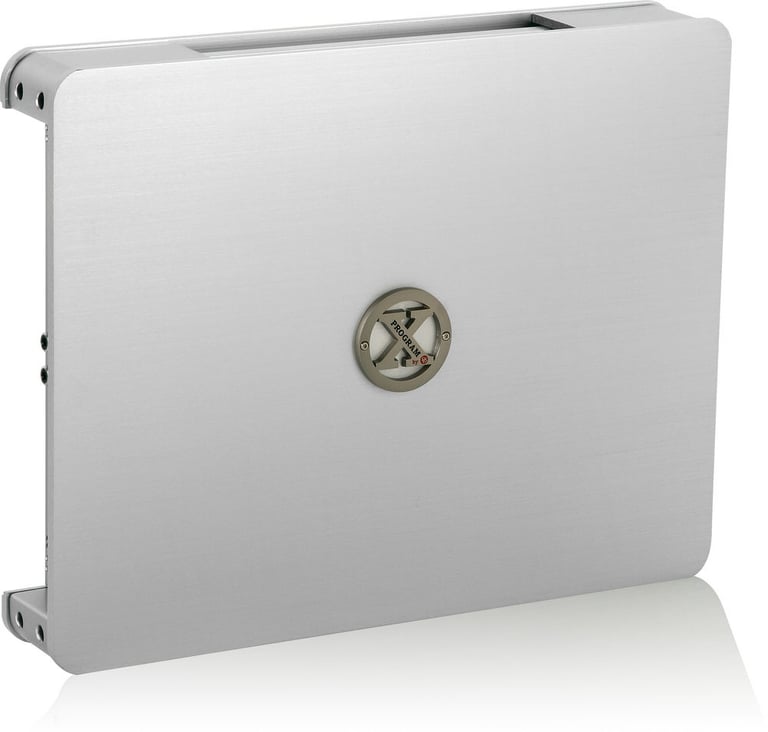

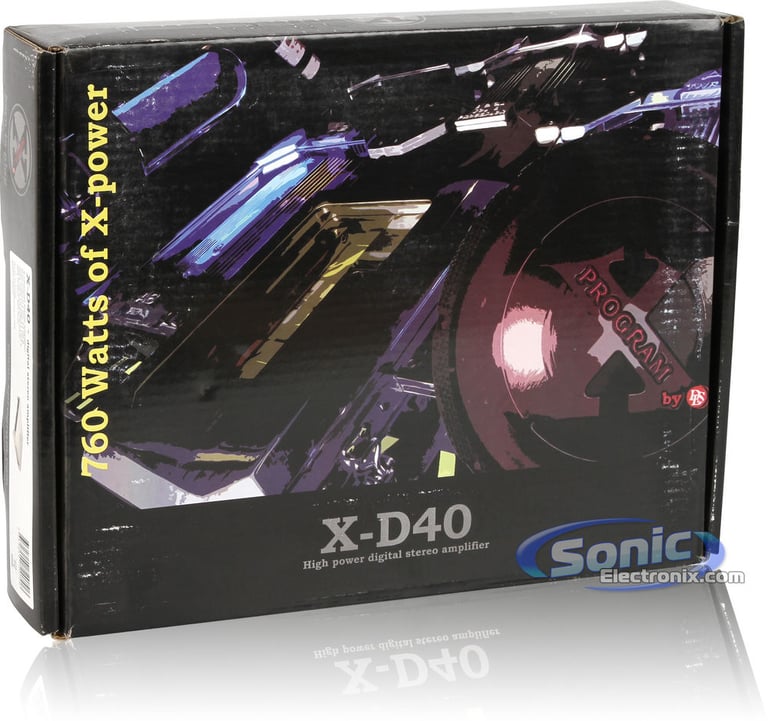

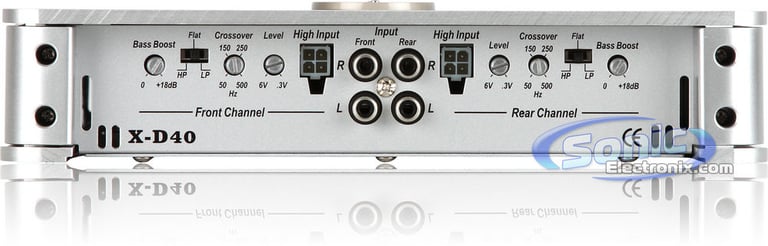

• X-Program 4-Channel Class D Car Amplifier
• RMS Power Rating (14.4V):
  • 4 ohm: 100 watts x 4 chan.
  • 2 ohm: 180 watts x 4 chan.
  • Bridged, 4 ohm: 380 watts x 2 chan.
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +18 dB bass boost)
• Soft Start Turn-on
• 4/3/2 channel operation
• Speaker-level inputs with signal sensing for automatic turn-on
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Gold-plated RCA level inputs
• Gold-plated screw terminals
• Input sensitivity:
  • Level: 300mV-6V
• Variable high-pass filter (50-500 Hz)
• Variable low-pass filter (50-500 Hz)
• Phase Shift: 0-180°
• Damping factor: >100
• Frequency response: 10-35,000 Hz
• Dimensions: 12-1/2"L x 2"W x 10"H
• 1-year Manufacturer's warranty

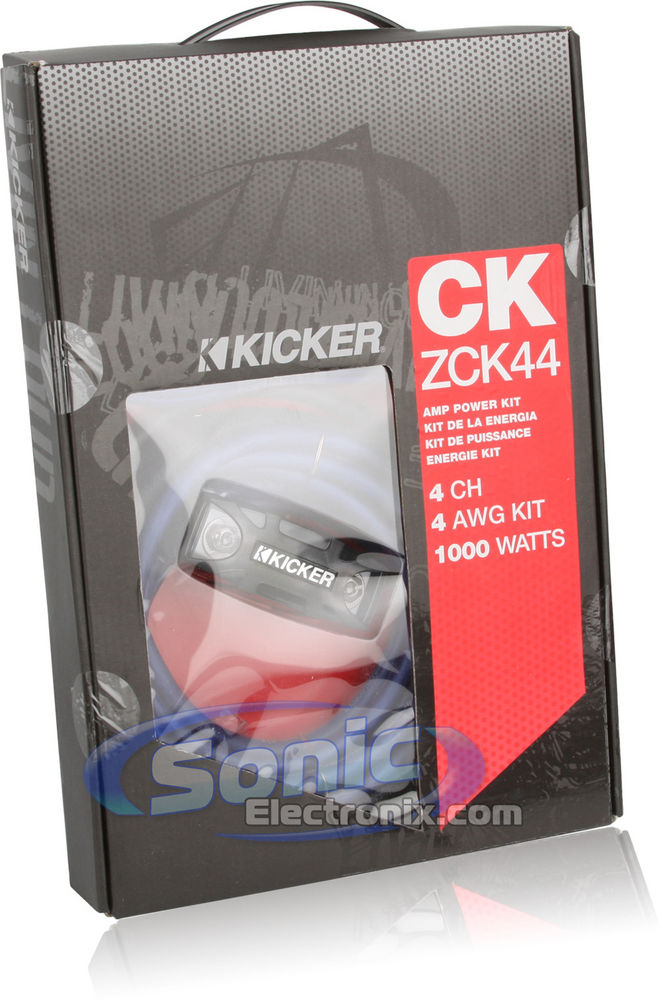

• Complete 4 Gauge Z-Series 2-Channel Amplifier Installation Kit
• 1000 Watts RMS
• Direct-connect engineering
• Fewer connections for less signal distortion
• Twisted-pair technology eliminates noise for crystal clear sound
• Hyper-flex cable and wire
• Full spec cable is true to gauge
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

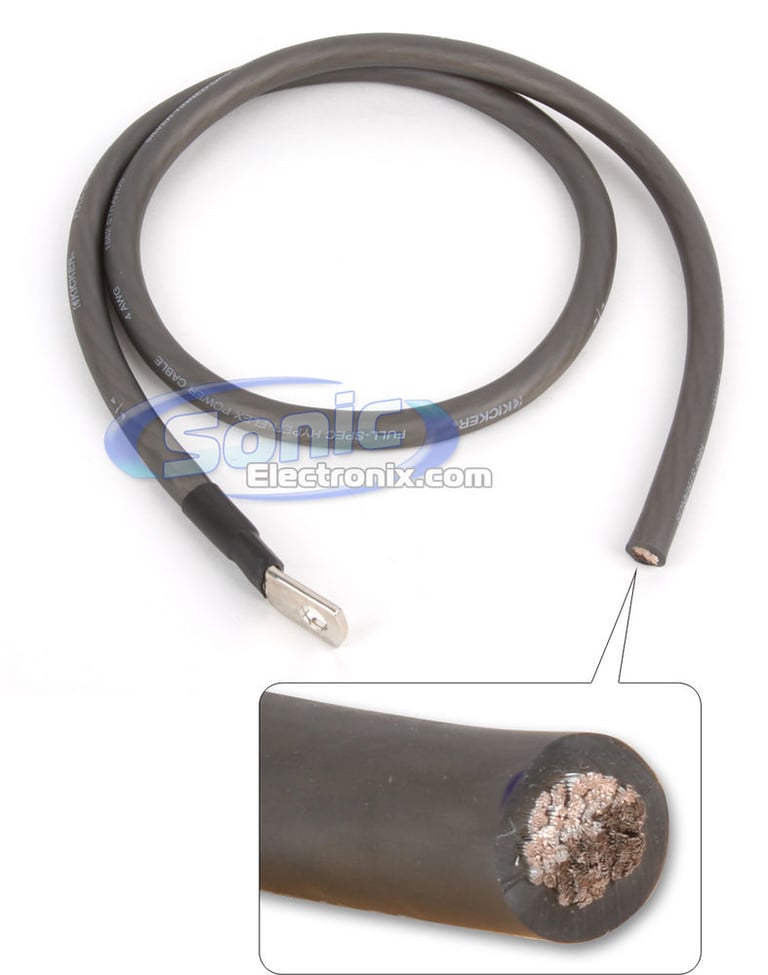

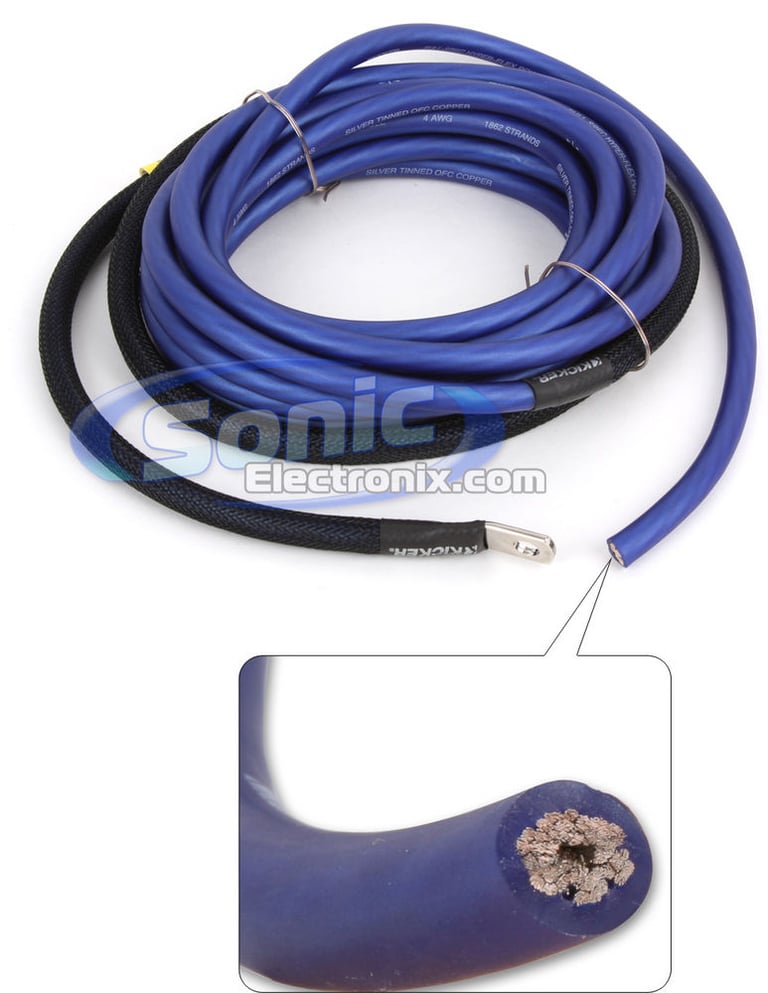

1. 20ft (6.1m) Blue 4 AWG power wire
2. 3ft (0.9m) Black 4 AWG ground wire
3. 20ft (6.1m) Blue 18AWG remote lead wire

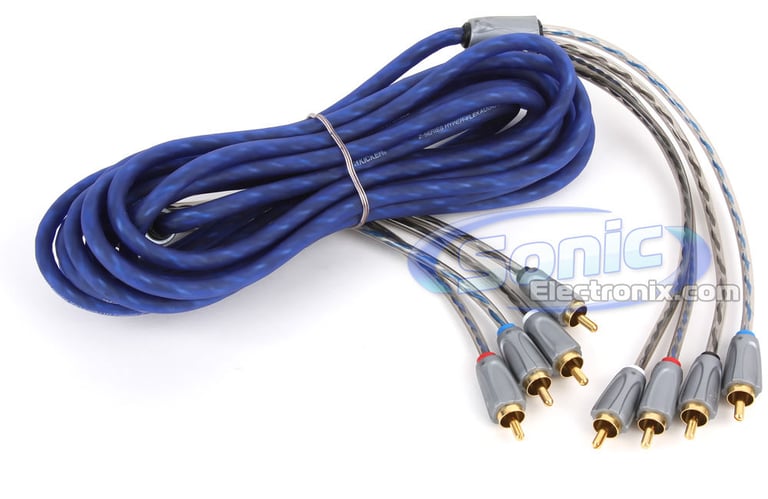

4. 16.4 (5m) Blue, black, and gray 2 Channel RCA cable

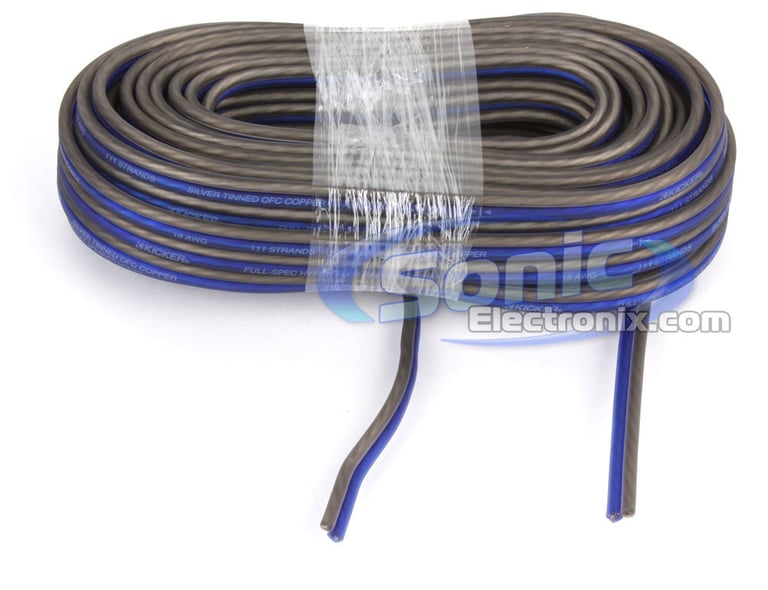

5. 40ft (12.2m) Blue and gray 16AWG speaker cable

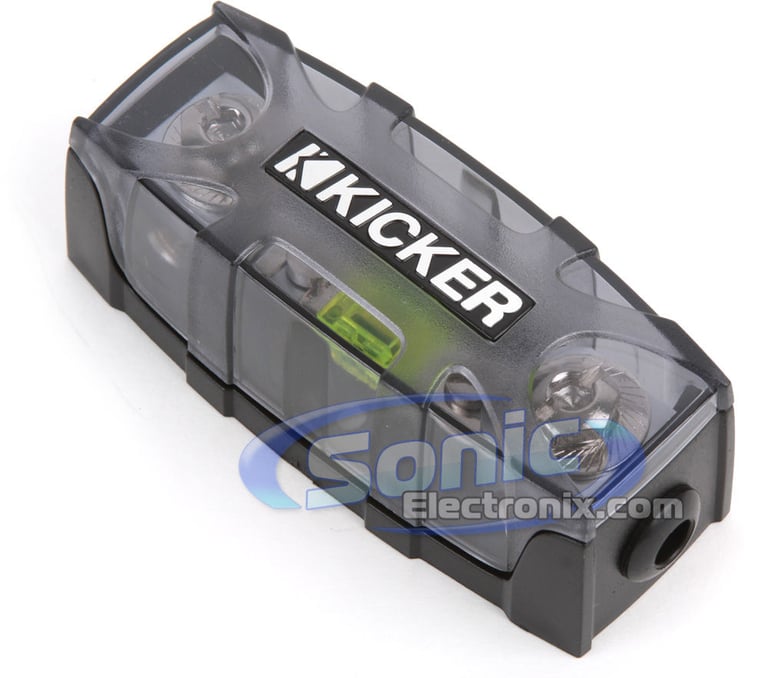

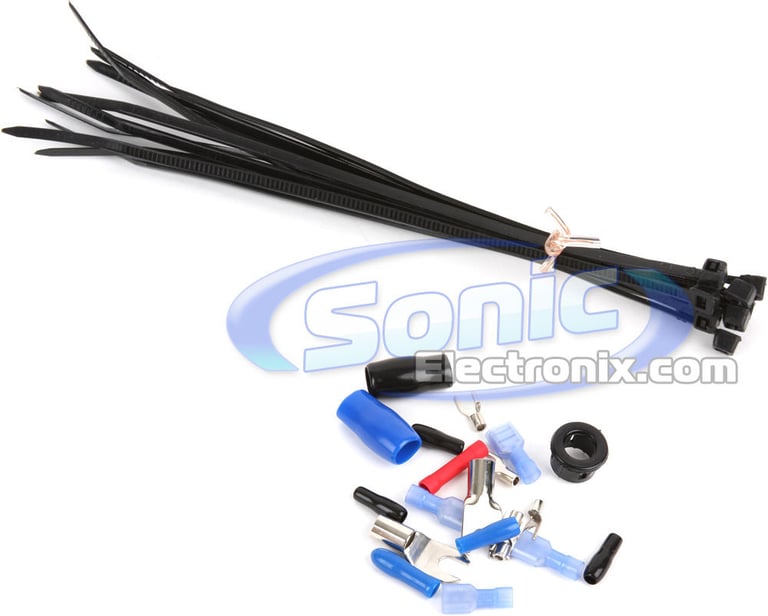

6. 1 Kicker 09FHS Fuse holder with 100 amp AFS fuse
7. Black rubber firewall grommet
8. Two 4 AWG Spade terminals
9. Five 18 AWG Spade terminals
10. 4 Female quick disconnect connectors
11. Black zip ties
12. Red butt connector

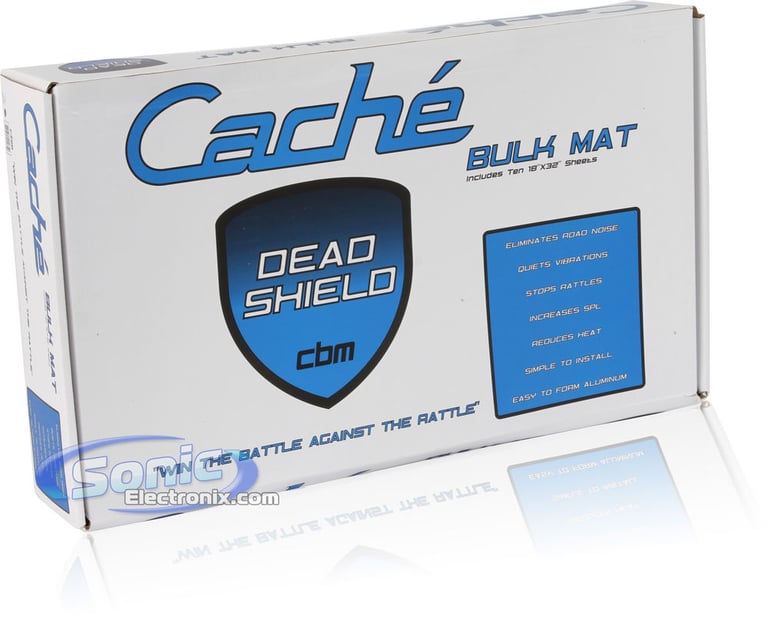

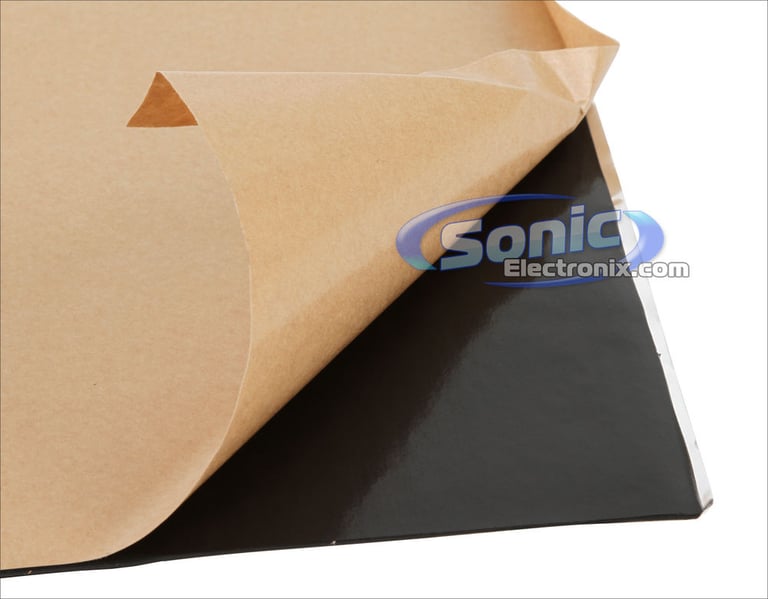

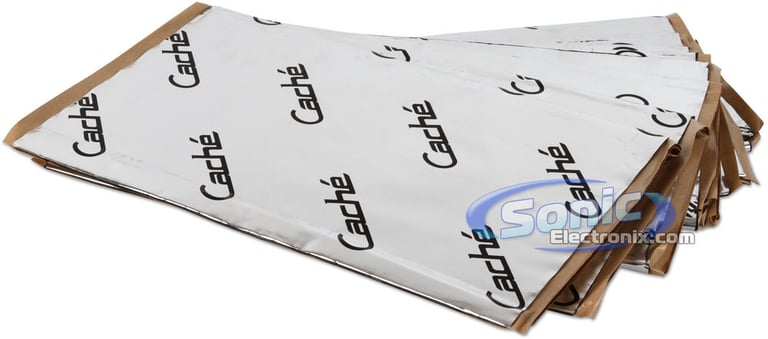

• Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material
• Eliminates Road Noise
• Quiets Vibrations
• Stops Rattles
• Increases SPL
• Reduces Heat
• Simple To Install
• Easy To Form Aluminum
• Four step peel and stick installation
• Increases sound quality and output
• Up to 30% thicker than the leading competitors
• Dimensions (each piece): 18"L x 32"W

• Audio Test CD-102 by A2000
• Designed to be used by home and pro audio speaker designers, audiophiles, engineers, and builders of car audio competition or demo vehicles
• Tracks were specifically recorded to either be measured with instruments or evaluated by listeners
• Comes complete with instructions and will certainly be a useful addition to any software library
• Tracks 30 and 31 were recorded for maximum low frequency energy on the 16-bit digital format
• For full CD information and track listing, please refer to the CD-102's Product Page
• 1-year SonicElectronix.com warranty

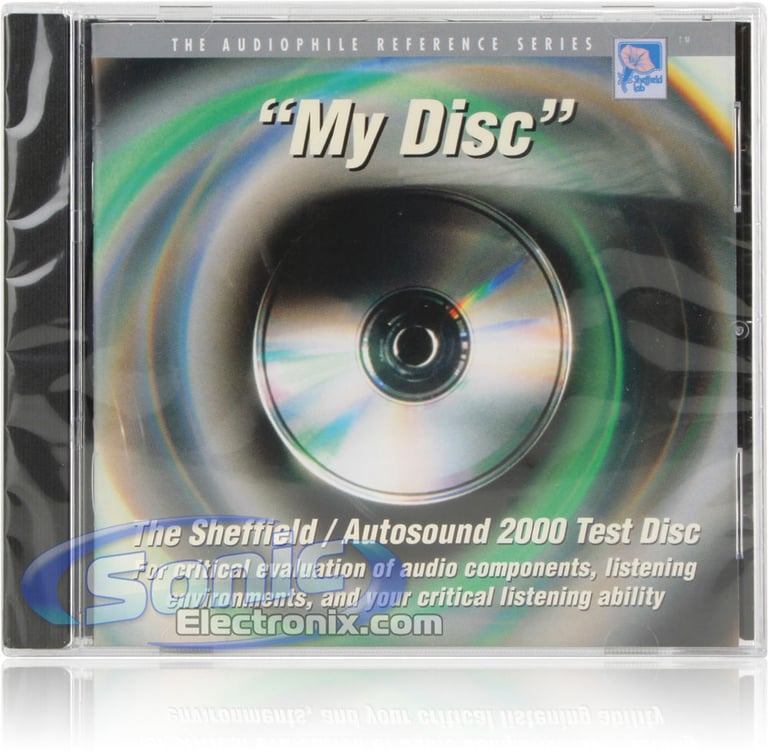

• The Sheffield/A2000 Test CD#103 "My Disc"
• Features 86 tracks for the critical evaluation of audio components, listening environments, and your critical listening ability
• Non-music tracks include human voices at various spots on a typical soundstage as well as various levels of distortion
• If you had to choose but one disc for home/pro/car audio, then "My Disc" would be the one
• For full CD information and track listing, please refer to the CD-103's Product Page
• 1-year SonicElectronix.com warranty

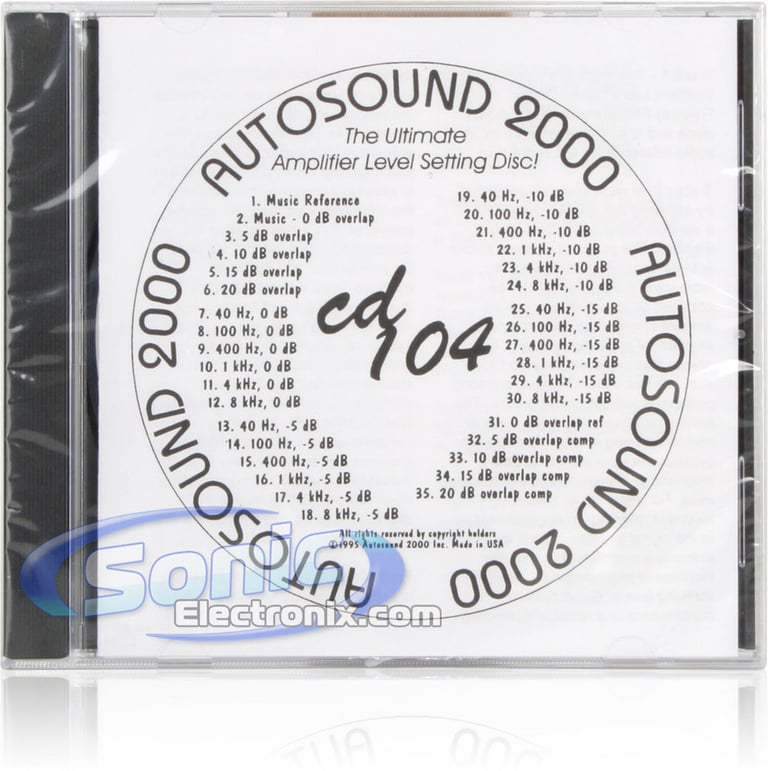

• The Ultimate Amplifier Level Setting Disc, for Critical Evaluation of Audio Components
• The ultimate test disc for determining the audible level of distortion in an audio system
• Uses specialized tracks to set up your system for maximum sound and minimum system hiss
• No special equipment is needed
• The tracks will indicate the specific amount of gain overlap (clipping), average distortion, and the relative loudness present in your system
• Other tracks on cd#104 will permit optimal component adjustments of the signal level to maintain optimal system performance
• For full CD information and track listing, please refer to the CD-104's Product Page
• 1-year SonicElectronix.com warranty
