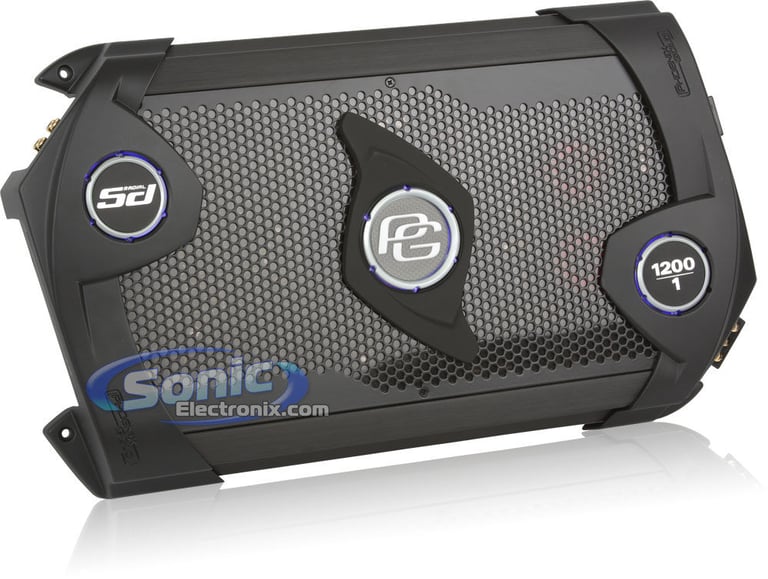

Phoenix Gold RSd 1200.1 (RSd1200.1)

1200W RMS, Radial Sd Series Class D Monoblock Amplifier

Product videos
highlight-star-icon

1200W RSd Class D Monoblock Amplifier • 780W x 1 chan. @ 4 Ohm • 1200W x 1 chan. @ 2 Ohm • MOSFET power supply • protection circuitry • line level inputs • variable bass boost • S/N ratio: 79dB

Learn more about the rsd12001

We apologize

This item has been discontinued


Loading...
82-3006 main

Metra 82-3006

6" to 6.75" Speaker Mounting Adapter for select 2003-2024 vehicles from Chevrolet, GMC, Cadillac

23
-50.01%

$16.99

List price $33.99

82-3004 main

Metra 82-3004

6x9" Speaker Mounting Adapter for select 2012-2025 vehicles from GMC, Chevrolet, Cadillac

24
-11.77%

$29.99

List price $33.99

72-4572 main

Metra 72-4572

Install New Speakers in select 2006-2024 vehicles from Chevrolet, GMC, Cadillac

36
-6.67%

$13.99

List price $14.99

72-4573 main

Metra 72-4573

Install New Tweeters or Speakers in select 2015-2024 vehicles from GMC, Chevrolet, Cadillac

6
XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12

Product Highlights


1200W RSd Class D Monoblock Amplifier • 780W x 1 chan. @ 4 Ohm • 1200W x 1 chan. @ 2 Ohm • MOSFET power supply • protection circuitry • line level inputs • variable bass boost • S/N ratio: 79dB

Description


Phoenix Gold brand icon

Authorized dealer

  • 1200 watts, RSd Class D Monoblock Amplifier
  • RMS Power Output:
    • 4 Ohm: 780 watts x 1 chan.
    • 2 Ohm: 1200 watts x 1 chan.
  • High Speed, High Current MOSFET Switching Power Supply
  • On Board Protection Circuitry
  • Multi-Function Protection Indicator

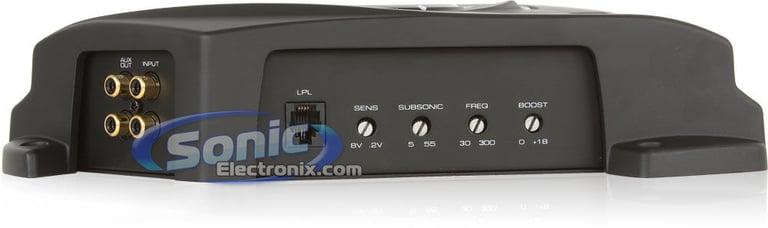

  • Built-In Low Pass Crossover, 30 Hz - 300 Hz @ 18 dB/oct.
  • Variable Bass Boost(0 - 18 dB)
  • Wide Range Input Sensitivity Adjustment
  • Line Level Inputs
  • AUX Outputs
  • S/N Ratio: 79 dB
  • Dimensions: 19-1/4"L x 11-3/16"W x 2-3/8"H
  • Exclusive Authorized Internet Dealer
  • 2-year Manufacturer's warranty


Loading...
BE-GM-SLVDC-G4 main

NVX Loaded BOOST Box - 2019-2024 Chevrolet Silverado/GMC Sierra - BE-GM-SLVDC-G4

For select 2019-2024 Sierra and Silverado 3500 HD / 2500 HD / 1500 / 1500 LD - Dual 12" 800W RMS Loaded BOOST Sealed Truck Enclosure

1
-30.56%

$499.99

List price $719.99

R2-DB8V-TRK main

Alpine R2-DB8V-TRK

2000W Peak (700W RMS) Loaded Dual 8" R-Series Vented Truck Enclosure for select 2007-2024 vehicles from Ford, Jeep, Ram

1
-16.67%

$999.95

List price $1200.00

S2-DB8V-TRK main

Alpine S2-DB8V-TRK

600W Peak (300W RMS) Loaded Dual 8" Vented Enclosure for select 2007-2024 vehicles from Jeep, GMC, Ford

-16.67%

$849.95

List price $1020.00

TXGM19D10 main

AudioControl TXGM19D10

1400W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2019-2024 Sierra and Silverado 1500 / 3500 HD / 2500 HD

1
-7.15%

$1,299.00

List price $1399.00

PBK-BEGMSLVDCG4 main

NVX PBK-BEGMSLVDCG4 - 2019-UP Chevy Silverado/GMC Sierra - Complete Bass Package

For select 2019-2024 Sierra and Silverado 3500 HD / 2500 HD / 1500 / 1500 LD - 12" 800W RMS Complete Amplified Subwoofer Bass Package Solution

174
-32.08%

$829.99

List price $1221.96

SB-GM-SLVD4/10TW3 main

JL Audio Stealthbox® SB-GM-SLVD4/10TW3

Custom-Fit Loaded 10" Sealed Truck Enclosure with Two 10TW3-D8 Subwoofers for select 2019-2025 Sierra and Silverado 3500 HD / 1500 / 2500 HD / 1500 LD

$1,799.99

EXCL-SILVERADOBASS.DF/22-UP.LD main

DS18 EXCL-SILVERADOBASS.DF/22-UP.LDPKG

2400W Peak (1200W RMS) Loaded Dual 10" Sealed Enclosure and Amplifier Package for select 2022-2024 Sierra 1500 and Silverado 1500

-16.67%

$2,039.95

List price $2447.99

GM-SL1-10 main

VIBE GM-SL1-10

900W Peak (300W RMS) Loaded Single 10" Vented Truck Subwoofer Enclosure for

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
780 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 300 Hz
Subsonic Filter
5 - 55 Hz
Signal-to-Noise Ratio
79 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)

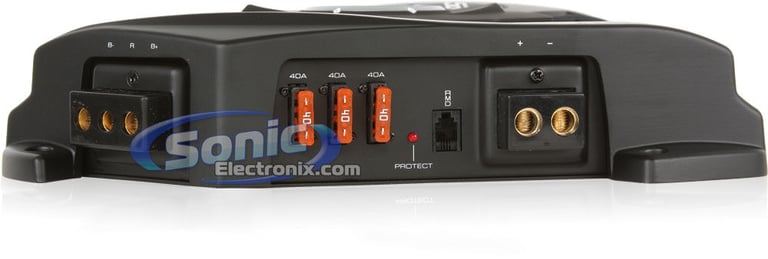

Fuse Rating
40A x 3
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RSd1200.1

Weight:

19.00lbs

Internal SKU:

rsd12001

Internal Product ID:

6139
