Name: U.S. Amps XA-800.4 (Open Box)
Brand: U.S. Amps
SKU: LS-xa8004-OB
Price: 62.99 USD
Availability: Discontinued

by U.S. Amps

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

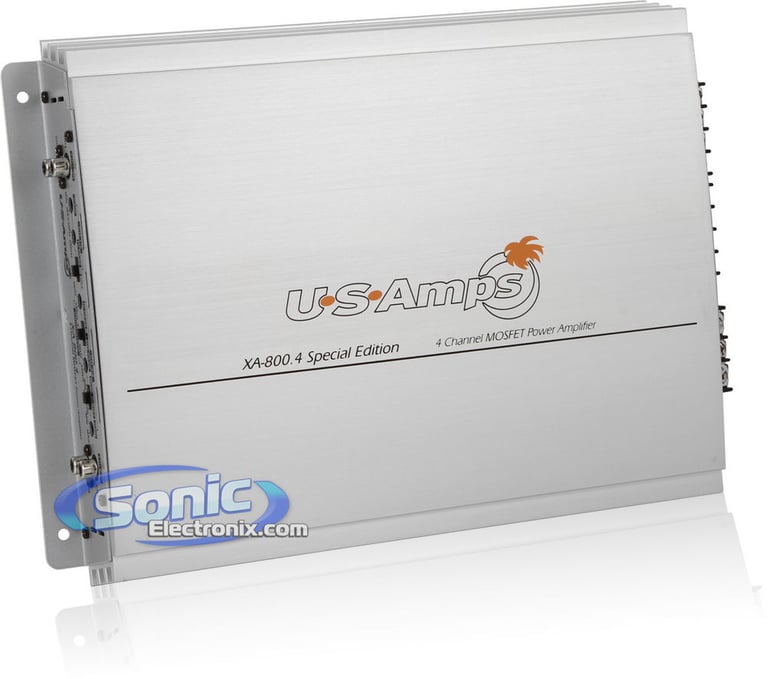

U.S. Amps XA-800.4 (Open Box) Image 1 — U.S. Amps XA-800.4 (Open Box)

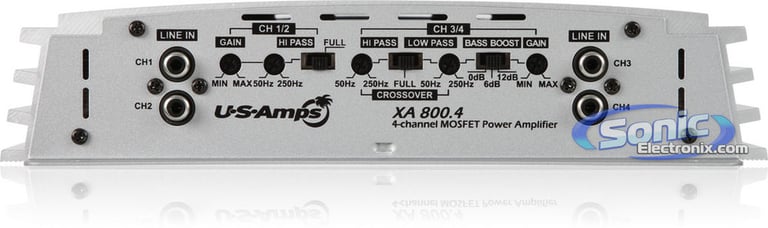

U.S. Amps XA-800.4 (Open Box) Image 2 — U.S. Amps XA-800.4 (Open Box)

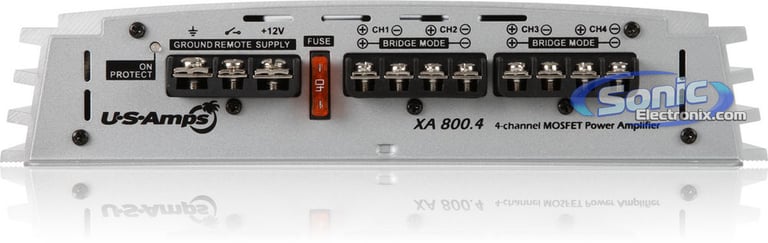

U.S. Amps XA-800.4 (Open Box) Image 3 — U.S. Amps XA-800.4 (Open Box)

U.S. Amps XA-800.4 (Open Box) Image 4 — U.S. Amps XA-800.4 (Open Box)

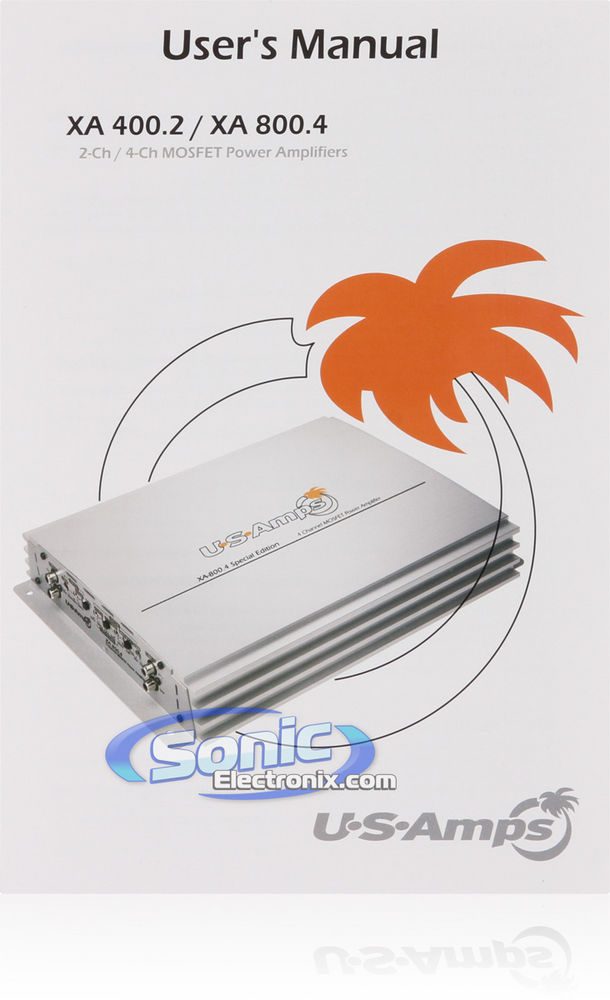

U.S. Amps XA-800.4 (Open Box) Image 5 — U.S. Amps XA-800.4 (Open Box)

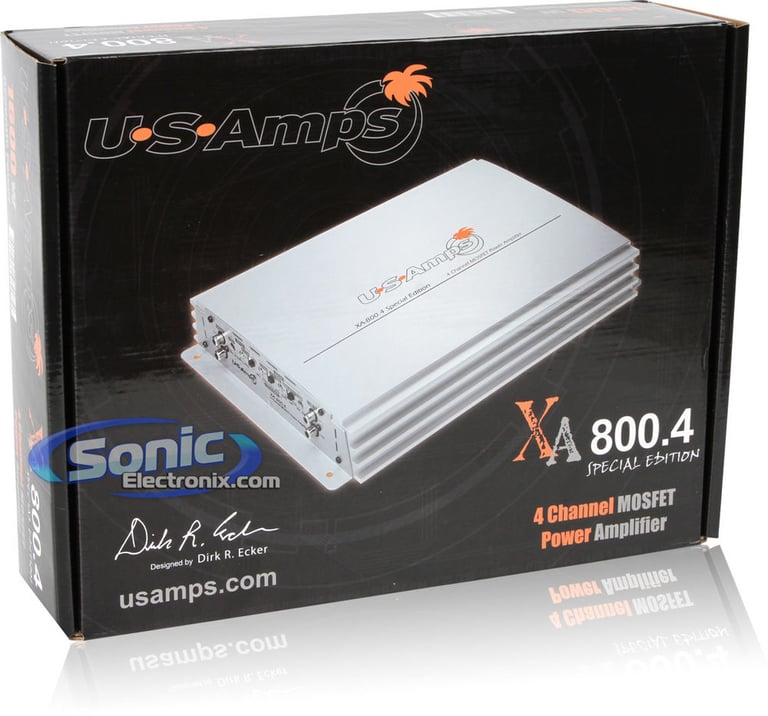

U.S. Amps XA-800.4 (Open Box) Image 6 — U.S. Amps XA-800.4 (Open Box)

U.S. Amps XA-800.4 (Open Box) Image 7 — U.S. Amps XA-800.4 (Open Box)

U.S. Amps XA-800.4 (Open Box) Image 8 — U.S. Amps XA-800.4 (Open Box)

U.S. Amps XA-800.4 (Open Box) Image 9 — U.S. Amps XA-800.4 (Open Box)

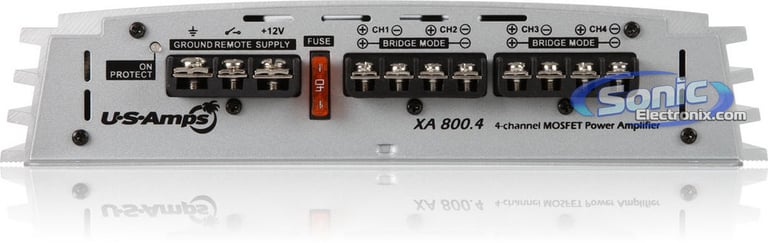

U.S. Amps XA-800.4 (Open Box) Image 10 — U.S. Amps XA-800.4 (Open Box)

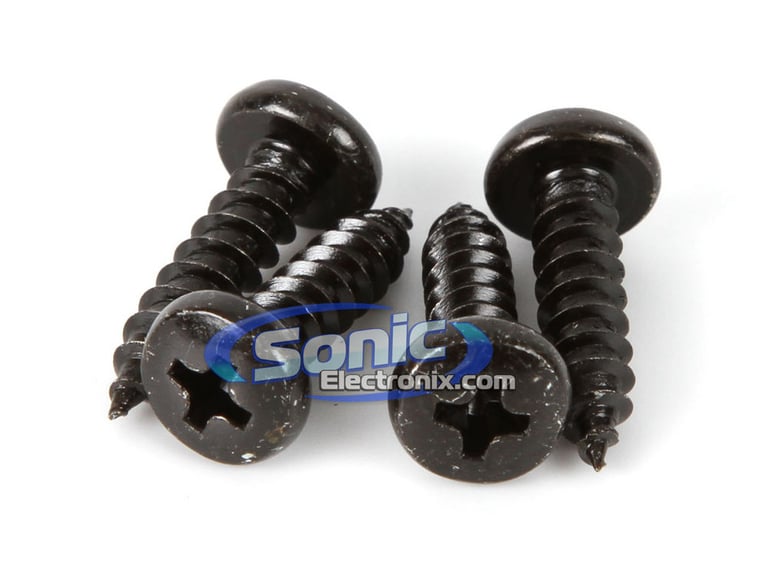

U.S. Amps XA-800.4 (Open Box) Image 11 — U.S. Amps XA-800.4 (Open Box)

Product videos

Product highlights

XA Series 4-Channel Car Amplifier • 60W RMS x 2 Chan. @ 4 Ohm • 85W RMS x 2 Chan. @ 2 Ohm • 160W RMS x 1 Chan. @ 4 Ohm Bridged • MOSFET Power Supply • Variable Bass Boost • Variable High Pass • Variable Low Pass

Learn more about the LS-xa8004-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

XA Series 4-Channel Car Amplifier
Item Condition: Open Box
RMS Power Rating:
- 4 ohm: 60 watts x 4 chan.
- 2 ohm: 85 watts x 4 chan.
- Bridged, 4 ohm: 160 watts x 2 chan.
Max Power Rating:
- 4 ohm: 120 watts x 4 chan.
- 2 ohm: 190 watts x 4 chan.
- Bridged, 4 ohm: 380 watts x 2 chan.
Max power output: 380 watts x 1 chan.
MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
4/3/2 channel operation
Pair of RCA outputs
2-Way System Protection circuitry
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:300mv-8v
Variable high-pass filter (50-250 Hz)
Variable low-pass filter (50-250 Hz)
Frequency response: 10-25,000 Hz
Dimensions: 11-13/16"L x 9-5/8"W x 2-1/4"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 4 channel

RMS Power @ 2 ohms

85 watts x 4 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

160 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

760 watts

Total RMS Power Output

320 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

90 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

40A x 1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
