600W Renegade + Crossfire Bass Package

Renegade GTW1200 12" GTW Series Subwoofer + Crossfire C3 102 2-Chan. Amplifier + Amp Kit + Enclosure

Renegade
Shop all Renegade
EXCLUSIVE
highlight-star-icon

12" Single 4 Ohm GTW Series Subwoofer • 600W MAX • 300W RMS • C3 Series 2 Channel Class A/B Car Amplifier • MOSFET Power Supply • Variable Bass Boost • Variable Low-Pass Filter • 12" Single Sealed Subwoofer Enclosure • Complete 4 Gauge Amp Kit

Learn more about the c3102_gtw1200

We apologize

This item has been discontinued


Loading...

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Description

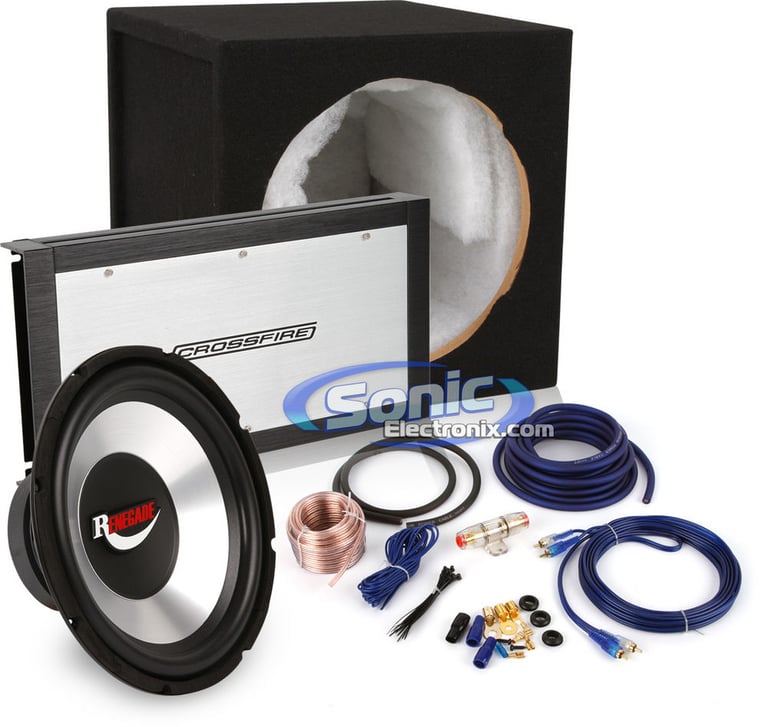

Renegade and Crossfire Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Crossfire C3 102 amplifier along with a 12" GTW Series Renegade Subwoofer. This excellent bass package pushes 300 watts of clean, continuous RMS power. The Renegade Subwoofer has a Single 4 Ohm Voice Coil; meant to be wired directly to the amp, to a final impedance of 4 Ohms bridged. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

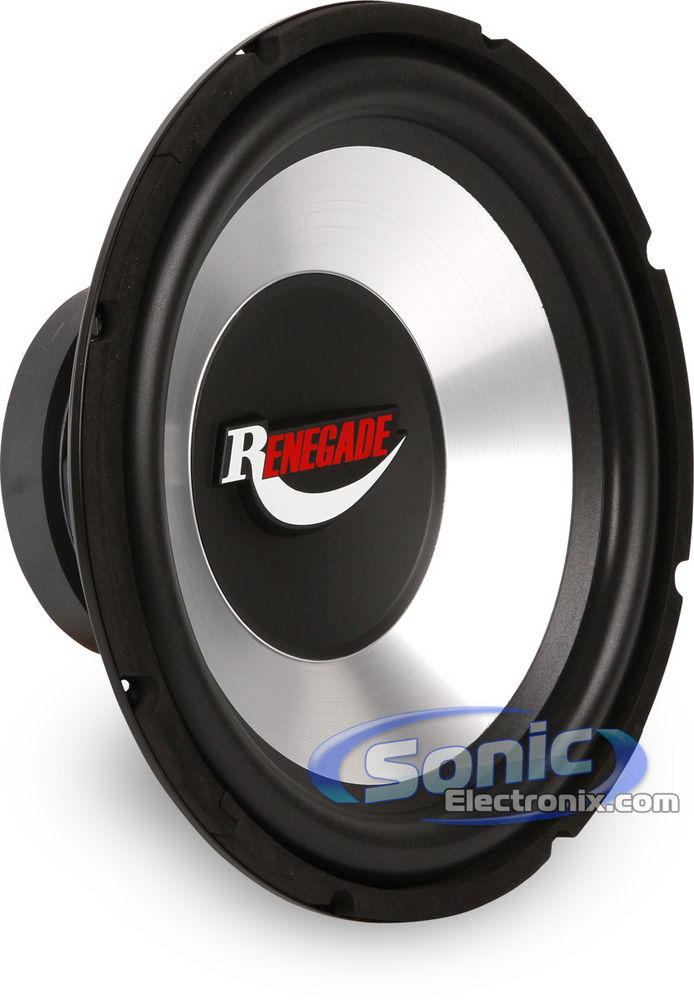

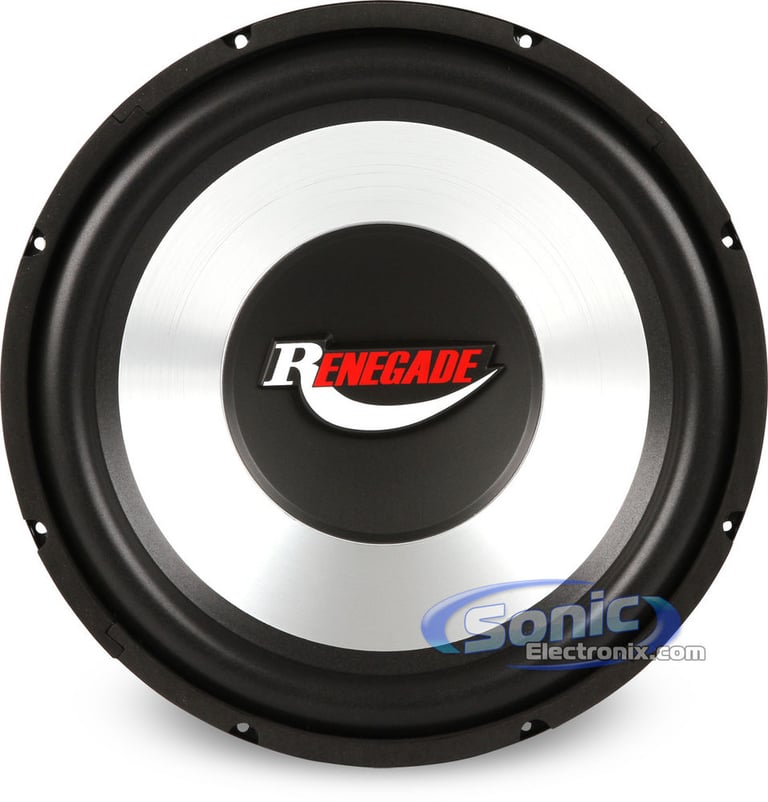

This Renegade GTW1200 GTW Series subwoofer requires 300 watts of RMS power. The included Crossfire C3 102 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a complete 4 gauge amplifier kit, which is perfect to supply power to the amplifier. Also included will be a single 12" sealed enclosure, this enclosure will come with pre-line Poly-Fil and will be made with durable MDF wood. The sealed design will provide a tighter and quicker responsive bass. With the Renegade subwoofer, Crossfire amplifier, sealed enclosure, and The Install Bay amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

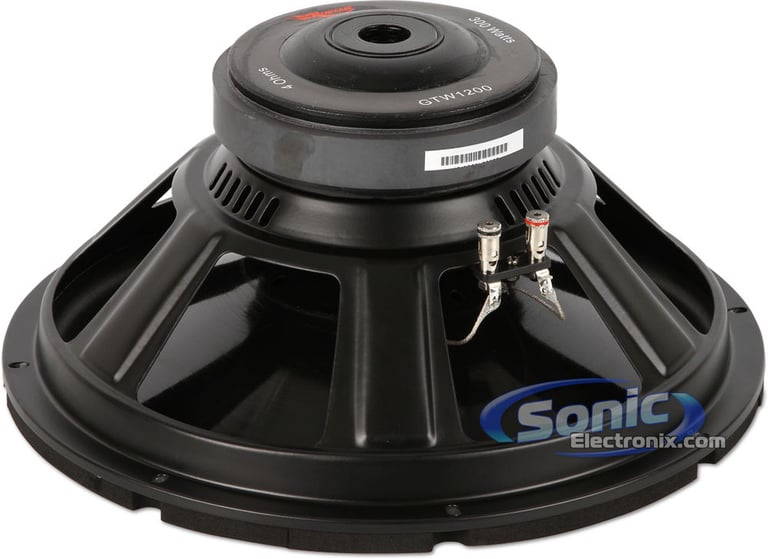

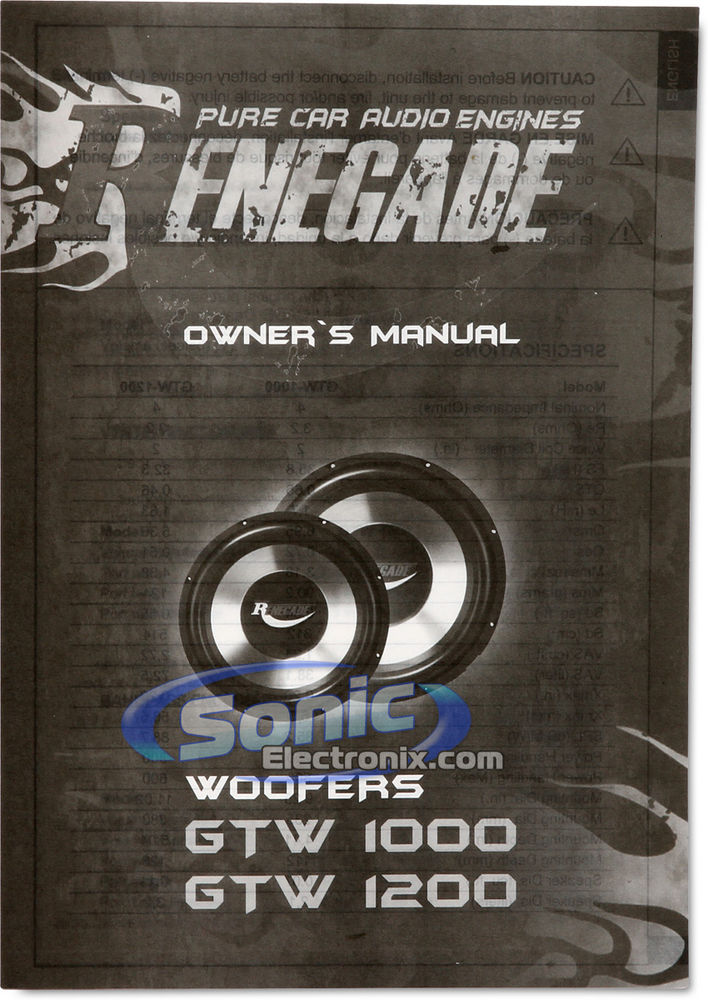

Renegade GTW1200 Features:
  • 12" Single 4 Ohm GTW Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Impedance: 4 Ohm

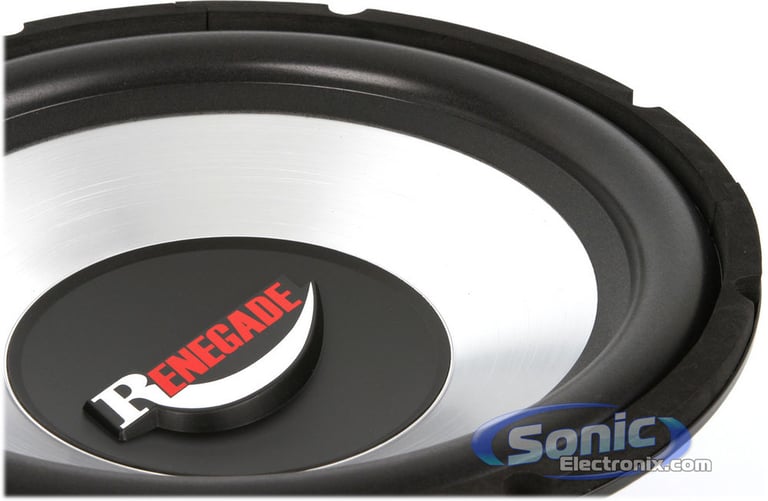

  • Polypropylene silver woofer cone
  • Black composite foam woofer surround

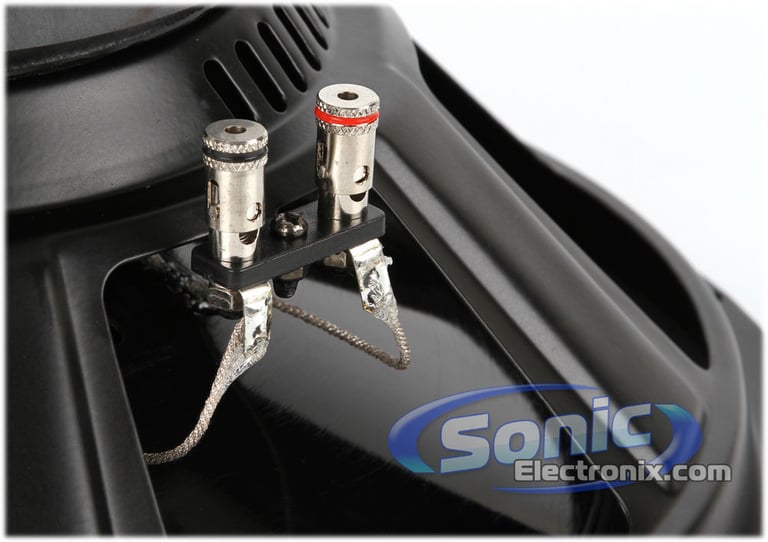

  • Silver spring terminals
  • Renegade logo dust cap
  • Vented basket cooling system
  • 2" Voice coil diameter
  • Sensitivity: 88.7 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

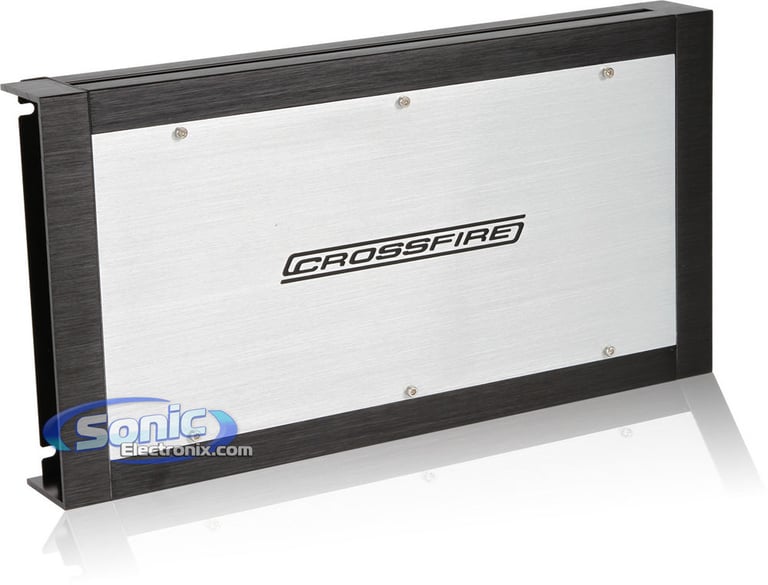

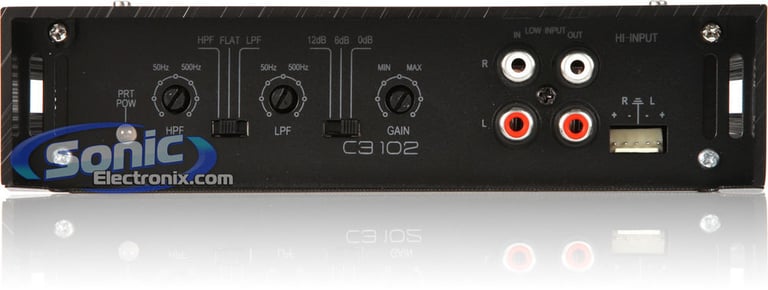

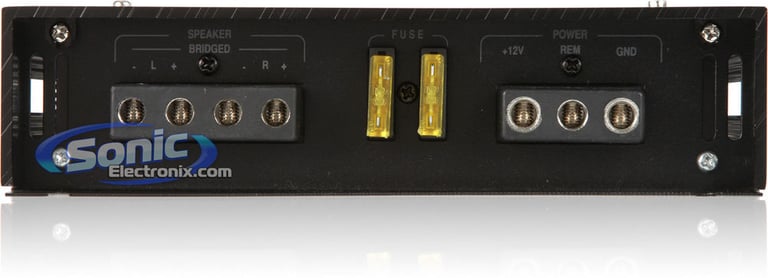

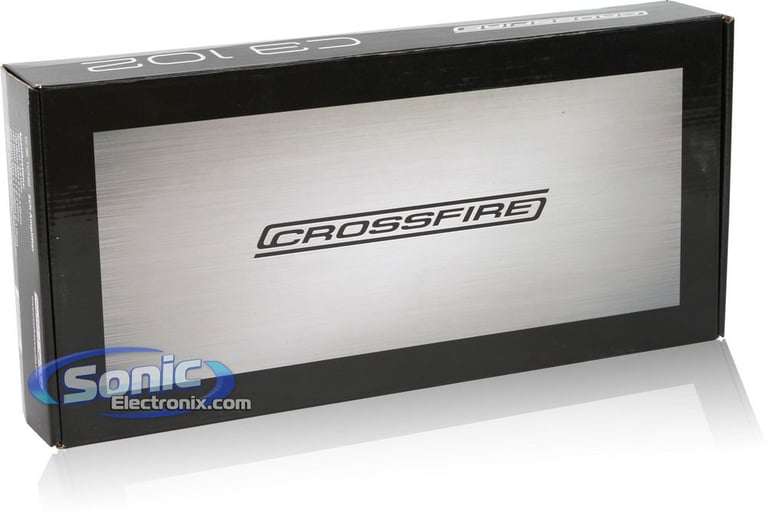

Crossfire C3 102 Features:
  • C3 Series 2 Channel Class A/B Car Amplifier
  • RMS Power Rating(13.8V):
    • 4 ohm: 100 watts x 2 chan.
    • 2 ohm: 150 watts x 2 chan.
    • Bridged, 4 ohm: 300 watts x 1 chan.
  • MOSFET power supply
  • 2 Ohm stable stereo / 4 ohm mono
  • Variable Bass Boost (0 to +12 dB)
  • 2/1 Channel operation
  • 2-Way System Protection circuitry
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Heavy duty heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 0.15V-8V
  • Variable high-pass filter (50-500 Hz)
  • Variable low-pass filter (50-500 Hz)
  • Frequency response: 20-20,000 Hz)
  • Dimensions: 13-5/8"L x 7-1/8"W x 1-13/16"H
  • 8 gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

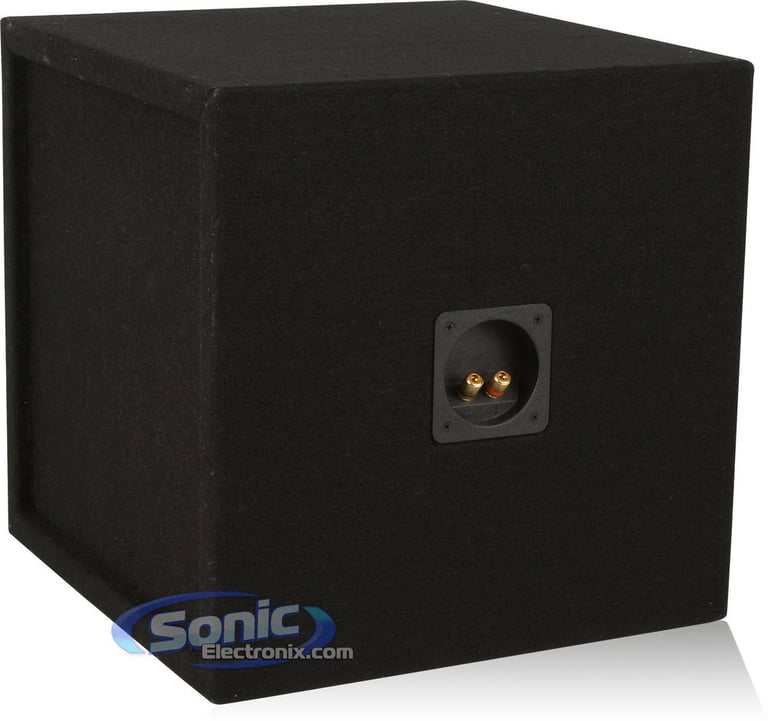

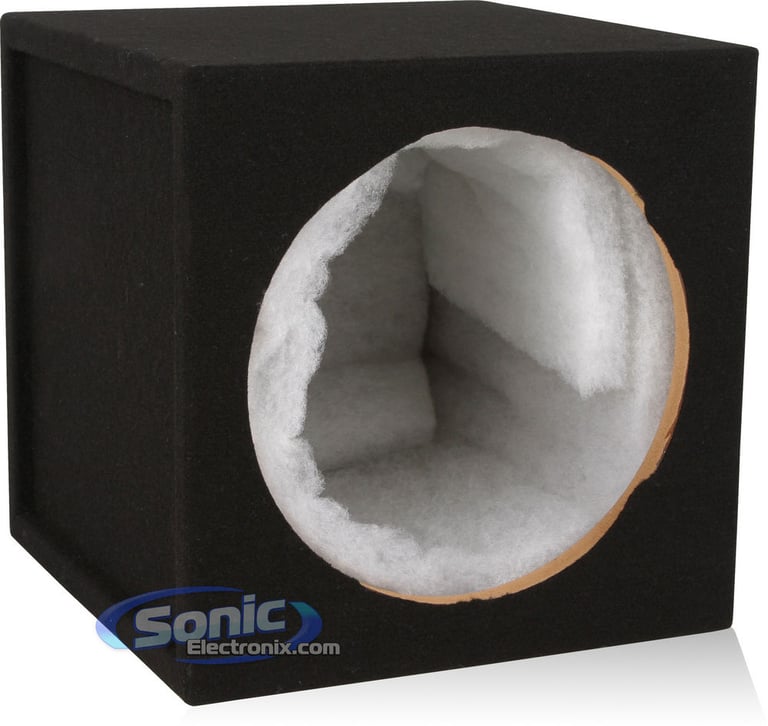

House Brand 12SSPF Features:
  • 12" Single Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet

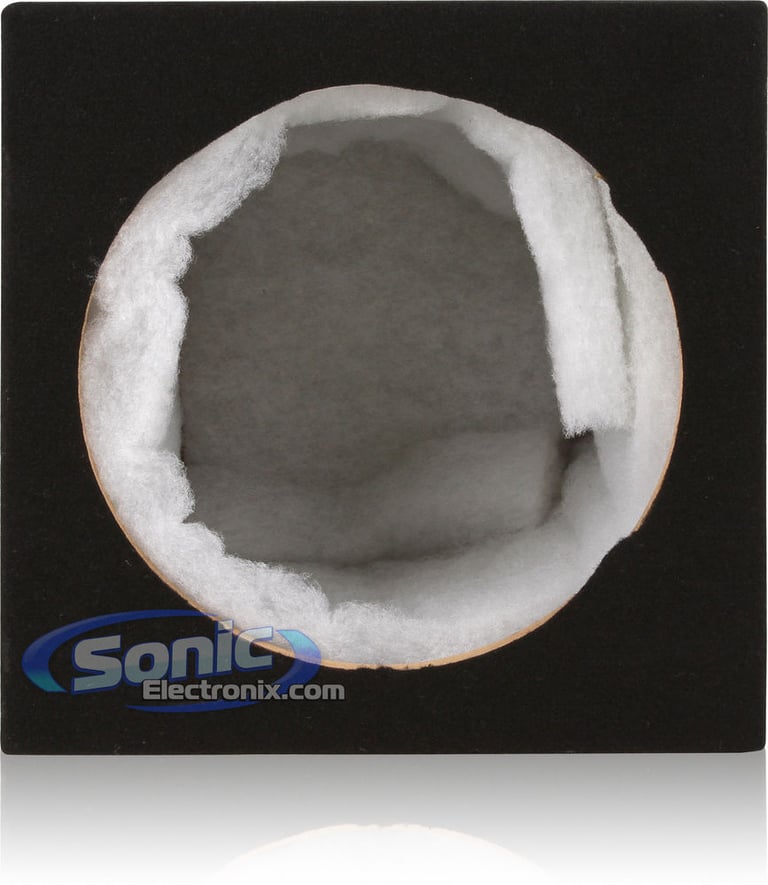

  • Pre-lined with Poly-Fil

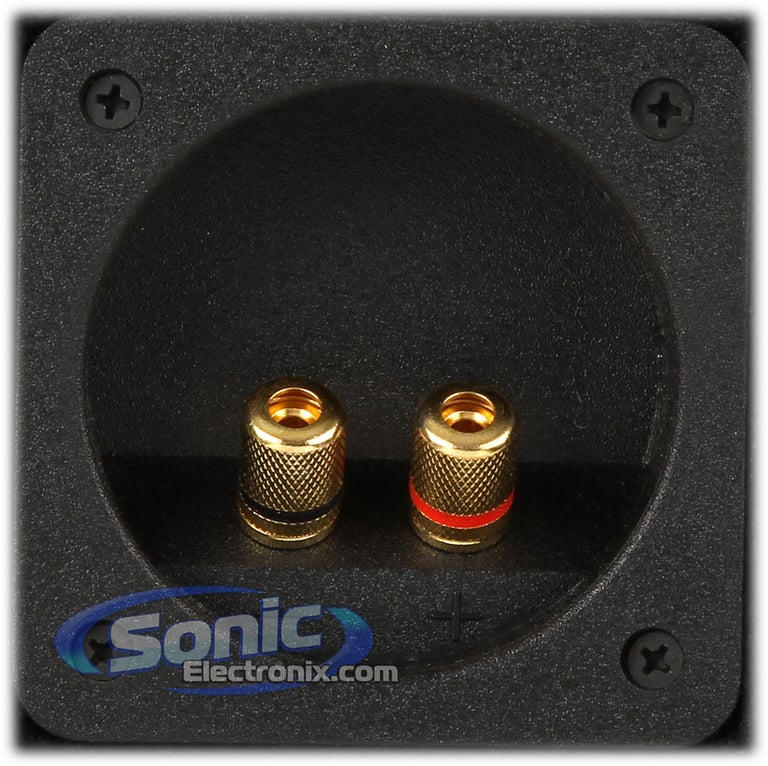

  • Gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 12-1/2"
  • Subwoofer cutout diameter: 11"
  • Box volume: 1.0 cubic feet (per chamber)
  • Total box volume: 1.0 cubic feet
  • Dimensions: 14"D x 14"W x 14"H

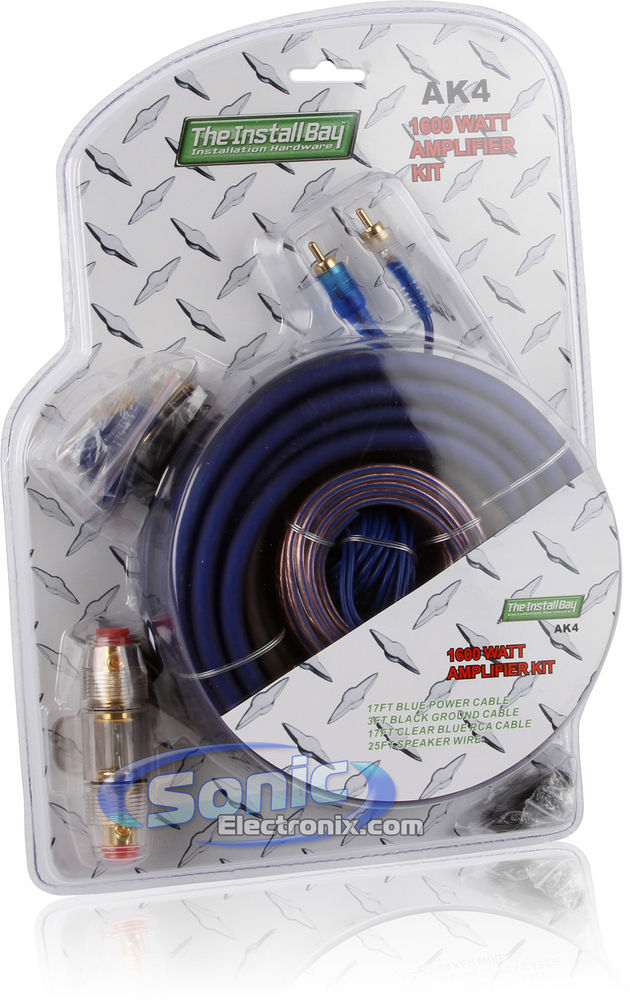

The Install Bay AK4 Features:
  • Complete 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
  • Perfect for 1600 watts amplifier setup
  • Includes everything that you need to install a single amplifier

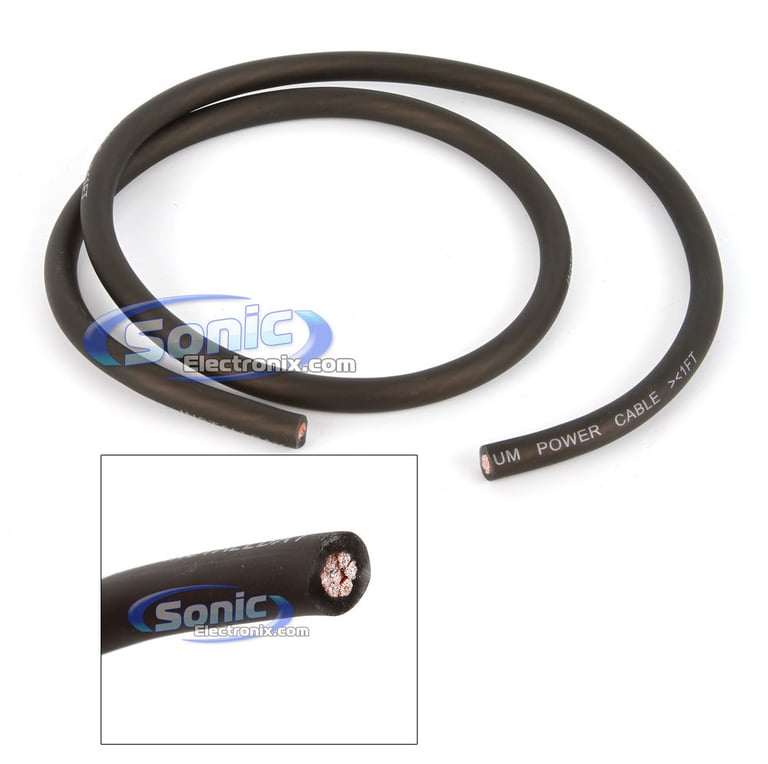

  • Premium power and ground cable
  • 1-year Manufacturer's warranty
The Install Bay AK4 Includes:

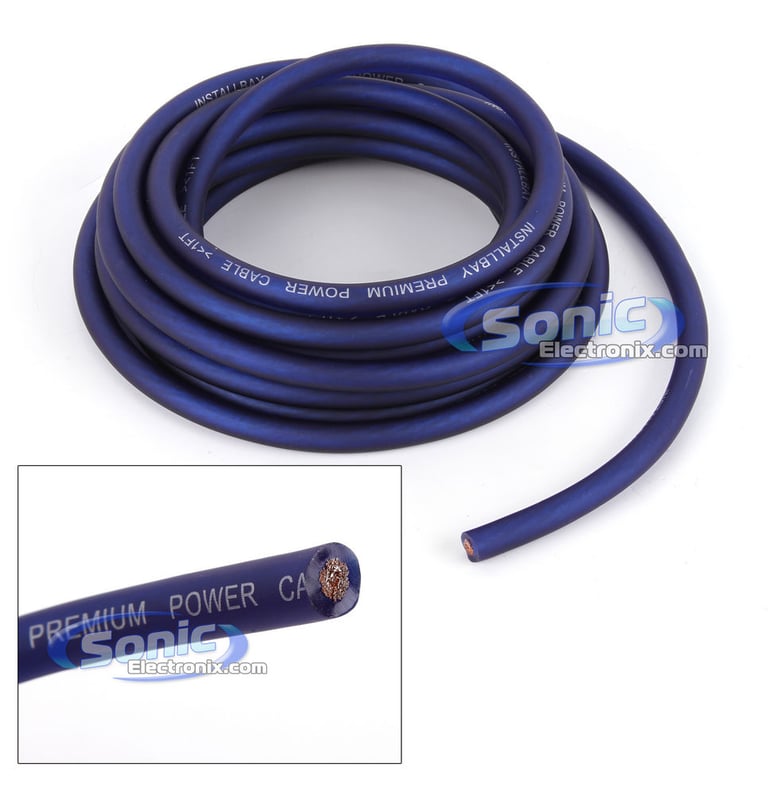

  1. 17 ft. of Blue power cable
  2. 3 ft. of Black ground cable

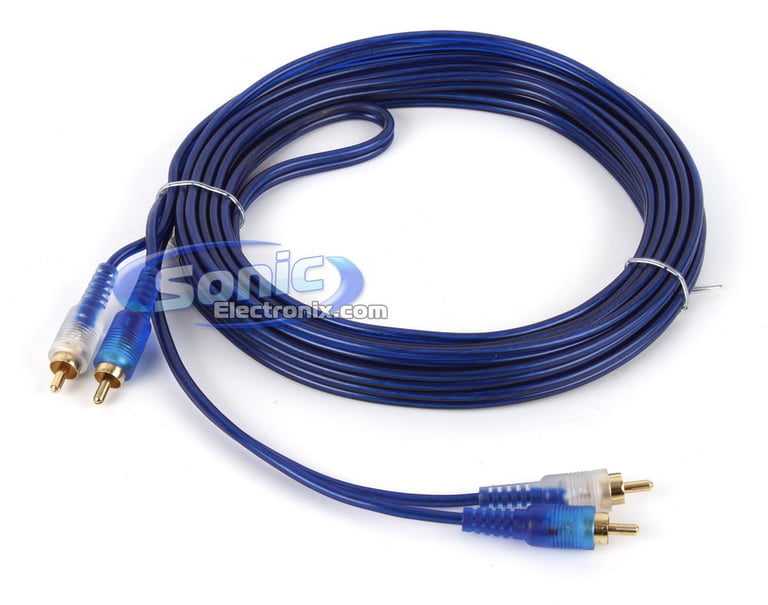

  3. 17 ft. of Clear/blue RCA cable

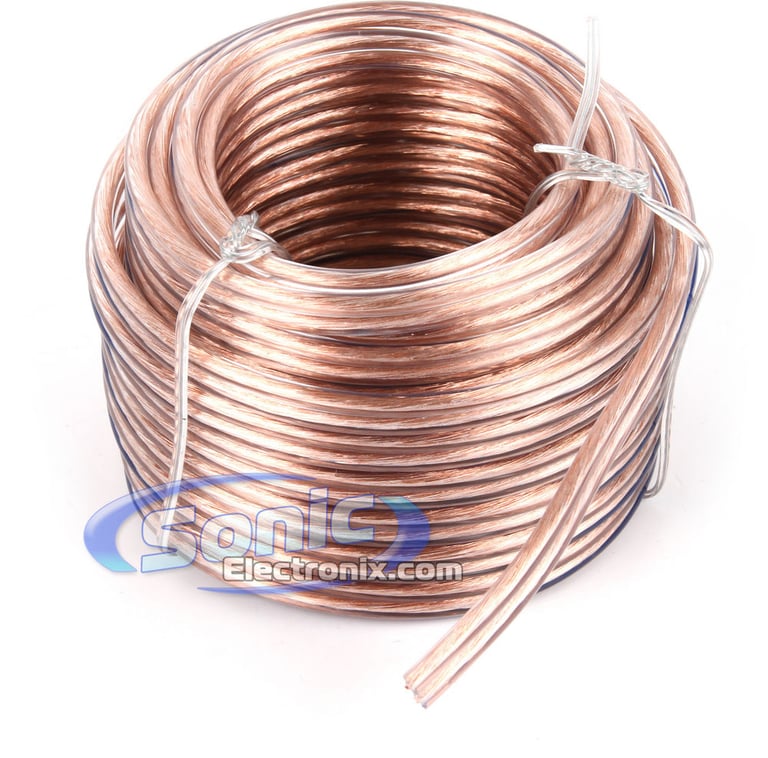

  4. 25 ft. of Speaker wire

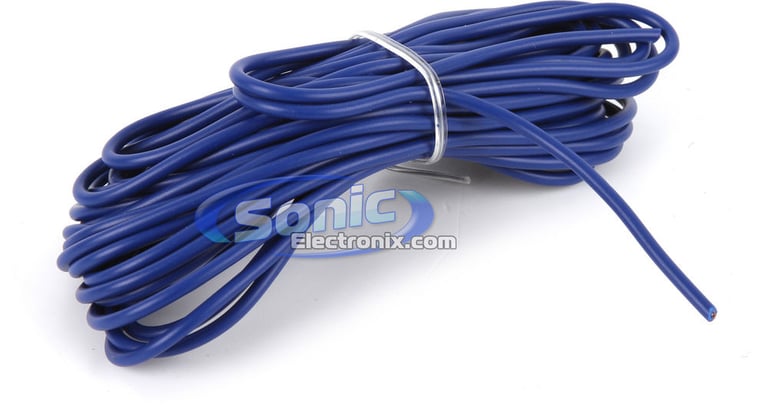

  5. 17 ft. of Remote turn-on wire

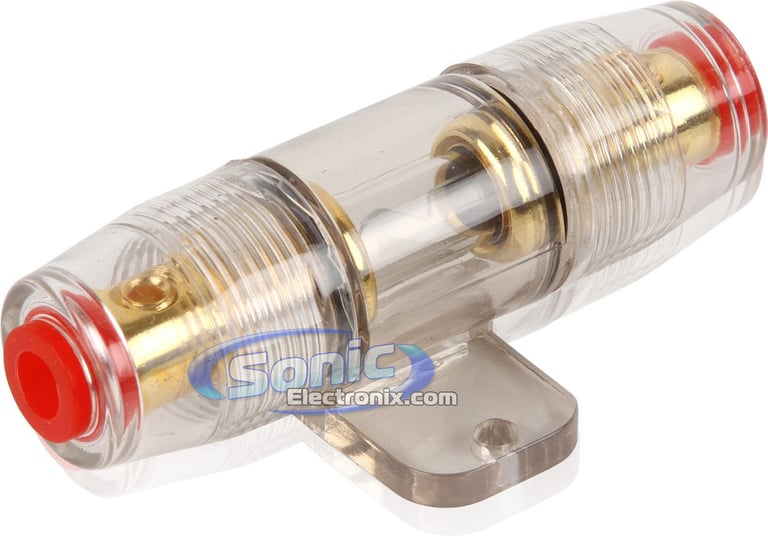

  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse

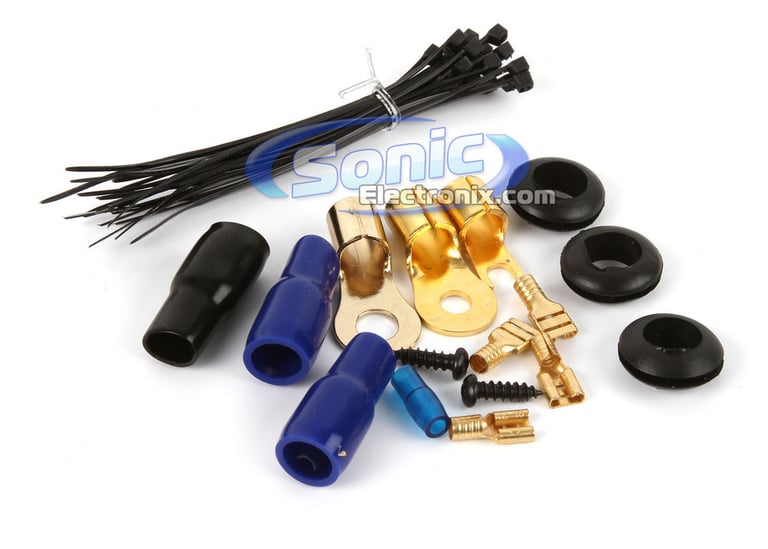

  8. Installation hardware

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
150 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
0.08%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
50 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
20A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
300 watts
Total RMS Power Handling
300 watts
Peak Power Handling
600 watts
Total Peak Power Handling
600 watts
Woofer Surround
Foam
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
88.7 dB
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
14"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C3 102_GTW1200

Weight:

34.82lbs

Internal SKU:

c3102_gtw1200

Internal Product ID:

37940
