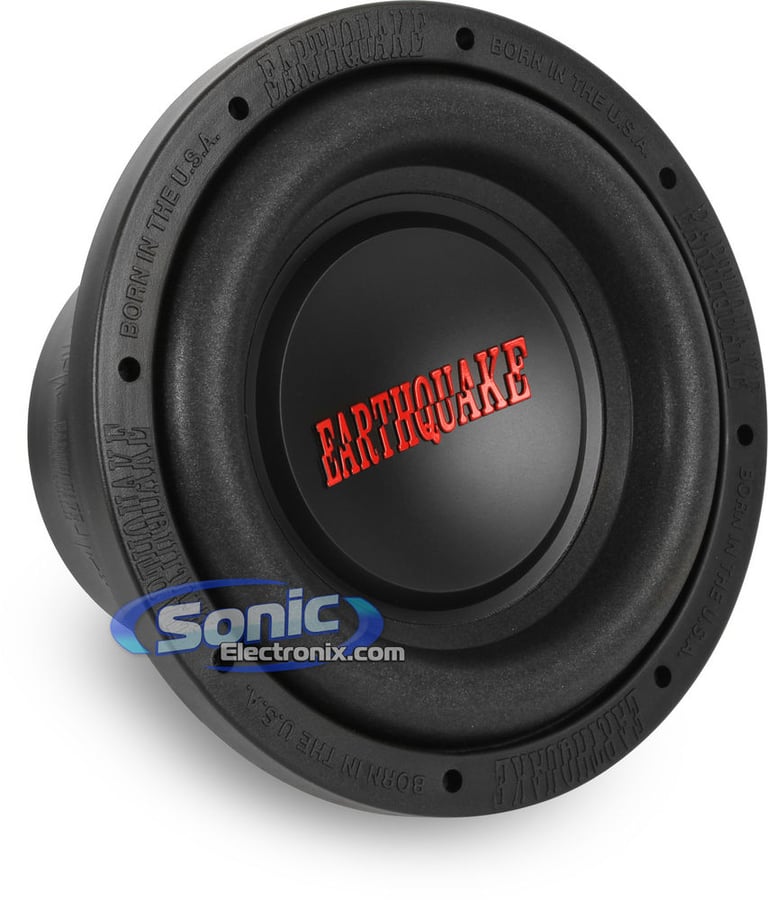

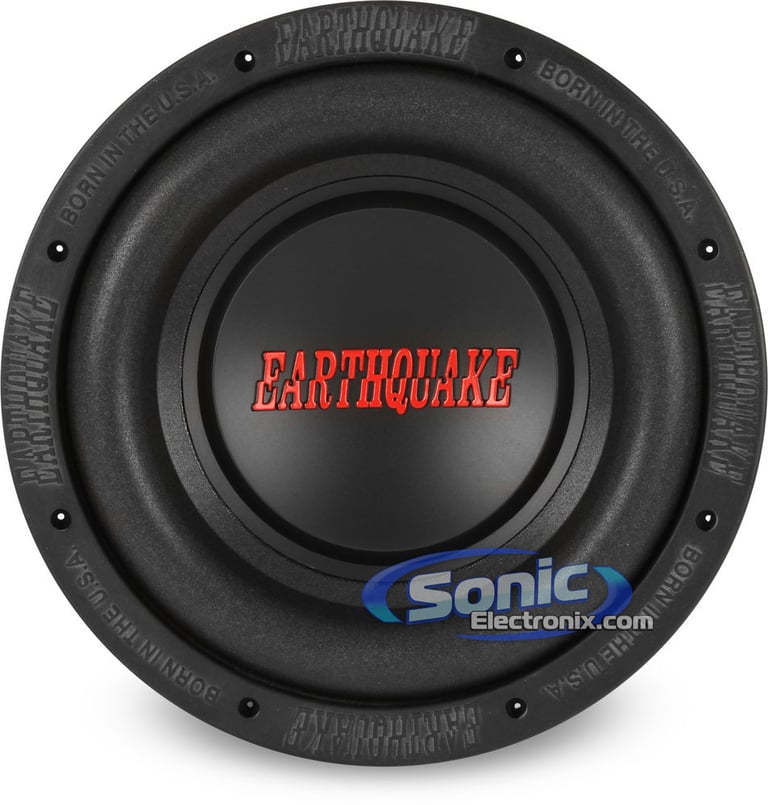

Earthquake Sound DBXI-10

10" Single 4 Ohm DBXi Series Car Subwoofer

Product videos
highlight-star-icon

• 1000W Peak
• 400W RMS
• 2" Aluminum Bobbin Voice Coil
• 120 Oz. Double Stacked Magnet
• Sensitivity: 85dB
• Mounting Depth: 6-1/4"

Learn more about the dbxi10

We apologize

This item has been discontinued


Loading...
95-5701 main

Metra 95-5701 Dash Kit

Install a new Double-DIN car stereo in select 1992-1997 F-250 and F-350 and Bronco

6
-10.30%

$60.99

List price $67.99

72-5512 main

Metra 72-5512

Install New Speakers in select 1990-2006 vehicles from Ford, Mercury, Mazda

26
-26.68%

$10.99

List price $14.99

70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

70-5512 main

Metra 70-5512 Wiring Harness

Install a new car stereo in select 1989-2000 vehicles from Ford

-60.90%

$8.99

List price $22.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

Product Highlights


• 1000W Peak
• 400W RMS
• 2" Aluminum Bobbin Voice Coil
• 120 Oz. Double Stacked Magnet
• Sensitivity: 85dB
• Mounting Depth: 6-1/4"

Description


Earthquake Sound brand icon

Authorized dealer

Go off the Richter Scale with DBXi Subwoofers

The DBXI-10 Single 4 ohm 10" subwoofer is the perfect example of what it means to carry the Earthquake Sound name. Earthquake Sound subwoofers need to not only be loud but also sound great and perform without any problems. With an RMS of 400 watts this woofer will produce enough bass to really satisfy those low-frequency reproduction needs. The woofer features a pressed pulp fiber woofer cone and high-roll rubber surround for added stiffness, rigidity, and higher excursion capabilities. Its turbo propped cooling reduces thermal heat and thus increases output and lowering distortion during all periods of play. The woofer also features a 2" voice coil and double stacked magnet structure able to produce an impressive 3" of linear excursion, giving you deep impact bass. The DBXi woofer is your everyday driver that will perform day in and day out without compromising quality.

Product Features:
  • 10" Single 4 ohm DBXi Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 400 watts
  • Impedance: Single 4 ohm

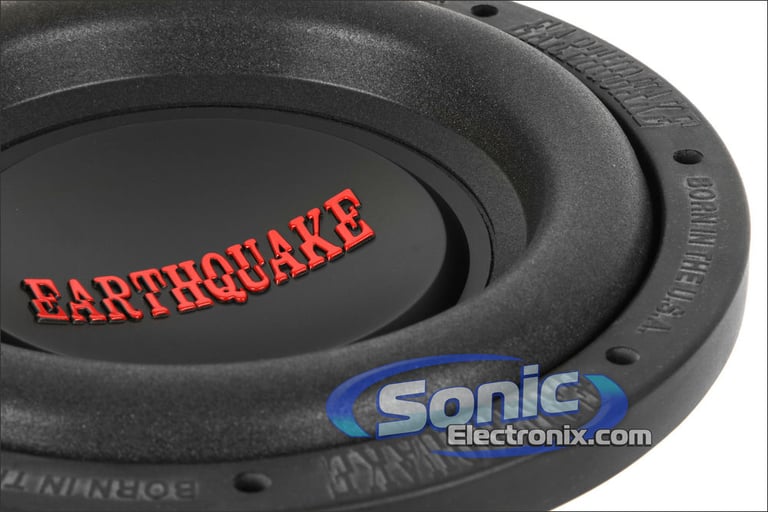

  • Pressed pulp fiber woofer cone material
  • High-roll rubber woofer surround
  • New and improved design

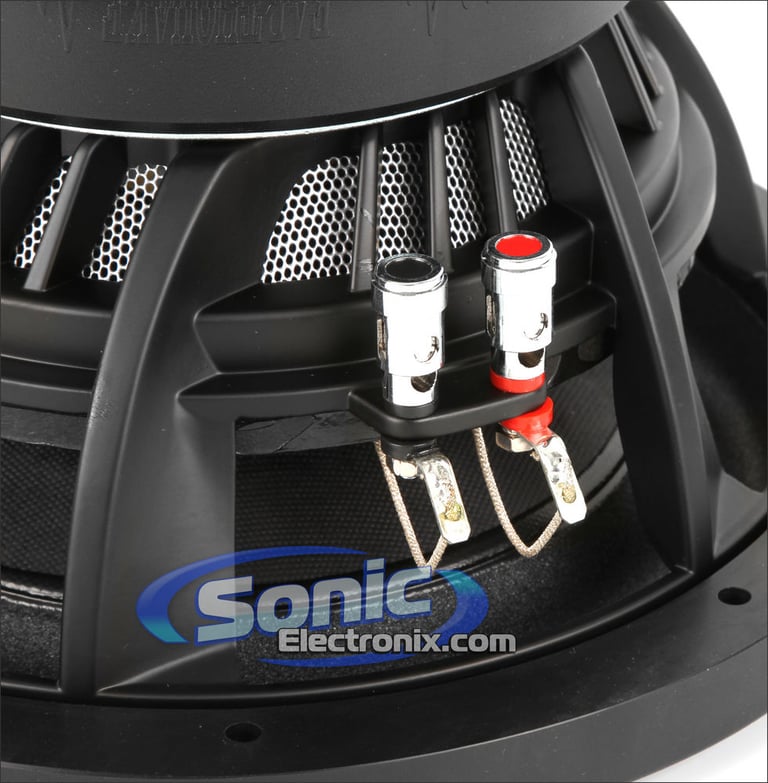

  • Stitched tensile leads
  • Deep impact bass
  • Turbo propped cooling

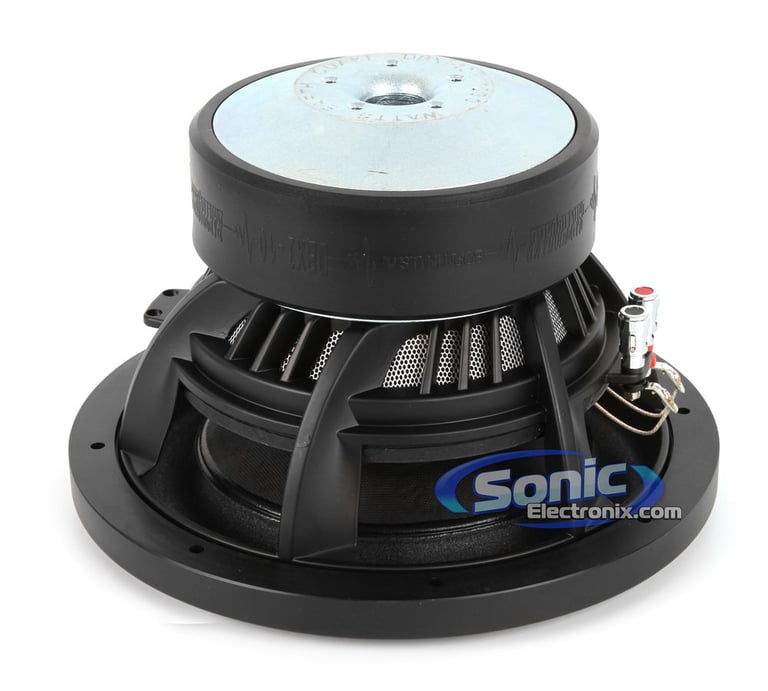

  • Die-cast aluminum basket
  • 2" Aluminum bobbin voice coil
  • 120 oz. Double stacked magnet structure
  • Sensitivity: 85 dB
  • Xmax: 76.2 mm
  • Mounting Depth: 6-1/4"
  • Cutout dimensions: 9-13/16"
  • Authorized Internet Dealer
  • 5-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Earthquake Sound DBXI-10 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Earthquake Sound DBXI-10 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Earthquake Sound DBXI-10 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Earthquake Sound DBXI-10 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Earthquake DBXI Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
85 dB
Xmax (millimeters)
76.2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Pressed Pulp Fiber
Woofer Surround
High-Roll Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.77 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
0.80 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/4"
Cutout Diameter
9-13/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
21.9 liters
Total Speaker Q Value (Qts)
0.52
Electrical Q Value (Qes)
0.497
Electrical Resistance of Voice Coil (Re)
5.2 ohm
Mechanical Q Value (Qms)
8.458
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DBXI-10

Weight:

18.50lbs

Internal SKU:

dbxi10

Internal Product ID:

38104

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Earthquake Sound DBXI-10 thumbnail image

5 star
60%
4 star
20%
3 star
20%
2 star
0%
1 star
0%



Durability
4
Value
5
Features
4.4
Design
4.6
Usability
5

Customer Reviews

Sort by:

Loading...

earthquake

I like rockford fosgate I like JLaudio I Iike MTX hifonics all the good brands.And they have an xmax no higher than 20mm. earthquake is like 76mm for a 10 inch sub. the 15dbxi is like 88mm that is sick. i did not get them installed yet but I will in a week or two. with a hifonics 2000 watt rms class d amp. the sub will be at a 1.3 ohm load. as soon as its all ready to go I will write a new review.

By vader on July 20, 2012

14 found this helpful


Great choice for me

I have a single one of these in a custom sealed enclosure to specs. The box is down-firing behind my driver seat in an extended cab pickup. I had this a basic sealed pre-fab first but had to have it fire sideways and it just wasn't as good acoustically. The box my buddy made for this is sturdier and sounds sooooo much better it's insane! I am running this off of a Hifonics ZRX500.2 bridged at 4 ohm mono feeding it 500 watts rms. I only need one to get it loud in the cab. If you are a bass nut I can only imagine what 2 of these would do in a good ported box with the right power. They can get loud and really pound out the lows. I also love the accuracy this thing gives on the tight hits as well as the thunderous extension. I love this sub and am glad I got it. It may not have the 3 inch excursion of the old model but the 1 inch this thing can move brings plenty of impact. I highly recommend it. I can't speak to the durability yet but with a 5 year warranty Earthquake means business.

By Josh C. on December 7, 2012

12 found this helpful


Sall Bass With Big Bass Sound

Awesome Little 10" bass that plays like a 15".
It is easy to mount in a closed box.

By Rune on September 28, 2012

12 found this helpful


earthquake BOOM! BOOM!

ok so i got 3 dbxi 10s in a 2.8 cu.ft box. a little big yes but man they sound good. almost like 12s. i am still breaking them in with a 2000 watt hifonics brutus amp class d. at 1.3 ohms half way turned up. cant wait to crank it.only one thing you should know is the xmax is for the older subs. the new xmax is 25.4mm one way that is 1" peak to peak. for a 10 that is really good. but im upset that was to be 76mm not 25. still good sub so far. when i crank them ill write more.

By vader on July 28, 2012

12 found this helpful


Great subwoofer for the money

If your looking for a budget subwoofer that has a higher end sound this is it. I did however switch back to my Alpine Type R just because it does sound little bit better. Of couse they do cost litte more so they should. Also don't buy this subwoofer because of the XMAX because it is not 76mm anymore. Over all this is a good buy and nobody can touch their 5 year warranty.

By Lawerence on August 30, 2012

11 found this helpful




MX10IB3-CG-WH small

JL Audio MX10IB3-CG-WH - White Classic Grille

175W 10" MX-Series Single 4-ohm Infinite-baffle Marine Subwoofer

$209.99

List price $229.99

QB10SPA_69_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6x9" Speakers

1200W MAX (350W RMS) Single 10" Amplified Ported Sub Enclosure w/ Remote Bass Knob, 6x9" Coaxial Speakers (x2), Amp Kit, Sound Damping, and Roller

(238)

$320.43

List price $543.42

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1994 Ford Bronco

2004 Saab 9-3

1997 Mercury Mystique

2002 Chevrolet Tahoe

2010 Audi Q5

2012 Mitsubishi Eclipse Spyder

1993 Oldsmobile Eighty Eight

2002 Lotus Esprit

2017 Audi A6 Quattro

2017 Ford Fusion

Vehicle
Store
Delete

2017 Can-Am Defender XT HD8

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
