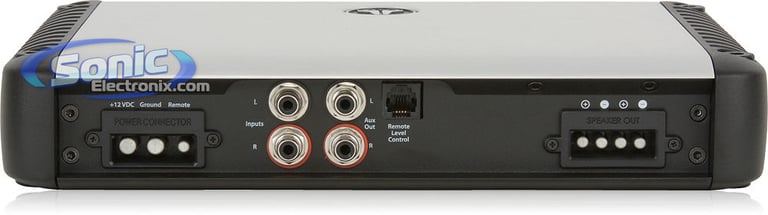

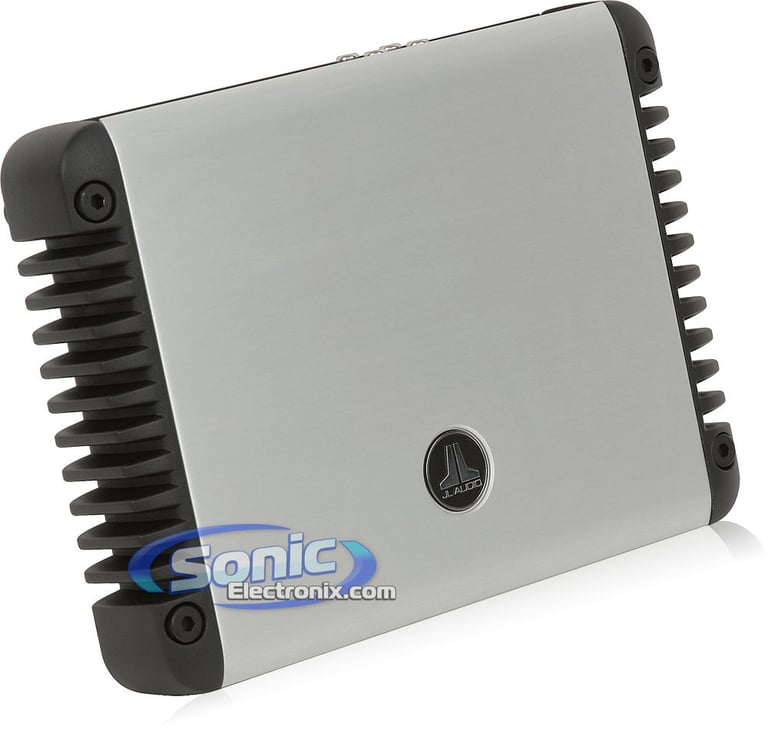

Name: JL Audio HD750/1 Factory Refurbished
Brand: JL Audio
SKU: LS-hd7501-RB
Price: 469.99 USD
Availability: Discontinued

by JL Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Product videos

Product highlights

JL Audio HD Series Monoblock Class D, Small Profile Car Amplifier with R.I.P.S. Technology • 750 watts x 1 Chan. RMS • 750 watts x 1 Chan. Max • MOSFET power supply • Preamp RCA outputs • RCA level inputs • Single Cycle Control™

Learn more about the LS-hd7501-RB

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

More Power from a Smaller Chassis

The monoblock JL Audio HD750 /1 HD series car amplifier delivers unreal power in a very small and convenient size. Often times smaller amplifiers will lack power or even quality, however with the new JL Audio HD amplifiers this will not be the case. The HD amplifiers are equipped with amazing technologies like Single Cycle Control, which tracks audio signal and compares it to the real PWM waveform and then corrects it accordingly each and every cycle. This helps to control distortion causing mechanisms improving the quality of the amplifier tremendously. HD amplifiers also feature the R.I.P.S. System, R.I.P.S. stands for "Regulated, Intelligent Power Supply" and ensures consistent power delivery over a wide range of battery voltages and load impedance's. This means you will received the same power output at 4 ohms all the way down to 1.5 ohms each and every single time. With dual mounting options for added versatility and advanced heatsinks with vertically oriented fins for extreme heat control, the JL Audio HD amplifiers are unmatched by other amplifiers in the same class.

Product Features:

JL Audio HD Series Monoblock Class D Amplifier
RMS Power Rating (11V-14.5V):

4 ohm: 750 watts x 1 chan.
3 ohm: 750 watts x 1 chan.
2 ohm: 750 watts x 1 chan.
1.5 ohm: 750 watts x 1 chan.

Max power output: 750 watts x 1 chan.
MOSFET power supply
Remote bass level input (HD-RLC required and sold separately)
LED power indicators
Single channel operation
Preamp RCA outputs
Single Cycle Control™
Heavy duty aluminum alloy heatsink for heat dissipation
RCA level inputs
Screw terminals
Variable high-pass filter (50-500 Hz, 24 dB/octave)
Variable low-pass filter (50-500 Hz, 24 dB/octave)
Frequency response: 6-30,000 Hz
Optional wired remote level control: JL Audio HD-RLC
Optional stacking equipment for HD amplifiers: JL Audio HD Stack Kit
Dimensions: 10-13/16"L x 8-1/4"W x 1-15/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

750 watts x 1 channel

RMS Power @ 2 ohms

750 watts x 1 channel

RMS Power @ 1 ohm

750 watts x 1 channel at 1.5 ohms

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

750 watts

Total RMS Power Output

750 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1.5 ohm

THD at Rated RMS Power

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 500 Hz

Subsonic Filter

30 Hz

Signal-to-Noise Ratio

110 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio HD-RLC

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
