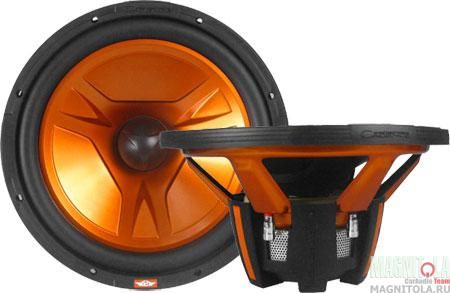

Cadence US12D4

1500W Max (750W RMS) Ultra Shock Series 12" Dual 4 ohm Car Subwoofer

Cadence
Shop all Cadence
Product videos
highlight-star-icon

12" Dual 4 ohm Voice Coil Ultra Shock Series Subwoofer • 1500W MAX • 750W RMS • Kevlar Reinforced Pressed Paper Cone • Butyl Oversize Rubber Surround • Single Pole Technology • Oversized Magnet Motor Vent

Learn more about the us12d4

We apologize

This item has been discontinued


Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

70-1858 main

Metra 70-1858 Wiring Harness

Install a new car stereo in select 1986-2006 vehicles from Chevrolet, GMC, Pontiac

63
82-3043 main

Metra 82-3043

5-1/4" - 6-1/2" Front Speaker Adapter Bracket for select 1994-2004 vehicles from GMC, Chevrolet, Isuzu

2
-43.76%

$17.99

List price $31.99

99-3045 main

Metra 99-3045

Single DIN or Double DIN Stereo Dash Kit for select 1994-1997 vehicles from GMC, Chevrolet, Oldsmobile (Black)

12
-42.87%

$19.99

List price $34.99

99-3043G main

Metra 99-3043G Dash Kit

Install a new Single-DIN car stereo in select 1994-1997 vehicles from GMC, Chevrolet, Oldsmobile (Gray)

1
-54.68%

$14.95

List price $32.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Product Highlights


12" Dual 4 ohm Voice Coil Ultra Shock Series Subwoofer • 1500W MAX • 750W RMS • Kevlar Reinforced Pressed Paper Cone • Butyl Oversize Rubber Surround • Single Pole Technology • Oversized Magnet Motor Vent

Description


Cadence brand icon

Authorized dealer

General Features:

  • 12" Dual 4 ohm Ultra Shock Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
  • Impedance: DVC 4 ohm
  • Kevlar Reinforced Pressed Paper Cone
  • Butyl Rubber Surround
  • Heavy Duty Stamped Metal Basket
  • Nickel Plated Spring Loaded Push Terminals
  • Oversized Magnet Motor Vent
  • 2.5" Black Aluminum 4-Layer Voice Coil
  • Frequency Response: 28-500 Hz
  • Sensitivity: 93 dB
  • Mounting Depth: 6.6"
  • Xmax: 15mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cadence US12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cadence US12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cadence US12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cadence US12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp
