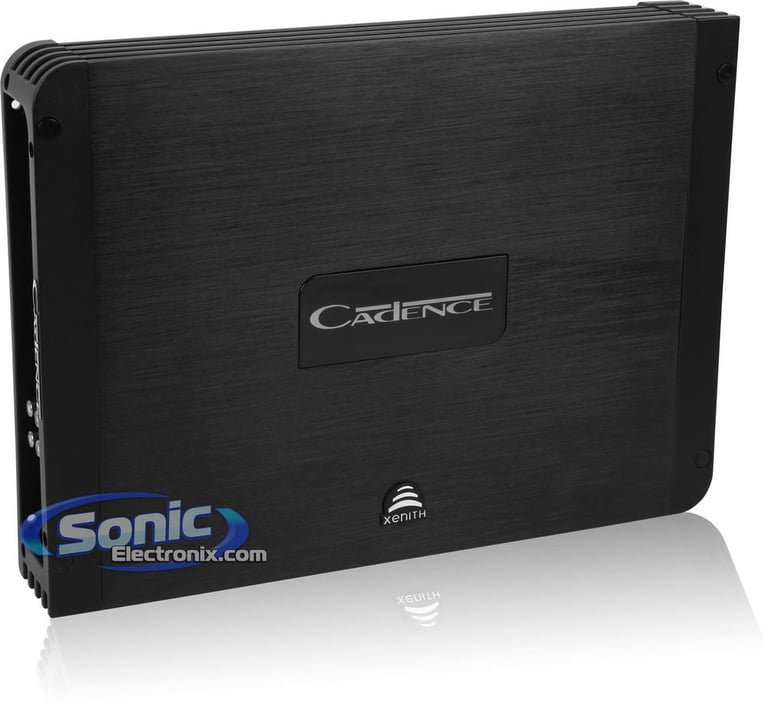

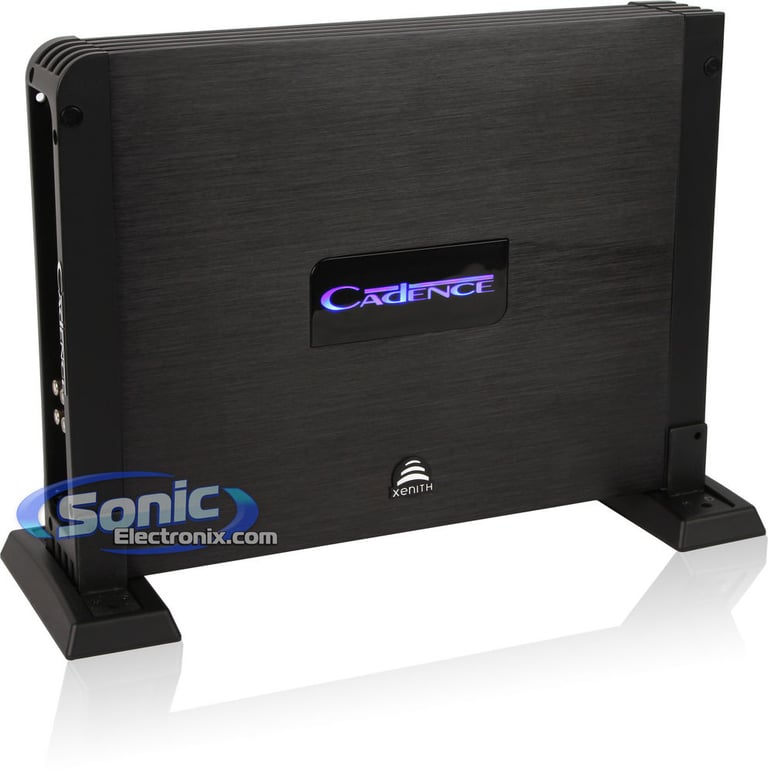

Cadence XaH1200Db (Black)

2400W, Xenith Series Class D Monoblock Amplifier with Black Chassis

Cadence
Shop all Cadence
Product videos
highlight-star-icon

Xenith Series Monoblock Class D Car Amplifier with Black Chassis • 300W RMS x 1 Chan. @ 4 ohm • 600W RMS x 1 Chan. @ 2 ohm • 1200W RMS x 1 Chan. @ 1 ohm • MOSFET Power Supply • 4-Way System Protection Circuitry • Variable Low-Pass Crossover • Variable Bass Boost

Learn more about the xah1200db

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

Product Highlights


Xenith Series Monoblock Class D Car Amplifier with Black Chassis • 300W RMS x 1 Chan. @ 4 ohm • 600W RMS x 1 Chan. @ 2 ohm • 1200W RMS x 1 Chan. @ 1 ohm • MOSFET Power Supply • 4-Way System Protection Circuitry • Variable Low-Pass Crossover • Variable Bass Boost

Description


Cadence brand icon

Authorized dealer

Make A Bold Statement with Cadence Xenith Amplifiers

The XaH1200Db is rated at 300W RMS x 1 channel @ 4 ohms, 600W RMS x 1 channel @ 2 ohms, and 1200W RMS x 1 channel @ 1 ohm. This monoblock class D amplifier is the perfect solution to just about any installation. It features a wired remote bass level control for convenient bass boost control and also features a pair of RCA outputs to daisy chain multiple amps when more power is needed. The addition of a low-pass and subsonic filter will allow you to have complete control of all desired frequencies to better tune your sound reproduction. If quality, performance, durability, and efficiency matter to you then look no further than the Cadence XaH1200Db.

The new Xenith series amplifiers give you two options of chassis color to choose from. You can go with black for a sleek elegant look or you can make a bold statement and go with the orange chassis. Either way you are getting a great product that will perform with consistency and quality. This series of amplifiers will come in a monoblock, 2-channel, or 4-channel configuration. All amplifiers will feature high and low-level inputs for easy integration into any car audio system. The new Tiffany style RCA jacks offer a more aesthetic and secure connection. The use of a heavy duty aluminum alloy heatsink will increase heat dissipation which will increase performance and longevity. Angled connection terminals will offer a clean installation, while the 4-way protection circuitry will keep your amplifier, vehicle, and components all safe from any unforseen events. Cadence Xenith amplifiers offer quality and performance that mustn't be overlooked.

  • Xenith Series Monoblock Class D Car Amplifier with Black Chassis
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • Max power output: 2400 watts x 1 chan.
  • MOSFET high speed power supply

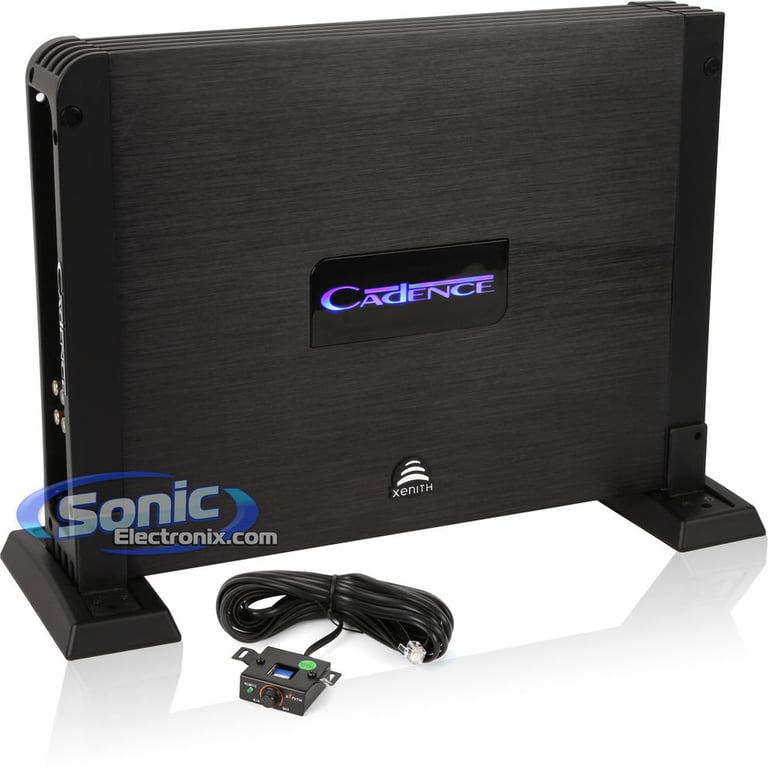

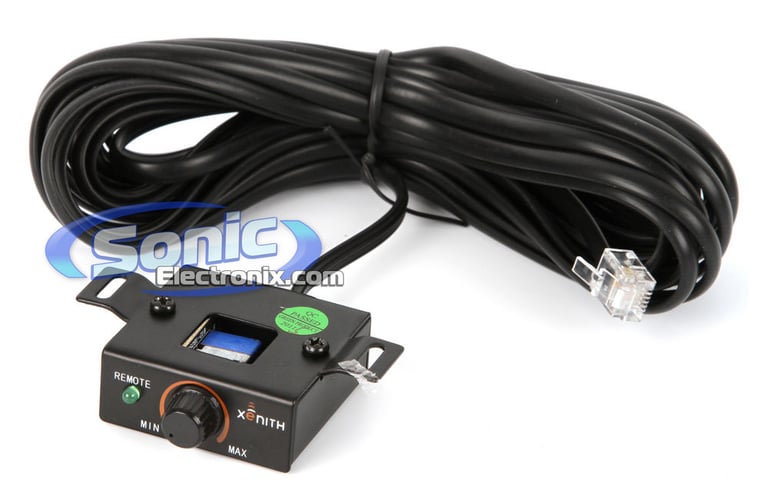

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators

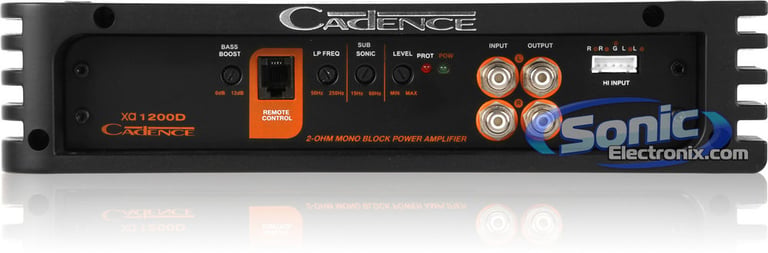

  • Variable bass boost (0 to +12 dB)
  • Soft start system with mute and delay features
  • Mono channel operation

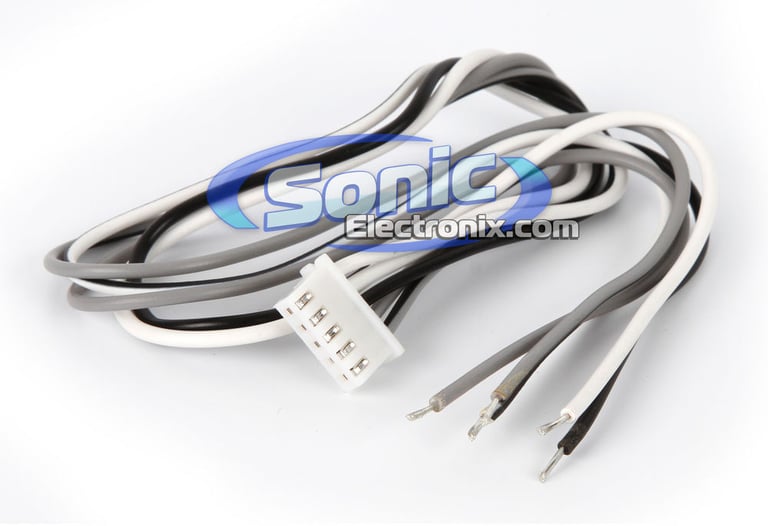

  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Tiffany style RCA Jacks
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry
  • Angled connection terminals
  • Computer optimized heatsink design
  • Bipolar studio-grade output stage transistors
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-8V
  • Variable low-pass filter (40-250 Hz)
  • Subsonic filer (15-40 Hz)
  • Damping factor: >200 @ 100 Hz
  • Frequency response: 10-250 Hz
  • Chassis color: Black
  • Chassis color also available in: Orange
  • Dimensions: 14-1/2"L x 10-1/2"W x 2-5/8"H
  • 0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Note: Cadence has made an update to their line of Xa amplifiers. This new "H" series update has been redesigned for 30% better heat dissipation and they have added High Level OEM Integration Inputs and Tiffany Style Isolated RCA Jacks. Even though the amplifier is labeled as Xa1200D you are indeed purchasing the new upgrade XaH1200DB amplifier. Please feel free to contact us regarding any concerns.


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2400 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
97 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes

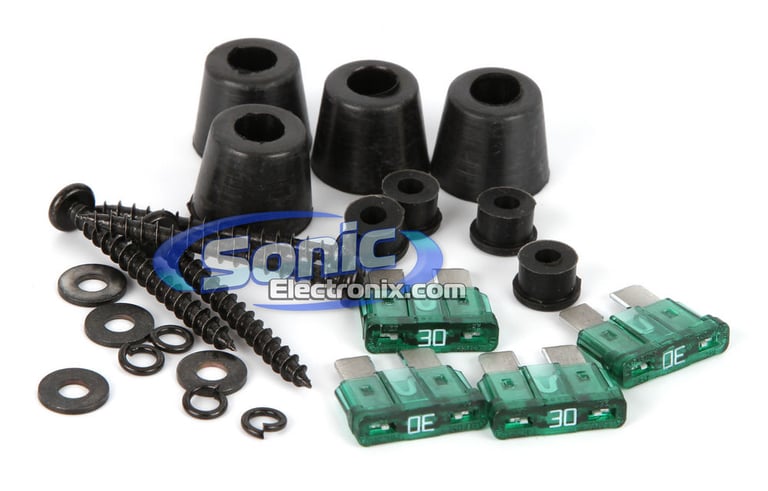

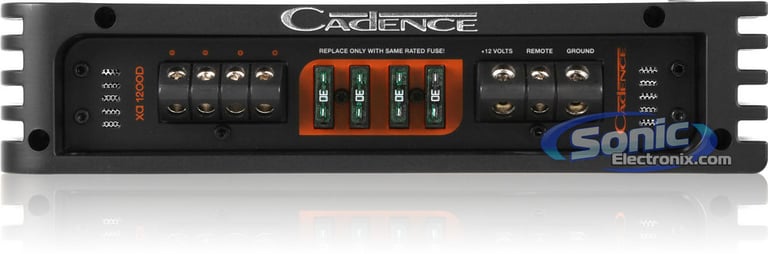

Fuse Rating
30A x 4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XAH1200DB

Weight:

11.50lbs

Internal SKU:

xah1200db

Internal Product ID:

38451

Product and How-to Videos


Customer Ratings & Reviews


Cadence XaH1200Db (Black) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great amp!

I have owned this amp for over a year now. I have been loving it ever since. I have been through a few subs with it and it just keeps on going. It runs cool and pumps out some serious power. I was a little nervous to try a brand i have never used, but im glad i took the chance. this amplifier is everything it is advertised as. I would happily buy more products from cadence in the future. I used it with a couple of alpine type R 12's and now have it powering an alpine type x 12. It hasn't fallen short to my demands yet and sounds beautiful.

By Joshua on August 27, 2013

5 found this helpful


beast!

So, I started out with a single 500rms sundown e15v3 @1ohm with this amp, then moved on to two sundown sa12 v3 1400rms. I now have a single sundown x12v2 @2000rms and this amp just keeps pushing them all day with no issues, really happy with this amp. OMG!

By Marvin on May 19, 2020
