Crossfire BMF600.4 + Amplifier Kit

600W RMS, 4-Channel Class A/B Car Amplifier + Kicker 09ZCK44 4 Gauge Amplifier Kit + Sound Dampening

EXCLUSIVE
Product videos
highlight-star-icon

BMF Series 4-Channel Class A/B Car Amplifier • MOSFET Power Supply • 5-Way System Protection • Variable Low/High-Pass Filters • Variable High-Pass Filter • Complete 4 Gauge Z-Series Amp Kit; For Systems up to 1000 Watts • Four 12" x 36" pieces of Sound Damp

Learn more about the bmf6004_09zck44

We apologize

This item has been discontinued


Loading...
AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

PRO-X6.4M main

DS18 PRO-X6.4M (Sold Individually)

500W Peak (250W RMS) 6.5” PRO-X Series Pro Audio Midrange 4-ohm Loudspeaker

4

Product Highlights


BMF Series 4-Channel Class A/B Car Amplifier • MOSFET Power Supply • 5-Way System Protection • Variable Low/High-Pass Filters • Variable High-Pass Filter • Complete 4 Gauge Z-Series Amp Kit; For Systems up to 1000 Watts • Four 12" x 36" pieces of Sound Damp

Description

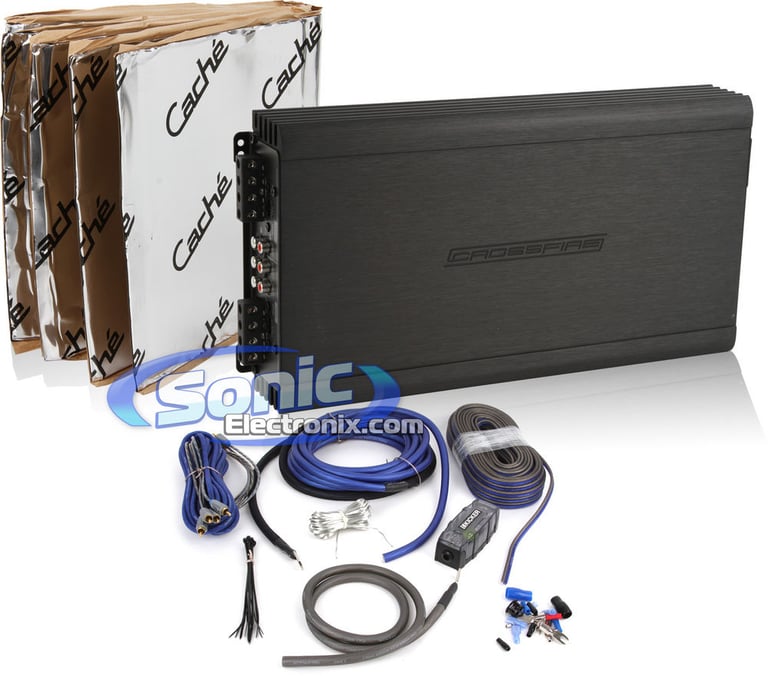

Crossfire and Kicker Bundle

Looking to add some power to your system? Sonic Electronix has created a bundle ideal for anyone looking to add an amplifier to their system. Included in this combo is a Crossfire BMF 600.4 4-Channel Amplifier. This amplifier is perfect for those looking to power up their high end speakers, or even a pair of Single Voice Coil 4 Ohm subwoofers at the bridged impedance. This amplifier will feature a variable bass boost, variable low-pass filter, and variable high-pass filter, these filters and bass boost will allow for complete control of all frequencies to better fine tune your system. We have also included a high quality Kicker 09ZCK44, 4-channel amplifier kit to get the best signal and performance out of your brand new amplifier. The Kicker 4 gauge amplifier kit will have everything you need for complete installation. In order to increase the overall sound quality and output from your system, this bundle also includes four 12" x 36" pieces of Dead Shield Sound Dampening Material. The sound damp will reduce road noise, vibrations and rattles that diminish the sound quality of your car audio system This quality bundle comes with an affordable price, making it a must for anyone looking to add some power to their system.

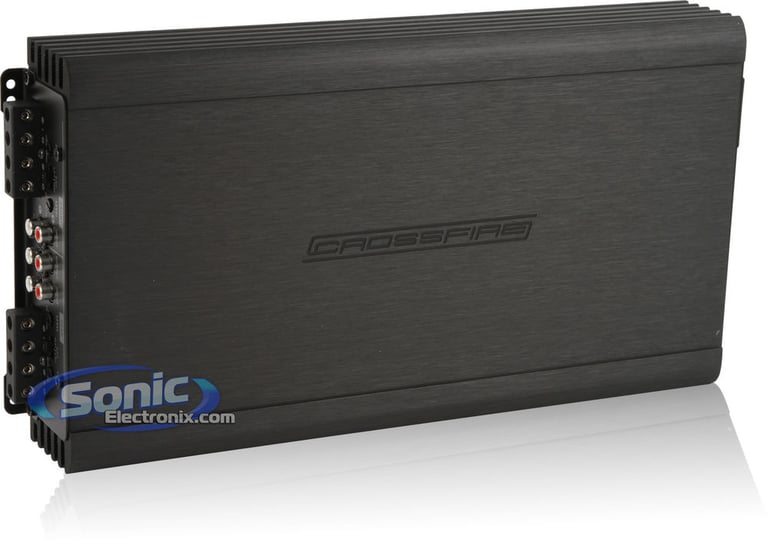

Crossfire BMF 600.4 Features:
  • BMF Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating: (12.5V)
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 150 watts x 4 chan.
    • Bridged, 4 ohm: 300 watts x 2 chan.
  • Total power output: 600 watts RMS.
  • High efficiency MOSFET power supply
  • LED power (green) indicator
  • Variable Bass Boost (0 to +12 dB at 45Hz)
  • Soft Start, on/off circuitry
  • Simultaneous Mono/Stereo operation capability
  • Military spec. audiophile grade components
  • Multi-stranded power toroid
  • High-efficiency Bipolar output transistors
  • Wire free PC Board layouts
  • Over-sized capacitor bank

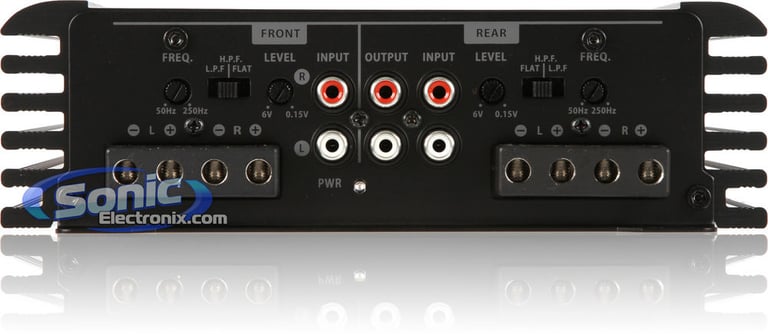

  • Variable high-pass and low-pass electronics crossovers
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 5-Way System Protection circuitry
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 0.15V-6V
  • Full-range crossover filter
  • Variable high-pass filter (50-250 Hz)
  • Variable low-pass filter (50-250 Hz)
  • Dimensions: 14-9/16"L x 8"W x 2-3/8"H
  • 4 gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

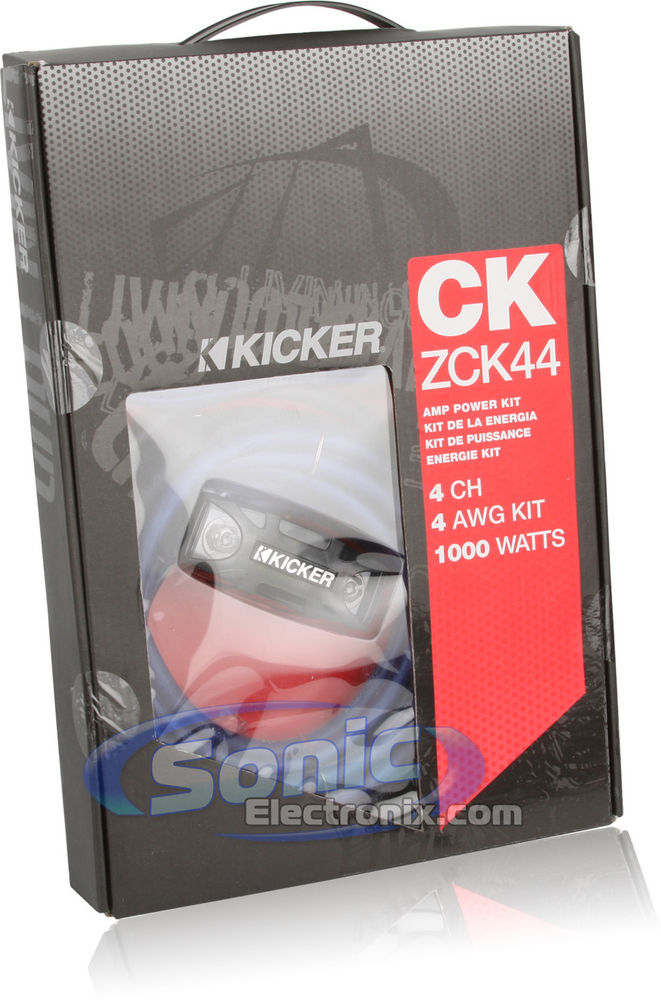

Kicker 09ZCK44 Features:
  • Complete 4 Gauge Z-Series 4-Channel Amplifier Installation Kit
  • 1000 Watts max
  • Direct-connect engineering
  • Fewer connections for less signal distortion
  • Twisted-pair technology eliminates noise for crystal clear sound
  • Hyper-flex cable and wire
  • Full spec cable is true to gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Kicker 09ZCK44 Includes:

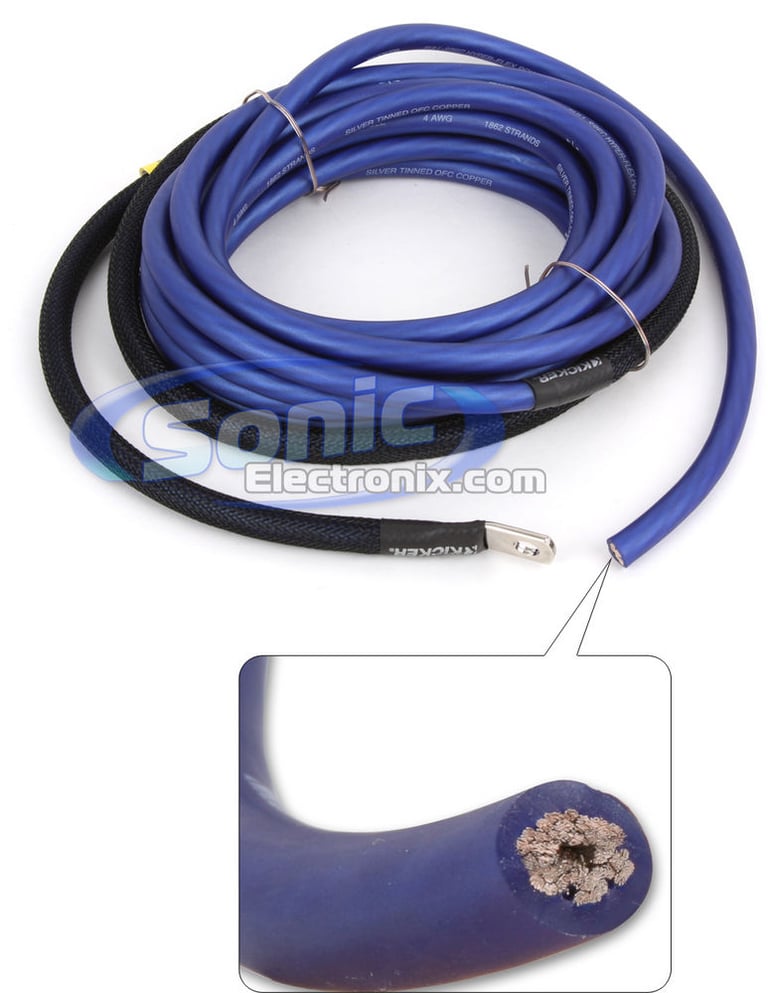

  1. 20ft(6.1m) Blue 4AWG power wire

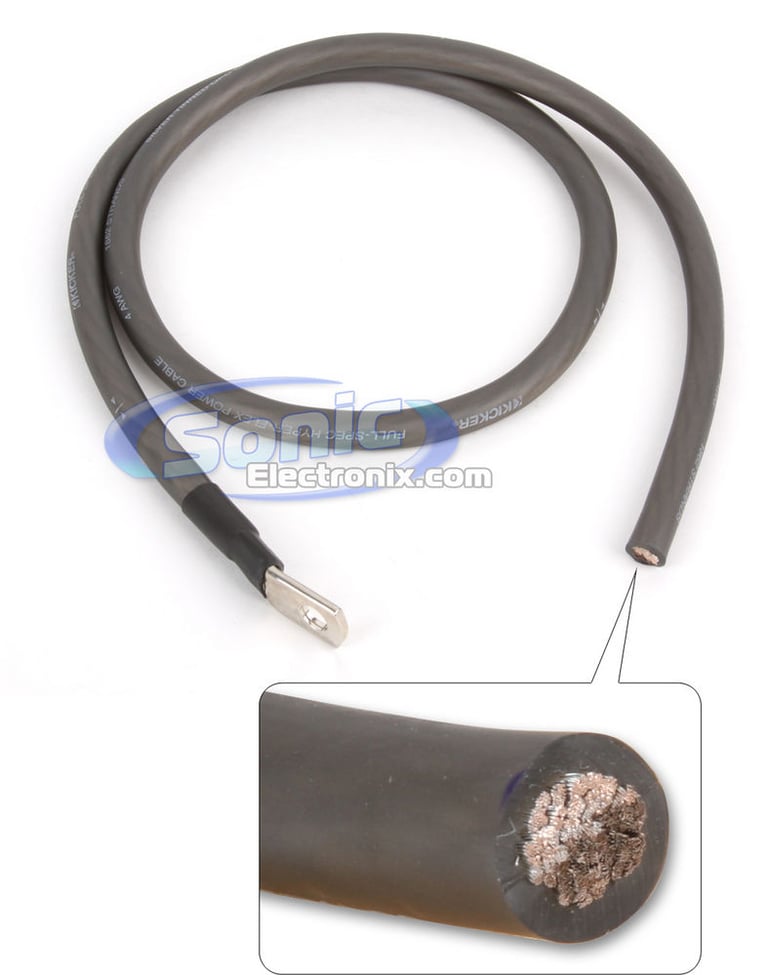

  2. 3ft(0.9m) Black 4AWG ground wire
  3. 20ft(6.1m) Silver 18AWG remote lead wire

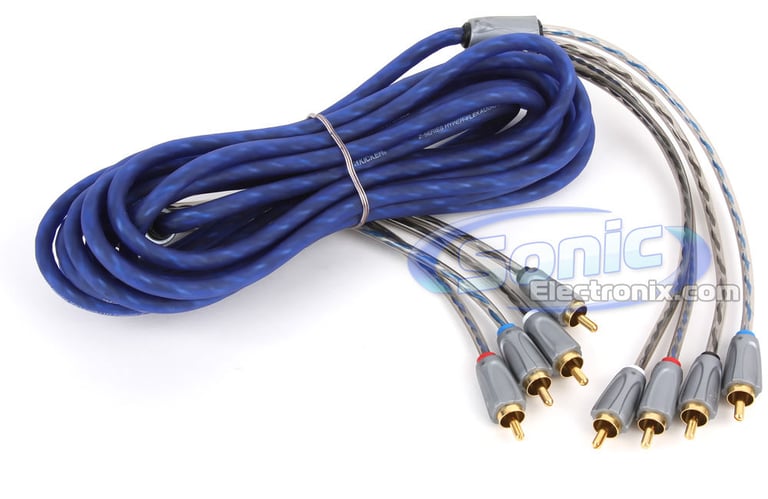

  4. 16.4(5m) Blue, black, and gray 4 Channel RCA cable

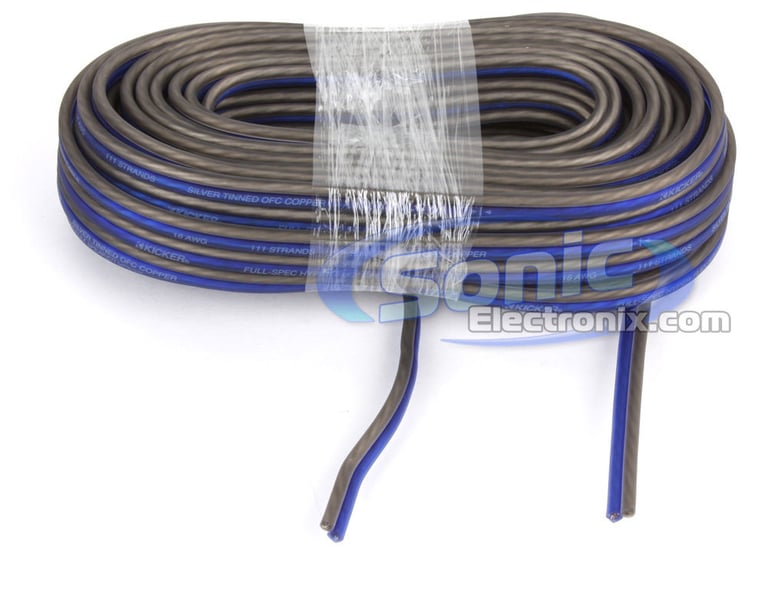

  5. 60ft(18.2m) Blue and gray 16AWG speaker cable

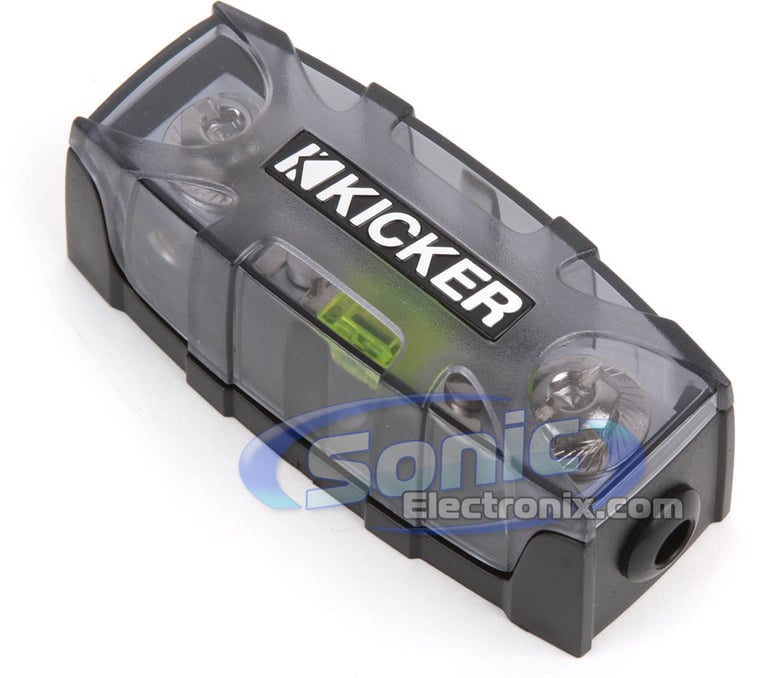

  6. 1 Kicker 09FHS Fuse holder with 100 amp AFS fuse
  7. Black rubber firewall grommet

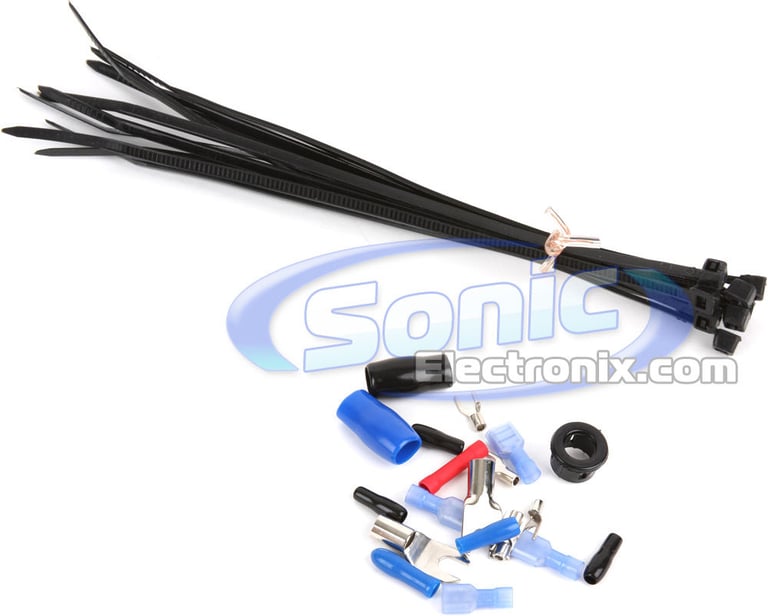

  8. 2 4AWG Spade terminals
  9. 5 16AWG Spade terminals
  10. 4 Female quick disconnect connectors
  11. Black zip ties
  12. Red butt connector

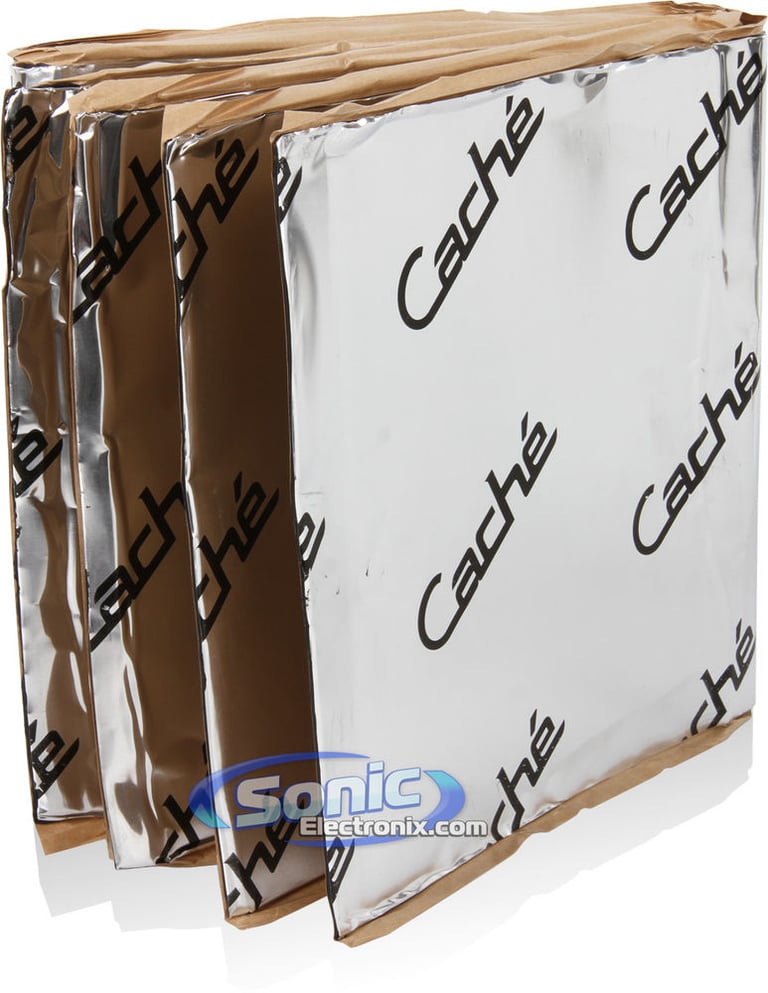

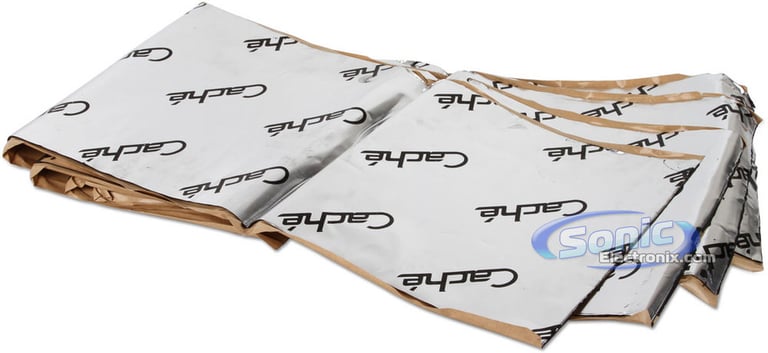

Cachce CDM Features:
  • Four 12" x 36" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum

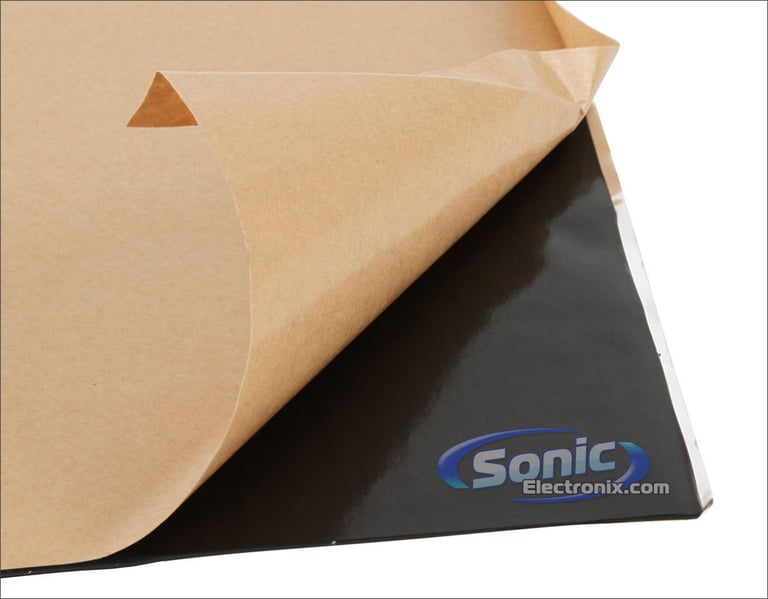

  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 12"L x 36"W

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
No

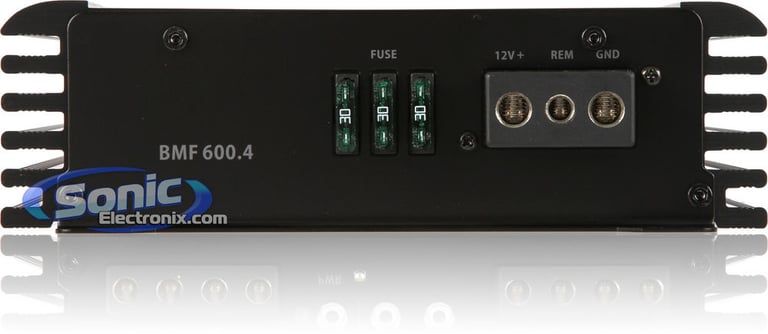

Fuse Rating
30A x 3
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
60 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
AFS
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BMF600.4_09ZCK44

Weight:

29.80lbs

Internal SKU:

bmf6004_09zck44

Internal Product ID:

38509

Product and How-to Videos


Customer Ratings & Reviews


Crossfire BMF600.4 + Amplifier Kit thumbnail image

5 star
96%
4 star
4%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

great buy

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

i have this hooked up to my kicker zx1000.1 amp that powers my 2 L5's. GREAT BUY

By Thomas on February 18, 2010

27 found this helpful


Hi Quality Wire....

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

I used this kit to install a Hifonics amp in my grand cherokee.
The quality of the wire is very good and flexible.
However the 4 gauge wire postive wire has a built in connector on the battery end that has a whole that is way too small for putting a side post bolt through... I had to grind it out to the correct size. That is my
only gripe. I would recommend this product anyway.

By Michael on April 24, 2011

23 found this helpful


PA600 with 4 DXi650

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

I used this kit to put a Polk PA660 behind 4 DXi650s. The kit is beautiful! The fuse box is awesome. The 4G hot and ground wires are flexible and are very high quality. This kit contains some of the best speaker wire I have seen. I didn't need to use the speaker wire it in my 07' Civic, so wired my 3 year old's Cerwin Vega D5's with it in her room. The RCA's are nice looking and now my car set up is wired professionally from home! I chose the 4G over the 8G so I could split the wire to 2-8s in the trunk for 2 amps later.

By Jason Salafia on October 4, 2012

22 found this helpful


Excellent product

The following review is for CDM, which is a part of the bundle you are viewing.

This is great material and is very easy to put on with a heat gun!

By Matt on May 23, 2012

24 found this helpful


def worth it

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

After looking at a few kits I decided to go with this one. The price was a little higher than most but omg is this stuff great. its extremely flexible, provides a vast amount of power to your system, looks cool, and sounds great! lots of copper stuffed in these things. Highly recommend it

By Tim on February 21, 2011

22 found this helpful


Best

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

Very good!!!

By Ulugbek on June 30, 2011

22 found this helpful


heavy duty product

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

At first I thought the price was a little on the high side but when I opened the package I was impressed with the quality and amount of product delivered. I felt I got good value for my purchase.

By Mario on September 22, 2010

21 found this helpful


All you'll need for a 4-Channel Amplifier

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

I'm very happy I chose the Kicker Amp Install Kit with RCAs. High quality 4 gauge that not only does the job but looks real pretty under the hood. That Fuse holder with 100 amp AFS fuse is no slouch either.

By CommercialRig on July 7, 2010

21 found this helpful


Best amp kit I have ever owned!

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

The cables that came in the palate were of the best quality I have ever owner, the length of the cables were more than enough for any at home, normal installation. I have an 02 ram 1500 extended cab and was able to run a power an ground to my capacitor and had enough cable left over to use the cables from this package for the power and grounds on two more amps. I still have left over remote cables and the RCA and fuse block were amazing. I recommend this kit to anyone who wants to run great deal of power the right way.

By Cody on December 22, 2009

21 found this helpful


Heavy Duty

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

Has all you need to install an amp and is good quality product.

By JR on July 24, 2013

20 found this helpful



HK10KA small

MA Audio HK10KA

10,000W Max, Class X (D) Monoblock Amplifier

$1299.99

List price $4299.99

99-9100 small

Metra 99-9100 Dash Kit

Install a new Single-DIN car stereo in select 1996-2006 vehicles from Audi (Black)

(2)

$13.49

List price $25.99

DPX1851 small

Clarion DPX1851

850W Max, DPX Hybrid Series Class G/H Monoblock Amplifier

$269.99

List price $499.99

BP-12DV small

Atrend BP-12DV

Empty Dual 12" Vented SPL Subwoofer Enclosure

(12)

$229.99

List price $339.99

XS-MP1611 small

Sony XS-MP1611

280W Peak (130W RMS) 6.5" XSM Series Dual Cone 4-ohm Marine Speakers

(3)

$88.00

List price $99.95

XM-1S small

Sony XM-1S

500 Watts Slim Series Class D MonoBlock Amplifier

(17)

$89.99

List price $219.95

KTE-10G small

Alpine KTE-10G

10" Protective 2-Piece Subwoofer Grille for Alpine Type-R & Type-S Subwoofers

(4)

$49.95

List price $49.95

99-1008 small

Metra 99-1008 Dash Kit

Install a new Single-DIN car stereo in select 2003-2006 Sorento and Spectra and Spectra5

(2)

$28.99

List price $32.99

SRV303 small

Clarion SRV303

7" Powered Subwoofer

(1)

$114.99

List price $249.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2019 Ford Escape

2012 Ford Transit Connect

2016 Ford Edge

2000 Kia Sephia

2012 Buick Regal

2012 Chrysler 300

2006 Ford Escape

2000 Saturn SC2

2004 Subaru Forester

1979 Audi 5000

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
