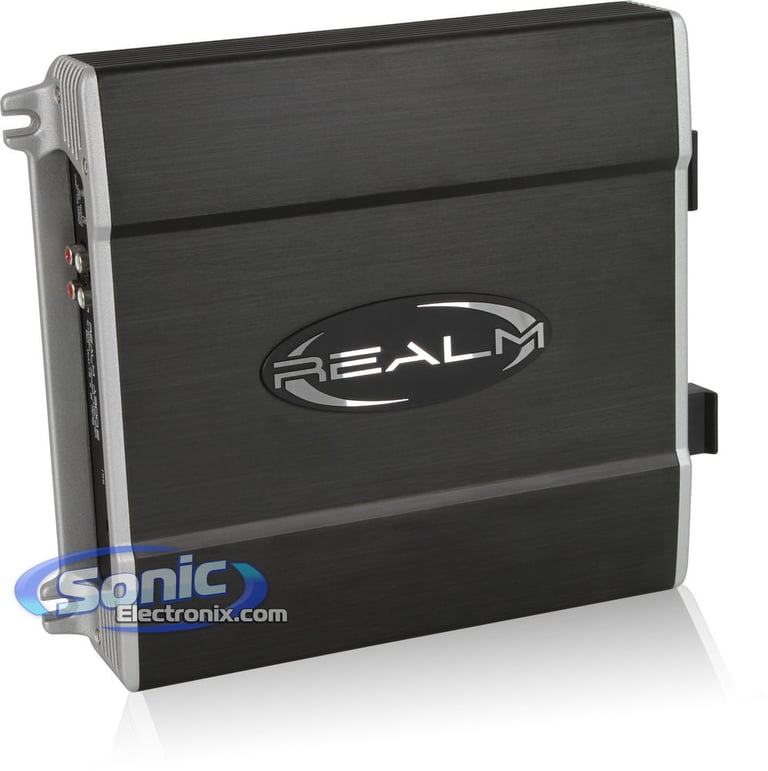

Realm A300.2

300W RMS, 2-Channel Class A/B Car Amplifier

Realm
Shop all Realm
Product videos
highlight-star-icon

• Realm by Scosche 2-Channel Class A/B Car Amplifier
• Multi-Color LED Protection
• High-Level Speaker Inputs
• Preamp RCA Outputs
• Variable Low/High-Pass Crossovers
• Discrete Plug Style Terminals
• CEA-2006 Compliant

Learn more about the a3002

We apologize

This item has been discontinued


Loading...
APX-S8-FO1 main

iDataLink Maestro APX-S8-FO1 Dash Kit and Harness

APX 8" Floating Stereo Dash Kit and Harness for select 2011-2022 vehicles from Ford, Lincoln

1
-17.86%

$229.99

List price $279.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

C2-600 main

JL Audio C2-600

120W RMS 6" C2 Series 2-Way 4-ohm Component Speaker System

5
ADS-MRR main

iDataLink Maestro RR Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

35
-17.39%

$189.99

List price $229.99

Product Highlights


• Realm by Scosche 2-Channel Class A/B Car Amplifier
• Multi-Color LED Protection
• High-Level Speaker Inputs
• Preamp RCA Outputs
• Variable Low/High-Pass Crossovers
• Discrete Plug Style Terminals
• CEA-2006 Compliant

Description


Realm brand icon

Authorized dealer

  • Realm by Scosche 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 90 watts x 2 chan.
    • 2 ohm: 150 watts x 2 chan.
    • Bridged, 4 ohm: 300 watts x 1 chan.
  • MOSFET power supply
  • Power LED (blue) indicator
  • Multi-Color LED Protection:
    • Red: overload or circuit problem
    • Yellow: thermal problem
    • Green: low voltage problem
  • Soft Start Turn-on
  • 2/1 channel operation
  • Speaker-level (high-level)
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry

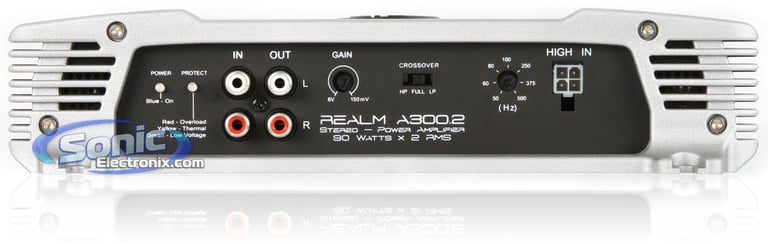

  • Illuminated dial controls

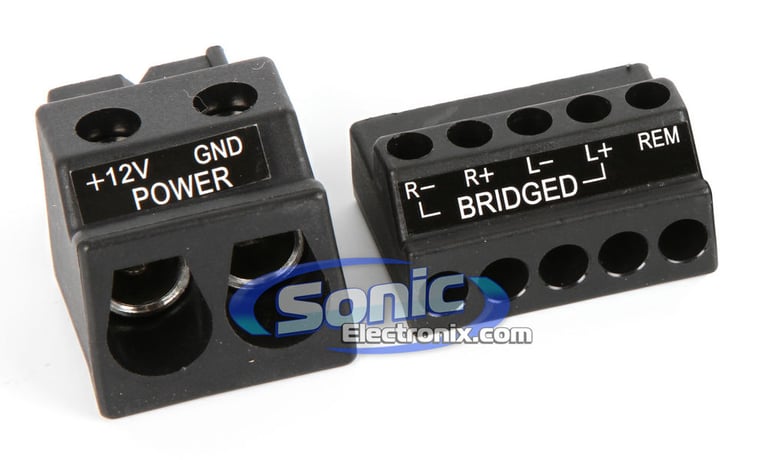

  • Discrete plug style terminals
  • Double sided glass-epoxy circuit boards
  • Internal transistor heat sinks for maximum heat dissipation
  • Input sensitivity:
    • Low level: 150mV-6V
    • High level: 325mV-10V
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (50-500 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 11-1/2"L x 9-13/16"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
90 watts x 2 channel
RMS Power @ 2 ohms
150 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
AB / D
Number of Channels
2-Channel
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
100 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

A300.2

Weight:

8.50lbs

Internal SKU:

a3002

Internal Product ID:

39303
