2400W 12" Pioneer + Jensen Bass Bundle

Two 12" Pioneer TS-W303R Champion Series Subwoofers + Jensen Power 900.1 Monoblock Amplifier

Pioneer
Shop all Pioneer
EXCLUSIVE
highlight-star-icon

Two 12" Single 4 ohm Champion Series Subwoofer • 2400W Max • 500W RMS • Jensen Power Monoblock Class A/B Car Amplifier • MOSFET Power Supply • Variable Bass Boost • db Link 4 Gauge Amplifier Kit

Learn more about the 2-tsw303r_power9001

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

Description


Pioneer brand icon

Authorized dealer

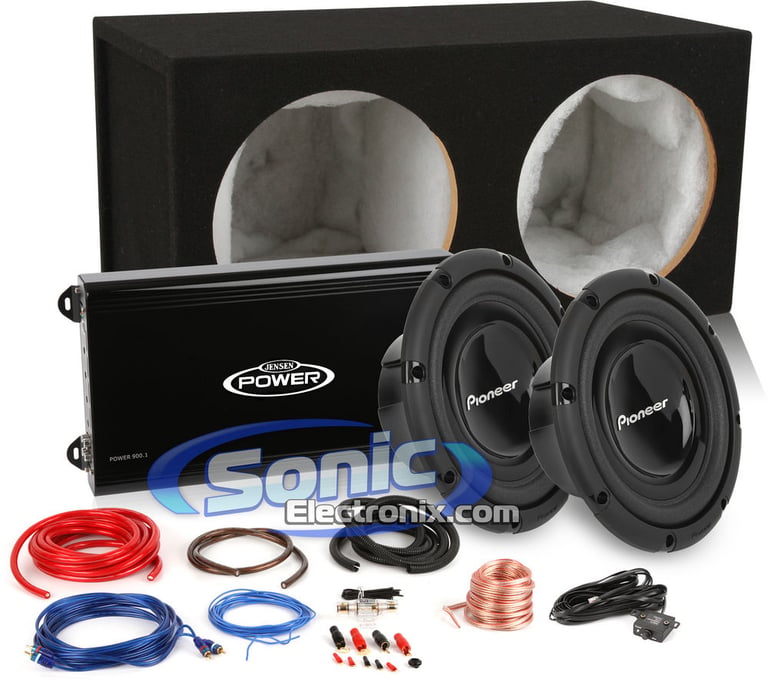

Pioneer and Jensen Bundle

This Sonic Electronix Exclusive Bass package showcases a Jensen Power 900.1 Amplifier along with two 12" Champion series Pioneer subwoofers. This excellent bass package pushes 450 watts of clean, continuous RMS power. The Pioneer subwoofers have Single 4 ohm voice coils; meant to be wired together and then directly to the amplifier, to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

Each Pioneer TS-WS303R Champion series subwoofer requires 250 watts of RMS power. The included Jensen Power 900.1 amplifier will compliment this required power by supplying a near perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. With the Pioneer subwoofer, Jensen amplifier, and db Link amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

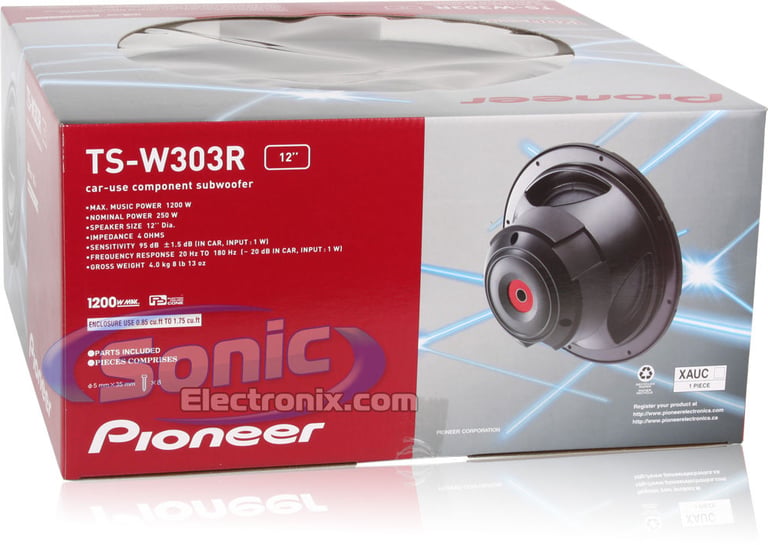

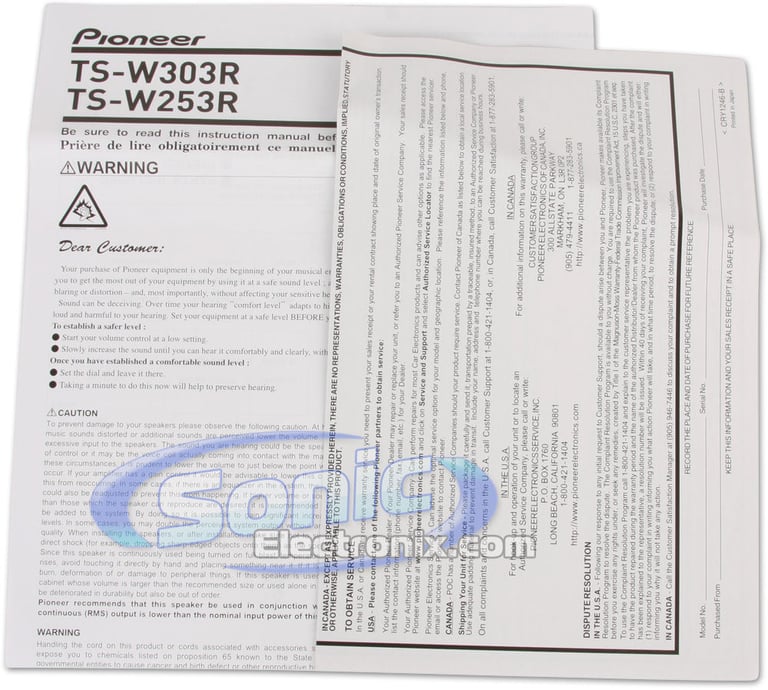

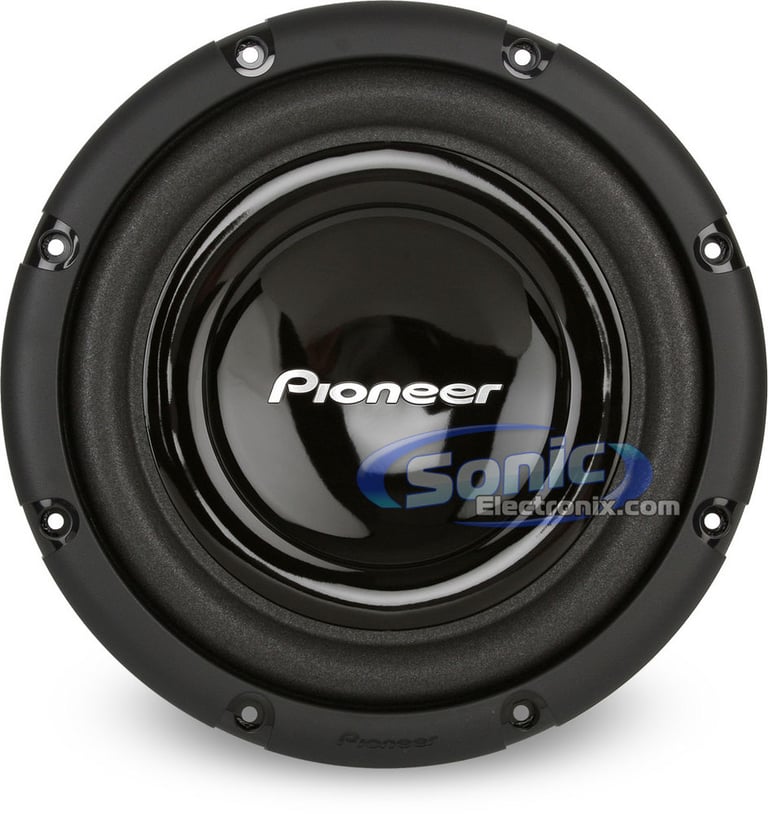

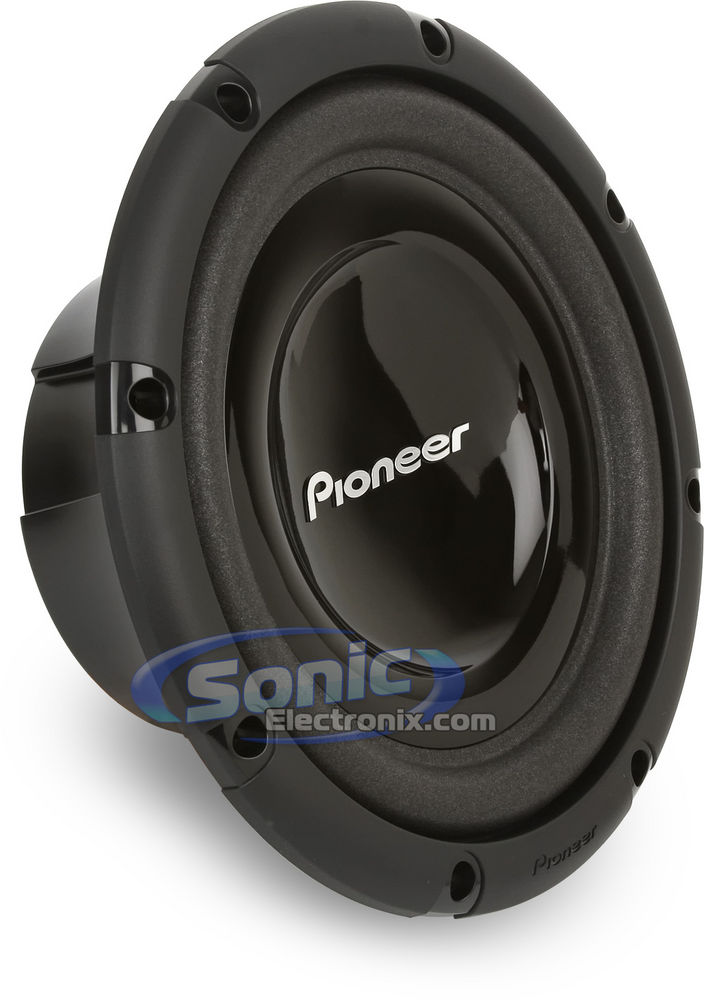

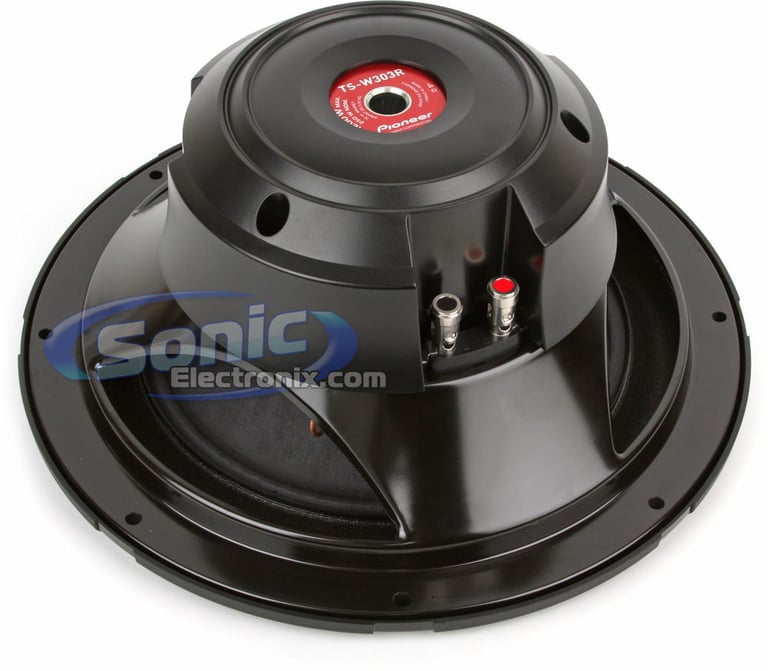

Pioneer TS-W303R Features:
  • 12" Single 4 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts/2400 watts pair
    • RMS: 250 watts/500 pair
  • IMPP Composite and paper cone woofer
  • Double cone design with reinforcement nodes
  • Urethane surround
  • Nomex spider
  • Projected pole yoke with vented pole
  • 6 Layer, long copper voice coil
  • 32oz. Strontium magnet structure
  • Stamped basket with magnet cover
  • Integrated single-sided spring compression terminals
  • 1-year Sonic Electronix warranty

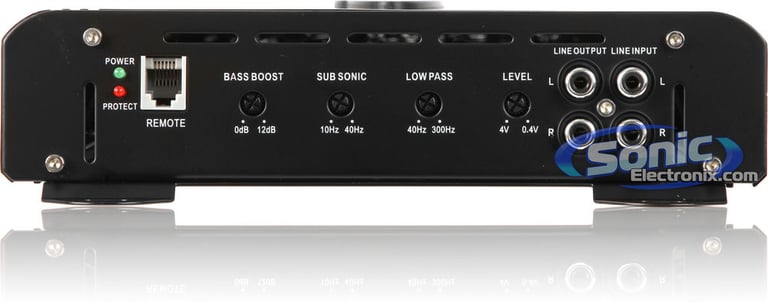

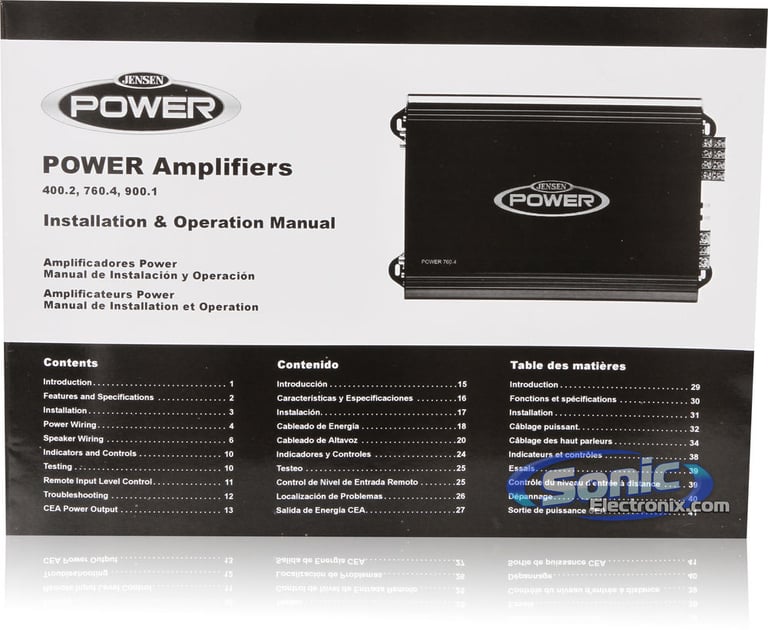

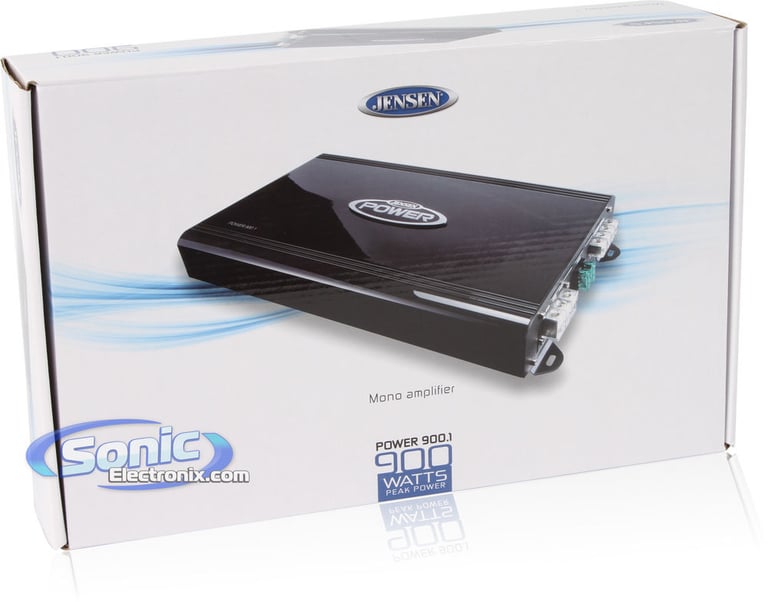

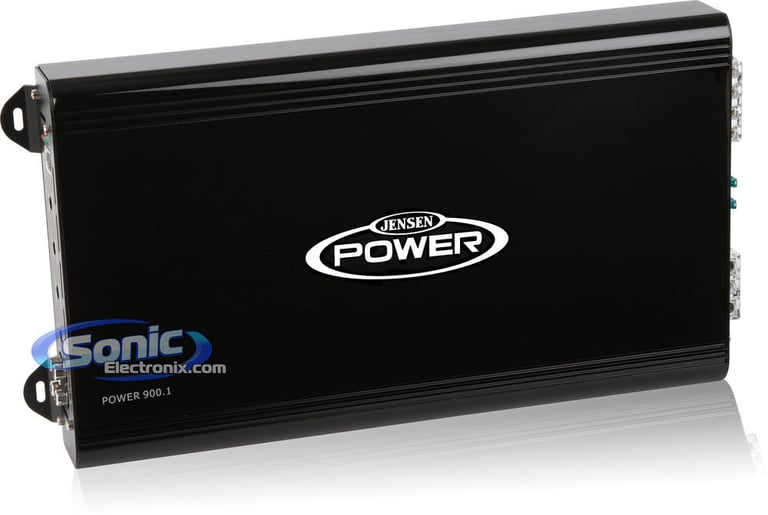

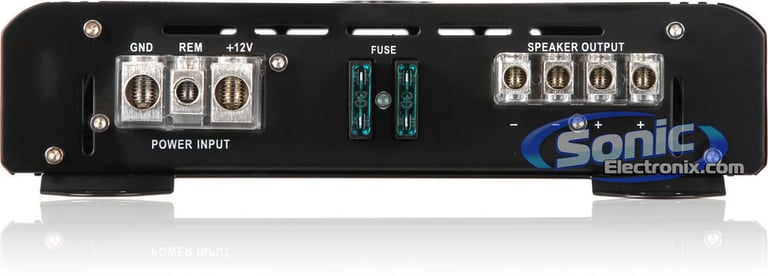

Jensen Power 900.1 Features:
  • Monoblock Power Series Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 450 watts x 1 chan.
  • Max power output: 900 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

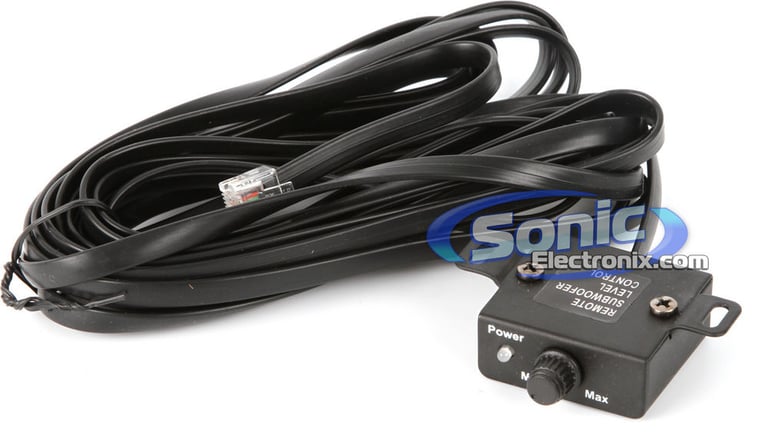

  • Remote input level control with 5m cable
  • LED power (green) and standby/fault (red) indicators
  • Variable bass EQ (0-12 dB @ 45 Hz)
  • Soft Start Turn-on
  • Monoblock operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, DC-Offset, and speaker short protection)
  • Heavy duty extruded heatsink for extreme heat dissipation
  • High current bi-polar output transistors
  • Optimized class AB design minimizes distortion and reduces idle current
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Variable Low-Pass Filter (40-300 Hz, 12 dB/octave)
  • Subsonic Filter (10-40 Hz @ 12 dB)
  • Signal-to-Noise Ratio: >100 dB
  • Frequency Response: 5-300 Hz
  • Variable Input Level: 400mV - 5V
  • THD (Total Harmonic Distortion): 0.02%
  • Fuse Rating: 2 x 30 amps
  • Dimensions: 9"D x 15-3/4"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

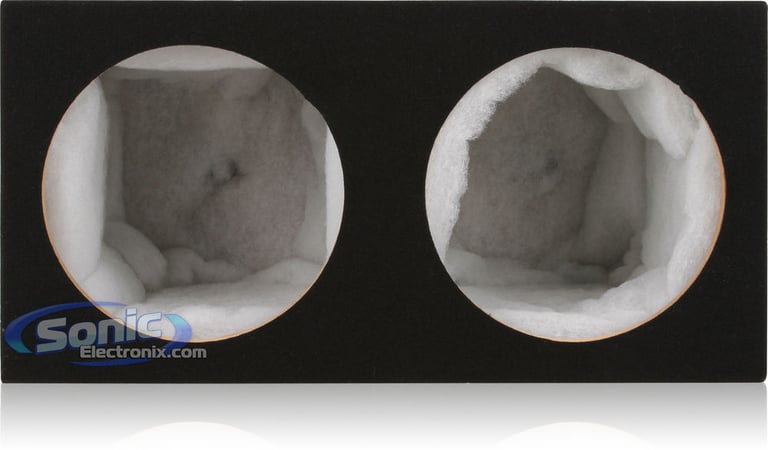

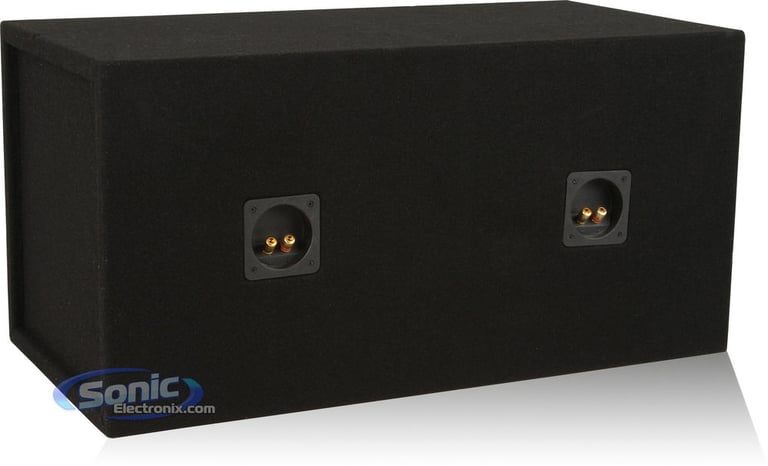

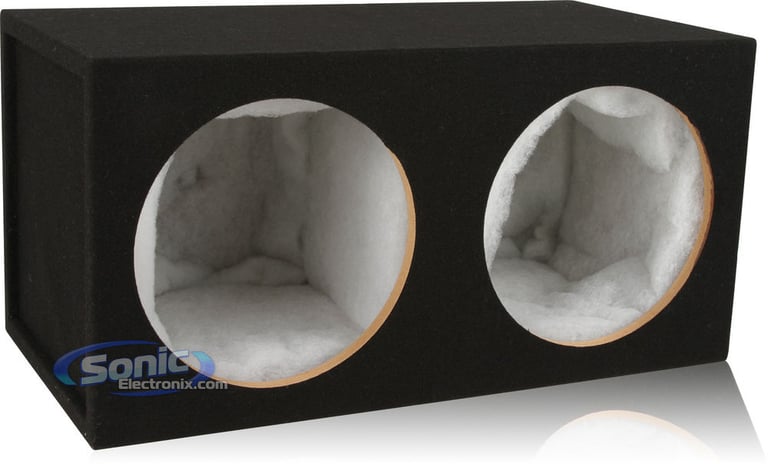

House Brand 12DSPF Features:
  • 12" Dual Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil

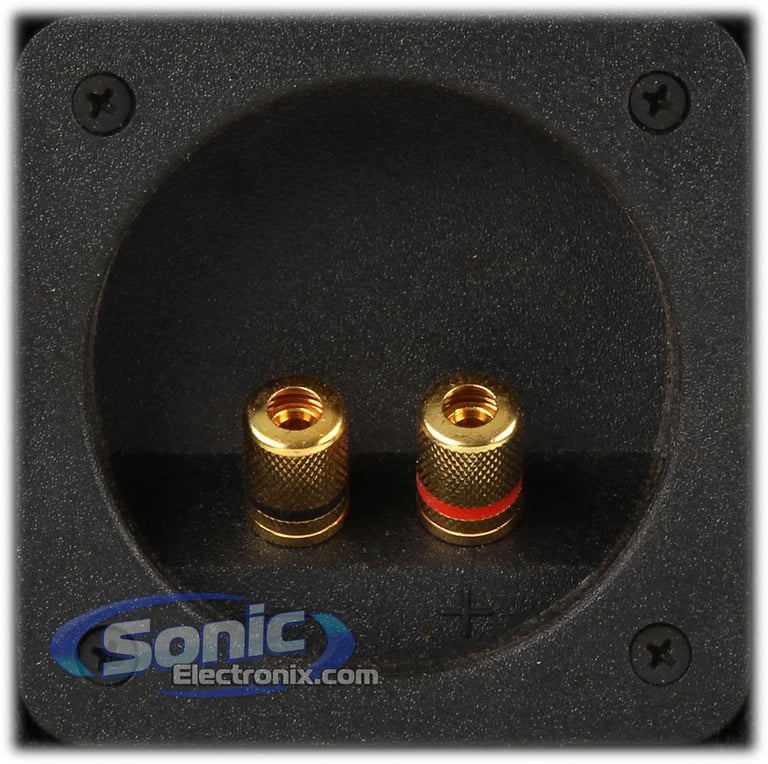

  • Two sets of gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 12-1/2"
  • Subwoofer cutout diameter: 11"
  • Box volume: 1.13 cubic feet (per chamber)
  • Total box volume: 2.26 cubic feet
  • Dimensions: 14"D x 28-1/4"W x 14"H

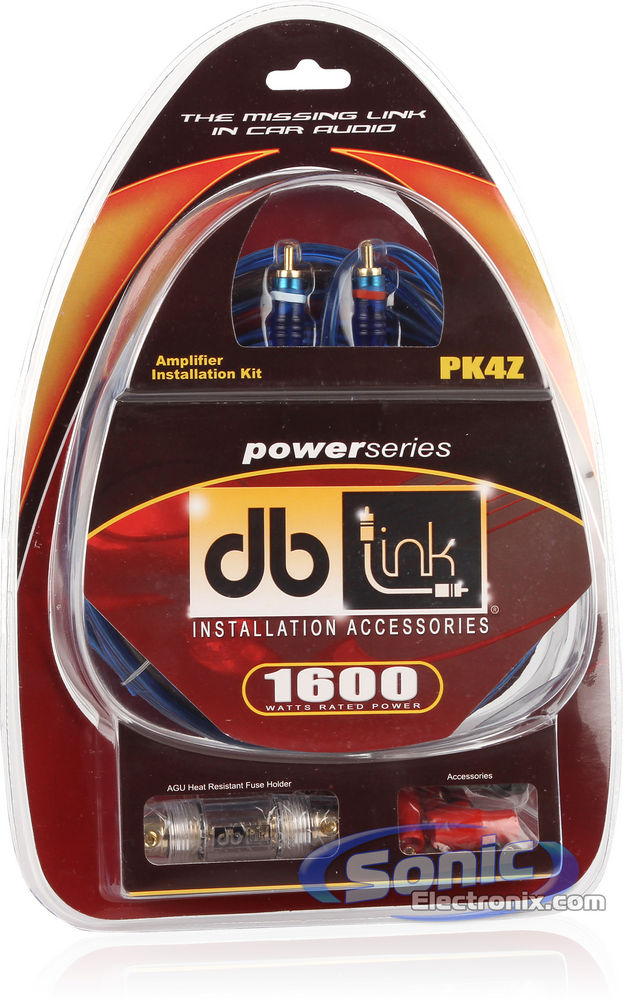

db Link PK4Z Features:
  • 4 Gauge Complete Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1600 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Terminals and contacts are gold-plated for excellent signal transfer
  • AGU Fuse holder offers ideal protection for Mid-level systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amp Kit Includes:

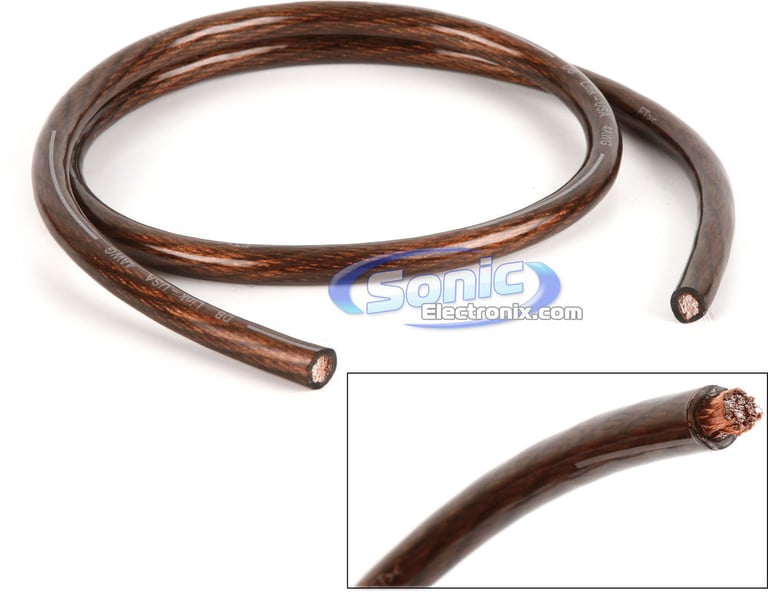

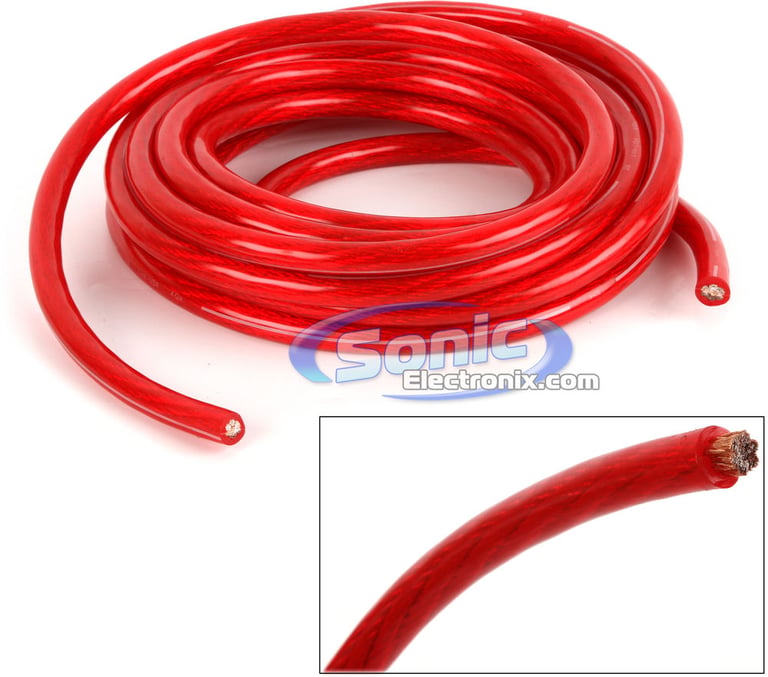

  1. 17 ft. of 4 AWG Red power cable
  2. 3 ft. of 4 AWG Black ground cable

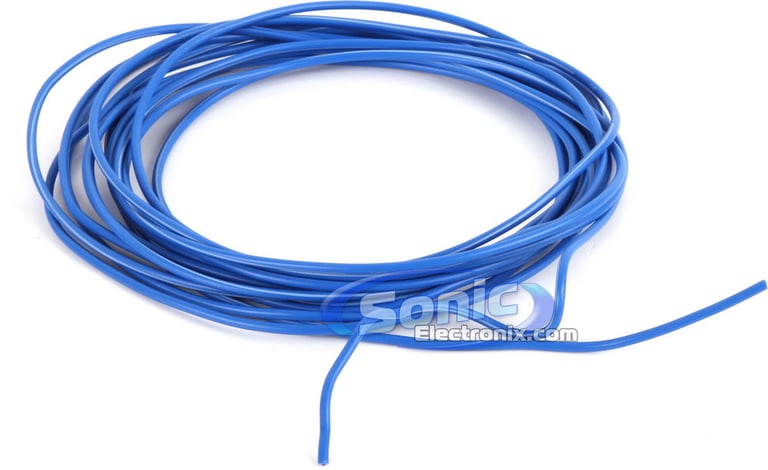

  3. 17 ft. of 18 AWG Blue remote turn-on wire

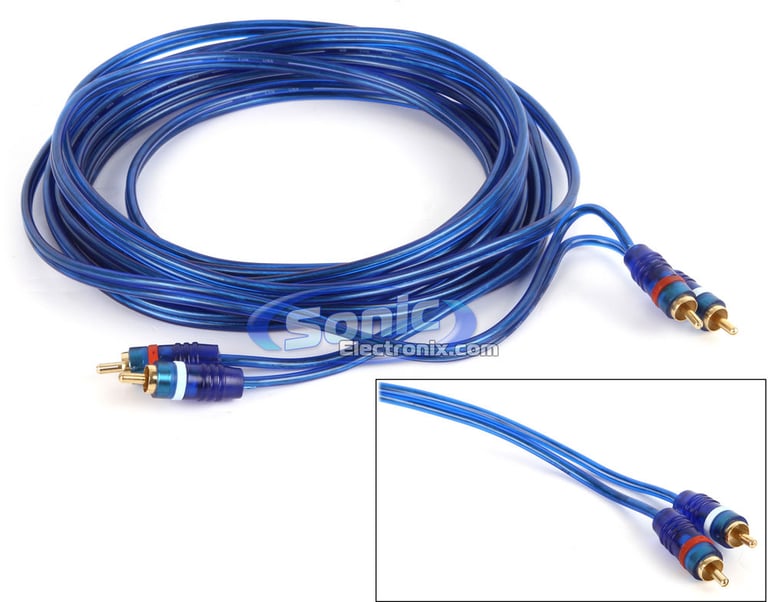

  4. 17 ft. of Blue shielded RCA cable

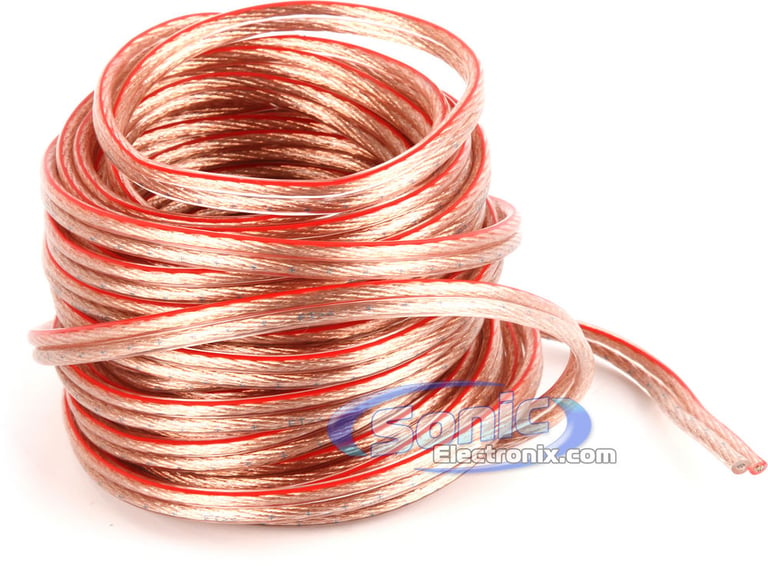

  5. 25 ft. of 16 AWG speaker wire

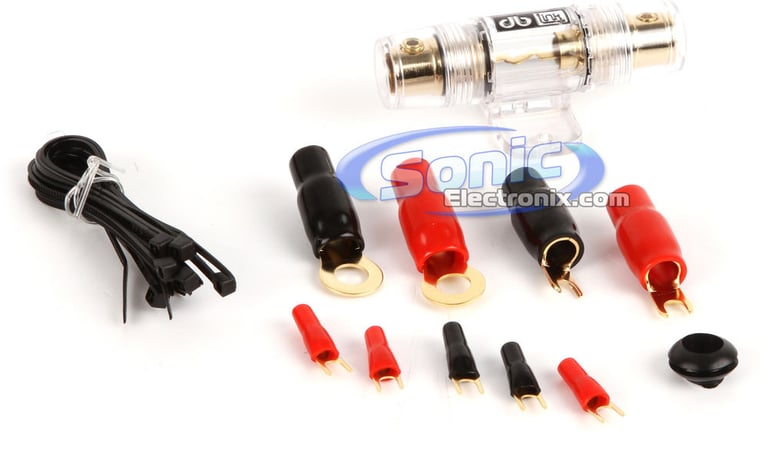

  6. 4 AWG In-line AGU fuseholder
  7. 60 Amp AGU fuse

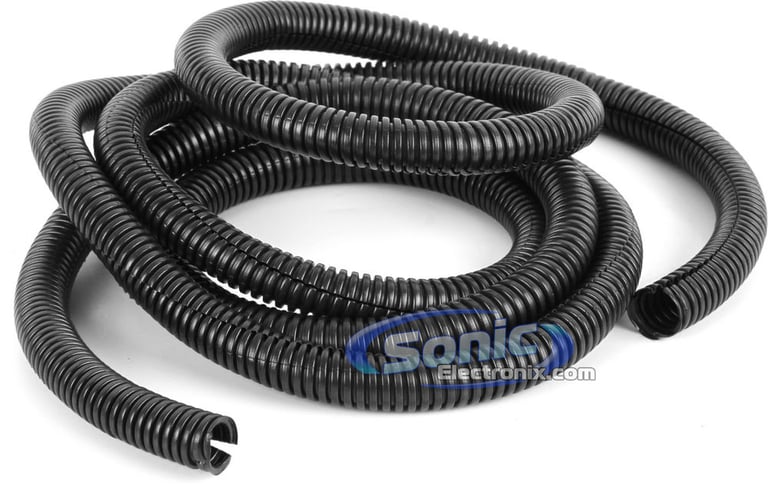

  8. 5 ft. of Black split loom tubing

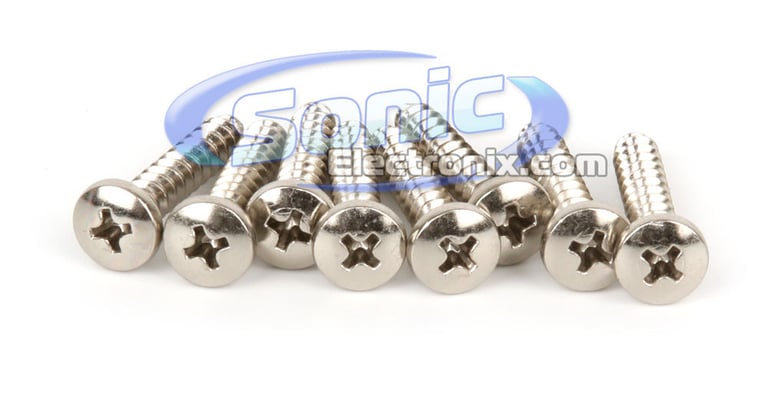

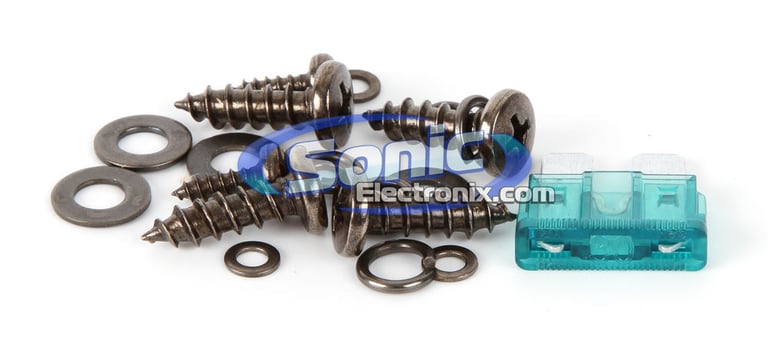

  9. Other installation accessories

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
450 watts x 1 channel
Peak Power Output
900 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 300 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
250 watts
Total RMS Power Handling
500 watts
Peak Power Handling
1200 watts
Total Peak Power Handling
2400 watts
Woofer Surround
Urethane
Woofer Composition
Injection Molded Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Height
14"
Width
28-1/4"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

2-TS-W303R_Power 900.1

Weight:

62.45lbs

Internal SKU:

2-tsw303r_power9001

Internal Product ID:

39467

Customer Ratings & Reviews


2400W 12

5 star
55%
4 star
32%
3 star
10%
2 star
3%
1 star
0%



Durability
4.3
Value
4.6
Features
4.2
Design
4.4
Usability
4.7

Customer Reviews

Sort by:

Loading...

Beautiful Amp

The following review is for Power 900.1, which is a part of the bundle you are viewing.

It's awesome, exactly what i wanted, great quality in terms of the product build and terminals. Manual had the answer to all my questions and all the specs are what they were listed as.

By Dre on April 29, 2014

25 found this helpful


Great mono amp for Price

The following review is for Power 900.1, which is a part of the bundle you are viewing.

This is one of the cheaper amps, but does rated or close to rated power. 60 amps of fuses for 450rms @2ohms. For people who complain about fuses popping and this amp not working, YOU ARE WIRING YOUR SUBWOOFER INCORRECTLY. Clearly not one ohm stable and some reviews I read people blame the amp. Know how to use your stuff. Great amp, gets any sub in the right enclosure loud.

By Ears on March 25, 2014

24 found this helpful


great value

The following review is for Power 900.1, which is a part of the bundle you are viewing.

This amp is a great amp to buy. And its for a low price deffenlly recommend!!!

By A-aron on June 17, 2014

22 found this helpful


Pioneer "Champion" maybe

The following review is for TS-W303R, which is a part of the bundle you are viewing.

Not great for under 1000W usage pretty simple looking but completely durable and can take unbelievable abuse

By Bryan on March 16, 2011

19 found this helpful


WOW!!

The following review is for TS-W303R, which is a part of the bundle you are viewing.

The drivers sound quality is very good. It blended very well with the main speakers. Bass is well defined and not one noted or boomy.. Even though It still needs some run in time to loosen up, I'm very impressed with it. Build quality is very good and looks to last a long time. The only con that I personally have is the fact that the woofers surround is made of foam. I would've preferred to see a rubber surround instead... Rubber lasts much longer and is much more durable. That's why it didn't get a 5 for features. But for a nice, low price, I really can't complain.. Used with the right amount of power and the right enclosure, this sub is a true sleeper..

By Tom on October 19, 2009

18 found this helpful


Works great!

The following review is for Power 900.1, which is a part of the bundle you are viewing.

I installed this amp over a month ago into an inclosed compartment in the back of a SUV. It has worked flawlessly without over-heating since. I really like the remote power control that comes with the unit too. It makes for easy volume control to the sub.

By Gregar on March 12, 2014

19 found this helpful


Good bang for your buck

The following review is for TS-W303R, which is a part of the bundle you are viewing.

Good subwoofer for the price they take alot of abuse and have a good kick to them.

By Jim on April 10, 2011

17 found this helpful


awesome amp

The following review is for Power 900.1, which is a part of the bundle you are viewing.

Great amp for the price. Love the bass control knob. I have it powering a 12" alpine type r. It is a liitle too big for concealment.

By dave on January 14, 2013

17 found this helpful


Wouldn't Recommend

The following review is for Power 900.1, which is a part of the bundle you are viewing.

This amp has had so many problems. When i first got it in October it worked great, it pushed my 12s hard. But after ten minutes of not even full power it heats up and goes into protect mode. And i have only heard it a few times since november because it doesnt work in the cold. This amp is terrible. Do not buy if you live anywhere where the temperature drops below 50 degress.

By Owen on March 10, 2012

19 found this helpful


Awesome Deal!

The following review is for 12DSPF, which is a part of the bundle you are viewing.

No need of a huge review here. Very sturdy, carpeting is great, leaves me with alot of space in my trunk. It holds 2 kicker CVR's that are 1600 watts max. Wont be dissapointed if you buy this! I've had it for 6 months and not a single problem!

By Jake on December 19, 2011

16 found this helpful




BAMF1-5000D, BAK02 small

Power Acoustik BAMF1-5000D + Belva 1/0 Gauge Amp Wiring Kit

5000W Max (2500W RMS) BAMF Series Class D 1-Ohm Stable Strappable Monoblock Amplifier

(79)

$267.48

List price $319.98

DTX350P-WHITE small

*** WAS $70 *** Beyerdynamic DTX 350 P - WHITE On-Ear Closed-Back Headphones

On-Ear Closed-Back Headphones

(6)

$39.99

List price $139.00

P400-2-RB_KFC-W2512 small

1200W Complete Rockford Fosgate + Kenwood Bass Package

Rockford Fosgate P400-2 Amplifier + Kenwood KFC-W3012 Sub + 8 Gauge Amp Kit + 12" Sealed Box

(125)

$248.00

List price $599.96

D2GN small

D2GN Lime Green iPad Protection Case/Cover for Current/New iPad Generation 4, Generation 3 and iPad 2

Wake/Sleep Smart Cover Function and Cutout for Apple Logo. Works with Current New iPad Generation 4, Generation 3 and iPad 2

$4.99

List price $19.99

RTX108 2 Pack small

(2) MTX Thunder (RTX108) 10” Mid-bass/Midrange Pro Audio Speakers

500W Max (250W RMS) Mid-Bass Driver Package

(3)

$219.90

List price $199.90

XR653-CS small

JL Audio XR653-CS ( XR653-CSi )

XR-Series 6-1/2" + 4", 3-way Component System

(3)

$339.99

List price $599.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Audi A3

2004 Oldsmobile Silhouette

2009 Cadillac STS

2002 Ford Explorer

2008 Nissan Versa

2018 Dodge Journey

2015 Kia K900

2001 Honda S2000

2007 Subaru Outback

2012 Smart Fortwo

Vehicle
Store
Delete

2004 Harley Davidson FXSTSI Springer Softail

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
