JL Audio 12W7AE-3 Subwoofers + RE Audio XTX5000.1 Amplifier

Pair of JL Audio 12" Special Edition W7 Series Subwoofers + RE Audio XTX Monoblock Amplifier

JL Audio
Shop all JL Audio
EXCLUSIVE
Product videos
highlight-star-icon

Pair of 12" Single 3 ohm W7 Series Subwoofers • 4000W MAX • 2000W RMS • XTX Series Monoblock Full Range Digital Car Amplifier; MOSFET Power Supply • Wired Remote Included

Learn more about the 2-12w7ae3_xtx50001

We apologize

This item has been discontinued


Loading...
99-7404 main

Metra 99-7404 Dash Kit

Install a new Single-DIN car stereo in select 2004-2006 Maxima (Silver)

1
-49.24%

$32.99

List price $64.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DSX-A415BT main

Sony DSX-A415BT (DSXA415BT)

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

6
-21.33%

$118.00

List price $149.99

Limited time!
CELEBRITY 100 main

JBL CELEBRITY 100 (JBLCELEBRITY100)

Single DIN Digital Audio Receiver with Bluetooth

2
-42.89%

$39.95

List price $69.95

DMH-341EX main

Pioneer DMH-341EX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Amazon Alexa

14
-31.43%

$240.00

List price $350.00

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

JVC KW-R950BTS

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

6
-10.58%

$169.00

List price $189.00

Product Highlights


Pair of 12" Single 3 ohm W7 Series Subwoofers • 4000W MAX • 2000W RMS • XTX Series Monoblock Full Range Digital Car Amplifier; MOSFET Power Supply • Wired Remote Included

Description


JL Audio brand icon

Authorized dealer

JL Audio and Re Audio: The Perfect Match

The best things in life are bass-filled, and that is exactly what you will be receiving with this bass bundle. By purchasing two JL Audio 12W7AE-3 12" subwoofers, Sonic Electronix will include an RE Audio XTX5000.1 monoblock amplifier. If you are planning on purchasing two subwoofers and a compatible amplifier, why not get the amplifier as well? This Sonic exclusive bundle is the perfect way to get that quality JL Audio sound.

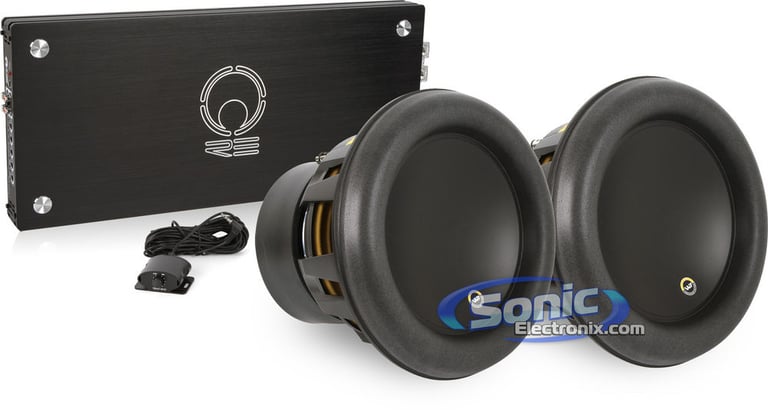

JL Audio and RE Audio Bass Bundle

This Sonic Electronix Exclusive Bass Bundle showcases a RE Audio XTX5000.1 amplifier along with a pair of 12" Special Edition W7 Series, JL Audio subwoofers. This excellent bass package pushes 2000 watts of clean, continuous RMS power. The JL Audio Subwoofers each have Single 3 Ohm Voice Coils; meant to be wired in parallel/parallel, to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

These JL Audio 12W7AE-3 12" Special Edition W7 series subwoofers require 2000 watts of RMS power. The included RE Audio XTX5000.1 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This bass bundle is a perfect solution for anyone looking to take their bass up a notch and with an amplifier it would make no sense to pass up.

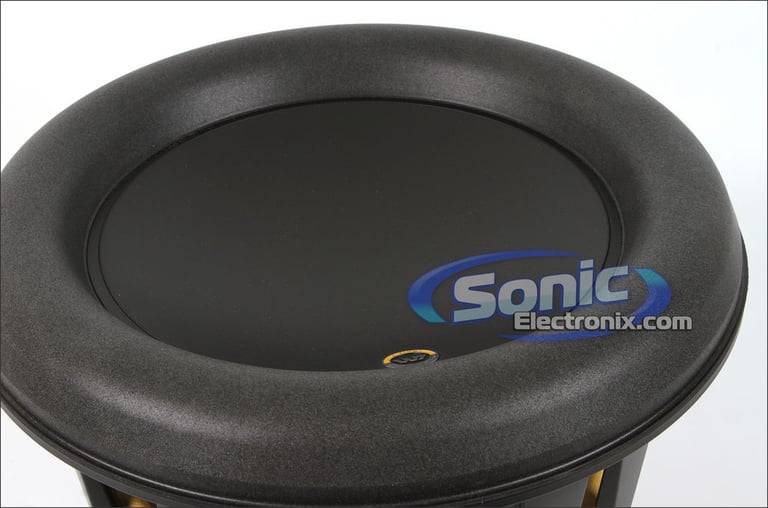

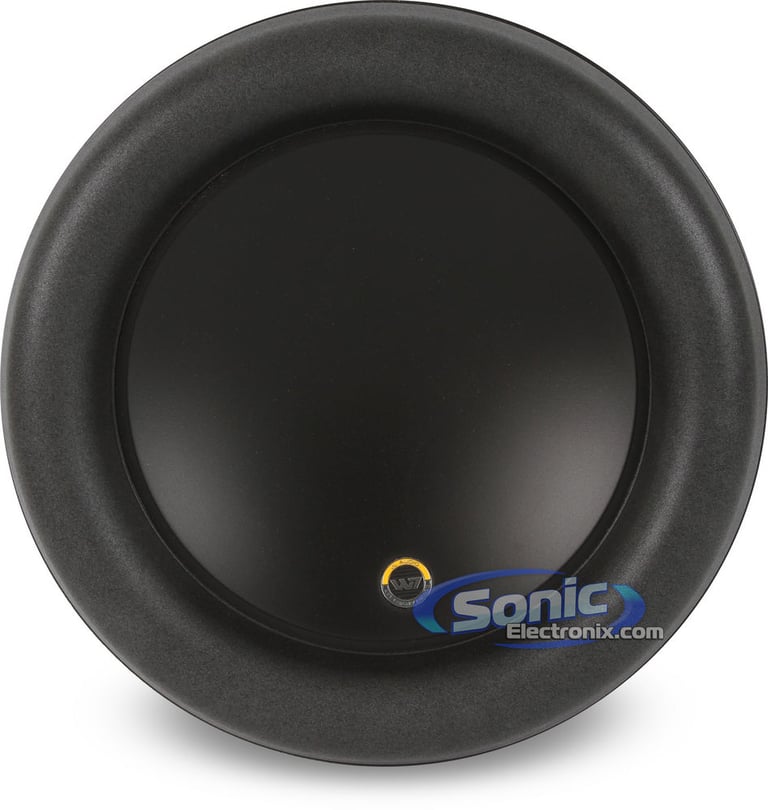

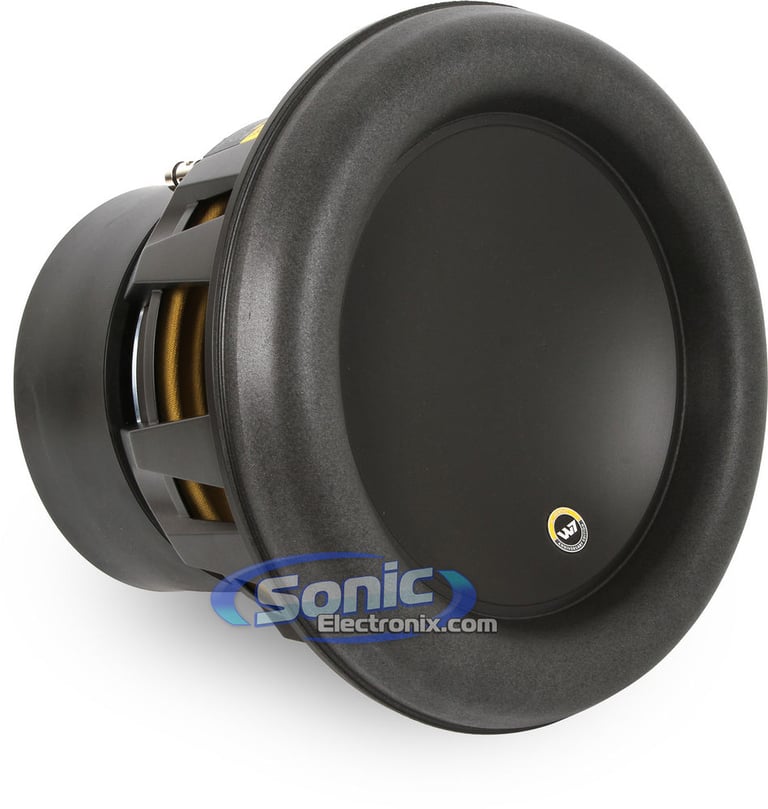

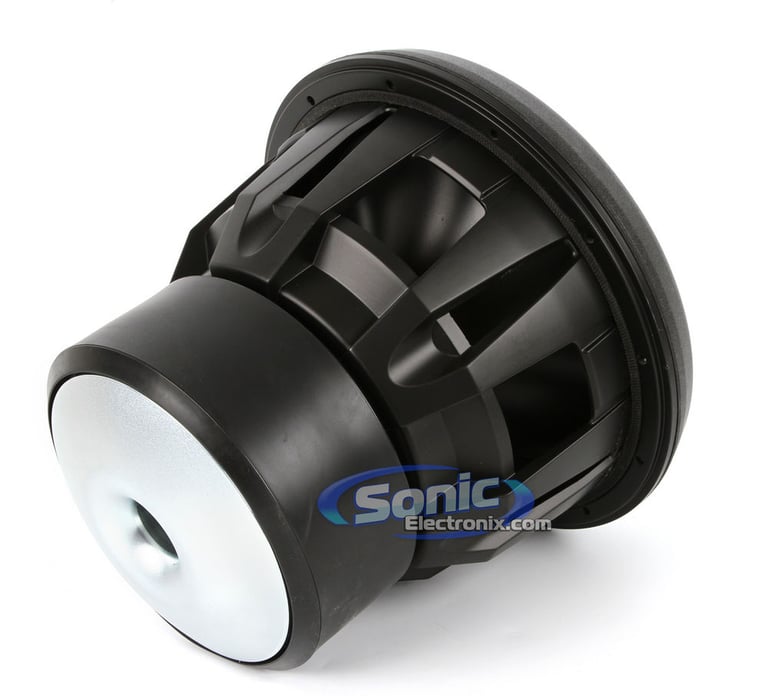

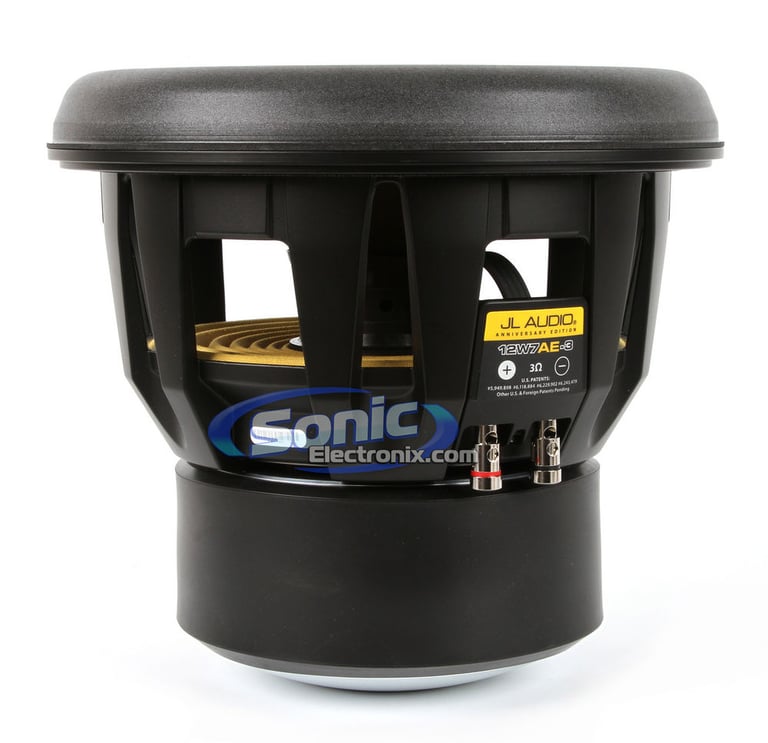

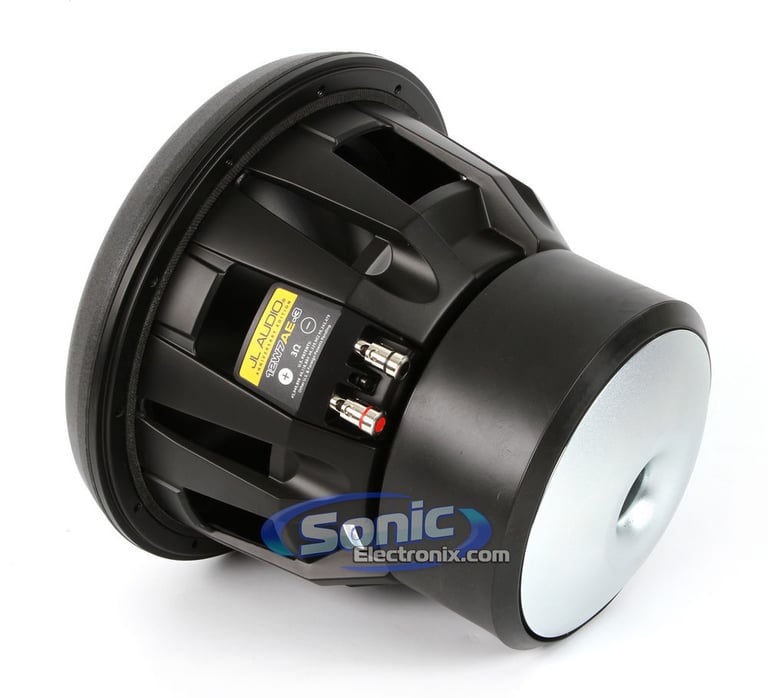

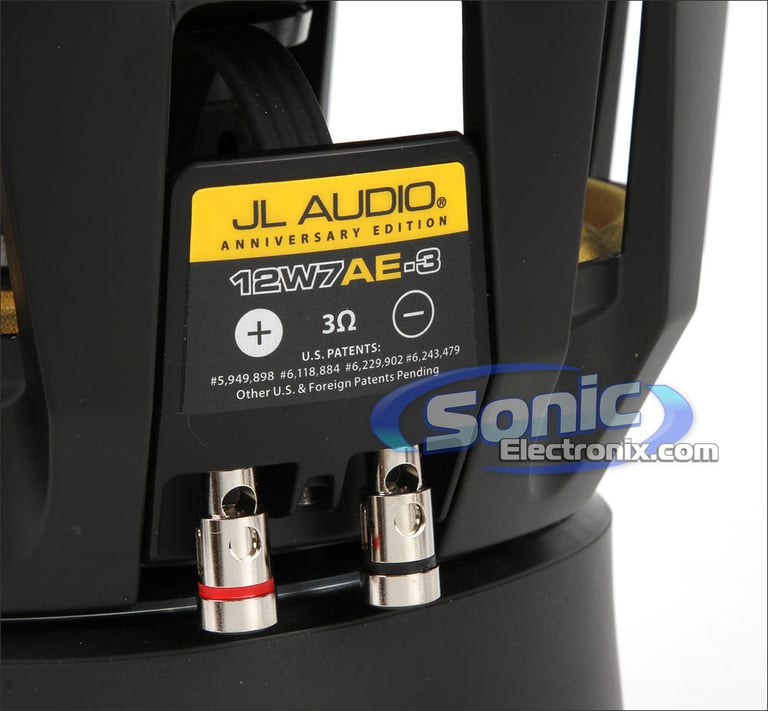

JL Audio 12W7AE-3

Anniversary Edition 12" W7 Single 3 ohm Subwoofer
Quantity: 2

  • Pair of 12" Single 3 ohm W7 Series Subwoofers
  • 10th Anniversary Edition
  • Power Handling:
    • Peak: 4000 watts total / 2000 watts each
    • RMS: 2000 watts total / 1000 watts each
    • Recommended Power Range: 400-1000 watts
  • Impedance: Single 3 ohm
  • OverRoll surround
  • W-Cone
  • Floating-cone attach method
  • Plateau-reinforced spider attachment
  • Radially cross-drilled pole piece
  • Massive forced-air-cooled aluminum alloy frame
  • Highly Linear, DMA-Optimized motor system
  • Huge diameter, progressive roll spider
  • Co-extruded double lead wires
  • Ultra-long voice coil
  • Black powder-coated baskets
  • Bright nickel finish clamp ring
  • Unique Anniversary Edition badging and labeling
  • 1-year SonicElectronix.com warranty

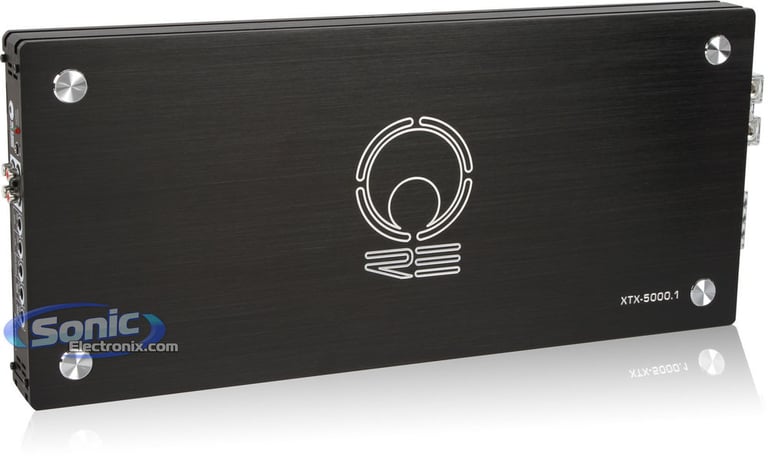

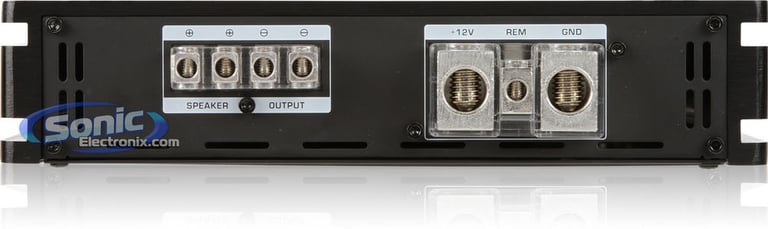

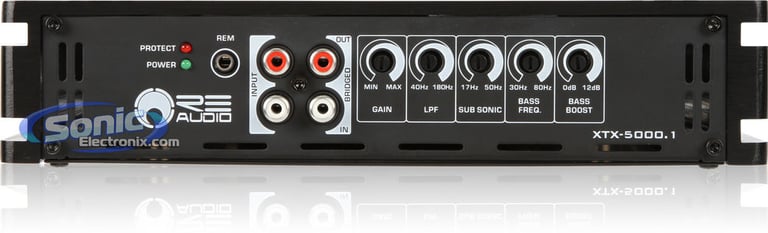

RE Audio XTX5000.1

XTX Series Monoblock Full Digital Class D Car Amplifier
Quantity: 1

  • XTX Series Monoblock Full Digital Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 1000 watts x 1 chan.
    • 2 ohm: 1700 watts x 1 chan.
    • 1 ohm: 2500 watts x 1 chan.
  • Dynamic power output: 5000 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators

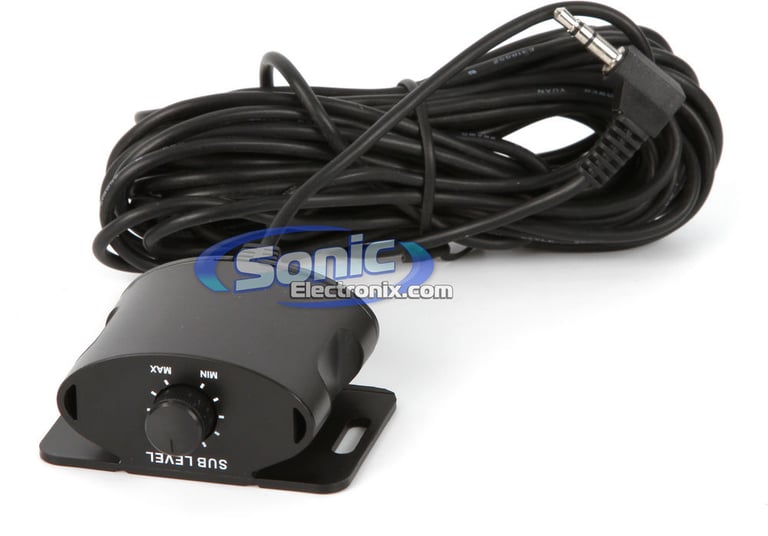

  • Wired remote included
  • Selectable bass boost with frequency control (0-12 dB at 30-80 Hz)
  • Single channel operation
  • 2-Way System Protection circuitry (thermal and short circuit)
  • Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated 8-18AWG screw terminals
  • Input sensitivity:
    • Low level: 100mV-6V
  • Variable low-pass filter (40-180 Hz, 24 dB/octave, Butterworth)
  • Subsonic filter (17-50 Hz, 24 dB/octave)
  • Signal to noise ration: 90dB
  • Phase Shift Control: 0 - 180°
  • Frequency response: 17-180 Hz
  • Dimensions: 9-1/4"L x 20-9/16"W x 1-15/16"H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
1000 watts x 1 channel
RMS Power @ 2 ohms
1700 watts x 1 channel
RMS Power @ 1 ohm
2500 watts x 1 channel
Peak Power Output
5000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5000 watts
Total RMS Power Output
2500 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
17 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
No
CEA-2031 Compliant
No
Subwoofer Specifications
Number of Subwoofers
2
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
3 ohm
RMS Power Handling
1000 watts
Total RMS Power Handling
2000 watts
Peak Power Handling
2000 watts
Total Peak Power Handling
4000 watts
Woofer Surround
OverRoll
Woofer Composition
Polypropylene
Minimum Sealed Box Volume
1.375 cubic feet
Maximum Sealed Box Volume
1.375 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Sensitivity
86.2 dB
Top-Mount Depth (Mounting Depth)
9-1/2"
Cutout Diameter
10-1/2"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

2-12W7AE-3_XTX5000.1

Weight:

126.95lbs

Internal SKU:

2-12w7ae3_xtx50001
