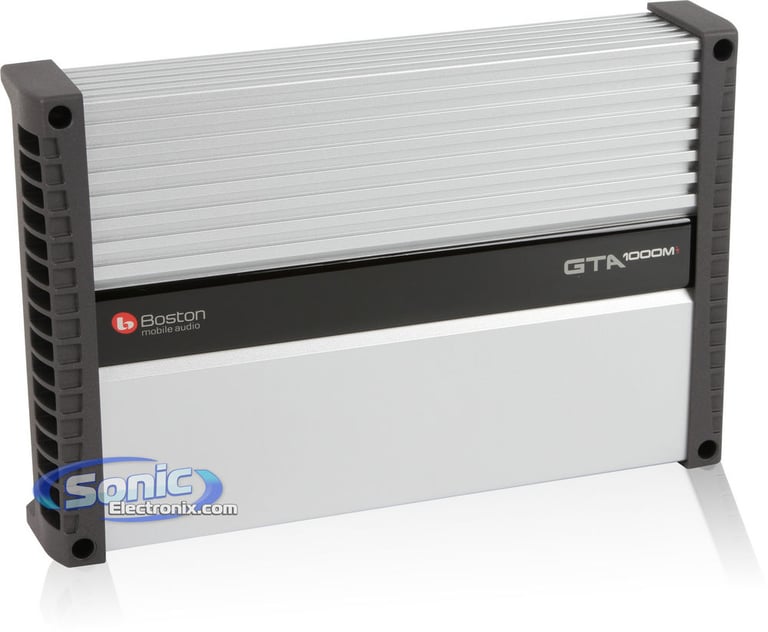

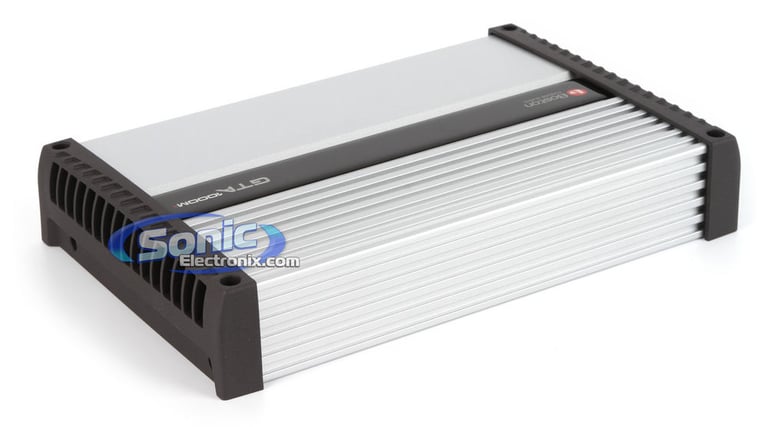

Boston Acoustics GTA-1000m

1000W Monoblock Class D GTA Series Amplifier

Product videos
highlight-star-icon

GTA Series Class D Monoblock Amplifier • 600W x 1 Chan. @ 4 Ohm • 1000W x 1 Chan. @ 2 Ohm • Symmetrical Signal Topology • Q-Tune Circuitry • Integral Mounting System • Wrap-Around Heatsink Design

Learn more about the gta1000m

We apologize

This item has been discontinued

Product Highlights


GTA Series Class D Monoblock Amplifier • 600W x 1 Chan. @ 4 Ohm • 1000W x 1 Chan. @ 2 Ohm • Symmetrical Signal Topology • Q-Tune Circuitry • Integral Mounting System • Wrap-Around Heatsink Design

Description


GTA Series High Performance Amplifier

Sonic Electronix is now carrying the new 2011 line of Boston Acoustics GTA Series Amplifiers. These amps come in Monoblock, 2-Channel, 4-Channel, and 5-Channel configurations as well as numerous different power ratings. Each one these GTA Series amplifiers feature a wrap-around heatsink design, SST (Symmetrical Signal Topology), IMS (Integral Mounting System), 3-way protection circuitry, fully adjustable Q-Tune circuitry, and much more.

The GTA-1000m is a Monoblock version of this series and has an RMS power rating of 600 watts x 1-channel wired at 4 ohms and 1000 watts x 1-channel wired at 2 ohms. It is equipped with gold-plated RCA level inputs & screw terminals and is powered by a MOSFET power supply. The option of low-level, or high-level inputs will allow the installation of these amplifiers into any system with ease. The fully adjustable low-pass/high-pass crossovers will allow for complete control of all frequencies allowing for personalized tuning of your audio system to better meet your musical needs and preferences. GTA amplifiers offer high performance with advanced features and technologies.

Product Features
  • Monoblock Class D GTA Series Amplifier
  • RMS Power Rating:
    • 4 ohms: 600 watts x 1 chan.
    • 2 ohms: 1000 watts x 1 chan.
  • MOSFET power supply
  • Optional Bass Remote available Boston Acoustics GTA-RSL(remote level control sold separately)
  • LED power and protect indicators
  • SST (Symmetrical Signal Topology) system uses balanced asymmetrical inputs for noise cancellation
  • Fully adjustable Q-Tune circuitry for simple bass output optimization
  • Recessed control panel for clean installation
  • IMS (Integral Mounting System) reduces the amplifier footprint

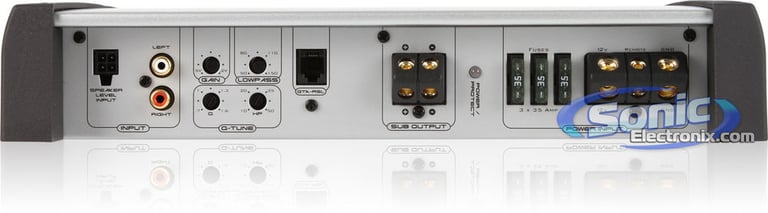

  • All input/output connections are located on one side of the amplifier to ease installation and wire management
  • Optimal angled speaker and power blocks for easy wire connections
  • Mono channel operation

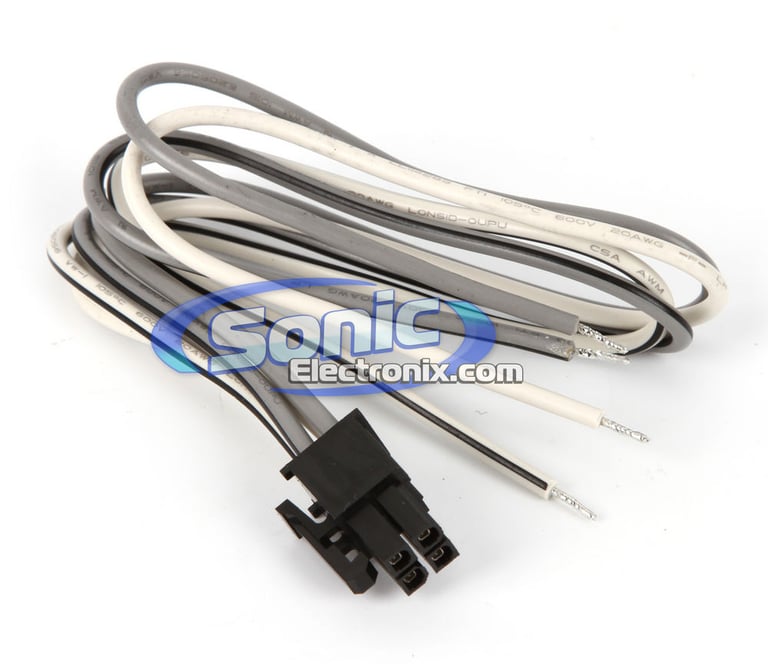

  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Fully adjustable and selectable lowpass/highpass crossovers
  • Wrap-around heatsink design for extreme heat dissipation
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable High-Pass Filter (50-150 Hz, 12 dB/octave)
  • Variable Low-Pass Filter (10-50 Hz, 12 dB/octave)
  • Subsonic Filter (10-50 Hz)
  • THD (Total Harmonic Distortion): 1%
  • Signal to Noise Ratio: 90 dB
  • Frequency Response: 10-150 Hz
  • Input Voltage: 14.4 volts

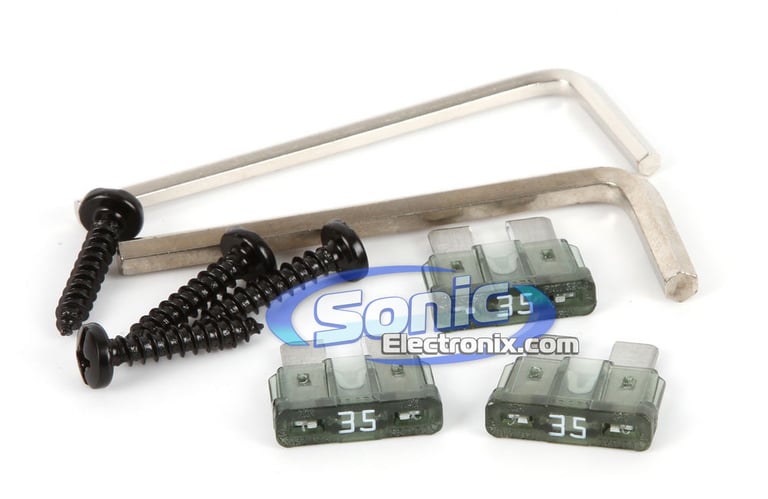

  • Fuse Rating: 35 amp x 3
  • CEA-2006 compliant amplifier
  • Dimensions: 8-3/8"D x 12-1/2"W x 2-3/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
Not specified by manufacturer
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 150 Hz
Low-Pass Crossover Frequency
10 - 50 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
Not specified by manufacturer
Bass Boost
Q-Tune Circuitry
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
35A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

GTA-1000m

Weight:

9.00lbs

Internal SKU:

gta1000m

Internal Product ID:

39768

Product and How-to Videos


Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
4
Features
3
Design
4
Usability
5

Customer Reviews

Sort by:

Loading...

No complaints

This thing is small but hits hard, and clean. No complaints so far. It's never overheated or cut out on me. I would buy it again. The remote gain dial is a must, I use it constantly.

By Rob on July 2, 2012

2

found this helpful.
