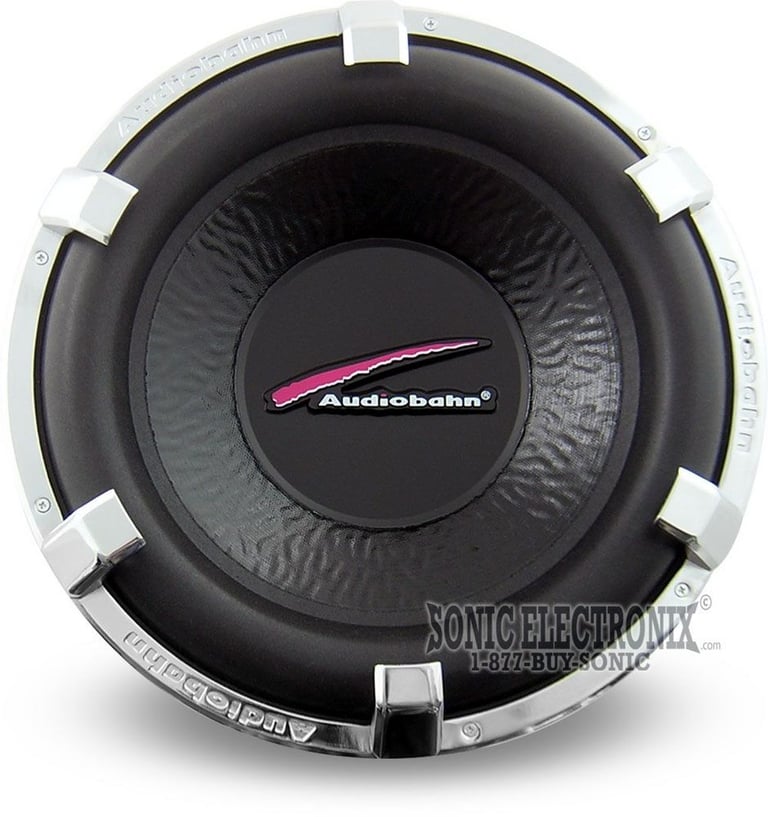

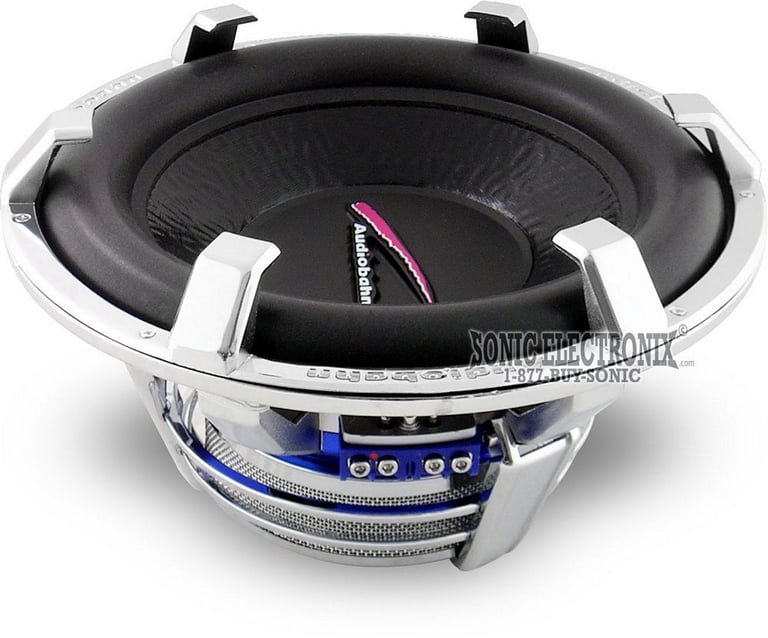

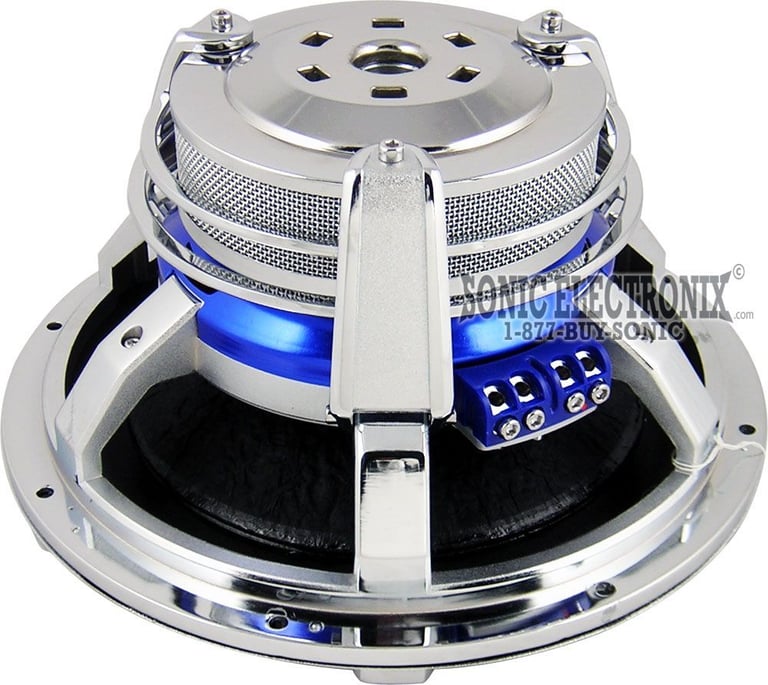

Audiobahn AW1000N

10" High-Excursion Subwoofer ( NEW Version of AW1000Q )

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

10" 600W RMS High Excursion Woofer • KM3 Coated for little to no cone distortion • Dual 4 Ohm • Chrome Finish • 120 oz. Magnet • PHAT 2" Foam Surround

Learn more about the aw1000n

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


10" 600W RMS High Excursion Woofer • KM3 Coated for little to no cone distortion • Dual 4 Ohm • Chrome Finish • 120 oz. Magnet • PHAT 2" Foam Surround

Description


  • New 2005 Design Chrome Finished Cast Basket
  • Aluminum Voice Coil Former
  • Extended Pole Piece
  • Vented Oversized Back Plate
  • Flat Spider
  • Convex Dust Cap
  • 120 oz. Magnet
  • RMS Power Handling: 600 watts
  • Peak Power Handling: 1200 watts approx.
  • Frequency Response: 23Hz - 500Hz
  • Sensitivity: 91.1dB
  • Impedance: Dual 4 ohm
  • Operation in 2 ohm or 8 ohm
  • Poly Coated Cone
  • PHAT 2" Treated Foam Surround
  • KM3 Coated for little to no cone distortion
  • 2" 4-layer ASV Voice Coil
  • Mounting Depth: 5"
  • Mounting Hole: 9-3/4""
  • Woofer Diameter: 10-7/8"
  • Multi-Connect Lug Lock Terminals
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AW1000N Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AW1000N Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AW1000N Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AW1000N Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp
