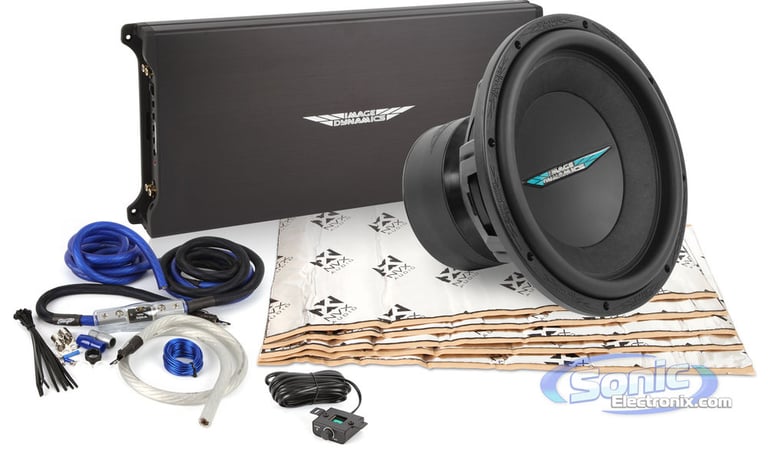

1000W Image Dynamics Subwoofer and Amplifier Bass Bundle

Product Features:

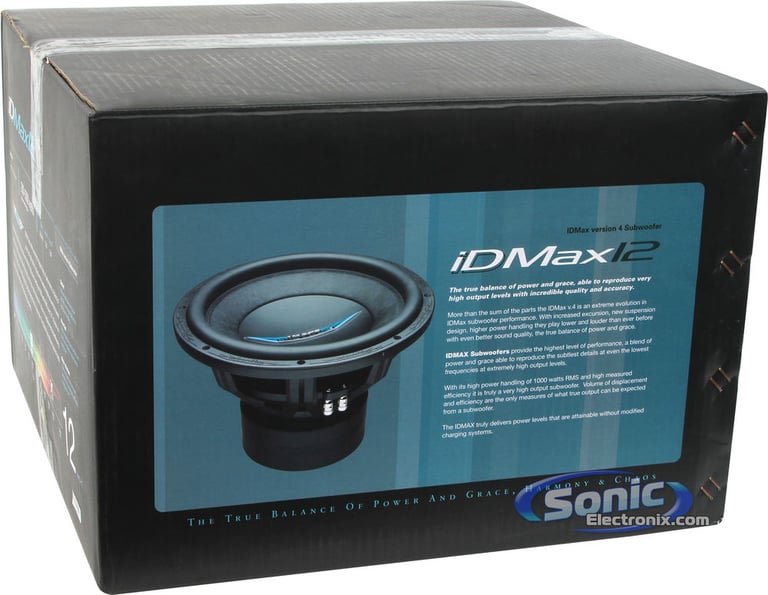

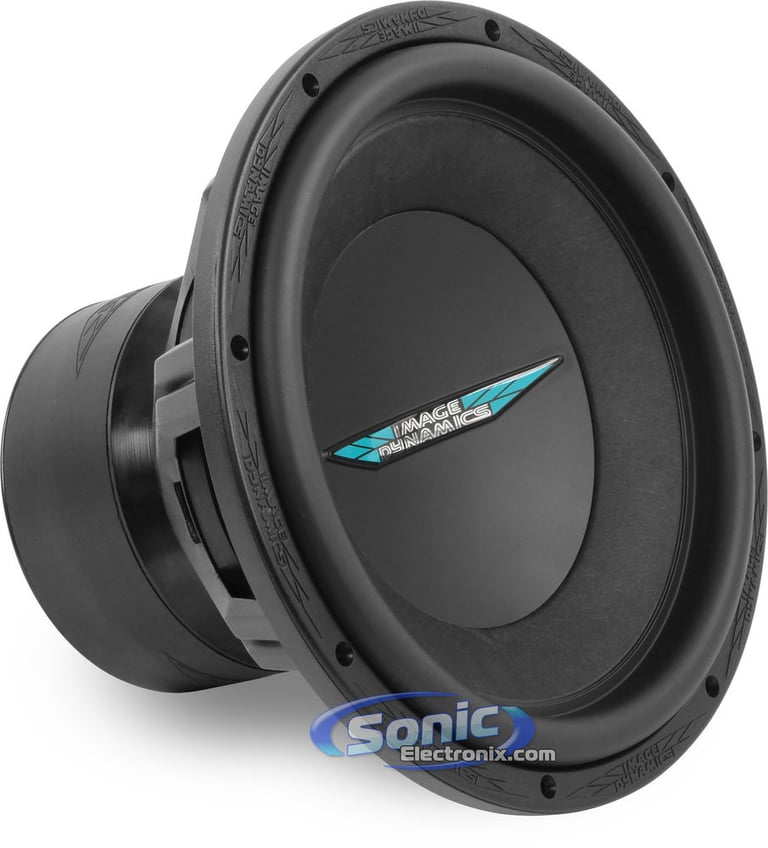

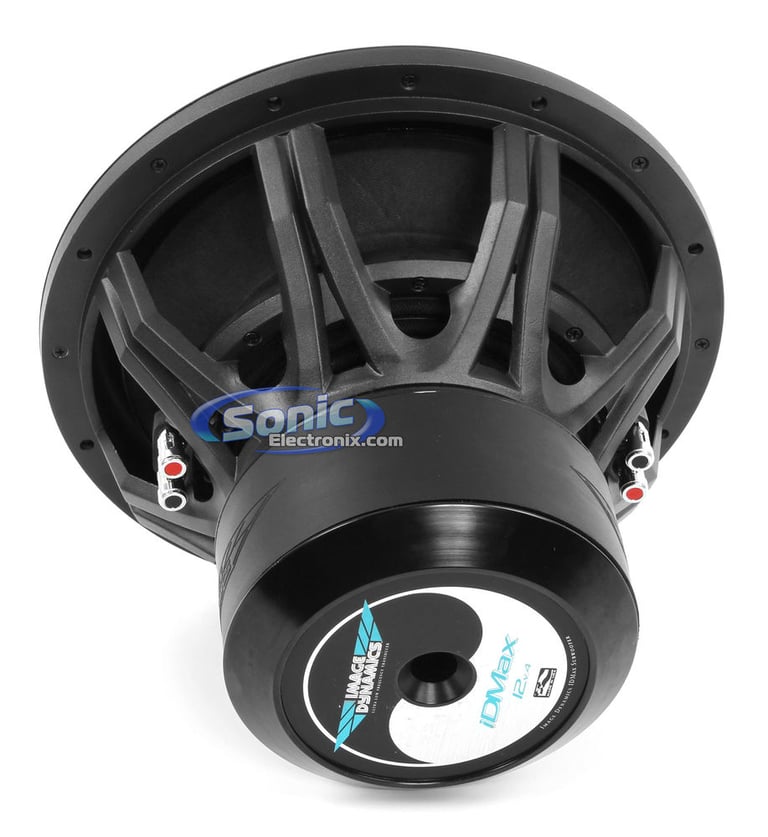

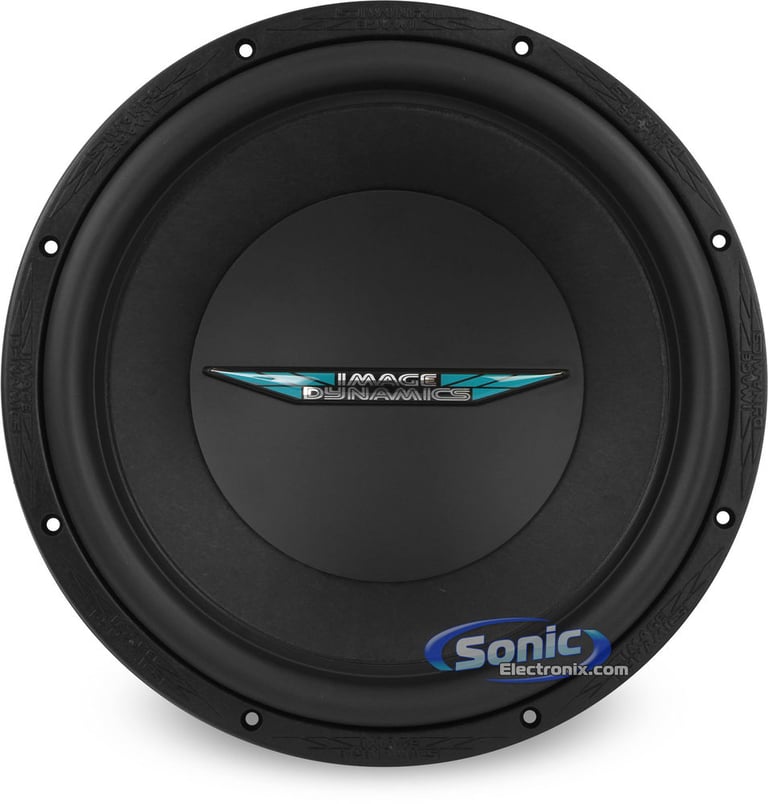

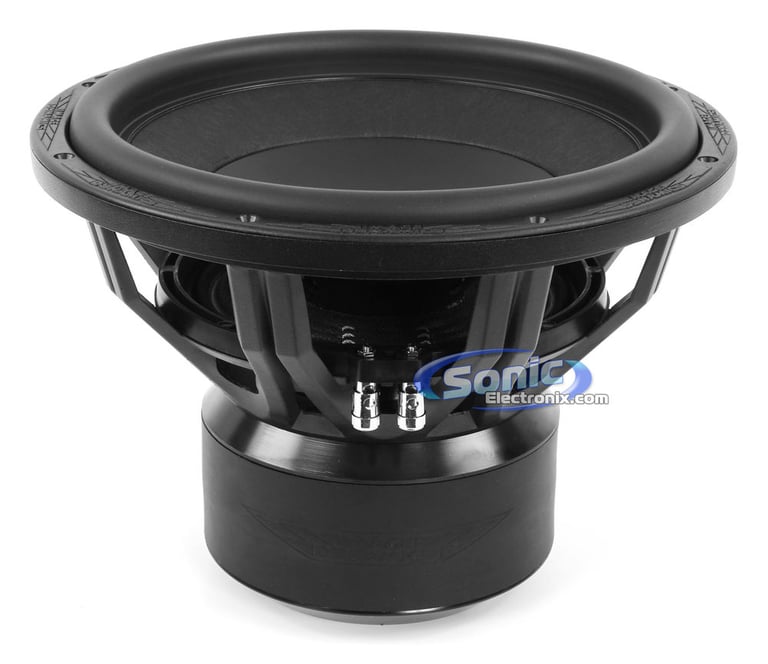

• 12" Dual 2 ohm ID MAX V.4 Series Subwoofer
• Power Handling:
• RMS: 1000 watts
• Recommended Power Range: 200-1000 watts
• Pressed paper composite cone woofer
• Parabolic EPDM rubber surround
• Over 2" long linear excursion
• RaDiaToR cooling system for heat dissipation
• Radiant Diametric Torsional Reinforcement
• High compliance suspension design
• Flat spider with NOMEX cloth woven tinsel leads
• High-temperature flat wire, flat wound voice coil
• Inverted dust cap with logo
• Powder coated alloy proprietary basket
• 3-1/2" peak-to-peak surround excursion
• Frequency response: 20-250 Hz
• Sensitivity: 93.1dB
• Mounting depth: 8-1/4"
• Cutout dimensions: 11"
• Authorized Internet Dealer
• 2 Year Manufacturer's Warrantyy
• Also found as: IDMAX12D2 V.4, IDMAX12 D2 V.4, IDMAX12 D2, IDMAX12D2, IDMAX12V.4 D2, IDMAXv4

General Features

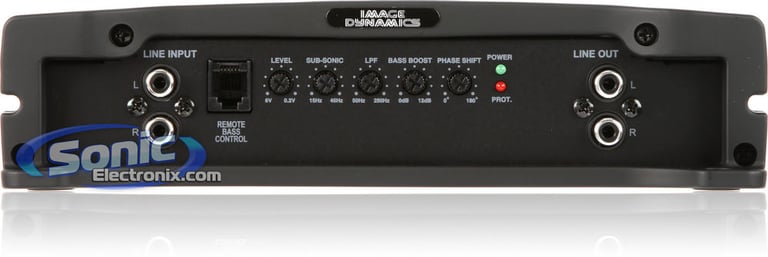

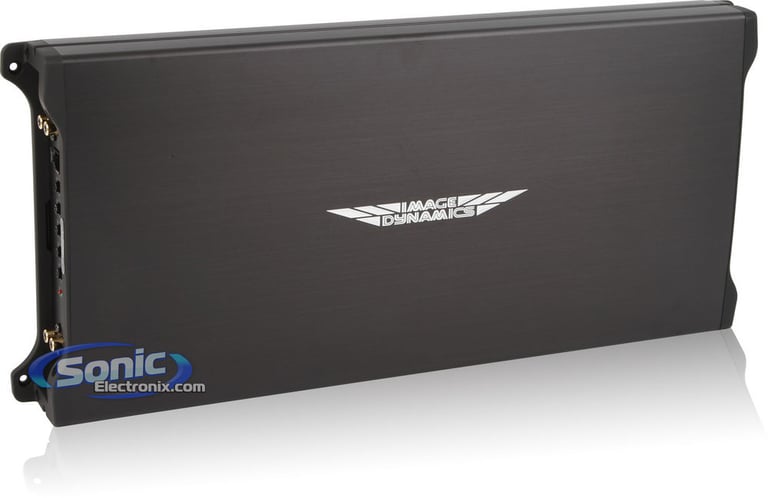

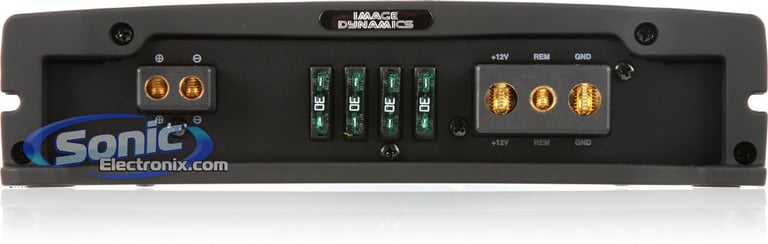

• Q Series Monoblock Car Amplifier
• RMS Power Rating (14.4V):
• 4 ohm: 400 watts x 1 chan.
• 2 ohm: 800 watts x 1 chan.
• 1 ohm: 1200 watts x 1 chan.
• Sonic Electronix Certified Power Rating*:
• 4 ohm: 381 watts x 1 chan.
• 2 ohm: 767 watts x 1 chan.
• 1 ohm: 1217watts x 1 chan.
• Optically isolated MOSFET power supply
• LED power indicator
• Variable bass boost(0 to +12 dB bass boost at 45 Hz)
• Soft Start Turn-on
• Mono channel operation

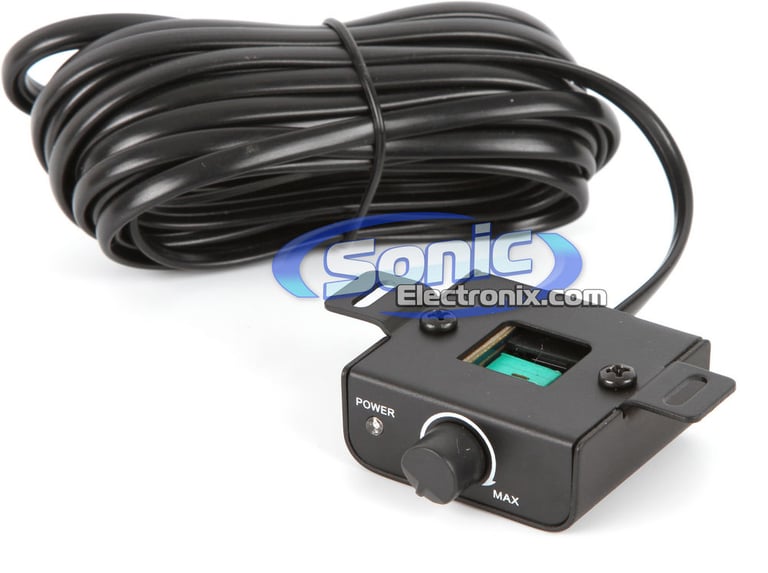

• Remote bass level included
• Bridgeable capability with RCA preamp outputs
• Bi-Polar High-current output devices
• Auxiliary full range output
• Two-layer PC Board with heavy 2 oz copper
• Massive ground planes and precision caps
• 5-Way System Protection circuitry
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Input sensitivity: 0.2V - 6V
• Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
• Variable subsonic filter: 15 - 45 Hz, 24 dB/octave
• In-line fuse requirement: 120 amps
• Frequency response: 10 - 20,000 Hz
• Signal-to-Noise ratio: 98 dB
• Dimensions: 20"L x 8-1/2"W x 2-1/4"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Product Features:

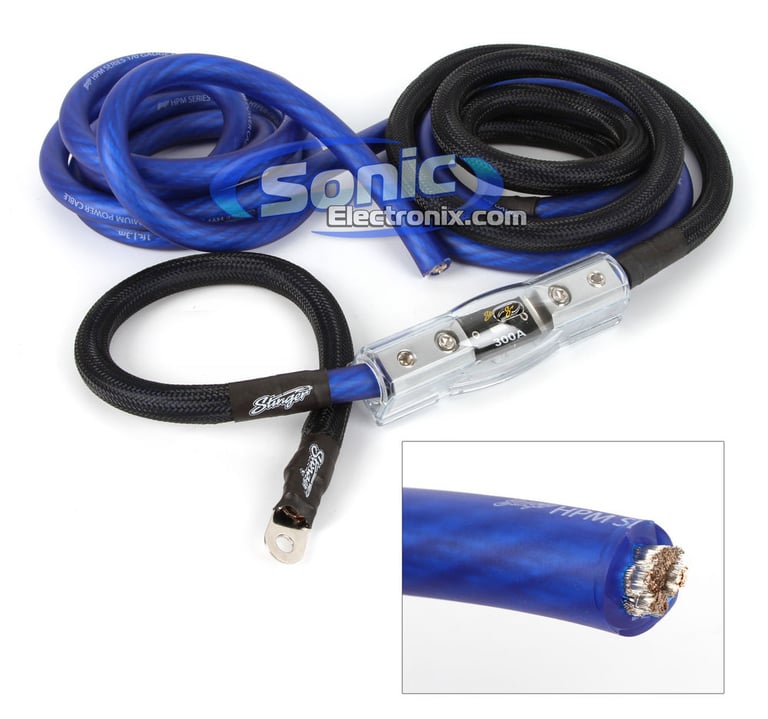

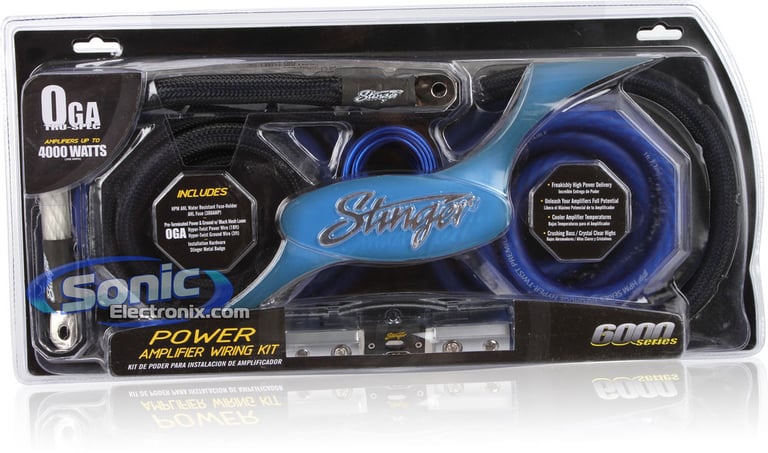

• 1/0 Gauge 6000 Series Power Amplifier Wiring Kit
• Designed specifically for car audio systems up to 4000 watts
• Premium power and ground wire provides optimal power transfer
• Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
• ANL style fuse holder for maximum power delivery and safety
• Pre-Installed black nylon mesh covering protects power & ground wire from damage
• TruSpec cables/wires meet or exceed the industry standard of copper required for the gauge size
• Matte finish HyperTwist wire construction provides excellent flexibility
• Pre-Terminated power connections provide reliable performance
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Package Includes:

1. 17 ft. of 1/0 Gauge matte blue hyper-twist power wire

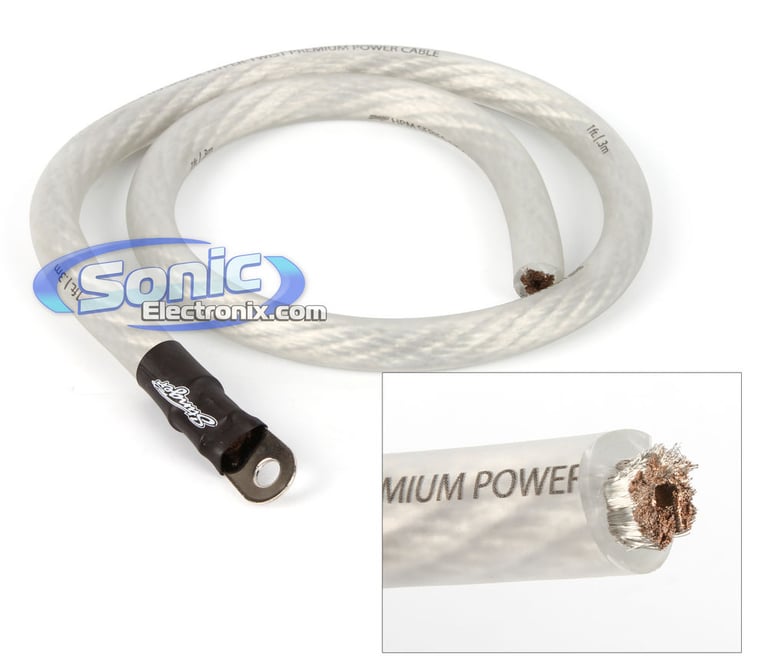

2. 3 ft. of 1/0 Gauge Matte silver hyper-twist ground wire

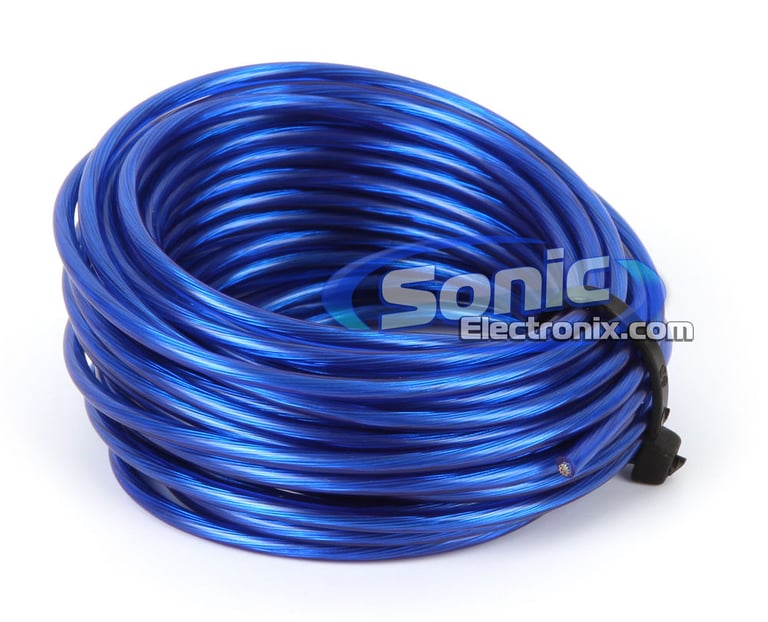

3. 17 ft. of 18 Gauge Blue turn-on wire

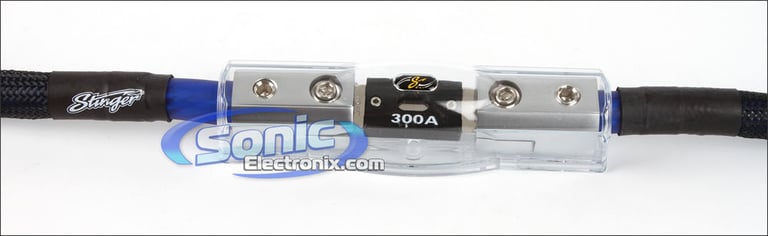

4. ANL Style fuse holder
5. 300 Amp ANL style fuse
6. Pre-Terminated ends
7. Mesh wire loom
8. Stinger metal badge

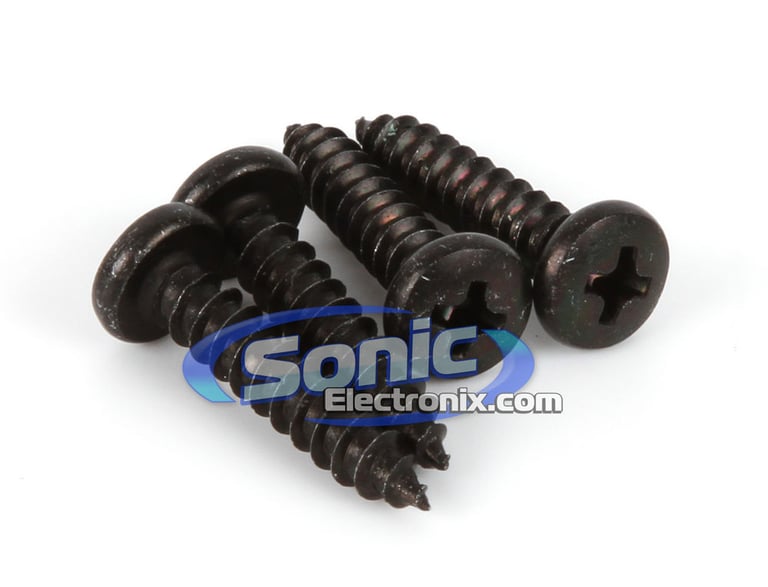

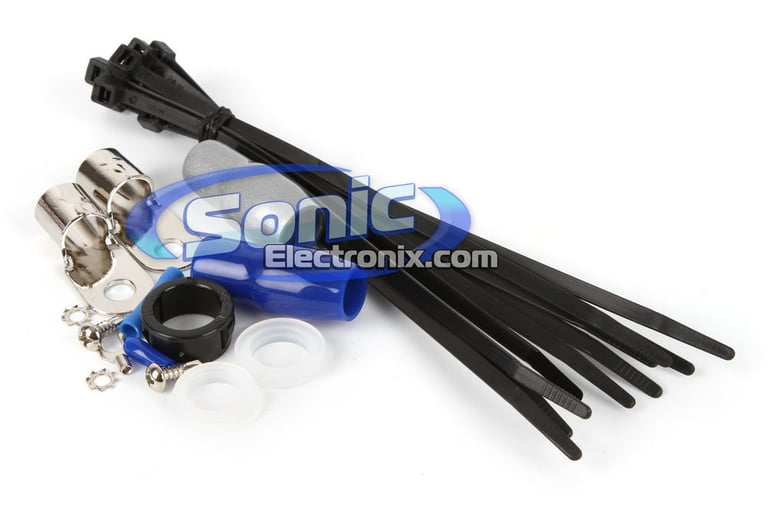

9. Includes installation accessories

Product Features

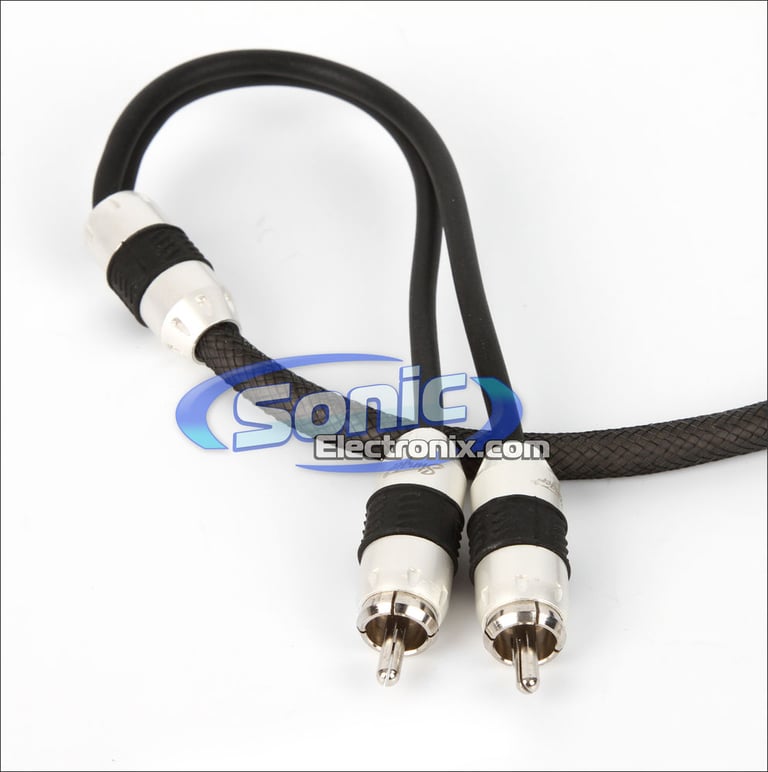

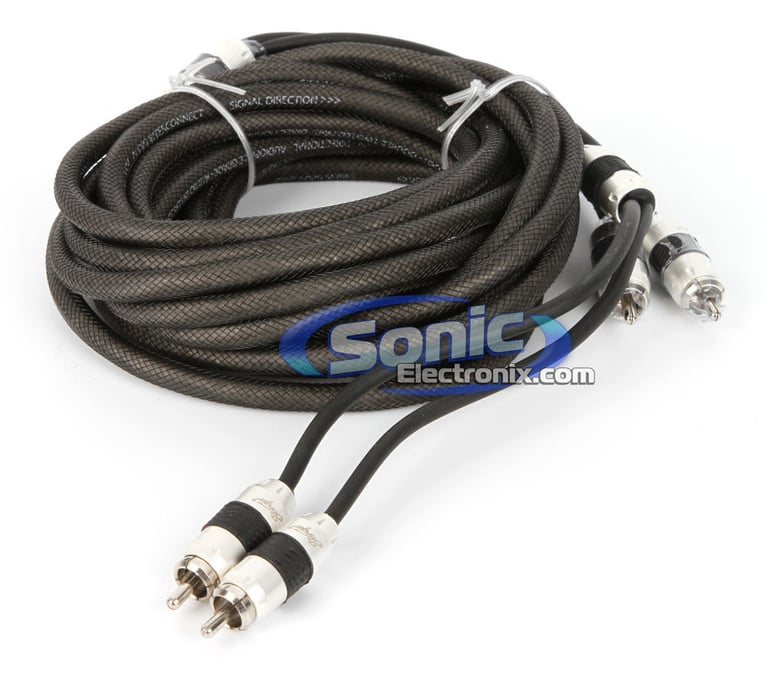

• 2-Channel 8000 Series RCA Interconnect Cable
• Silver-Plated copper conductors provide tight bass response and crystal clear highs
• Continuous Connection Construction (C3 Tech) provides unmatched signal transfer
• Locking split-tip connectors allow better signal transfer
• No solder joints for constant connection & true channel separation
• Precision machined metal ends with channel identification
• Stinger audiophile grade design improves sound quality, noise rejection, and offers easy installation
• Twisted pair winding patterns improve clarity and ensure consistent timing
• Pewter finished ends for high-end installs
• Black mesh protective jacket looks great and minimizes friction for easy install
• Directional high rate double twisted-pair construction provides protection against interference
• Molded strain reliefs for excellent durability
• Triple braided shielding construction for increased noise rejection
• Mono cable design with undersized stopper
• 3 Conductors per channel
• Improved frequency response
• RCA interconnect cable for audio use
• Cable Length: 17 ft.
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

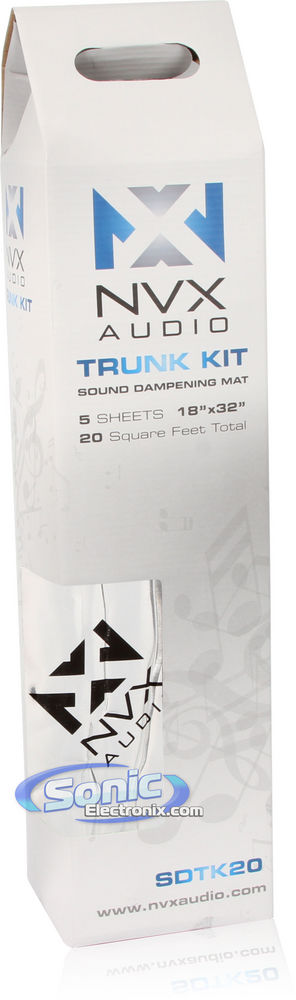

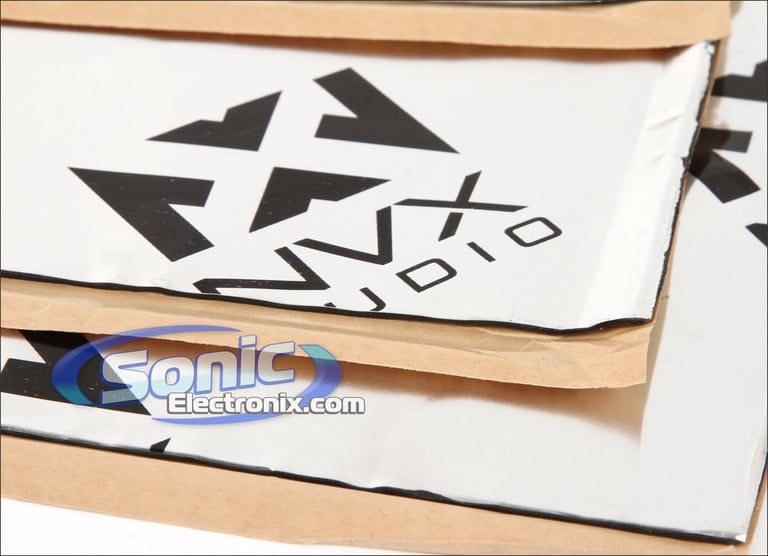

Product Details:

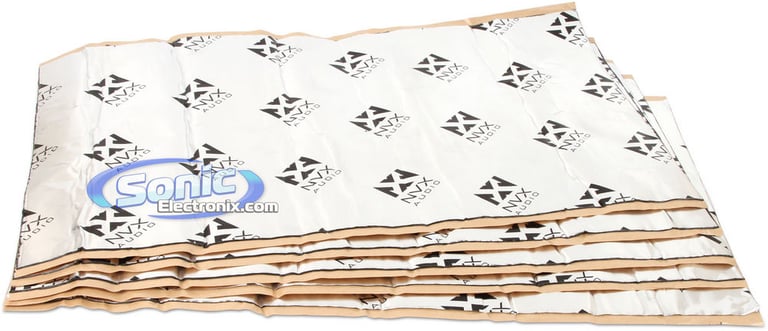

• 20 square feet sound deadening kit
• Core is based with 100% pure butyl rubber to withstand extreme heat
• No asphalt, tar, or cheap fillers - will not outgas, melt or fall off
• Waterproof barrier protects against moisture damage and mechanical oils
• Up to 30% thicker than cheap 50–80 mil alternatives
• Flexible aluminum backing contours tightly to complex door panels and vehicle curves with ease
• Structural damping kills unwanted sheet metal resonance caused by heavy mid bass
• Seals cavity to drastically increase speaker bass response and clarity
• Lowers cabin ambient noise so you hear your music instead of the highway
• Reflects radiant heat to help keep your vehicle interior cooler
• Simple three step peel and stick installation process makes upgrading your sound quick
• Combine this kit with NVX SDRLR1 Rubber Roller for easy installation
• Pack includes five 18" x 32" sheets
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Specifications:

• Install Location: Trunk
• Material Thickness: 0.091 (2.3 mm)
• Amount of Material: 20 square feet
• Material Use: Vibration Dampener
• Optimal Performance Temperature: 14°F to 140°F
• Rated Temperature Range: -75°F to 450°F
• Application Temperature: 60°F to 90°F
• Dimensions (each piece): 18"L x 32"W
