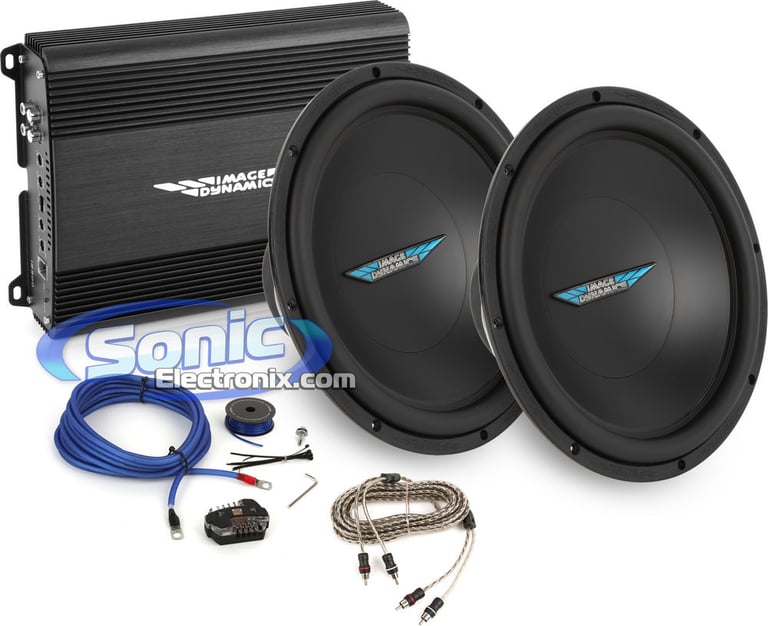

Image Dynamics Subwoofers and Amplifier Bass Bundle

Two 12" Image Dynamics CTX Series Subwoofers + Image Dynamics i Series 2-Channel Amplifier + Amp Kit

EXCLUSIVE
highlight-star-icon

Two 12" Single 8 ohm CTX Series Subwoofers • 700W Max • 250W RMS • Image Dynamics 2-Channel Class A/B Car Amplifier • MOSFET Power Supply • JL Audio RCA Interconnect Cable • JL Audio 8 Gauge Amplifier Kit

Learn more about the 2-ctx128_i2300

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Description


Image Dynamics brand icon

Authorized dealer

Image Dynamics and JL Audio Bundle

This Sonic Electronix Exclusive Bass package showcases an Image Dynamics i2300 Amplifier along with two 12" CTX series Image Dynamics subwoofers. This excellent bass package pushes 350 watts of clean, continuous RMS power. The Image Dynamics subwoofers have Single 8 ohm voice coils; meant to be wired in parallel/parallel, to a final impedance of 4 Ohms at the bridged impedance. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

These Image Dynamics CTX128 CTX series subwoofers require 175 watts of RMS power each. The included Image Dynamics i2300 amplifier will compliment this required power by supplying a near perfect match-up of certified RMS continuous power. This package also includes a 8 gauge JL amplifier kit which is perfect to supply power to the amplifier. With the Image Dynamics subwoofers, Image Dynamics amplifier, and JL Audio amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

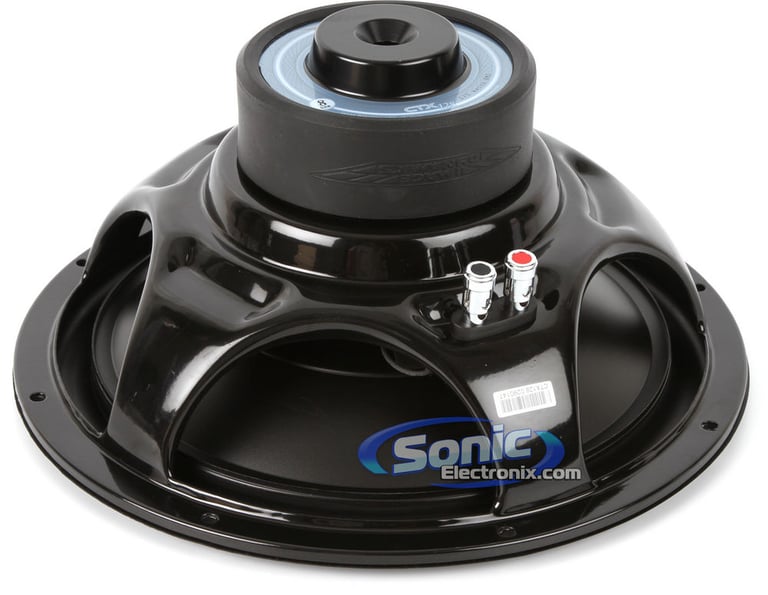

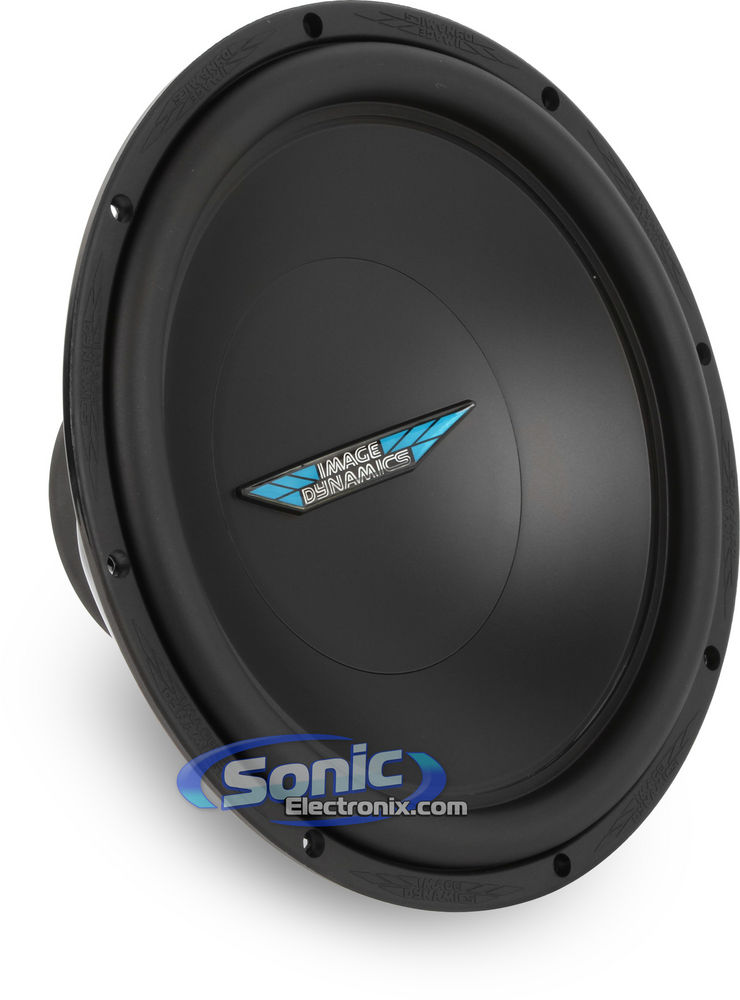

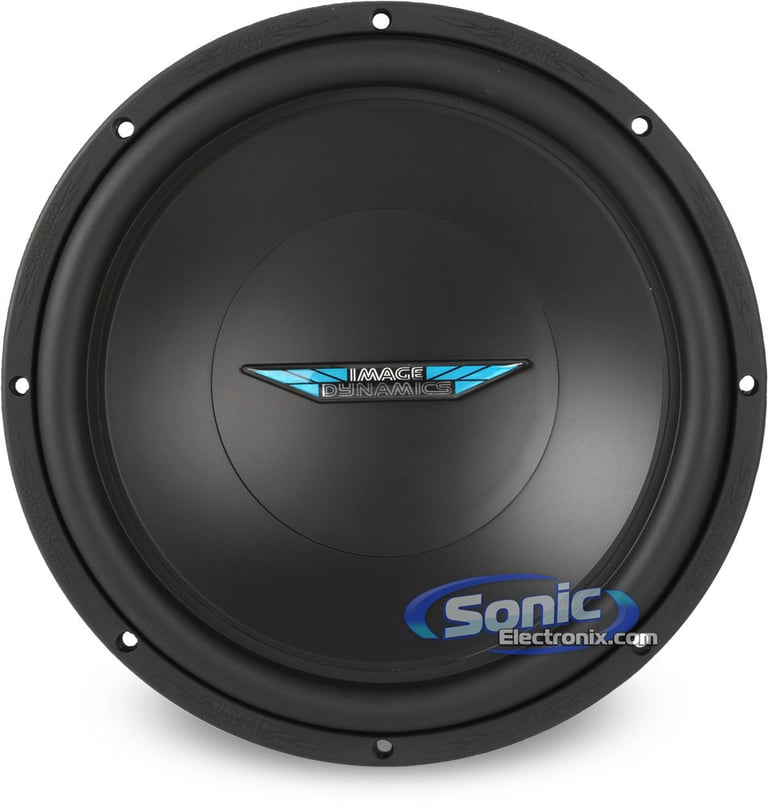

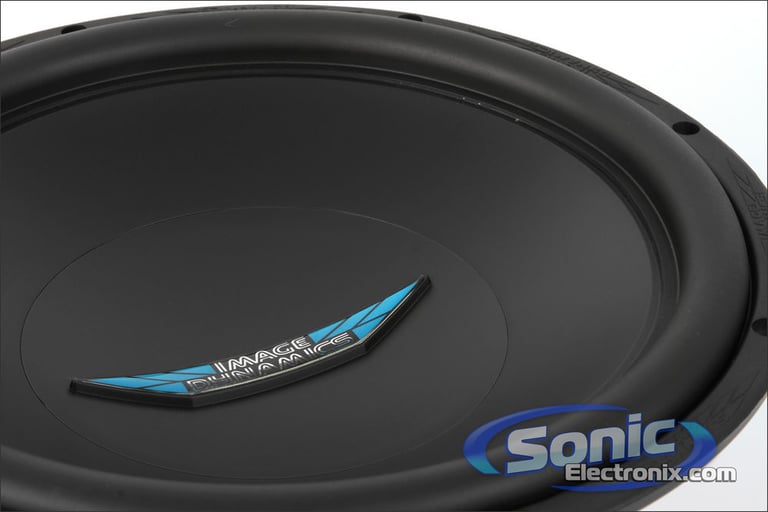

Image Dynamics CTX128 Features:
  • 12" Single 8 ohm CTX Series Subwoofer
  • Power Handling:
    • Peak: 700 watts total / 350 watts each
    • RMS: 350 watts total / 175 watts each
    • Recommended Power Range: 50-350 watts
  • Poly-mica cone woofer
  • Butyl rubber surround
  • Spring loaded push terminals for easy installation
  • Conex spider with integrated tinsel leads
  • Black anodized aluminum voice coil former
  • Frequency response: 16-180 Hz
  • Sensitivity: 86 dB
  • Mounting Depth: 5-3/4"
  • Cutout Dimensions: 11"
  • 1-year Manufacturer's Warranty

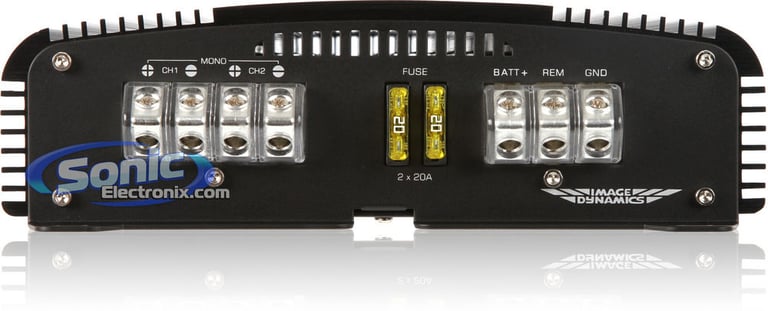

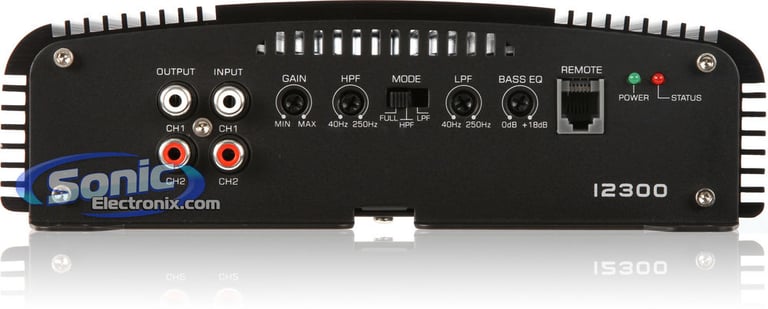

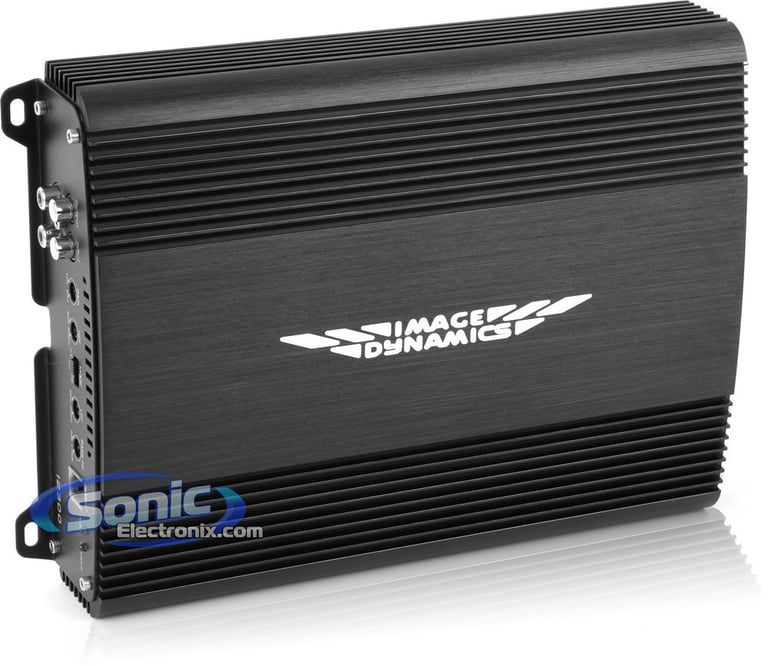

Image Dynamics i2300 Features:
  • 2-Channel Class AB i Series Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 2 chan.
    • 2 ohm: 125 watts x 2 chan.
    • Bridged, 4 ohm: 250 watts x 1 chan.
  • CEA Power Rating @ 14.4V:
    • 2 ohm: 150 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED status indicator
  • Fully adjustable bass EQ (0-18 dB @ 40 Hz)
  • Soft delay remote turn on/off circuit to eliminate pops and clicks
  • 2/1 Channel operation
  • Low level line inputs and outputs
  • 3-Way System Protection circuitry (thermal, DC, and speaker short protection)
  • Remote bass level sold separately
  • Heavy duty aluminum finned heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity: 0.5V-4.0V
  • Variable High-Pass Filter (40-250 Hz)
  • Variable Low-Pass Filter (40-250 Hz)
  • Crossover Slope: 12 dB
  • Damping Factor: >150
  • THD (Total Harmonic Distortion): 0.5%
  • Frequency Response: 20-22,000 Hz
  • Signal-to-Noise Ratio: >94 dB
  • Fuse Rating: 2 x 25 amp
  • Dimensions: 13-3/4"L x 8"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

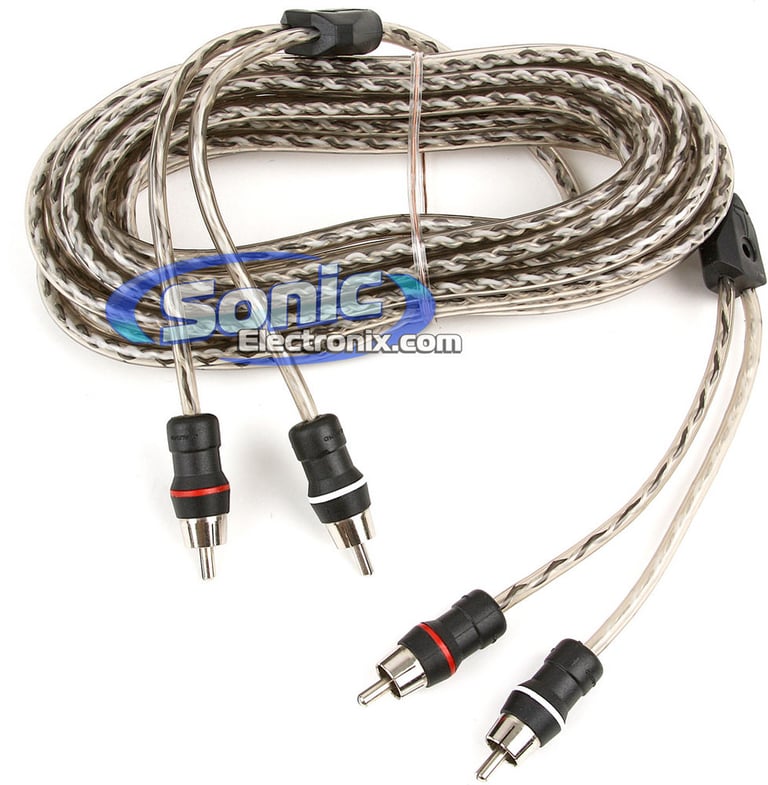

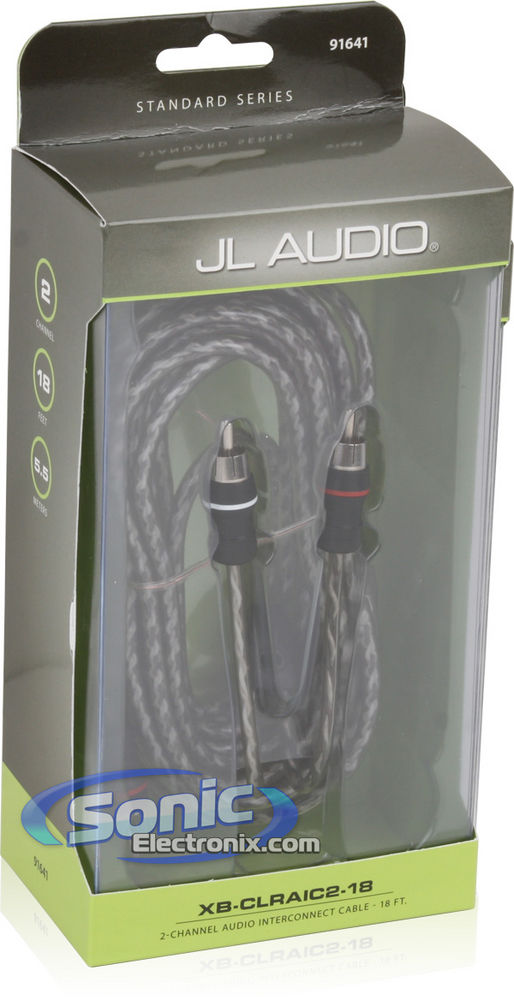

  • JL Audio XB-CLRAIC2-18 RCA Features:
    • 18 ft. of 2-channel audio interconnect RCA Cable with molded connectors
    • Oxygen-free copper conductors for maximum noise rejection
    • Overmolded strain relief system protects the silver connections and allows for extreme cable exit flexibility
    • Screw-down points engineered into the channel splitters keep installation clean
    • 1-year SonicElectronix.com warranty

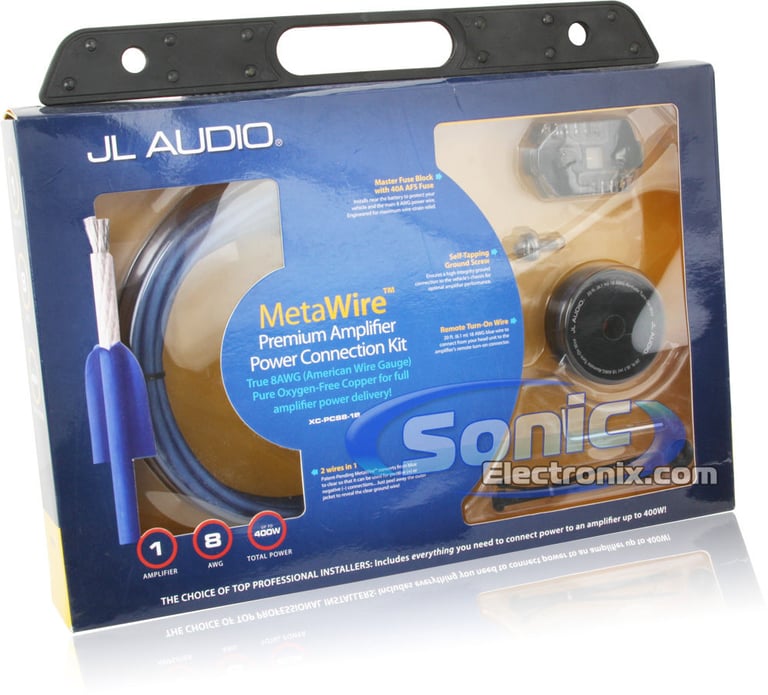

    JL Audio XC-PCS8-1B Amp Kit Features:
    • 8 Gauge Amplifier Installation Kit
    • Power Connection System for a single amplifier
    • Designed for systems up to 300W
    • Includes everything you need to make secure, high-integrity power connections to a dual amplifier system
    • Kit includes MetaWire, a revolutionary removable outer jacket from JL Audio so you can use one wire and convert it from Positive to Ground wire as needed. Simply peel away the outer jacket to reveal the clear ground wire!
    • Cable and wires are top quality and constructed to true American Wire Gauge specifications
    • Made from pure OFC copper and is tinned for corrosion resistance
    • Fine-strand construction and soft jacket provide excellent flexibility
    • Cable will not delaminate in heat or cold
    • 1-year SonicElectronix.com warranty
    JL Audio XC-PCS8-1B Package Includes:

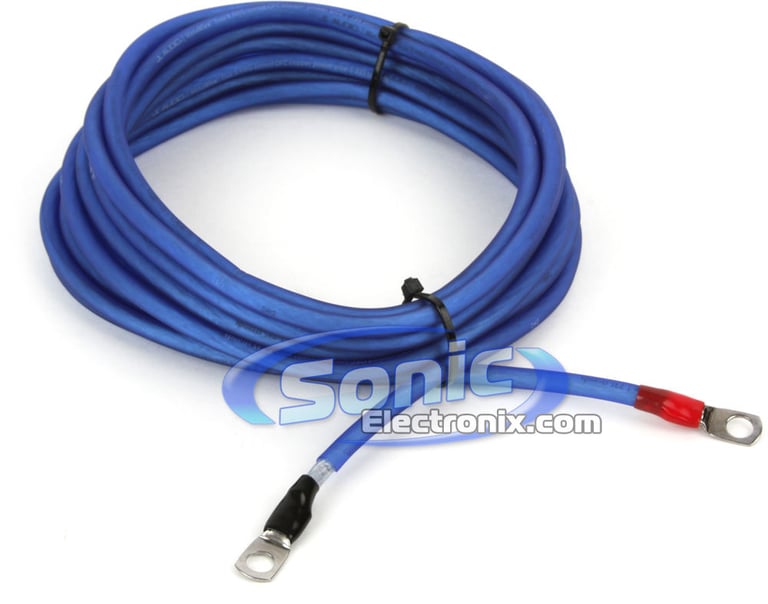

    1. 22 ft. (6.7 meters) of Blue/clear, convertible 8 AWG MetaWire (with one power ring and one ground ring)

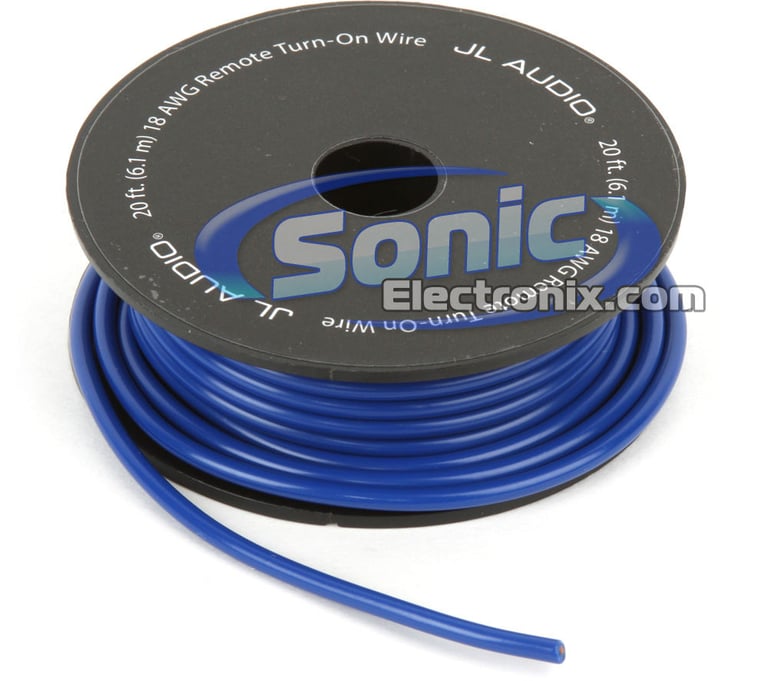

    2. 20 ft. (6.1 meters) of Blue 18 AWG remote turn-on wire

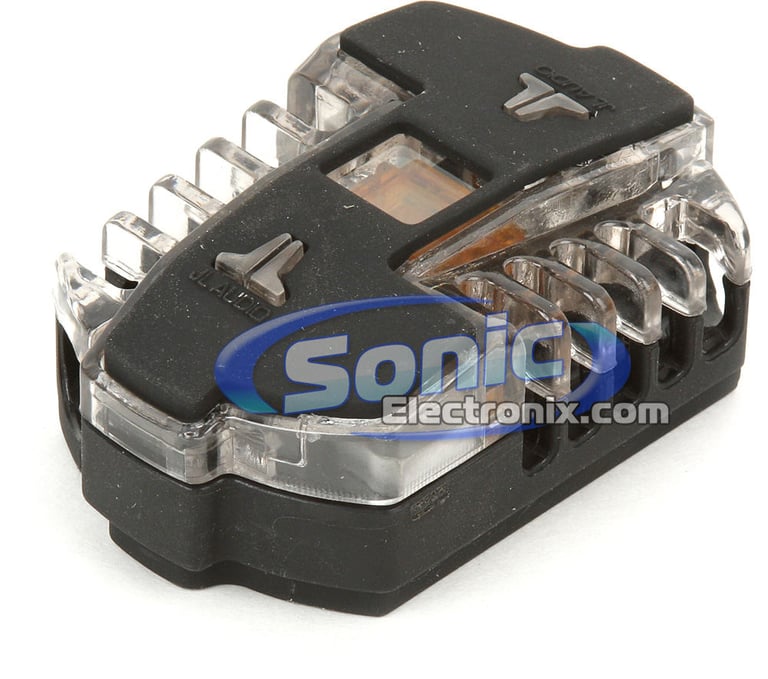

    3. AFS Master fuse block (XB-MFB8-AF)
    4. 40A AFS fuse

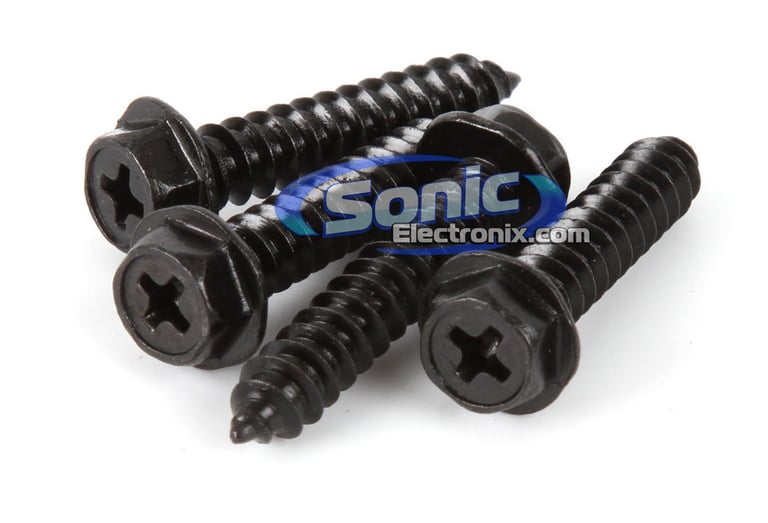

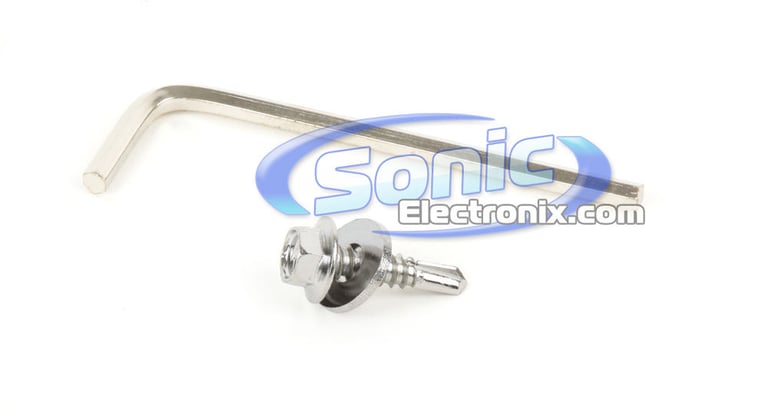

    5. Self-tapping ground screw
    6. Firewall grommet for 8 AWG wire
    7. 6 Black nylon dable ties (4 inches in length)
    8. 3 mm Hex Wrench

    Best selling similar products

    NPKG212 small

    NVX NPKG212 Dual 12" Bass Package

    • 12" Loaded Dual Subwoofer Enclosure with Amplifier
    • 500 watts RMS
    • Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs
    • Wired Remote Bass Level Control

    (11)

    $374.99

    List price $419.99

    MB210SP small

    MTX Audio Magnum MB210SP

    • 10" Amplified Loaded Subwoofer System
    • 400 watts RMS
    • Built-In Class D amplifier
    • Variable bass boost
    • Speaker-level inputs

    (65)

    $269.95

    List price $299.95

    F-150EX-09A small

    MTX F-150EX-09A

    • 10" Amplified Loaded Subwoofer System
    • 250 watts RMS
    • Built-In Class D amplifier
    • Speaker-level inputs
    • External bass control

    $719.95

    List price $637.95

    JBLBassPro 12 small

    JBL BassPro 12

    • 12" Amplified Loaded Subwoofer System
    • 150 watts RMS
    • Built-In Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs

    (1)

    $364.95

    List price $419.95

    MBQBRO-302 small

    MB Quart MBQBRO-302

    • 12" Amplified Loaded Subwoofer System
    • 400 watts peak
    • Built-In class D amplifier
    • Variable bass boost
    • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

    $679.99

    List price $899.99

    RTP8A small

    MTX Audio RTP8A

    • 8" Amplified Loaded Subwoofer System
    • 120 watts RMS (360 watts Peak)
    • Built-In amplifier
    • Variable bass boost
    • Speaker-Level Inputs
    • EBC wired remote bass level control

    (8)

    $199.95

    List price $219.95

    TNP212D2 small

    MTX Audio TNP212D2

    • 12" Amplified Loaded Subwoofer System
    • 400 watts RMS
    MTX TN250/1 amplifier included
    • Selectable bass boost
    • Speaker-level (high-level) inputs (adapter included)
    • Wired remote bass level control

    (196)

    $369.95

    List price $399.95

    P300-10 small

    Rockford Fosgate Punch P3 P300-10

    • 10" Subwoofer 300 Watts RMS
    • Rockford Fosgate Sealed Enclosure
    • 300 Watt Class-D Mono Block
    • Bass Remote Included
    • Low And High level Inputs

    (58)

    $339.99

    List price $339.99

    QB12SPA small

    NVX QB12SPA

    • 12" Amplified Loaded Subwoofer System
    • 350 watts RMS
    • Built-In Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs
    • Wired Remote Bass Level Control

    $199.99

    List price $299.98

    Specifications & Details


    Amplifier Power Specifications
    RMS Power @ 4 ohms
    75 watts x 2 channel
    RMS Power @ 2 ohms
    125 watts x 2 channel
    RMS Power @ 1 ohm
    Not Stable
    Bridged RMS Power
    250 watts x 1 channel
    Amplifier Specifications
    Amplifier Class
    A/B
    Number of Channels
    2-Channel
    Total RMS Power Output
    250 watts
    Maximum Input Gauge Size
    4 AWG
    Minimum Impedance Unbridged
    2 ohm
    Minimum Impedance Bridged
    4 ohms
    THD at Rated RMS Power
    0.5%
    Speaker Level Inputs
    No
    Preamp Outputs
    1 pair
    Built-in Crossover
    Low-Pass (LP)
    High-Pass (HP)
    High-Pass Crossover Frequency
    40 - 250 Hz
    Low-Pass Crossover Frequency
    40 - 250 Hz
    Signal-to-Noise Ratio
    94 dB
    Bass Boost
    0 - 18 dB
    Remote bass/level controller
    Optional (Accessory required and sold separately)
    Fan Cooled
    No
    Fuse Rating
    2A x 25
    CEA-2031 Compliant
    No
    Subwoofer Specifications
    Subwoofer Size
    12"
    Voice Coil(s)
    Single
    Impedance (Per Voice Coil)
    8 ohm
    RMS Power Handling
    175 watts
    Total RMS Power Handling
    350 watts
    Peak Power Handling
    350 watts
    Total Peak Power Handling
    700 watts
    Woofer Surround
    Butyl Rubber
    Woofer Composition
    Polypropylene-Mica
    Minimum Sealed Box Volume
    1.2 cubic feet
    Maximum Sealed Box Volume
    1.5 cubic feet
    Minimum Ported Box Volume
    2.2 cubic feet
    Maximum Ported Box Volume
    2.8 cubic feet
    Sensitivity
    86 dB
    Frequency Response
    16 - 180 Hz
    Xmax (millimeters)
    16 mm
    Top-Mount Depth (Mounting Depth)
    5-3/4"
    Cutout Diameter
    11"
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    2-CTX128_I2300

    Weight:

    31.75lbs

    Internal SKU:

    2-ctx128_i2300

    Internal Product ID:

    39845

    Customer Ratings & Reviews


    Image Dynamics Subwoofers and Amplifier Bass Bundle thumbnail image

    5 star
    100%
    4 star
    0%
    3 star
    0%
    2 star
    0%
    1 star
    0%



    Durability
    5
    Value
    5
    Features
    5
    Design
    5
    Usability
    5

    Customer Reviews

    Sort by:

    Loading...

    The following review is for CTX128, which is a part of the bundle you are viewing.
    By Anthony on August 23, 2023 Checkmark Icon Verified purchase

    11 found this helpful


    They Slam!

    The following review is for CTX128, which is a part of the bundle you are viewing.

    Have these powered by my NVX JAD 1200 amp at 4 ohms. They absolutely slam and are very tight and accurate in a 1.1 cubic foot sealed box. They prefer a slightly larger box so they could get better.

    By Derek on March 31, 2017 Checkmark Icon Verified purchase

    10 found this helpful




    KMM-108U small

    Kenwood KMM-108U

    Single DIN Digital Media Car Stereo w/ Aux Input

    (3)

    $74.99

    List price $100.00

    IDMAX12 D2 V.4_Q1200.1 small

    1000W Image Dynamics Subwoofer and Amplifier Bass Bundle

    One 12" Image Dynamics IDMAX Series Sub + Image Dynamics Q Series Monoblock Amp + Kit + Sound Damp

    (176)

    $1219.49

    List price $2159.97

    850W small

    Infinity Reference 850W

    8" Single 4 ohms Reference Series Subwoofer (REF850W)

    (5)

    $49.99

    List price $129.99

    Related Searches


    Save up to 10 different vehicles in your garage
    Vehicle
    Store
    Delete

    2011 Subaru Outback

    1993 GMC Sonoma

    1996 Pontiac Sunfire

    2014 Audi Q5

    1992 Geo Storm

    2005 Mazda RX-8

    2007 Jaguar S-Type

    2008 Acura TL

    1996 GMC C1500 Suburban

    2005 Subaru Forester

    Vehicle
    Store
    Delete

    2000 Harley Davidson FLTR Road Glide

    Vehicle
    Store
    Delete

    2022 Can-Am Defender MAX HD10 XT

    Add vehicle Clear all vehicles
    Where to find vehicle info
    Are you sure you want to clear your garage?
    This action cannot be undone. Confirm
    This page was not designed for products.
    If you continue, you will be redirected to a category customized for your vehicle. Continue
    Loading...
    Identify your vehicle and submodel details
    • Owner's manual
    • Vehicle's insurance card
    • Vehicle registration
    • Vehicle produced after 2005: Inside driver's side door
    • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
    Car Info Side Door Icon
    Vehicle Registration Icon
    Vehicle Insurance Icon

    Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

    • You see only parts engineered for your exact vehicle
    • You avoid incompatible radios, speakers, or wiring
    • Installation is smoother, faster, and frustration-free
    • You get the correct accessories the first time

    Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
