Name: JL Audio M700/5 (Open Box, Complete)
Brand: JL Audio
SKU: ls-m7005-obc6
Price: 679.99 USD
Availability: Discontinued

by JL Audio

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

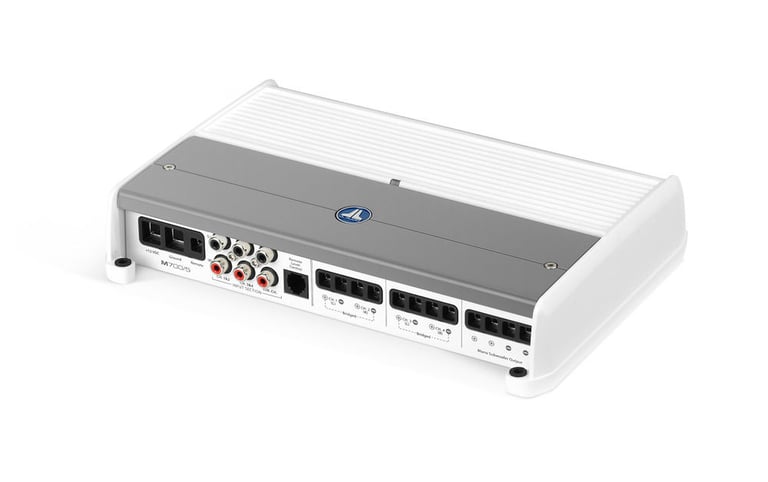

JL Audio M700/5 (Open Box, Complete) Image 1 — JL Audio M700/5 (Open Box, Complete)

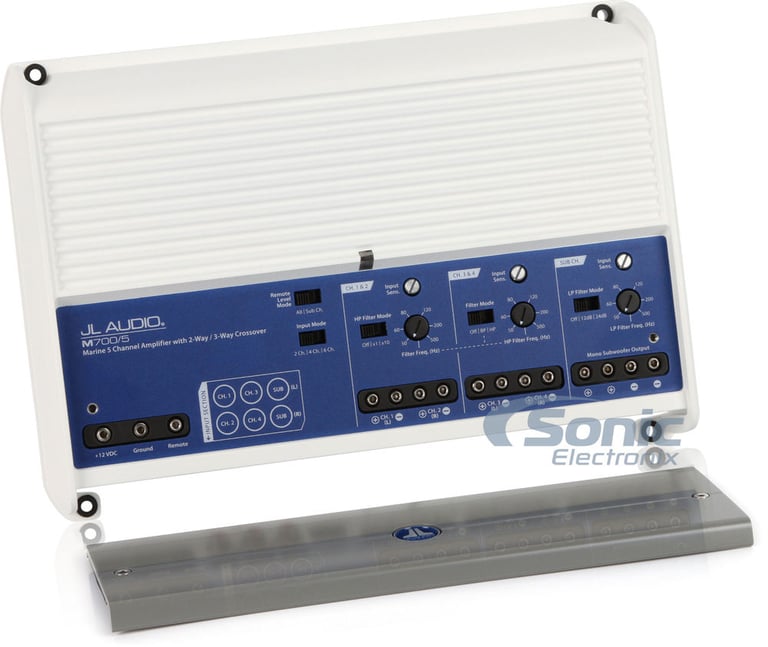

JL Audio M700/5 (Open Box, Complete) Image 2 — JL Audio M700/5 (Open Box, Complete)

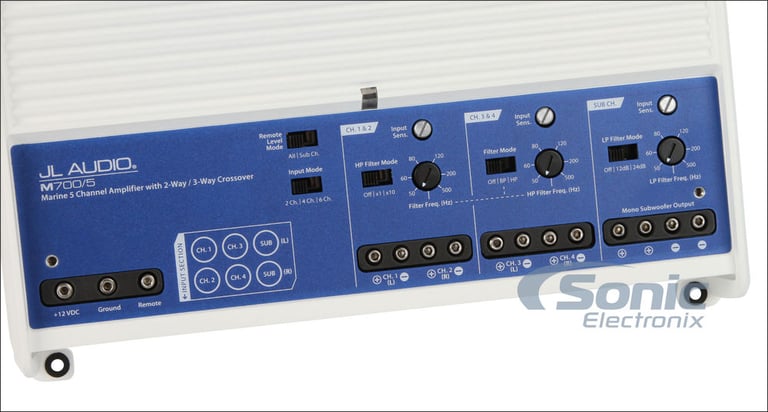

JL Audio M700/5 (Open Box, Complete) Image 3 — JL Audio M700/5 (Open Box, Complete)

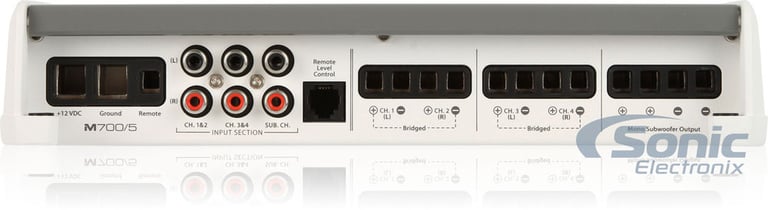

JL Audio M700/5 (Open Box, Complete) Image 4 — JL Audio M700/5 (Open Box, Complete)

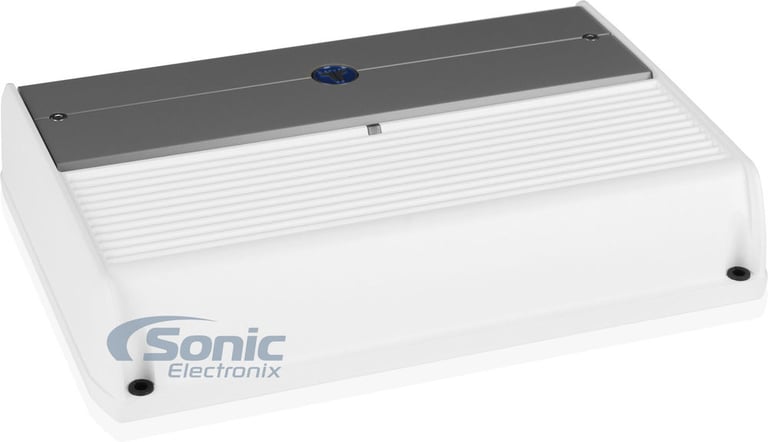

JL Audio M700/5 (Open Box, Complete) Image 5 — JL Audio M700/5 (Open Box, Complete)

JL Audio M700/5 (Open Box, Complete) Image 6 — JL Audio M700/5 (Open Box, Complete)

JL Audio M700/5 (Open Box, Complete) Image 7 — JL Audio M700/5 (Open Box, Complete)

Product highlights

• 5-Channel Class D M-Series Marine Amplifier
• NexD Class D Technology • Advanced Rollback Protection Circuitry
• Differential Inputs • Unregulated MOSFET Power Supply

Learn more about the ls-m7005-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.

JL Audio M700/5 - M Series 5-Channel Class D Full-Range Amplifier

This potent 5-Channel amplifier employs JL Audio's high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in an ultra-compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious power, delivering a full 700W of continuous total power into a 2 ohm load (14.4V, 1% THD). Targeted specifically for an audiophile-grade system, the M700/5 includes a variable mode low-pass/high-pass filter with a continuously variable cutoff frequency selection from 50-500 Hz.

With the addition of an HD-RLC remote level control (sold separately), you can control the volume of one, two or all three channel pairs of the M700/5 from the front of the vehicle or boat. This amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Advanced Rollback Protection

JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.

NexD™ Switching Technology

From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed PWM design approach and enhanced it with a very high switching frequency. Full-range NexD™ amplifiers and channels feature a variable, ultra-high speed version of the NexD™ technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.

General Features:

5-Channel Class D M-Series Marine Amplifier
RMS Power Rating @ 14.4V:

4 ohm: 75 watts x 4 chan. + 180 watts x 1 chan.
2 ohm: 100 watts x 4 chan. + 300 watts x 1 chan.
Bridged, 8 ohm: 150 watts x 2 chan.
Bridged, 4 ohm: 200 watts x 2 chan.

RMS Power Rating @ 12.5V:

4 ohm: 60 watts x 4 chan. + 180 watts x 1 chan.
2 ohm: 90 watts x 4 chan. + 300 watts x 1 chan.
Bridged, 8 ohm: 120 watts x 2 chan.
Bridged, 4 ohm: 180 watts x 2 chan.

Unregulated MOSFET switching type power supply
NexD Class D Technology reduces distortion and delivers superior efficiency
Remote bass level input (JL Audio HD-RLC required and sold separately)
Fully variable 12dB/octave filters with filter frequency selection controls
Two stereo pairs (RCA-Type Jacks)
5-channel operation
Pass-Through preamp RCA outputs to daisy chain multiple amps
Advanced Rollback Protection circuitry for advanced thermal and low-impedance protection
Differential inputs reduce unwanted noise
Speaker output connections accept up to 8 AWG wire
+12V and Ground connections accept up to 4 AWG wire
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Variable High-Pass Filter (50-5000 Hz, 12 dB/octave)
Variable Low-Pass Filter (50-500 Hz, 12 dB/octave)
Signal-to-Noise Ratio (Main Channels): >104 dB
Frequency Response (Main Channels): 12-22,000 Hz
Frequency Response (Subwoofer Channels): 10-1000 Hz
Input Range: 100mV - 4V RMS
Damping Factor: >150 @ 4 ohm, >75 @ 2 ohm
THD (Total Harmonic Distortion): <1%
Dimensions: 10-1/4"L x 7-1/16"W x 2-1/16"H
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Authorized Internet Dealer
30 Day Sonic Electronix Warranty

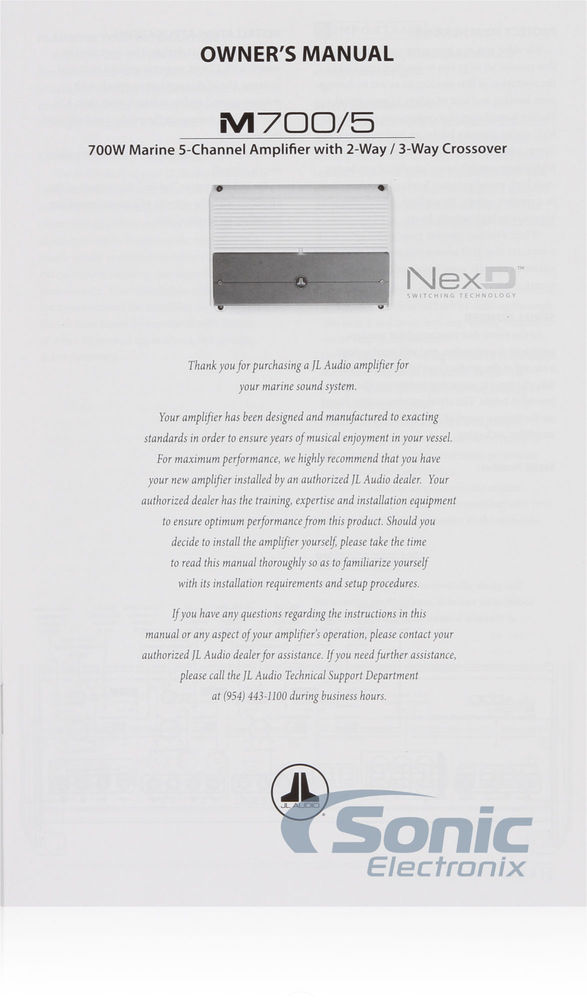

Check out the M700/5 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

RMS Power @ 2 ohms

100 watts x 4 channel

Bridged RMS Power

200 watts x 2 channel

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

180 watts x 1 channel

RMS Power @ 2 ohms

300 watts x 1 channel

Amplifier Specifications

Series

M Series

Amplifier Class

Number of Channels

5-Channel

Total RMS Power Output

700 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<1%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 5000 Hz

Low-Pass Crossover Frequency

50 - 500 Hz

Signal-to-Noise Ratio

>104 dB

Channel Separation

Not specified by manufacturer

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio HD-RLC

Strappable

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Hi-Res Certified

What is in the box?

Paperwork

User manual

WITB: Amplifiers

Amplifier
Adhesive brand badge
Allen wrench

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
