Name: NVX JAD1200.1 Open Box
Brand: NVX
SKU: LS-jad12001-OB
Price: 199.99 USD
Availability: Discontinued

by NVX

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

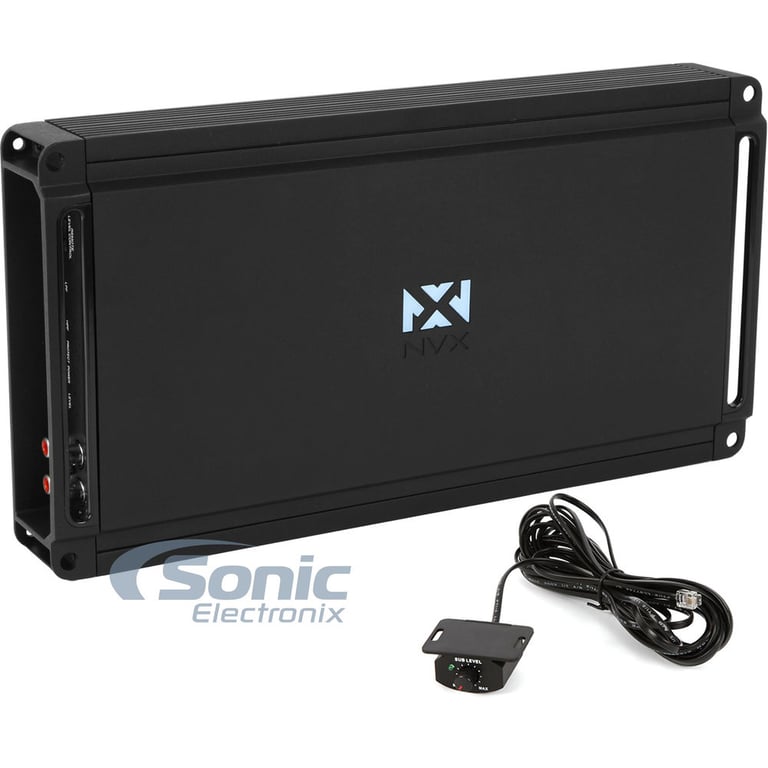

NVX JAD1200.1 Open Box Image 1 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 2 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 3 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 4 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 5 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 6 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 7 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 8 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 9 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 10 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 11 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 12 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 13 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 14 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 15 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 16 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 17 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 18 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 19 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 20 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 21 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 22 — NVX JAD1200.1 Open Box

NVX JAD1200.1 Open Box Image 23 — NVX JAD1200.1 Open Box

Product videos

Product highlights

• Class D Monoblock Amplifier with Bass Remote
• 4 ohm: 500 watts x 1 chan.
• 2 ohm: 700 watts x 1 chan.
• 1 ohm: 1200 watts x 1 chan.
• Power and Ground Gauge Adapter Included
• Wired Remote Bass Level Control Included

Learn more about the LS-jad12001-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

NVX JAD Series Amplifiers

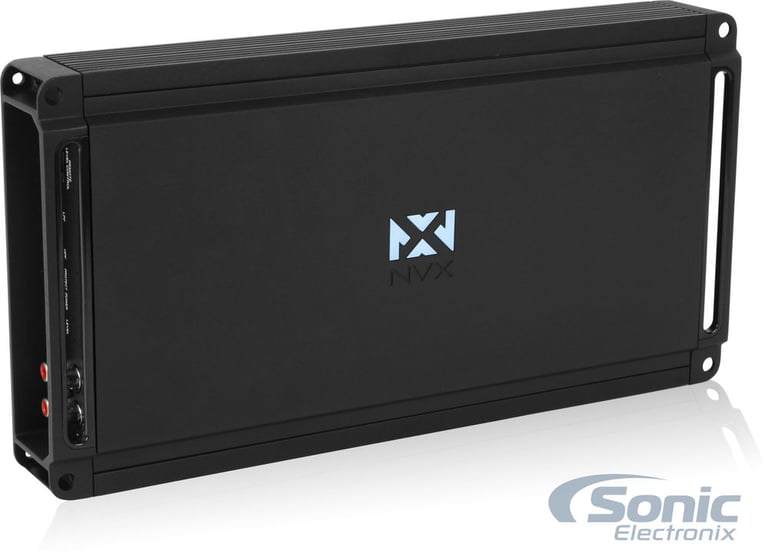

NVX's new line of JAD amplifiers are perfect for those looking for a small footprint, high output amplifier. They boast an abundance of features such as variable high and low pass filters, pre-amp outputs, and gain level control. The sleek design of the chassis combined with the illuminated badge makes these amplifiers eye-catchers. The JAD1200.1 monoblock includes a wired remote bass knob as well as a convenient power and ground gauge adapter for converting the 8 gauge inputs into 4 gauge inputs. Dual speaker terminals bridge the amplifier internally allowing for less confusion when wiring multiple subwoofers.

General Features:

Class D Monoblock Amplifier with Bass Remote
Product is Open Box

Previously Installed

RMS Power Rating:

4 ohm: 500 watts x 1 chan.
2 ohm: 700 watts x 1 chan.
1 ohm: 1200 watts x 1 chan.

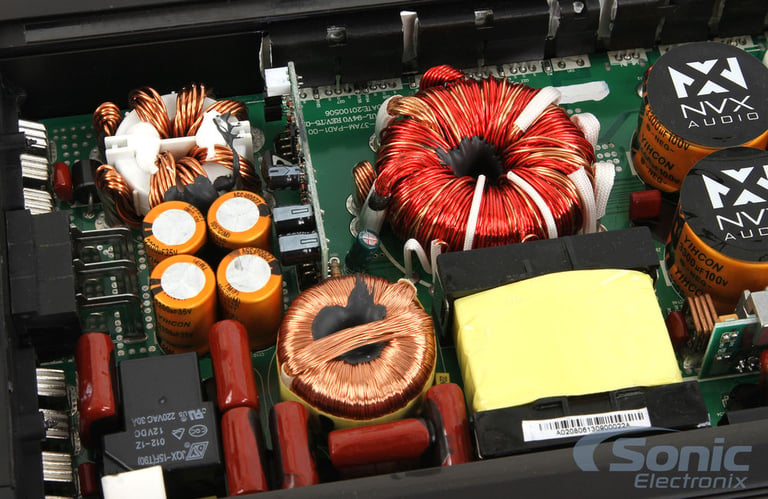

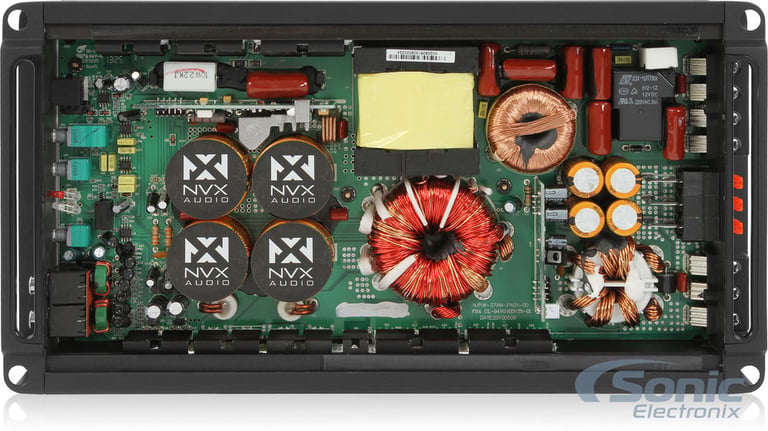

Non-regulated efficient S.M.P.S power supply design
Pulse Width Modulated MOSFET power supply

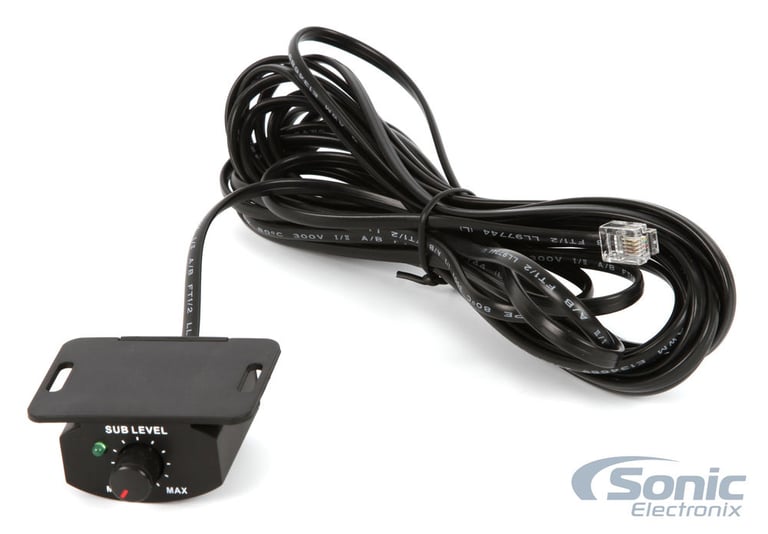

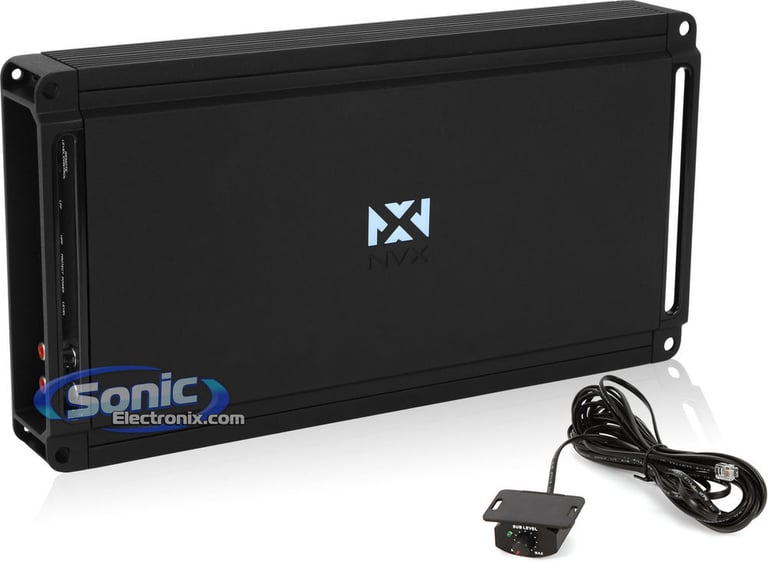

Wired remote bass level control included
LED power (green) and protect (red) indicators

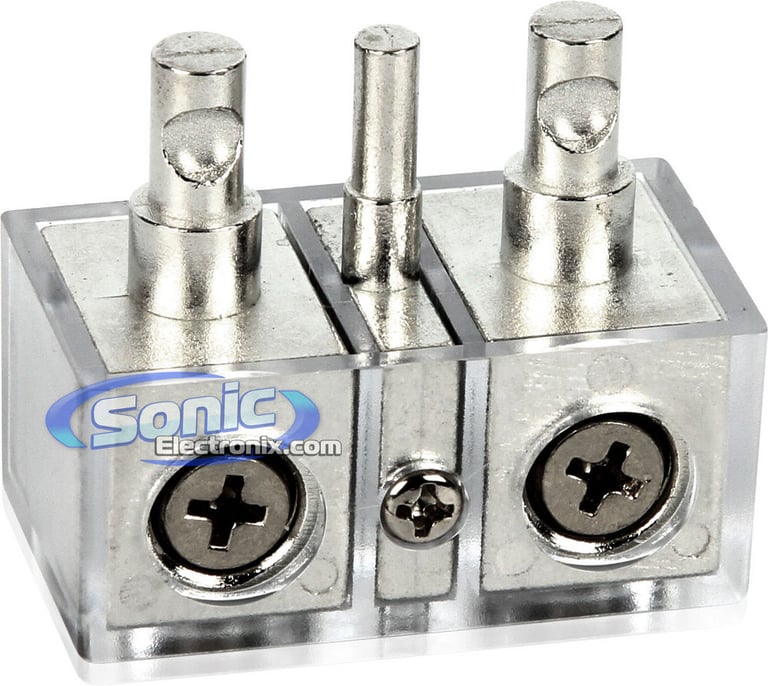

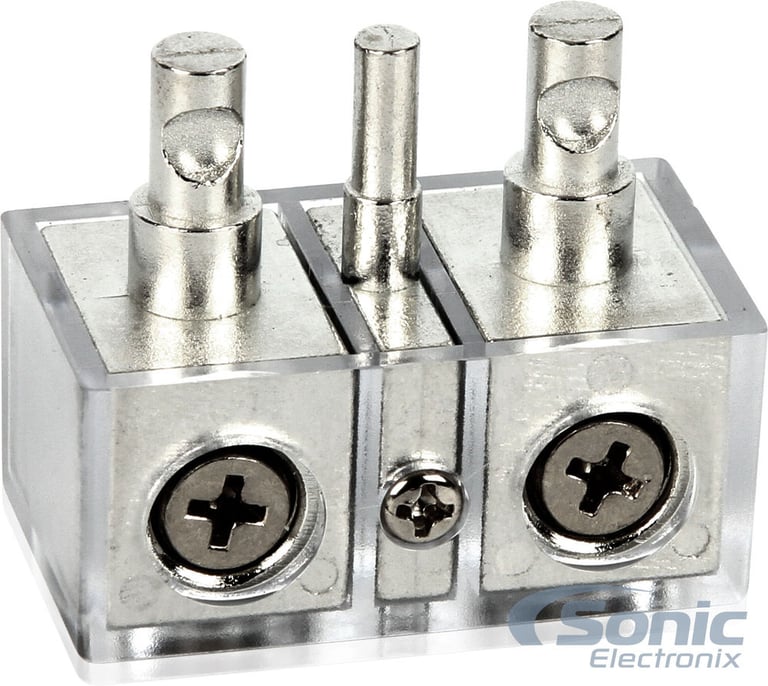

Power and ground Gauge adapter included
Soft start turn-on
Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)

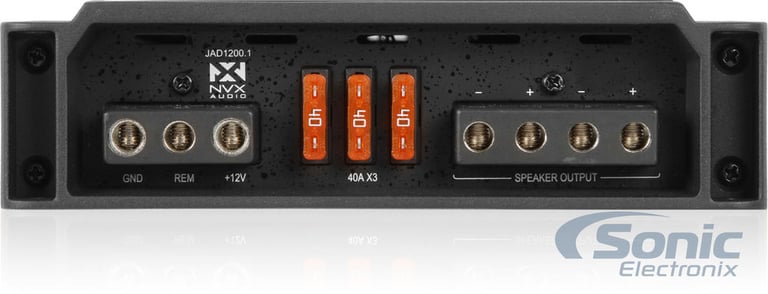

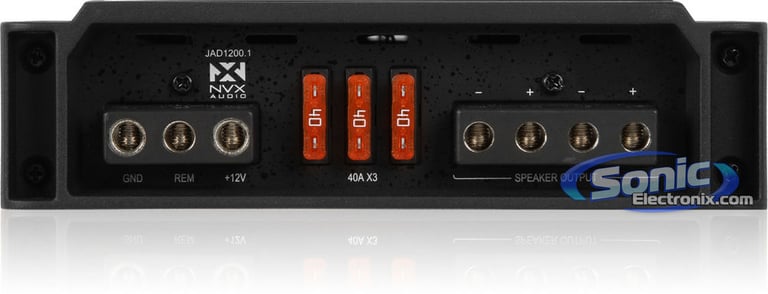

Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink
Nickel-plated RCA level inputs
Nickel-plated screw terminals

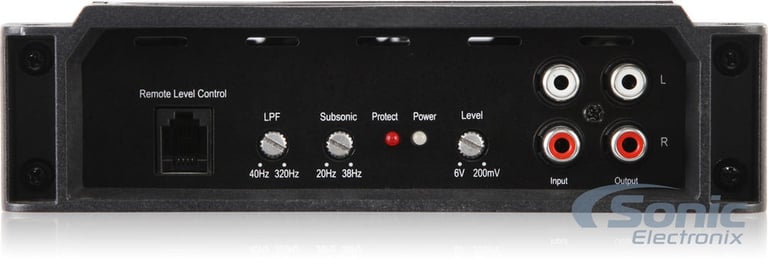

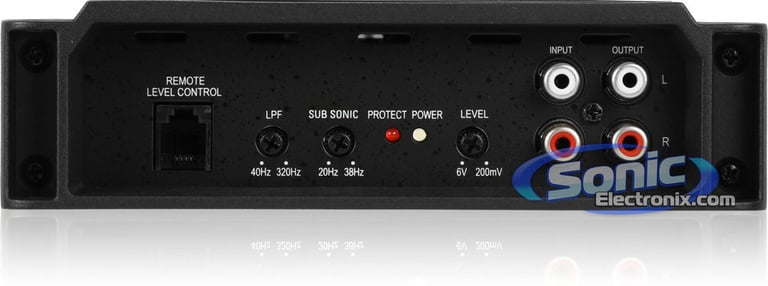

Variable high-pass filter (20-38 Hz, 24 dB/octave)
Variable low-pass filter (40-320 Hz, 24 dB/octave)
Damping factor: 200
Input Sensitivity: 200mV-6V
Frequency response: 20-200 Hz
4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
Authorized Internet Dealer
90-Day Manufacturer's Warranty

Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX Audio dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX Audio XAPK1D, NVX Audio XKIT42, or NVX Audio XAPK4

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

500 watts x 1 channel

RMS Power @ 2 ohms

700 watts x 1 channel

RMS Power @ 1 ohm

1200 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

20 - 38 Hz

Low-Pass Crossover Frequency

40 - 320 Hz

Signal-to-Noise Ratio

111 dB

Remote bass/level controller

Yes

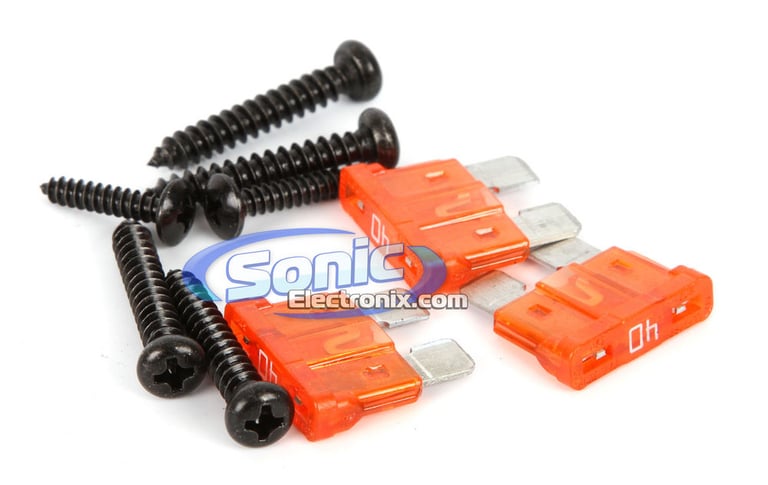

Fuse Rating

40A x 3

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
