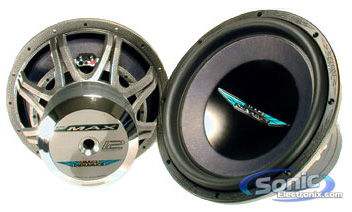

Image Dynamics IDMAX10CR D2

10" Dual 2 ohm ID MAX V.3 Series Subwoofer with Chrome Finish and RaDiaToR Cooling System

Image Dynamics
Shop all Image Dynamics
Product videos
highlight-star-icon

10" Dual 2 ohm ID MAX V.3 Series Subwoofer • 1800W Max • 1000W RMS • Paper Composite Cone Woofer • Parabolic EPDM Rubber Surround • Over 2" Linear Excursion • Flat Spider with Woven Tinsel Leads • Chrome Finish Basket

Learn more about the idmax10crd2

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-415C main

Kenwood KFC-415C

320W Peak (80W RMS) 4x10" Performance Series 2-Way Coaxial 4-ohm Car Speakers

25
-45.00%

$99.00

List price $180.00

H46 main

Cerwin-Vega H46

300W Peak (100W RMS) 4x6" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$79.99

List price $95.99

T46 main

Earthquake Sound T46

600W Peak 4x6” TNT Series 2-Way Coaxial 4-ohm Car Speakers

1
-19.20%

$79.99

List price $99.00

Limited time!
THUNDER46 main

MTX Audio THUNDER46

160W Peak (80W RMS) 4x6" Thunder Series 2 Way Coaxial 4-ohm Speakers

-20.00%

$79.96

List price $99.95

Limited time!
46CSC464 main

Kicker CSC46 (46CSC464)

300W Peak (100W RMS) 4x6” CS Series 2 Way Coaxial 4-ohm Speakers

15
-29.45%

$59.96

List price $84.99

Limited time!
KFC-4675C main

Kenwood KFC-4675C

120W Peak (40W RMS) 4x6" 2 Way Coaxial 4-ohm Car Speakers

16
-39.84%

$77.00

List price $128.00

NSP46 main

NVX NSP46

300W Peak (100W RMS) 4x6" N-Series 2 Way Coaxial Car Speakers

34
-16.67%

$49.99

List price $59.99

H410 main

Cerwin-Vega H410

420W Peak (140W RMS) 4x10" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$99.99

List price $119.99

Stage3 6427 main

JBL Stage3 6427 (STAGE36427AM)

350W Peak (70W RMS) 4x6” Stage3 Series 2-way 3-ohm Coaxial Car Speakers

1
-18.19%

$89.95

List price $109.95

DB462 main

Polk Audio DB462 (DB 462)

300W Peak (100W RMS) 4x6” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

7
-9.99%

$90.00

List price $99.99

Product Highlights


10" Dual 2 ohm ID MAX V.3 Series Subwoofer • 1800W Max • 1000W RMS • Paper Composite Cone Woofer • Parabolic EPDM Rubber Surround • Over 2" Linear Excursion • Flat Spider with Woven Tinsel Leads • Chrome Finish Basket

Description


Image Dynamics brand icon

Authorized dealer

  • 10" Dual 2 ohm ID MAX V.3 Series Subwoofer with a chrome finish basket
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 1000 watts
  • Pressed paper composite cone woofer
  • Parabolic EPDM rubber surround
  • Over 2" long linear excursion
  • RaDiaToR cooling system for heat dissipation
  • Radiant Diametric Torisonal Reinforcement
  • High compliance suspension design
  • Flat spider with NOMEX cloth woven tinsel leads
  • High-temperature flat wire, flat wound voice coil
  • Inverted dust cap with logo
  • Powder coated alloy chrome finish basket
  • 3-1/2" peak-to-peak surround excursion
  • Frequency response: 20-250 Hz
  • Mounting depth: 7-5/8"
  • Cutout dimensions: 9-5/8"
  • 1-year Manufacturer's Warranty
  • More description coming soon

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics IDMAX10CR D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics IDMAX10CR D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics IDMAX10CR D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics IDMAX10CR D2 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1800 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 250 Hz
Xmax (millimeters)
24.6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Reinforced Paper
Woofer Surround
EPDM Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.00 cubic feet
Maximum Sealed Box Volume
1.50 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
2.00 cubic feet
Top-Mount Depth (Mounting Depth)
7-5/8"
Cutout Diameter
9-5/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

IDMAX10CRD2

Weight:

22.00lbs

Internal SKU:

idmax10crd2

Internal Product ID:

4167
