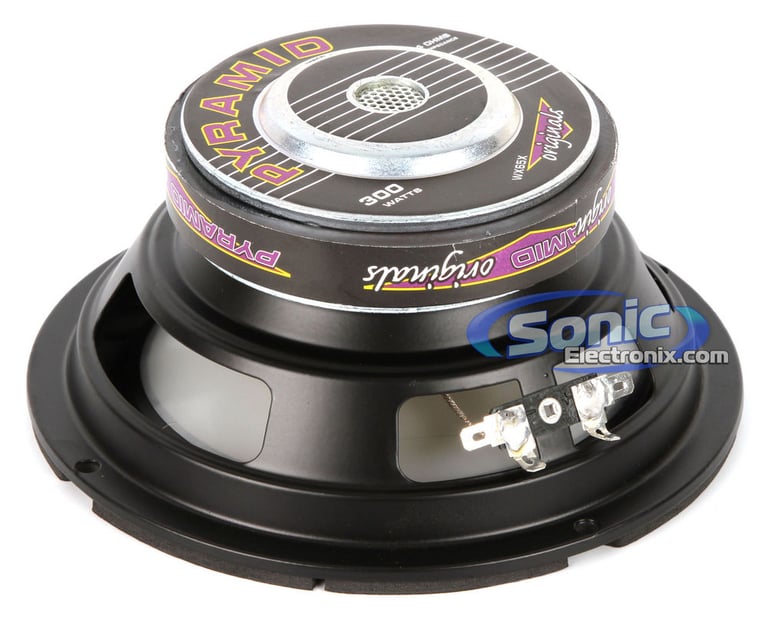

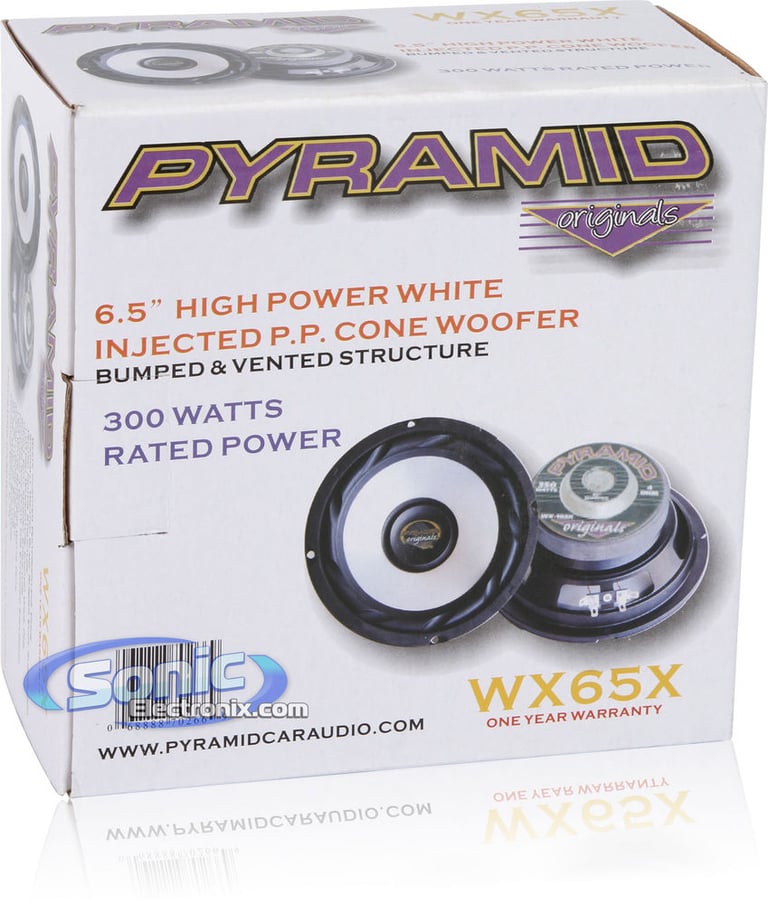

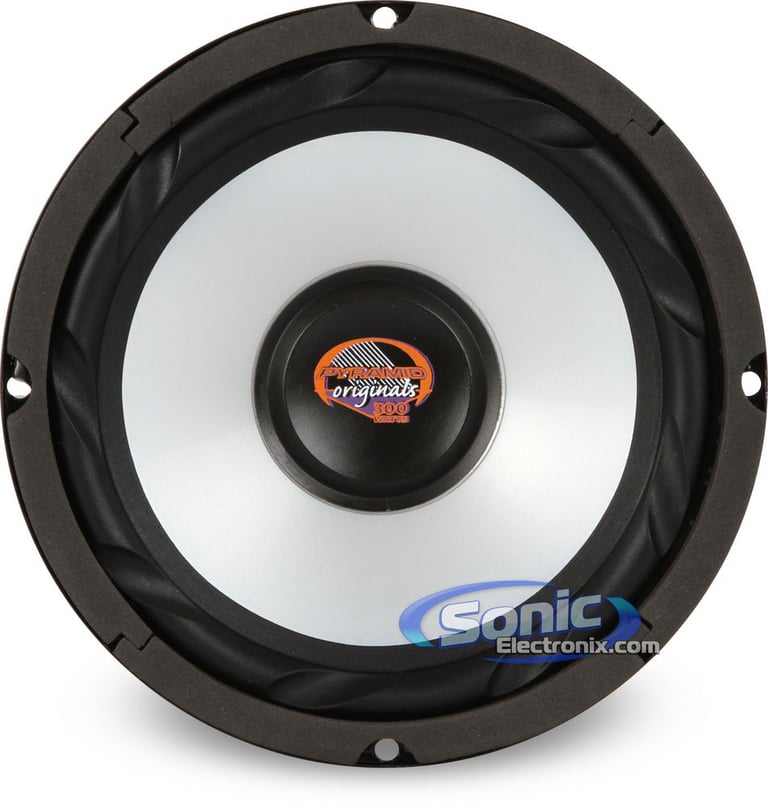

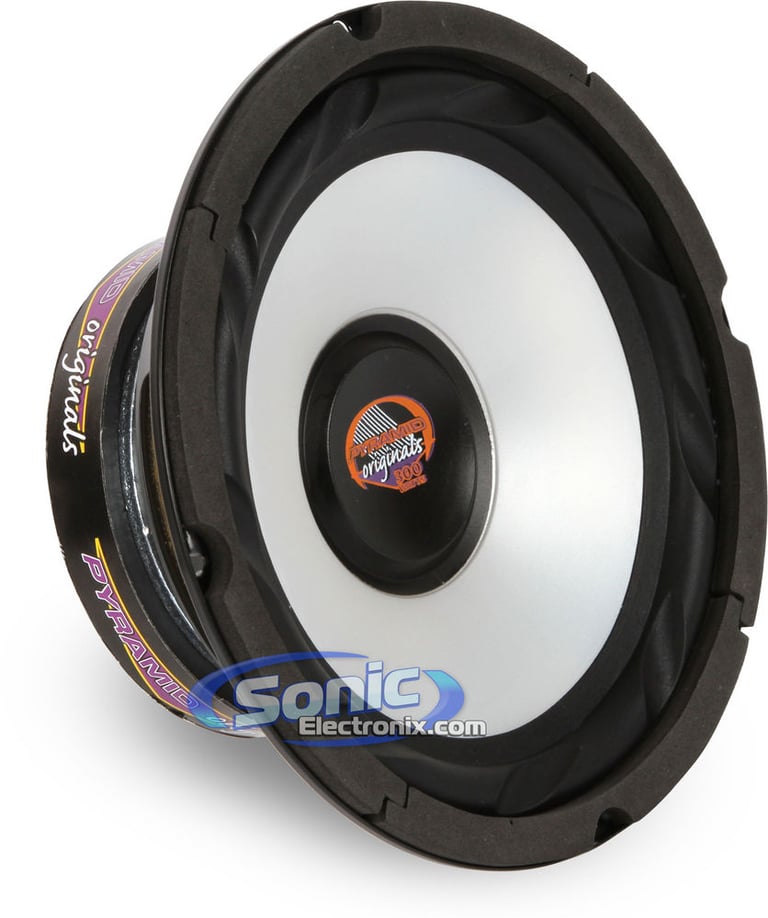

Pyramid WX65X

150W 6.5" WX Series Single 4 ohm Subwoofer

Pyramid
Shop all Pyramid
Product videos
highlight-star-icon

• Peak Power: 300W
• RMS Power: 150W
• Polypropylene Cone
• Treated Black Rubber Woofer Surround
• Single 4 Ohm
• Vented Motor Structure
• Top-Mount Depth: 2-3/4"

Learn more about the wx65x

We apologize

This item has been discontinued


Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

CF-350mt main

JL Audio CF-350mt

70W RMS 3.5" CF Series Custom-Fit Midrange 4-ohm Tweeters

4
51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

Product Highlights


• Peak Power: 300W
• RMS Power: 150W
• Polypropylene Cone
• Treated Black Rubber Woofer Surround
• Single 4 Ohm
• Vented Motor Structure
• Top-Mount Depth: 2-3/4"

Description


Pyramid brand icon

Authorized dealer

General Features:

  • 6-1/2" Single 4 ohm WX Series Car Subwoofer
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Impedance: Single 4 ohm
  • Polypropylene white injected woofer cone material
  • Treated black rubber woofer surround
  • Bumped yoke plate
  • Vented motor structure for higher heat dissipation
  • Heavy duty magnet structure for constant power
  • High temperature 1" Kapton voice coil
  • Single stacked 40 oz magnet structure
  • Sensitivity: 87.1 dB
  • Cutout Dimensions: 5-11/16"
  • Mounting Depth: 2-3/4
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pyramid WX65X Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pyramid WX65X Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pyramid WX65X Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pyramid WX65X Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SW-UV16.5D4 small

Sundown Audio U-6.5SW D4 6.5" (U65SWD4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Pressed Paper Cone
• Double-Stitched Surround
• Mount depth: 5.71"
• Sensitivity: 78.14 dB

(3)

$199.99

List price $239.99

SW-SA6.5SWD2 small

Sundown Audio SA-6.5 SW D2 6.5" (SA65D2)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 2 ohm
• Paper Cone
• Foam Surround
• Mount depth: 3.79"
• Sensitivity: 81.6 dB

$154.99

List price $167.99

SW-SA6.5SWD4 small

Sundown Audio SA-6.5 SW D4 6.5" (SA65D4)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 3.79"
• Sensitivity: 81.5 dB

$154.99

List price $167.99

6W3V3-4 small

JL Audio 6W3V3-4

• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.25"
• Sensitivity: 80.49 dB

(25)

$319.99

List price $319.99

V65DV4 small

Cerwin-Vega V65DV4

• Peak Power: 1500 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 4.65"
• Sensitivity: 82 dB

$129.99

List price $155.99

SWS-6.5X small

Earthquake Sound SWS-6.5X

• Peak Power: 200 watts
• RMS Power: 100 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 1-3/4"
• Sensitivity: 77.3 dB

(9)

$119.99

List price $149.00

CWRT672 small

Kicker CWRT672 (48CWRT672)

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Dual 2 ohm
• UV-Resistant Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-3/4"
• Sensitivity: 82.6 dB

(1)

$103.96

List price $149.99

SUMMO64XL small

Massive Audio SUMMO64XL

• Peak Power: 400 watts
• RMS Power: 200 watts
• Kevlar Fiber-Enforced Non-Pressed Paper cone
• EROM Foam with red stitching surround
• Impedance: Dual 4 ohm
• Mount depth: 4.37"
• Sensitivity: 85 dB

(4)

$104.99

List price $134.99

V65DV2 small

Cerwin-Vega V65DV2

• Peak Power: 1500 watts
• RMS Power: 500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 4.65"
• Sensitivity: 80 dB

$129.99

List price $155.99

VMAX65D2 small

Cerwin Vega VMAX65D2

• Peak Power: 400 watts
• RMS Power: 200 watts
• Treated Semi-Pressed Pulped Cone
• Impedance: Dual 2 ohm
• Mount depth: 4.25"

$129.99

List price $155.99

Specifications & Details


Subwoofer Specifications
Series
WX Series
Subwoofer Size
6.5"
Peak Power Handling
300 watts
RMS Power Handling
150 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1.0"
Sensitivity
87.1 dB
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
69.5 Hz
Equivalent Compliance (Vas)
8.41 liters
Total Speaker Q Value (Qts)
0.58
Electrical Q Value (Qes)
0.82
Mechanical Q Value (Qms)
2.03
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

WX65X

Weight:

2.75lbs

Internal SKU:

wx65x

Internal Product ID:

42354
