Name: Hifonics XX-ZEUS R/B
Brand: Hifonics
SKU: LS-xxzeus-RB
Price: 169.99 USD
Availability: Discontinued

by Hifonics

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

Product videos

Product highlights

Generation XX Series Monoblock Ultra Class D Car Amplifier • 1600W RMS x 1-Chan @ 1 ohm • 1100W RMS x 1-Chan @ 2 Ohm • RCA Output • Bass Remote • Illuminated Hifonics Badge • Removable Endcaps • 2 AWG Power Connectors

Learn more about the LS-xxzeus-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

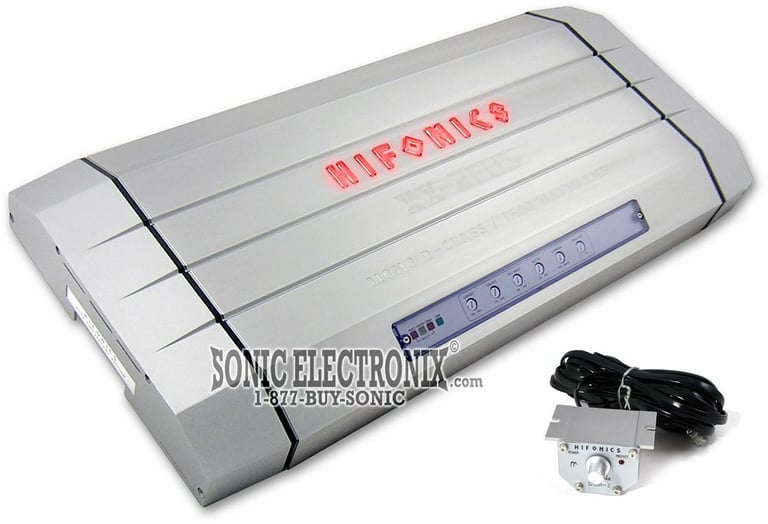

Generation XX Series Monoblock Ultra Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 550 watts x 1 chan.
- 2 ohm: 1100 watts x 1 chan.
- 1 ohm: 1600 watts x 1 chan.
Full PMW Ultra-Fi Mosfet Power Supply
Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 30-60 Hz)
Soft Start Turn-on
Mono channel operation
Package includes power from the gods
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Gold-plated RCA level inputs
Gold-plated screw terminals
Input sensitivity:
- Low level: 200mV-9V
- High level: 400mV-18V
Variable low-pass filter (30-250 Hz, 24 dB/octave)
Subsonic Filter (10-50 Hz)
Phase Shift: 0-180°
Damping factor: >400
Dual 2 AWG power terminals
300A In-line fuse not included
Frequency response: 2-70,000 Hz
Dimensions: 24-5/16"L x 11-1/8"W x 2-3/4"H
2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
End caps are not included in this special offer
Authorized Internet Dealer
90-day Manufacturer's warranty
Item Condition: Factory Refurbished

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

550 watts x 1 channel

RMS Power @ 2 ohms

1100 watts x 1 channel

RMS Power @ 1 ohm

1600 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

3200 watts

Total RMS Power Output

1600 watts

Maximum Input Gauge Size

2 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.1%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

30 - 250 Hz

Subsonic Filter

10 - 35 Hz

Signal-to-Noise Ratio

98 dB

Channel Separation

>70 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
