PowerBass S-104DX

10" Dual 4 ohm S Series Car Subwoofer

PowerBass
Shop all PowerBass
Product videos
highlight-star-icon

10" Dual 4 ohm S Series Car Subwoofer • 550W Max • 275W RMS • Black Paper/Wool Woofer Cone Material • Large Roll Foam Surround • 2" BASV Voice Coil Former • Push-Pin Terminals • Oversized Motor Structure

Learn more about the s104dx

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Product Highlights


10" Dual 4 ohm S Series Car Subwoofer • 550W Max • 275W RMS • Black Paper/Wool Woofer Cone Material • Large Roll Foam Surround • 2" BASV Voice Coil Former • Push-Pin Terminals • Oversized Motor Structure

Description


PowerBass brand icon

Authorized dealer

General Features:

  • 10" Dual 4 ohm S Series Car Subwoofer
  • Power Handling:
    • Peak: 550 watts
    • RMS: 275 watts
  • Impedance: Dual 4 ohm
  • Black paper/wool 4-layer cone material
  • Large roll foam woofer surround

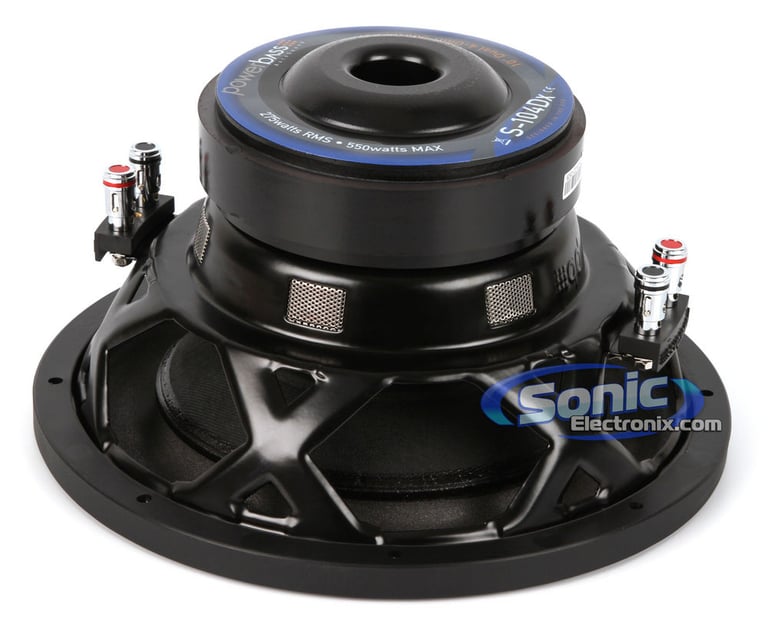

  • Oversized motor structure for improved stability and power handling
  • Pole and Aero vented cooling for increased performance and longevity
  • BASV 2" voice coil former for increased heat dissipation

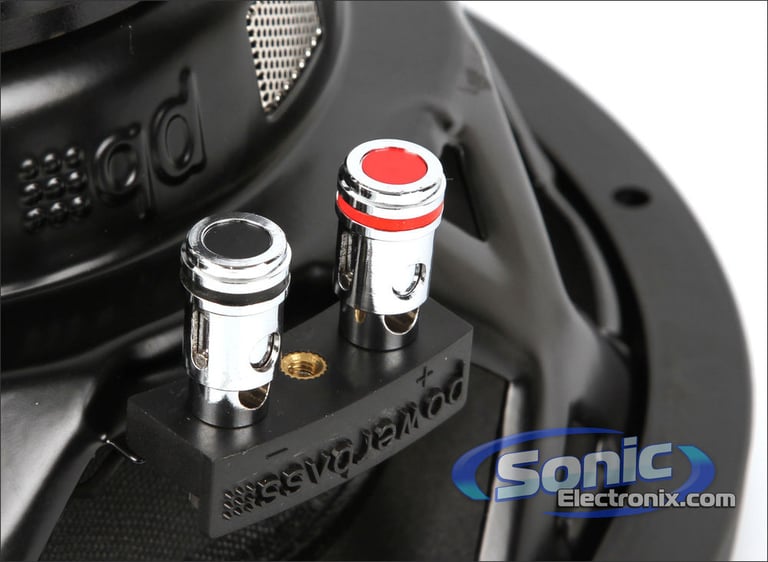

  • Chrome push-pin terminals for easy and secure installation
  • Flat black finished, stamped steel basket with custom X design
  • Rubber mounting gasket for airtight seal for minimizing air leaks
  • Work perfectly in either a sealed or ported enclosure
  • Frequency response: 33-500 Hz
  • Sensitivity: 86 dB
  • Mounting Depth: 5-3/16
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

PowerBass S-104DX thumbnail
(newest, current model)
PowerBass S-104D thumbnail
(previous model, replaced by PowerBass S-104DX)
PowerBass S-10D thumbnail
(previous model, replaced by PowerBass S-104D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 PowerBass S-104DX Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 PowerBass S-104DX Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 PowerBass S-104DX Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 PowerBass S-104DX Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
S Series
Subwoofer Size
10"
Peak Power Handling
550 watts
RMS Power Handling
275 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
33 - 500 Hz
Sensitivity
86 dB
Xmax (millimeters)
9.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper / Wool Compound
Woofer Surround
Large Roll
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32 Hz
Equivalent Compliance (Vas)
39 liters
Total Speaker Q Value (Qts)
0.507
Electrical Q Value (Qes)
0.553
Electrical Resistance of Voice Coil (Re)
1.56 ohm
Mechanical Q Value (Qms)
6.18
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

S-104DX

Weight:

11.00lbs

Internal SKU:

s104dx

Internal Product ID:

42464
