Refurbished - Refurbished MTX RFL300D 600W Max, RFL Class D Monoblock Amplifier

by MTX

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

MTX RFL300D R/B Image 1 — MTX RFL300D R/B

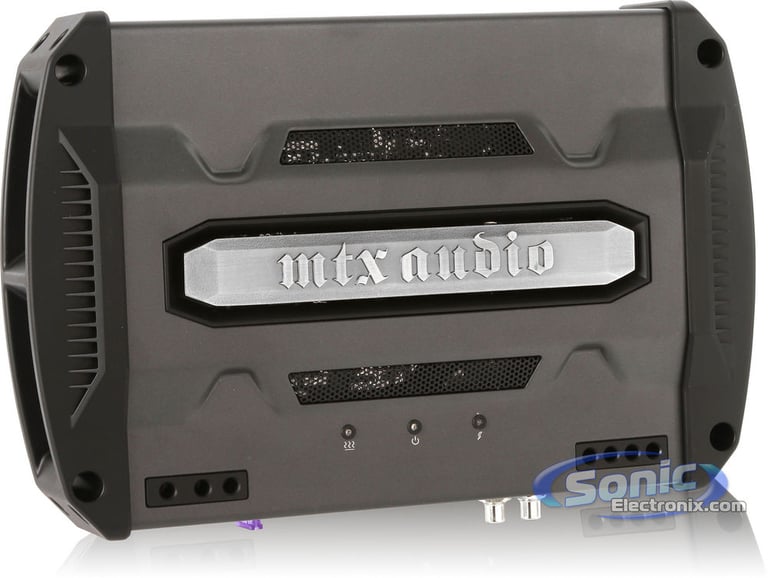

MTX RFL300D R/B Image 2 — MTX RFL300D R/B

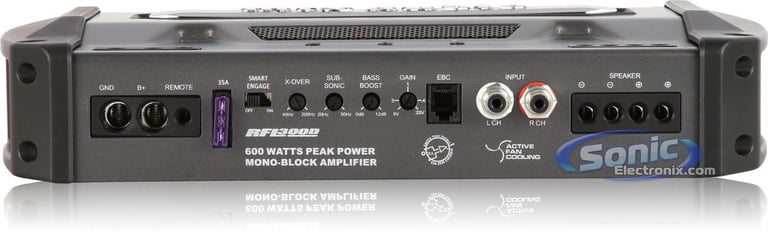

MTX RFL300D R/B Image 3 — MTX RFL300D R/B

MTX RFL300D R/B Image 4 — MTX RFL300D R/B

MTX RFL300D R/B Image 5 — MTX RFL300D R/B

MTX RFL300D R/B Image 6 — MTX RFL300D R/B

MTX RFL300D R/B Image 7 — MTX RFL300D R/B

MTX RFL300D R/B Image 8 — MTX RFL300D R/B

MTX RFL300D R/B Image 9 — MTX RFL300D R/B

MTX RFL300D R/B Image 10 — MTX RFL300D R/B

Product videos

Product highlights

RFL Series Monoblock Class D Car Amplifier • 600W Max • 300W x 1 Chan. @ 2 Ohm • Dual Speaker Terminals • Variable Low-Pass Filter • Subsonic Filter • CEA-2006 Compliant • Bass Boost

Learn more about the LS-rfl300d-RB

Product Highlights

RFL Series Monoblock Class D Car Amplifier • 600W Max • 300W x 1 Chan. @ 2 Ohm • Dual Speaker Terminals • Variable Low-Pass Filter • Subsonic Filter • CEA-2006 Compliant • Bass Boost

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

RFL Series Monoblock Class D Car Amplifier
Item Condition: Refurbished
RMS Power Rating:
- 4 ohm: 200 watts x 1 chan.
- 2 ohm: 300 watts x 1 chan.
Max power output: 600 watts x 1 chan.
Patented adaptive class D technology

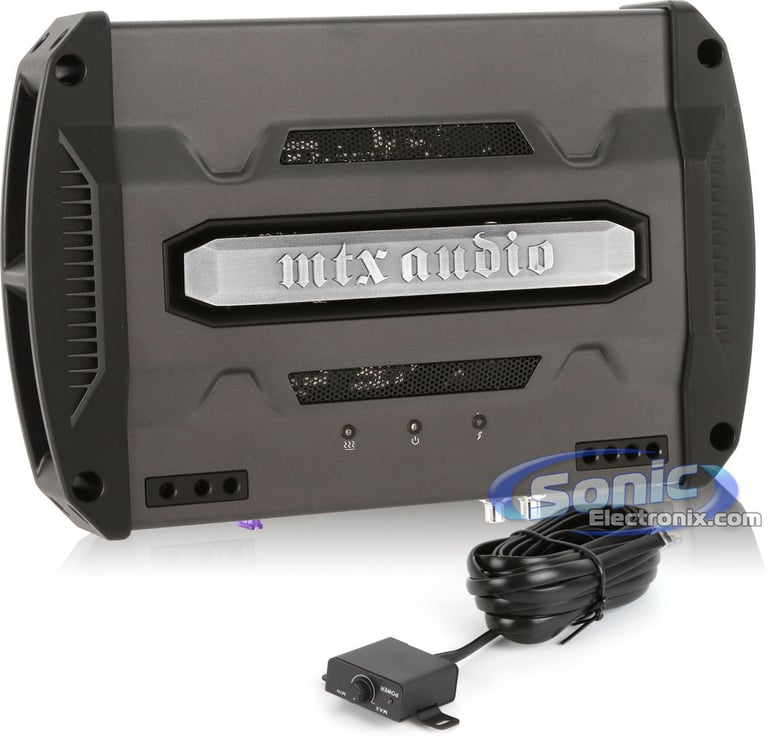

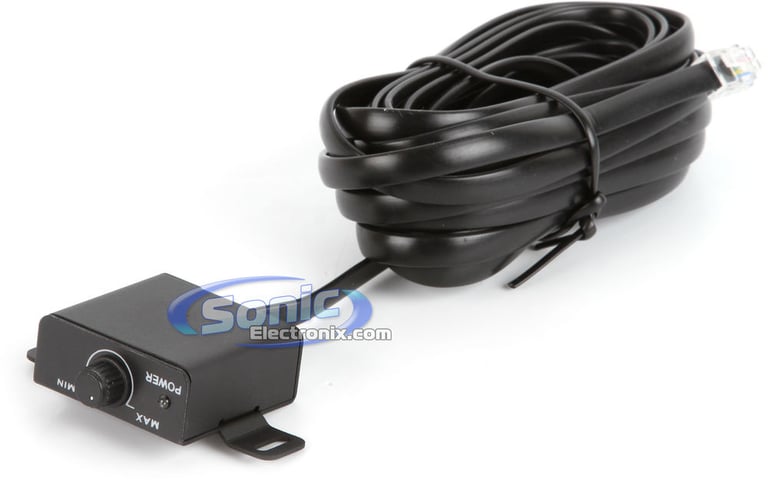

Wired remote bass level control included
LED power (green) and protect (red) indicators
Bass Boost (0 to +12 dB bass boost at 40 Hz)
Mono channel operation
3-Way System Protection circuitry (thermal, overload, and speaker short protection)

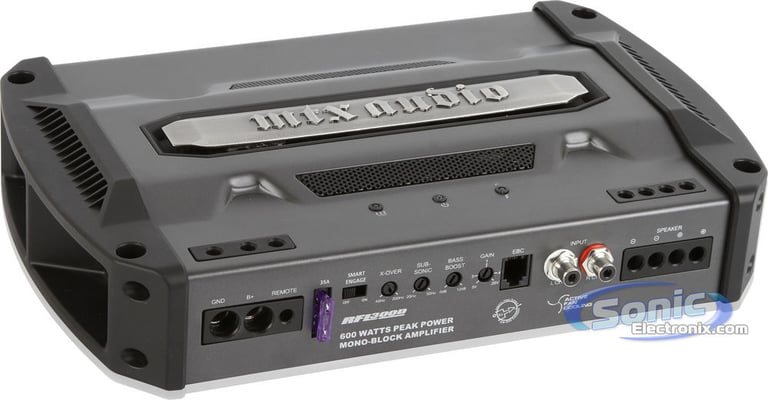

Dual speaker terminals simplify the hookup of multiple speakers

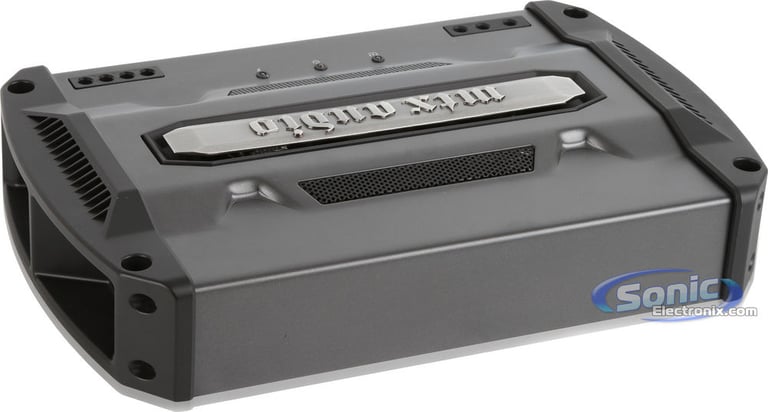

Heavy duty aluminum alloy heatsink for extreme heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:
- Level: 250mV-5V
Variable low-pass filter (40-200 Hz, 24 dB/octave)
Subsonic filter (12 dB at 20-50 Hz)
CEA-2006 compliant amplifier
Frequency response: 20-200 Hz
Dimensions: 12-1/8"L x 8"W x 2-3/8"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90 Day Manufacturer's warranty

Extend your MTX warranty to 2 Years when you install your new MTX amplifier with a compatible STREETWIRES amplifier kit! For a limited time, you can register your MTX amplifier and power kit to qualify for an additional 1 year of coverage. This offer is only available through authorized MTX Dealer in the United States of America or Canada and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: StreetWires ZN5K-04, StreetWires ZN3K-04, StreetWires ZN3KI-04,

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

200 watts x 1 channel

RMS Power @ 2 ohms

300 watts x 1 channel

RMS Power @ 1 ohm

Not Stable

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

600 watts

Total RMS Power Output

300 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<1%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 200 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

75 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

35A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
