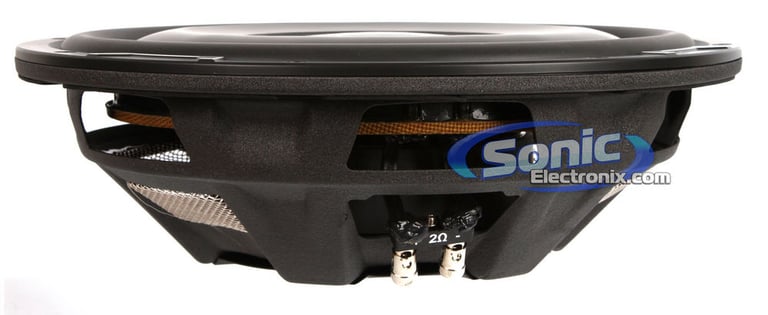

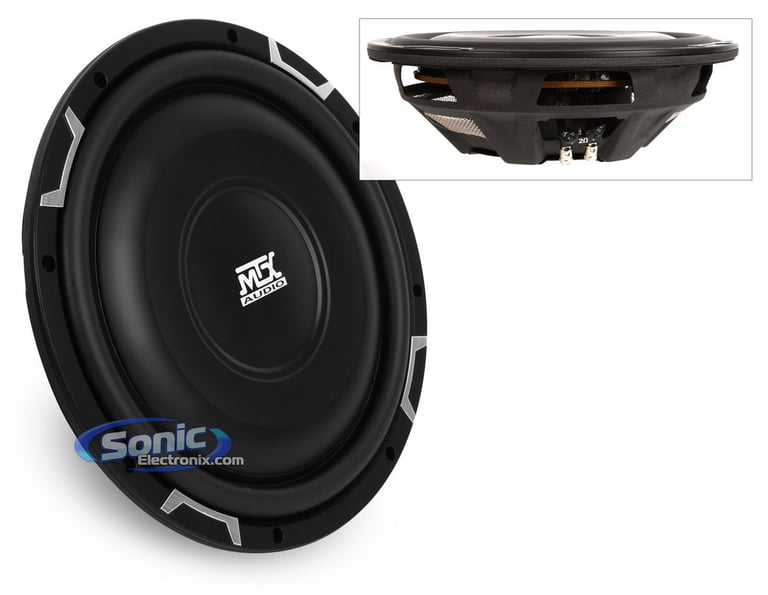

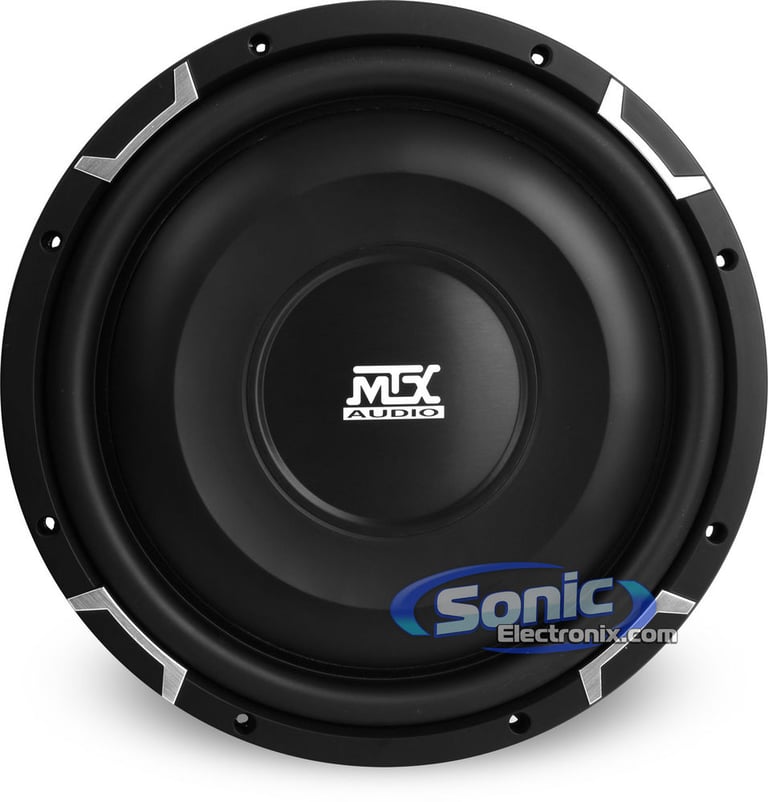

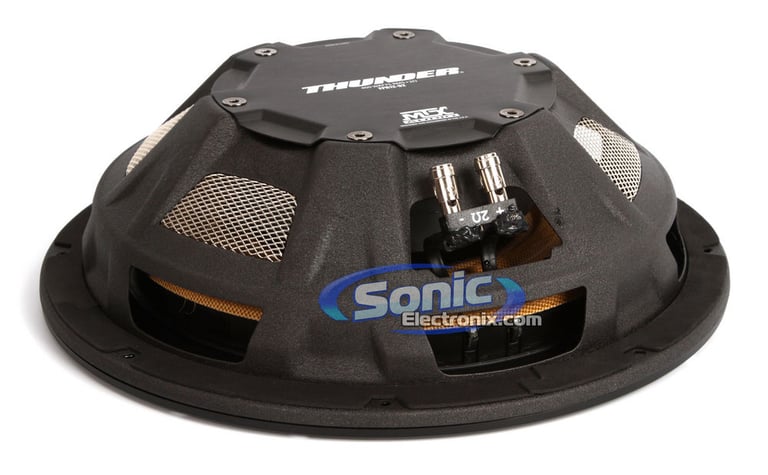

MTX Audio FPR12-02

400W 12" Flat Piston Round Series Single 2 Ohm Subwoofer

MTX
Shop all MTX
Product videos
highlight-star-icon

• 800W Peak
• 400W RMS
• Molded Polypropylene woofer cone material
• Rubber surround
• Shallow mount application
• 1.75" High temperature voice coil

Learn more about the fpr1202

We apologize

This item has been discontinued


Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

120
-33.36%

$9.99

List price $14.99

40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
GM1483B main

Scosche GM1483B / GM1483 Dash Kit

Install a new Single-DIN car stereo in select 1995-2023 vehicles from GMC, Chevrolet, Cadillac trucks (Black)

119
-54.55%

$6.34

List price $13.95

70-1858 main

Metra 70-1858 Wiring Harness

Install a new car stereo in select 1986-2006 vehicles from Chevrolet, GMC, Pontiac

63
95-3005 main

Metra 95-3005 Dash Kit

Install a new Double-DIN car stereo in select 1996-2005 Astro and Safari

4
-10.72%

$49.99

List price $55.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99

Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

Product Highlights


• 800W Peak
• 400W RMS
• Molded Polypropylene woofer cone material
• Rubber surround
• Shallow mount application
• 1.75" High temperature voice coil

Description


MTX brand icon

Authorized dealer



General Features:

  • 12" Flat Piston Round Series Car Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Recommended power range: 100 - 400 watts RMS
  • Impedance: Single 2 ohm
  • Molded Polypropylene woofer cone material
  • Rubber surround
  • Shallow mount application
  • One piece spider cone
  • 1.75" High temperature voice coil
  • 53oz. magnet motor structure
  • Frequency response: 22-150 Hz
  • Resonance Frequency (Fs): 29.4 Hz
  • Top-mount depth: 3-3/8"
  • Sensitivity: 83dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

MTX FPR12-02 thumbnail
(newest, current model)
MTX TT6512-02 thumbnail
(previous model, replaced by MTX Audio FPR12-02)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MTX Audio FPR12-02 Subwoofer

Mono Amp

Wiring Guide to Wire 2 MTX Audio FPR12-02 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 MTX Audio FPR12-02 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 MTX Audio FPR12-02 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Flat Piston Round Series
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
1-3/4"
Frequency Response
22 - 150 Hz
Sensitivity
83 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
.84 cubic feet
Maximum Sealed Box Volume
.84 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/3"
Cutout Diameter
11-1/16"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.4 Hz
Equivalent Compliance (Vas)
43.67 liters
Total Speaker Q Value (Qts)
.77
Electrical Q Value (Qes)
.900
Electrical Resistance of Voice Coil (Re)
1.75 ohm
Mechanical Q Value (Qms)
5.450
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

FPR12-02

Weight:

13.00lbs

Internal SKU:

fpr1202

Internal Product ID:

43791

Product and How-to Videos


  • MTX Audio FPR Car Subwoofer | Shallow Sub
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


MTX Audio FPR12-02 thumbnail image

5 star
78%
4 star
22%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Sounds great!

I have had this sub for about 6 months now, and i am very impressed with how it handles the lows and how hard it hits. I had this sub professionally installed, at least i thought was a professional install. I was a little disappointed when I was told he had to turn the amp down because it was distorting early. But even being driven with less than rms i wasn't concerned because it still sounded great and hit harder than i expected it too. After about a week i started poking around my install and found out that the box was not in the specified range for the sub it was well below the minimum box size. I was pissed to say the least that i spent all that money and they couldn't even build the box to spec. So i will be building my own box soon and will be even happier with the output, quality and poundage of this sub. In fact I've already ordered one for my new 14 chevy crew. Cant wait to get it installed! On a side note i did notice the box said made in China....not sure if its all MTX products or just the shallow mount. So the only disappointment i have is another once proudly made in USA product is now made overseas.

By Tony on November 3, 2014

44 found this helpful


Never a bad product from MTX

I've always had MTX since I first got into audio 10+ years ago. I've never had any problems with MTX and these don't fall short of perfect. They sound awesome in a very confined box under my backseat of my 4 door truck. They sound as though they are in a trunk or SUV and the bass is amazing. The lows are clear and don't bottom out, the highs are just as crisp and so are the mid basses. I'd definitely recommend these for any setup, especially for those who don't have much space. They are definitely worth it.

By Chris on May 4, 2014

42 found this helpful


I love it!

I have this sub in my lancer evo IX. This sub has a nice punch in sealed boxesé If you are looking for a shallow mount the mtx fpr12-02 is the best bang for your buck

By Francis on March 12, 2013

40 found this helpful


MTX shallow mount

this sub is amazing. it has good output in sealed boxes. and i tried it out in a cheap bandpass box and sounded great. its definitely a contender in the shallow mount race. A+

By steven on December 13, 2012

37 found this helpful


Great Sub!

I am surprised that I couldn't find a single review of this sub. I took a chance after a lot of looking around and am very happy I did. I had a Kicker CVT 2 ohm in a box about 1 cubic foot in my truck. It didn't sound that great. I put this MTX in and the difference is unbelievable. So much better sound quality, it hits harder and lower too. Can't get over how much cleaner it sounds than my Kicker. If you are looking for a good shallow mount, definitely check these things out.

By BW on September 6, 2012

33 found this helpful


BOOM!

I've had this installed in my crew cab under the rear seat for a while now. It is in a box that is .90cuft by outside dimensions and it hits twice as hard as the box "professionally" built with the same sub in my other truck. So i will be building a new box for the other truck as well. Sometimes if you want it done right you have to do it yourself i guess. I have not been very nice to this sub either, in either truck, and it takes it for hours on end sometimes with no issues at all. Another awesome product from MTX

By Anthony on April 11, 2015 Checkmark Icon Verified purchase

26 found this helpful


Good sub in a small space

I purchased this sub to put into a Ford focus hatchback. I am powering the sum with 500W at 2ohm. The sub box is sealed and built to MTX's recommended airspace dimensions. The sub has no problem providing some serious punch even though it is a shallow mount sub. There are some deep notes that it has trouble reproducing but that is a product of being a shallow mount sub and not the speaker itself. By default you are giving up some sound by going with a shallow sub but it is only noticeable on very low hertz notes. If space is at a premium than this great all around sub is the way to go.

By Dan on January 30, 2017 Checkmark Icon Verified purchase

12 found this helpful


Excellent Sub

I have to admit I have never had a shallow mount sub before. Have usually had dual voice coil subs but since I have a F250 CrewCab really didn't have the space for a regular depth or a huge sub for that matter. So I decided to gibe one of these a whirl. An must admit I am completely blown away!! Nice deep crisp bass! I have it paired up with a MTX 500.1 amp an a .80 cubic square foot box an that seems to be the ticket! Have not maxed out the amps power yet have it turned on to half for the time being.

By Carl on June 19, 2016

11 found this helpful


Deep Bass for my F150 Super Crew!!

I ordered two of the MTX FPR12-02 Subwoofers for my 2015 F150 Super Crew. I installed them in an $80 downfire box(.80 ft per chamber) that i ordered online. These subs sound Incredible!! They get looooowwwwwww and Deeeeeeeeeeppppp!! Exactly what I needed for my system. I have them being powered by a ROckford Fosgate P500X1BD and it sounds AMAZING!! I did due diligence for a while before deciding to get these. I was debating between these MTX FPR 12 and the JL audio TW3 12. I am happy I went with these because I got two for the price of one JL and these hit deep just like JL in my opinion if you have good amp. I LOVE THEM and they are Very appealing!! THanks SOnicelectronix!!

By D.L. on June 2, 2016 Checkmark Icon Verified purchase

11 found this helpful




XDVD276BT small

Dual XDVD276BT

6.2" Double DIN Touchscreen DVD Multimedia Receiver with Bluetooth

(13)

$129.95

List price $179.99

15SVR-Digi Camo small

Atrend 15SVR-Digi Camo

Single 15" Desert Digi Camo Vented Subwoofer Enclosure

$198.95

List price $274.95

95-3004 small

Metra 95-3004

Double DIN Stereo Dash Kit for select 2002 Escalade and Escalade EXT

$33.99

List price $64.99

HCC69CX small

Hifonics HCC69CX

300W Peak (150W RMS) 6x9" Colossus Classic Series 2 Way Coaxial 4-ohm Speakers

$59.99

List price $69.99

AXSUB-CH5 small

Axxess AXSUB-CH5

Active 2-Channel Line Output Converter and Subwoofer Data Interface for select 2014-2026 vehicles from Ram, Jeep, Dodge

$205.99

List price $228.99

MS-SRX400 small

Fusion MS-SRX400

2.7" Custom Fit Mount Style Apollo Series Digital Audio Marine Receiver with Bluetooth

$399.99

List price $399.99

TCWRT102 small

Kicker TCWRT102 (48TCWRT102)

800W Peak (400W RMS) Loaded Single 10" Sealed Truck Enclosure with Passive Radiator

$263.96

List price $359.99

8PRO300MB-8 small

DS18 8PRO300MB-8 (Sold Individually)

300W Peak (150W RMS) 8" 8PRO Series 8-ohm Mid-bass Speaker

$71.95

List price $71.95

PS-SWMCP-B-2.250 small

JL Audio PS-SWMCP-B-2.250

2.25" Pipe Mounting Fixtures for VeX Marine Tower Speakers

$179.99

List price $179.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Dodge Viper

2003 Chevrolet Astro

2017 Ford Escape

1995 Mercury Sable

2008 Mercury Sable

1993 Audi 100

2003 Acura RL

1984 Volkswagen Scirocco

2024 Ford Ranger

2007 Volvo S60

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
