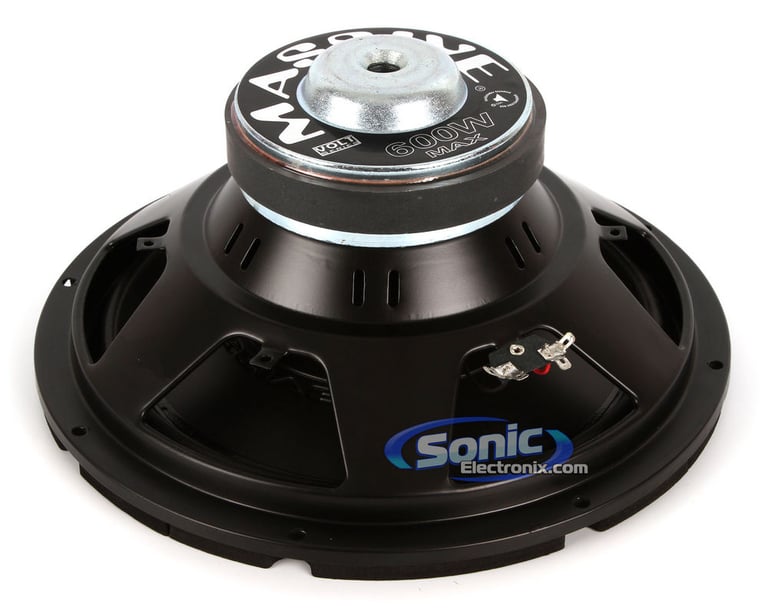

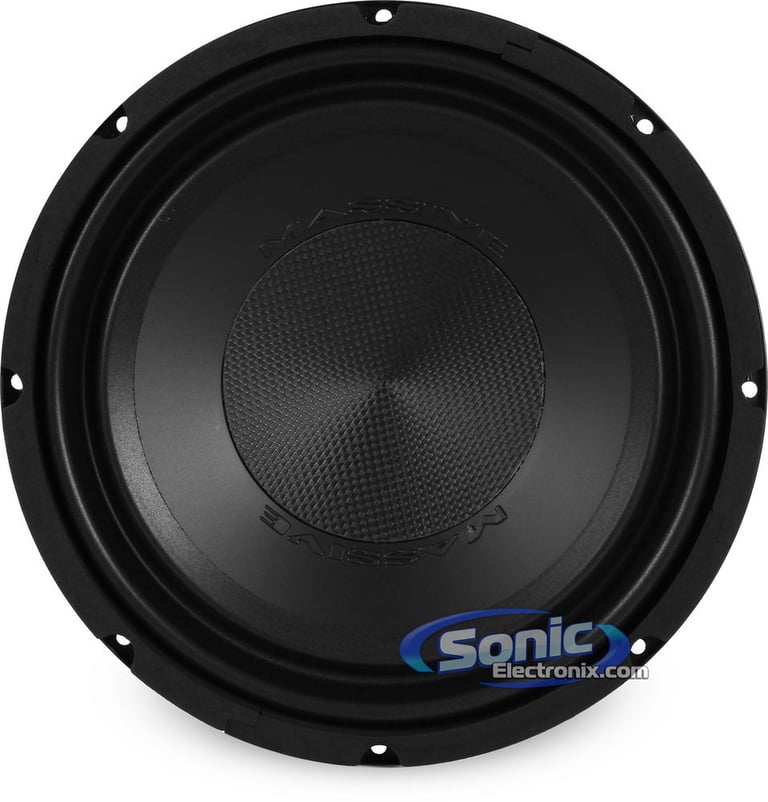

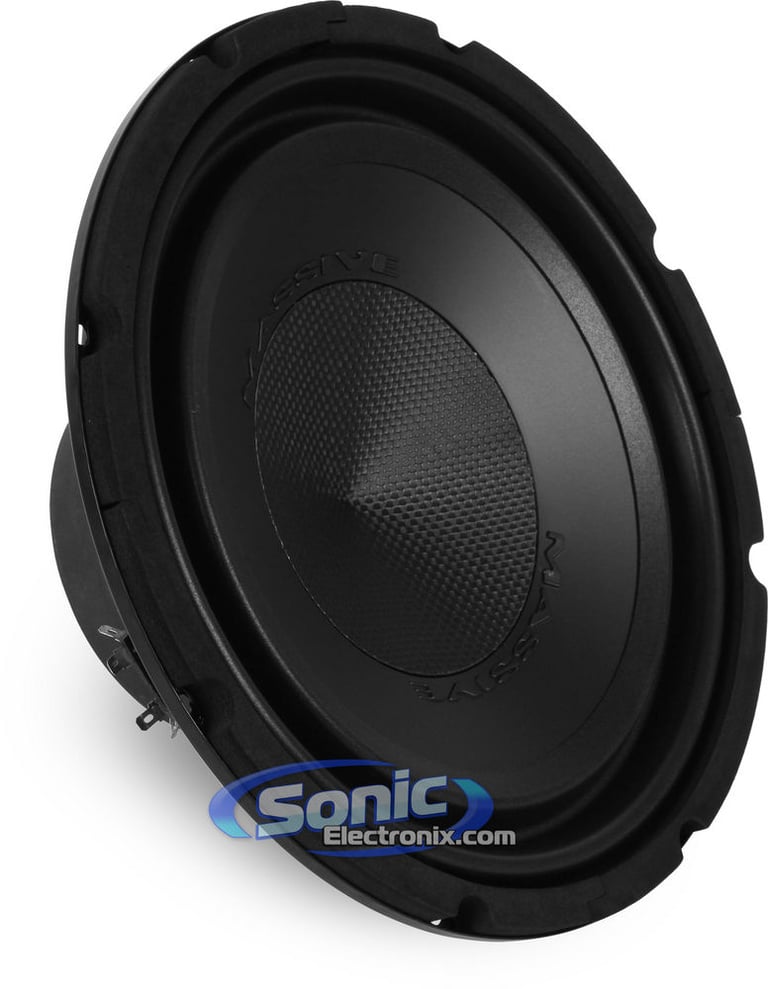

Massive Audio V 12S4 II

300W 12" Volt Series Single 4-Ohm Subwoofer

Massive Audio
Shop all Massive Audio
Product videos
highlight-star-icon

• 600W Peak
• 300W RMS
• Custom Tooled Poly Mica Cone
• Dual Layer N-Roll Polyester Foam Surround
• Poly-Cotton Spider
• Stamp Steel Basket

Learn more about the v12s4ii

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

95-7526B main

Metra 95-7526B Dash Kit

Install a new Double-DIN car stereo in select 2014-2018 3

-10.00%

$89.99

List price $99.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

70-7905 main

Metra 70-7905 Wiring Harness

Install a New Car Stereo in select 2016-2024 vehicles from Mazda

-11.12%

$23.99

List price $26.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Product Highlights


• 600W Peak
• 300W RMS
• Custom Tooled Poly Mica Cone
• Dual Layer N-Roll Polyester Foam Surround
• Poly-Cotton Spider
• Stamp Steel Basket

Description


Massive Audio brand icon

Authorized dealer

Massive Bass

The New Massive Audio VOLT Series subwoofer uses a custom designed stamp steel basket with a heavy powder coat finish that surrounds a custom tooled poly mica cone and a Massive logo embossed on the ultra-low mass woven glass fiber dust cap. In the center of the cone is the 1.5" Single 4 Ohm voice coil with aluminum former and reinforced neck joint. It is attached to the steel frame with a pro audio Dual Layer 1" N-Roll polyester foam surround. The Poly-Cotton spider with woven round tinsel lead wire holds the V.C. in place and helps deliver the CEA 2031 rated 600 Max Watts/300 Watts RMS power. All this helps the 4 layer voice coil pound its way though a single 50 oz. high grade ferrite ring with a FEMM linear flux saturated motor design which helps control motion and reduces distortion.

General Features:

  • 12" Single 4-Ohm VOLT Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Impedance: 4 ohm
  • Custom tooled poly mica cone
  • 1" Dual Layer N-Roll polyester foam surround
  • Poly-Cotton spider
  • Stamp steel basket with a heavy powder coat finish
  • 1.5" Voice coil with aluminum former
  • 50oz. High grade ferrite ring with a FEMM linear flux saturated motor
  • Frequency response: 20-250 Hz
  • Resonance Frequency (Fs): 33.5 Hz
  • Sensitivity: 86.3dB
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Massive Audio V 12S4 II Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Massive Audio V 12S4 II Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Massive Audio V 12S4 II Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Massive Audio V 12S4 II Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Volt Series
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1.5"
Frequency Response
20 - 250 Hz
Sensitivity
86.3 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene-Mica
Woofer Surround
Polyester Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.3 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.73 cubic feet
Maximum Ported Box Volume
3.62 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33 Hz
Equivalent Compliance (Vas)
62.5 liters
Total Speaker Q Value (Qts)
0.768
Electrical Q Value (Qes)
0.881
Mechanical Q Value (Qms)
6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

V 12S4 II

Weight:

9.60lbs

Internal SKU:

v12s4ii

Internal Product ID:

43877

Product and How-to Videos


  • Dalek Massive @ Massive Audio Booth | CES 2014
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Massive Audio V 12S4 II thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


KAPPA103WDSSI_10DVRRED small

Infinity Kappa 103WDSSI w/ Atrend 10DVR - Red Carbon Fiber

1350W Peak (450W RMS) 10” Kappa Series Single 2-or 4-ohm Car Subwoofer w/ Empty Dual 10" Carbon Series Ported Subwoofer Enclosure

(1)

$459.89

List price $1004.89

MG13673 small

Mean Green Alternators MG13673

High Output Alternator with V-Belt Pulley for select 1994-2015 Tacoma and T100 and 4Runner

$519.99

List price $519.99

PYRO 12_12SSPF small

800W Massive Audio Pyro 12 Subwoofer + Enclosure Bass Package

Massive Audio Pyro 12 12" Subwoofer + 12SSPF Single 12" Sealed Subwoofer Enclosure

(12)

$73.10

List price $199.94

V 124ii small

Massive Audio V 124 (V 124ii)

300W 12" Volt-Series Dual 4 ohm Subwoofer

(3)

$34.99

List price $139.95

MG8292SHD small

Mean Green Alternators MG8292SHD

375 Amp High Output Alternator for select 2005-2014 vehicles from GMC, Chevrolet, Cadillac

$879.99

List price $879.99

SMD3004AB_XKIT04 small

DS18 SMD-300.4AB with NVX 1/0 Gauge Amp Kit

1200W RMS Class AB SMD Series 4 Channel Car Amplifier with Bass Remote

(86)

$793.10

List price $821.93

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Mazda 3

1969 Chevrolet Nova

2010 Ford Flex

2003 Lexus RX300

2005 Acura RL

1991 Dodge Colt

2014 Kia Optima

1978 Buick Skyhawk

1992 Jeep Comanche

1997 Dodge Avenger

Vehicle
Store
Delete

1950 Harley Davidson E

Vehicle
Store
Delete

2023 Can-Am Defender DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
