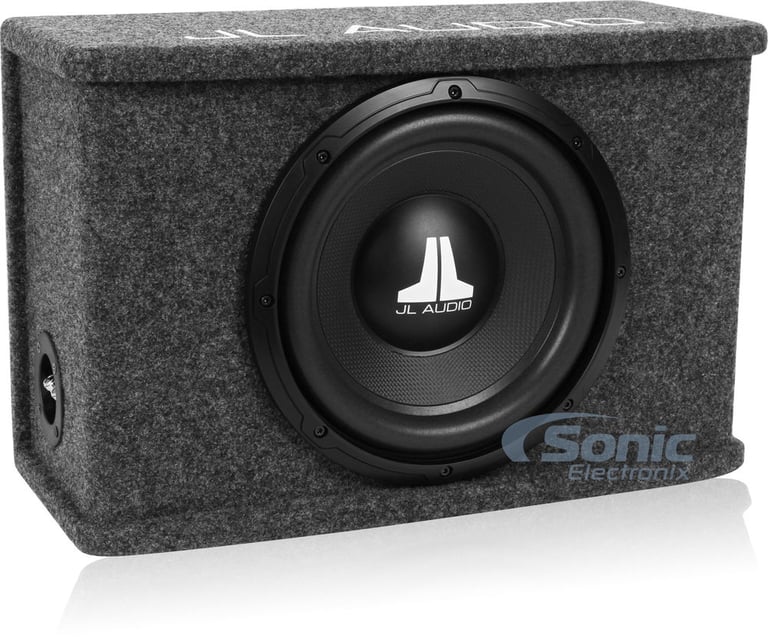

JL Audio BassWedge CS110-WXv2

200W RMS 10" WXv2 BassWedge Series Enclosed Subwoofer System

JL Audio
Shop all JL Audio

• 10" Single 4 ohm WX Series Car Subwoofer
• Sealed Subwoofer Enclosure
• RMS Power: 200 Watts
• Impedance: 4 ohms
• Polypropylene cone material
• Resists breakdown under extreme conditions

Learn more about the cs110wxv2

We apologize

This item has been discontinued


JL Audio

Authorized dealer

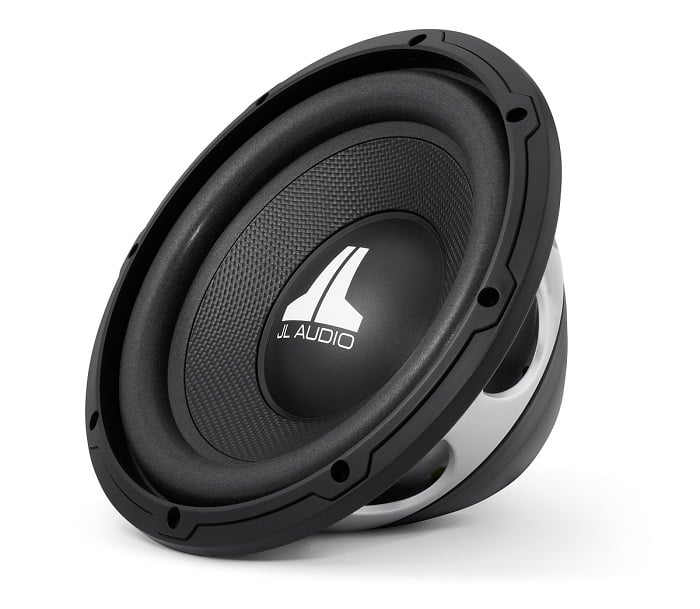

JL Audio WXv2 Series Subwoofer Driver
JL Audio WXv2 Series Subwoofer Driver

The WXv2 offers true value through its solid performance, proper JL Audio build quality and reasonable price. The WXv2 is an ideal subwoofer driver for modest power applications where the existing audio system simply needs some proper subwoofer bass. The driver is able to achieve this bass by optimizing its motor, polypropylene cone and foam woofer surround, providing a respectable one-way linear excursion of 10 mm. The driver features excellent suspension linearity and a DMA-optimized motor system to keep distortion low. JL Audio's patented Elevated Frame Cooling design is also on-board for enhanced power handling and reliability. When listening to the strong bass from this driver, its hard to believe that the WXv2 is JL Audio's least expensive subwoofer driver.

Although the WXv2 Subwoofer can be driven with as little as 75 Watts, for best audio performance it is recommended to run an amplifier capable of between 175 - 200 Watts of continuous power per driver, like the JL Audio JX250/1D or JL Audio XD200/2v2.

JL Audio Patented Cooling Technology

JL Audio Patented Cooling Technology

JL Audio's patented Elevated Frame Cooling design delivers cool air into the heart of the subwoofer in ways no other manufacture's driver can. Purpose-engineered slots located directly above the top-plate stream air to the voice coil. In addition, the upper surface of the top-plate is directly exposed to this air flow, whereas on a conventional design it is isolated from this flow by the lower flange of the frame. This technology not only increases thermal power handling, but also sound quality by minimizing dynamic parameter shifts and power compression. In plain English, this driver keeps itself cool so you can play your system longer, safer and without having to worry about frying the motor.

Extraordinary Linearity and Control

Tight, Clean, Articulate Bass

DMA is JL Audio’s proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, WXv2 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass. Its main catalyst is the driver's Ultra-long Voice Coil, that allows extreme linear excursion, phenomenal power handling and control, control, control.

JL Audio 10WXv2 Recommended Power Range

Subwoofer Features:

  • 10" WXv2 Series Subwoofer Driver
  • Power Handling:
    • RMS: 200 watts
  • Recommended Power Range: 75 - 200 watts
  • Impedance: Single 4-Ohm
  • Polypropylene woofer cone material
  • Foam woofer surround
  • Proprietary dynamic motor analysis (DMA) improves motor behavior
  • Elevated frame cooling delivers cold air above the top plate to the voice coil
  • Resists breakdown under extreme conditions
  • Integrated foam rear gasket which provides an optimal seal
  • Great application flexibility with small or medium enclosures
  • Black Steel-Mesh Grille Insert Available: JL Audio SGRU-10
  • Mounting depth: 4.80 "
  • Cutout dimensions: 9.0625 "
  • Free Air Resonance (Fs): 29.38 Hz
  • Sensitivity: 86.06 dB
  • Xmax: 10.0 mm
  • Reference Efficiency (no): 0.2400%
  • Frequency response: ~25 ~ 250 Hz
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

General Enclosure Features:

  • Sealed Subwoofer Enclosure
  • Subwoofer mounting depth: 4-13/16"
  • Subwoofer cutout diameter: 9-1/16"
  • Dimensions: 18-3/4"W x 12-1/10"H x 7-3/4"D

JL Model Comparison
From entry level woofers to competition grade, JL has them all. Let us find which one works for you.

Model RMS Power Cone Material Surround Material Sensitivity (dB) Frequency Response Xmax (mm Terminals Made In America
W7 Series 500-1500 Watts Polypropylene Foam Overroll 82.7 - 86.3 15-250 Hz 19-32 Push Terminals
W6 Series 600 Watts Polypropylene Rubber 82.7 - 85.4 20-200 Hz 19 Push Terminals
W3 Series 150-600 Watts Polypropylene Rubber 80.5-87.90 20-250 Hz 8.89-15.5 Push Terminals
W1 Series 150-300 Watts Polypropylene Rubber 83.9-86.1 22-200 8-11 Push Terminals
W0 Series 300-500 Watts Polypropylene Foam 84-88.20 20-250 Hz 11.4-12.7 Push Terminals
WX Series 200 Watts Polypropylene Foam 86-87.17 22-250 Hz 10 Spade Terminals

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details

Subwoofer Specifications
WX Series
Subwoofer Size
RMS Power Handling
200 watts
Woofer Composition
Woofer Surround
86.06 dB
Frequency Response
25 - 250 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Number of Subwoofers
Box Style/Shape
Wood Thickness
Number of Terminals
Box Exterior Color
Box Finish
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider

Item Details


Model Number:




Internal SKU:


Internal Product ID:


Customer Ratings & Reviews

5 star
4 star
3 star
2 star
1 star


Customer Reviews

Sort by:



I bought this sub while I was laid off from my work in winter,and because of the weather I didn't install at that time. 2 weeks ago ( 6/23/13 ) I put the sub in and 2 amps, one to my speakers and one to this sub. I to be honest was amazed at how great it sounded . I didn't want no BOOM , BOOM but just to put life in the sound and boy did it.. It sounds great I could not be more happy. Price was right and sound is great! and Yes I would recommend this to any of my friends.

By mark on July 3, 2013


found this helpful.

JL Audio CS110Wxv2

I recently have this subwoofer in the back of my 04 tacoma xtra cab. Thanks to the really shallow depth it looks very clean and hits decently hard for the money. I have my whole system powere by a JL HD 900/5 amp with 500 watts going to the sub (rms) so there is definately no shortage of power. The only thing I'm considering about doing is upgrading to the CS210Wxv2 because my amp can handle it, and as a teenager, THE MORE BASS THE BETTER!

By Matt on January 30, 2013


found this helpful.


Price for this is to low, love the small size I have a Chevy HHR and a 2 yr.old child I load up the car with baby essentials and its not in the way. The sound...OMG!!! I wasn't looking to rehatch my youth but this 10in hits hard! I have a 300 watt kicker app only turned up half way, anymore I'd probably get kicked out of my apartment. Best speaker I have ever bought without hurting my wallet. I would buy 2 more if the wife would let me. Thanks y'all

By Deja on January 29, 2016
