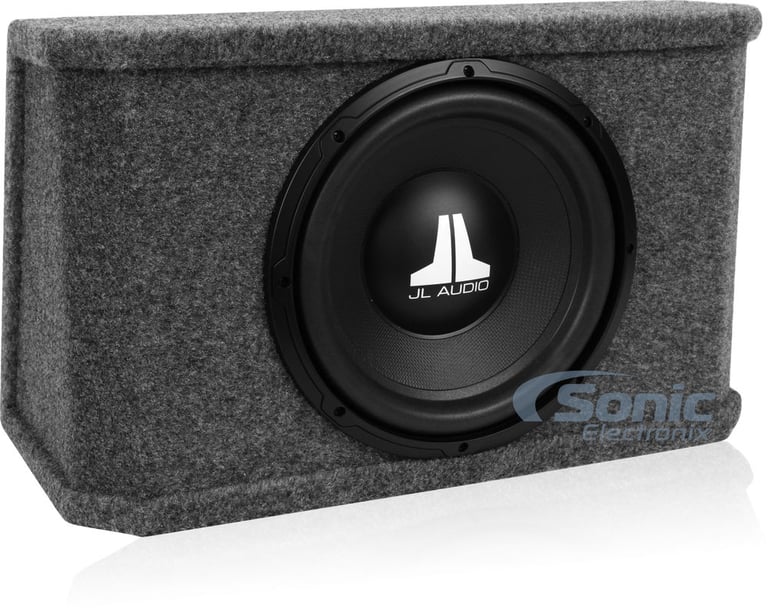

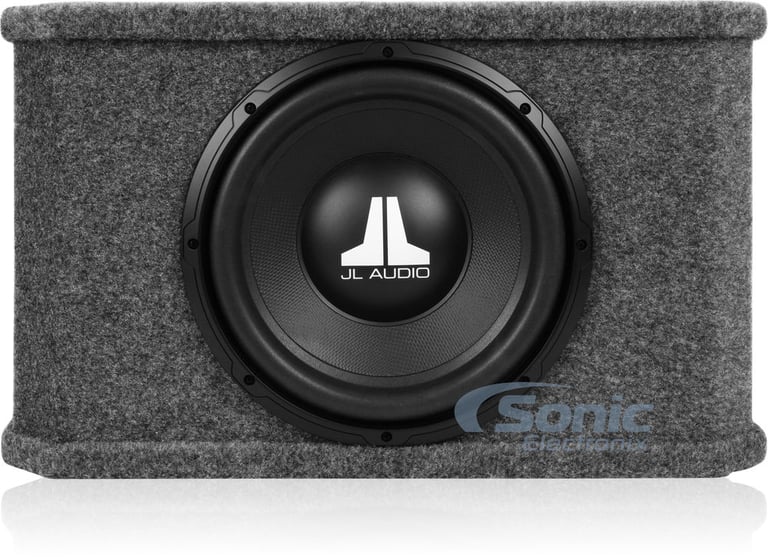

JL Audio PWM112-JXWXv2

Powered Subwoofer System with Single 12WXv2-4 Subwoofer Driver & Sealed Enclosure

JL Audio
Shop all JL Audio
highlight-star-icon

• Powered Subwoofer System
• JL audio J2250.1 monoblock amplifier
• Sealed Subwoofer Enclosure
• Single 4 ohm WX Series Car Subwoofer
• 175 Watts RMS @ 4 ohm

Learn more about the pwm112jxwxv2

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

CAR714MW main

Jensen CAR714MW

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

1

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Description


JL Audio brand icon

Authorized dealer

Subwoofer Features:

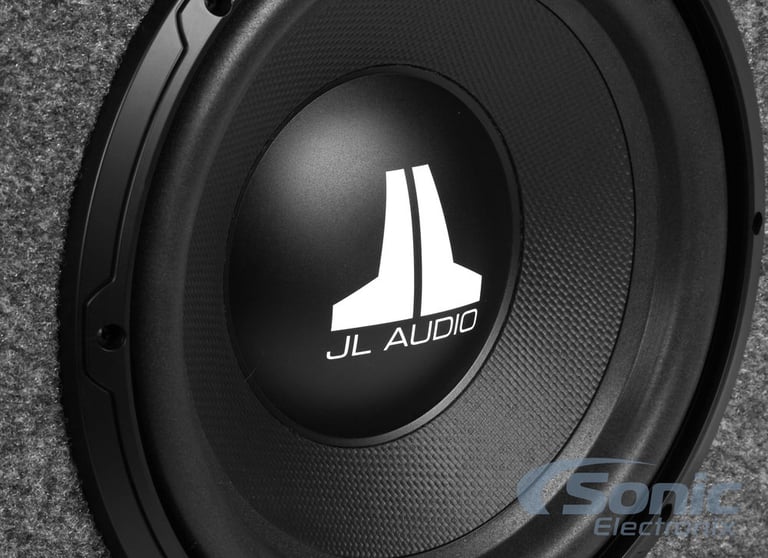

JL Audio 12WXv2-4
12" Single 4 ohm WX Series Car Subwoofer
  • Power Handling:
    • RMS: 200 Watts
  • Impedance: 4 ohm
  • Proprietary dynamic motor analysis (DMA) improves motor behavior
  • Elevated frame cooling delivers cold air above the top plate to the voice coil
  • resists breakdown under extreme conditions
  • Integrated foam rear gasket which provides an optimal seal
  • Polypropylene cone material
  • Foam surround type
  • Frequency response: 22-250Hz
  • Sensitivity: 87.17dB
  • 2 Year Manufacturer's Warranty

General Enclosure Features:

  • Sealed Subwoofer Enclosure
  • Subwoofer mounting depth: 5-5/16"
  • Subwoofer cutout diameter: 11-1/16"
  • Dimensions: 24-1/4"W x 14-1/2"H x 13-1/8"D

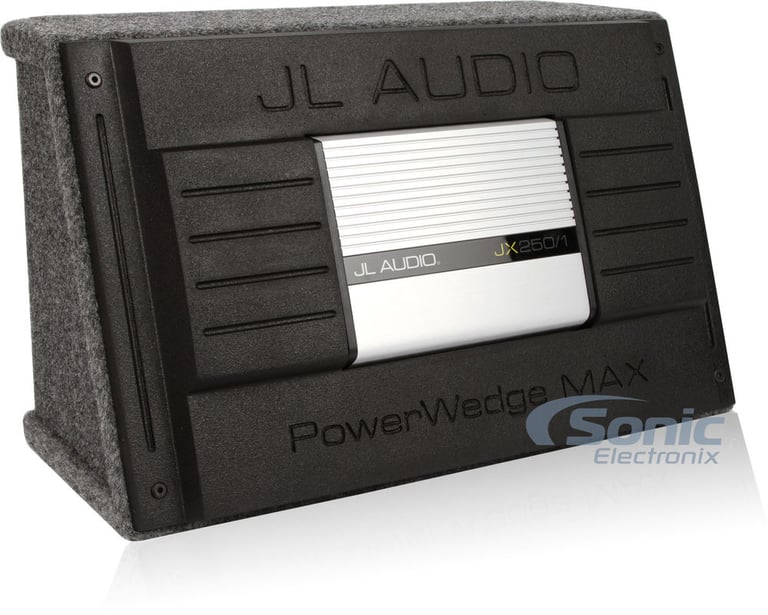

Amplifier Specifications:

  • JL Audio JX250/1 monoblock amplifier
  • 175 Watts RMS @ 4 ohm
  • Variable low-pass crossover from 60-240Hz
  • Speaker level inputs
  • Preamp Outputs

Product history:

JL Audio PWM112-JXWXv2 thumbnail
(newest, current model)
JL Audio PWM112-WXJX thumbnail
(previous model, replaced by JL Audio PWM112-JXWXv2)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
175 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
60 - 240 Hz
Bass Boost
0 - 9 dB
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
200 watts
Total RMS Power Handling
200 watts
Woofer Surround
Polypropylene
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.17 dB
Frequency Response
25 - 250 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
14-1/2"
Width
24-1/4"
Depth
13-1/8"
Second Width
8-1/4"
Wood Thickness
5/8"
Number of Terminals
1
Box Exterior Color
Gray
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PWM112-JXWXv2

Weight:

45.00lbs

Internal SKU:

pwm112jxwxv2

Internal Product ID:

44220
