Product videos

Product highlights

• RMS: 300W x 1 @ 4 ohms, 400W x 1 @ 3 ohms, 500W x 1 @ 2 ohms
• Unregulated PWM switching type power supply
• Class D Circuitry
• Bass Boost: 0-12 dB
• Speaker-level (high-level) inputs with included harness
• Dimensions: 7.68"W x 10.94"L x 2.09"H

Learn more about the jx5001d

Product Highlights

Description

Authorized dealer

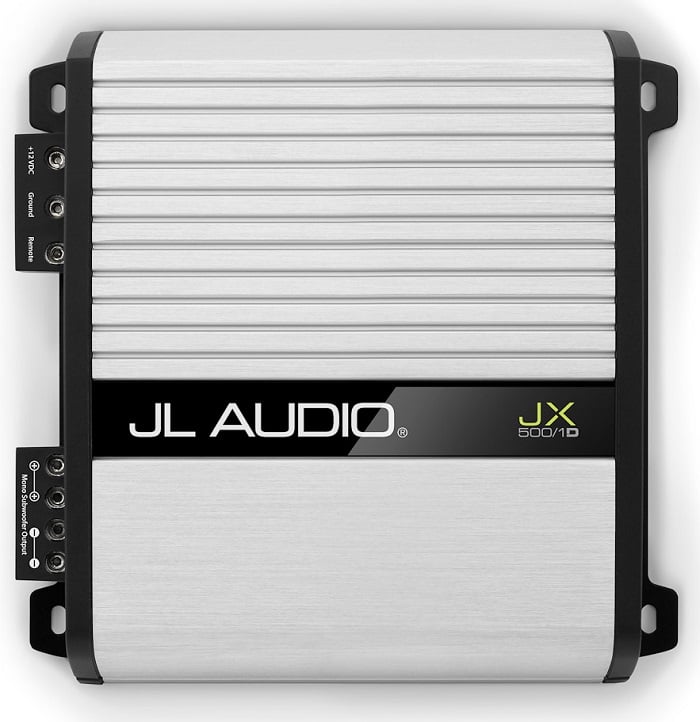

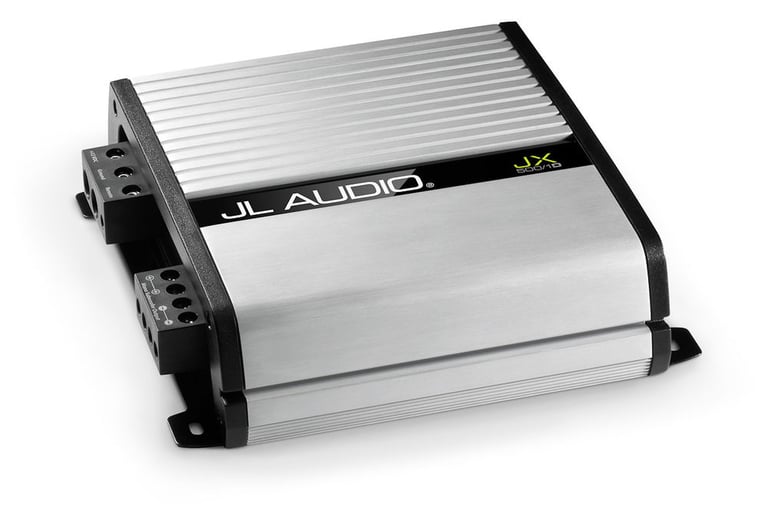

JL Audio JX500/1D - JX Series Monoblock Class D Subwoofer Amplifier

The JL Audio JX Series of amplifiers are designed with a specific purpose; to deliver clean, rock-solid performance and reliability at an affordable price. Unlike gimmicky price-conscious amplifiers, JL Audio employs specified oversized output transistors and rugged MOSFET power supplies to unsure proper current, thermal capacity and better overall performance. In addition, the JX500/1D includes flexible signal processing capabilities with a fully variable 12 dB/octave crossover filter, pass-through preamp outputs and a Bass EQ. With the optional JL Audio RBC-1 Remote Level Control (sold separately), you can control the subwoofer volume from the front of the vehicle.

JX monoblock subwoofer amplifiers are specifically designed to drive subwoofers. Their frequency response is limited to the range below 150 Hz., making them unsuitable for driving midrange speakers or tweeters.

Integration Flexibility

For those systems that do not offer a preamp level signal option, you can connect speaker level signals directly to the "Hi-Level Inputs" connector using the supplied connector and wire harness. Simply splice the appropriate left/right and positive/negative wires to the included harness and plug the harness into the "Hi-Level Inputs" connector on the amplifier. The JX monoblock will attenuate the high-level signal to make it compatible with its input stage. Alternatively, a traditional left/ right pair of RCA type jacks is used for preamp level (low-level) signals. This is the preferred connection method whenever available.

Low-Pass Active Filter

The JX monoblock features a 12 dB/octave low-pass active filter for its internal channel. This feature is designed to attenuate frequencies above its filter frequency, so that the system's subwoofer(s) do not reproduce any audible and often harmful mid-range frequencies. The low-pass filter is fully variable between 50 Hz and 200 Hz via the "Filter Frequency" control knob. 80 Hz is a good starting point for system tuning, but its also advisable to match the crossover point with that of your satellite speakers' high-pass filter - this ensures that your system is properly distributing the frequencies to the appropriate medium.

General Features:

JX Series Monoblock Class D Subwoofer Amplifier
RMS Power Rating (14.4V):

4 ohms: 300 watts x 1 chan.
3 ohms: 400 watts x 1 chan.
2 ohms: 500 watts x 1 chan.

RMS Power Rating (12.5V):

4 ohms: 235 watts x 1 chan.
3 ohms: 300 watts x 1 chan.
2 ohms: 410 watts x 1 chan.

Unregulated PWM switching type power supply
LED power (green) and protect (red) indicators
Soft start turn-on prevent clicking and popping when system turns on
Speaker-level (high-level) inputs with included harness
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for effective heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals

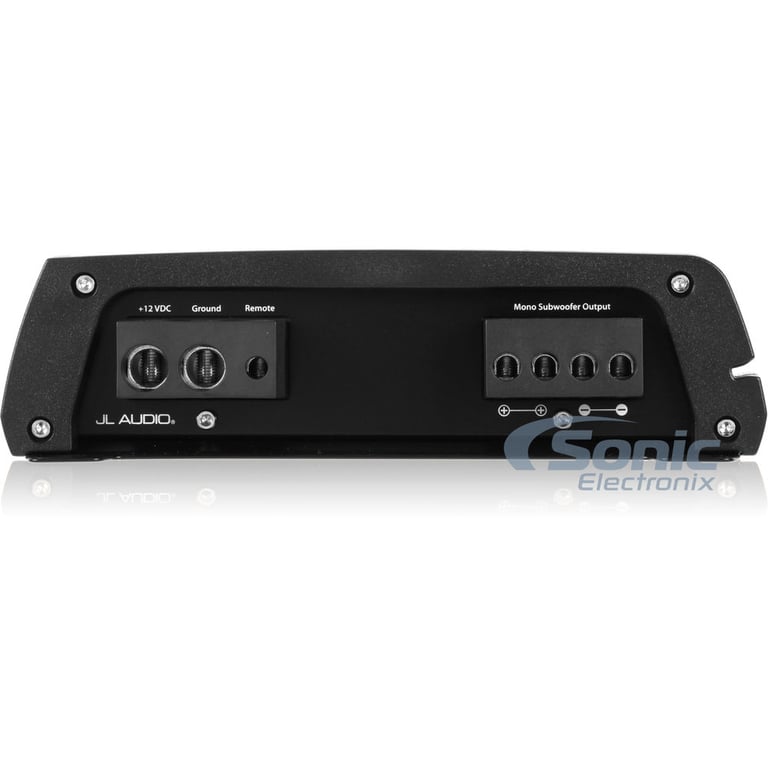

Dual speaker terminals simplify the hookup of multiple speakers
Remote bass level input (JL Audio RBC-1 sold separately)

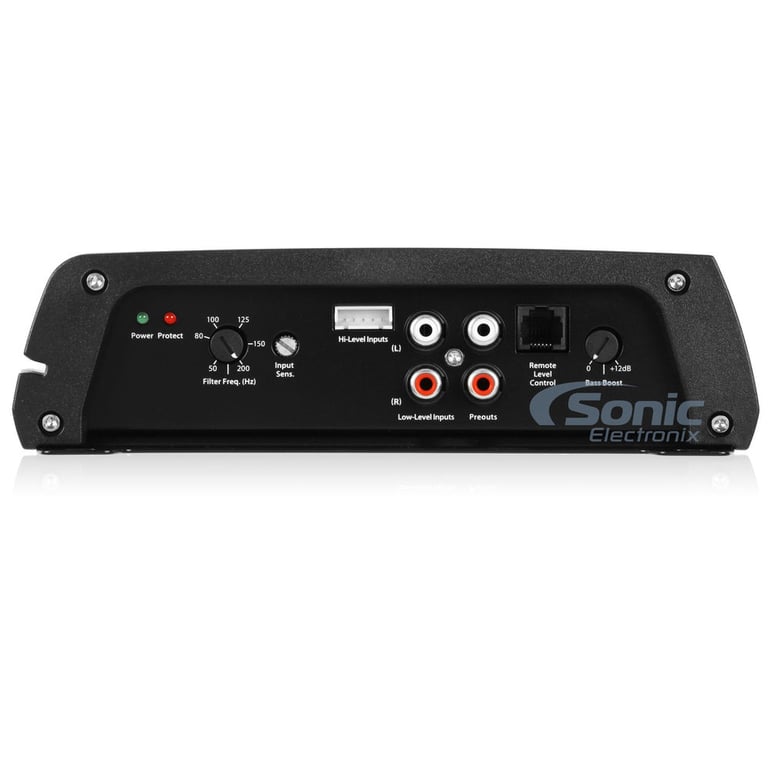

Input sensitivity:

Low level input: 200mV - 4V
High level input: 2.0mV - 10.0V

Variable Bass Boost: 0 to +12 dB bass boost centered at 45 Hz
Variable low-pass filter: 50 - 200 Hz, 12 dB/octave
Frequency Response: 10 - 150 Hz ± 1 dB
Total Harmonic Distortion (THD): 1%
Signal to Noise Ratio: >62 dB
Damping Factor @ 4 ohms: >1000 @ 4 ohms
Fuse Rating: 50A x 1 inline (not supplied)
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Weight: 4.80 lb
Dimensions: 7.68"W x 7.83"L x 2.09"H
Authorized Internet Dealer
2 Year Manufacturer's Warranty

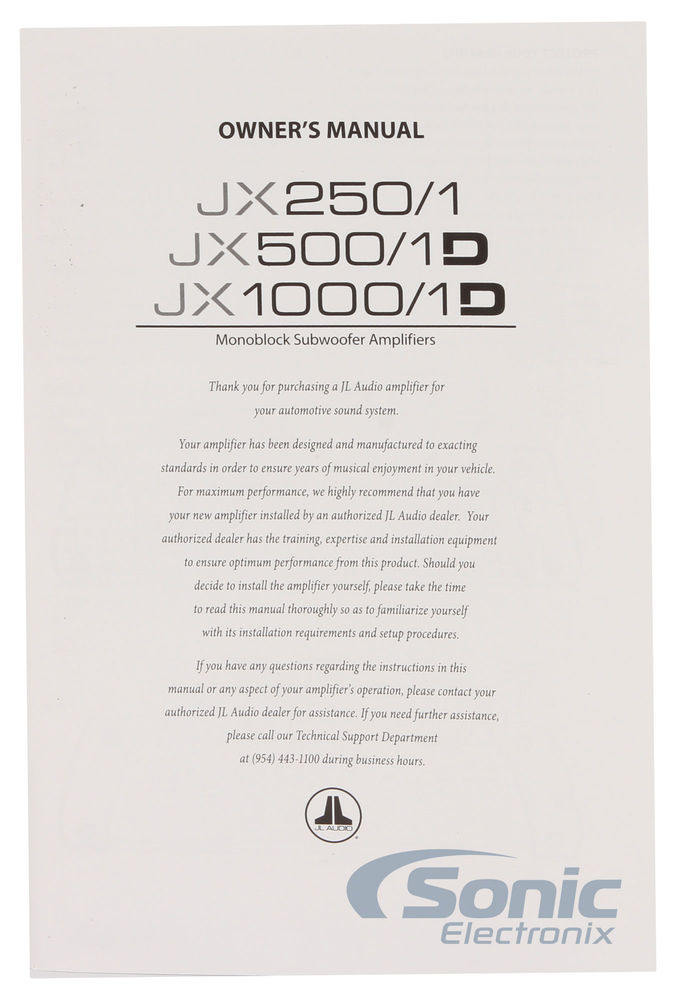

Check out the JL Audio JX500/1D Owner's Manual

Product history:

	JL Audio RD500/1 (newest, current model)
	JL Audio JX500/1D (previous model, replaced by JL Audio RD500/1)
	JL Audio JX500/1 (previous model, replaced by JL Audio JX500/1D)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

300 watts x 1 channel

RMS Power @ 2 ohms

500 watts x 1 channel

RMS Power @ .5 ohm

Power Specifications - Subwoofer Channel

Peak Power @ .5 ohm

Amplifier Specifications

Series

JX Series

Marine Certified

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohms

Minimum Impedance Bridged

Not Bridgeable

Frequency Response

THD at Rated RMS Power

Speaker Level Inputs

Yes - with included adapter

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 200 Hz

Signal-to-Noise Ratio

>62 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio RBC-1

Fan Cooled

Fuse Rating

50A X 1 In-Line Fuse Recommended

Strappable

Sonic Certified Amplifier

Not Tested

Low-Level Input Sensitivity

High-Level Input Sensitivity

What is in the box?

Other Accessory #6

Warranty and Return Policy

Parts Warranty Duration

2 years

Labor Warranty Duration

2 years

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Rate or review product

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		5
Features		4.7
Design		4.7
Usability		5

Customer Reviews

Sort by:

So LOUD!

I have this amp hooked up in my Silverado to a 10 inch kicker L7 dual 4 ohm in a sealed box wired down to 2 ohms final load, and once you've set the gain it is waaaay louder than expected!!! I got the class A/B in Janurary and just threw in my truck and thought it was pretty loud and two months later my friend set my gain and it started to shake the dashboard!!! If you want something as a beginner system, this is more than perfect because its tiny, so you can put it anywhere, and now its a class D!!! Get this!

By Wyatt M. on May 22, 2012

found this helpful.

Helpful? Report abuse

Great buy

Bought this to power my JL subwoofer and exceeded my expectations very good amp

By Anonymous on August 1, 2018 checkmarkIcon

Verified purchase

found this helpful.

Helpful? Report abuse

Great little Amp

I have had this amp for about 3.5-4 years now. The first two years I had it pushing a cheap Kenwood sub. The last two years I've had it hooked up to a JL 12W3. I am MORE than happy with this purchase. This little thing keeps chuggin along no matter what I throw at it. Never had an issue with overheating, even blasting music while it sat in a tight location over long, long road trips. Just bought a new car and I plan on using this same amp, no reason to upgrade unless I get the urge to run some crazy setup. Overall, very solid and clean power. Highly Recommended!

By Nate on February 11, 2016 checkmarkIcon

Verified purchase

found this helpful.

Helpful? Report abuse

JL Audio JX500/1D

Great little amp with a lot of true rms power. JL Audio is the best period.

By Anonymous on May 23, 2018

found this helpful.

Helpful? Report abuse

Probably a good Amplifier

Hooked this amplifier to a single JL 12W3v3-4 in a sealed box. They sound good together. I have only had the system for a few days, so I don't know how the reliability of this amplifier is. Hopefully it holds up. Installation was easy as the amplifier is small and came with screws.

One issue I came across was the double speaker outputs. There was no mention in the instructions on which terminals should be used for a single sub setup. After looking at forums and videos, I determined that any combination worked.

By Corander on October 21, 2015 checkmarkIcon

Verified purchase

found this helpful.

Helpful? Report abuse

Probably a good Amplifier

By Corander on October 21, 2015

found this helpful.

Helpful? Report abuse
