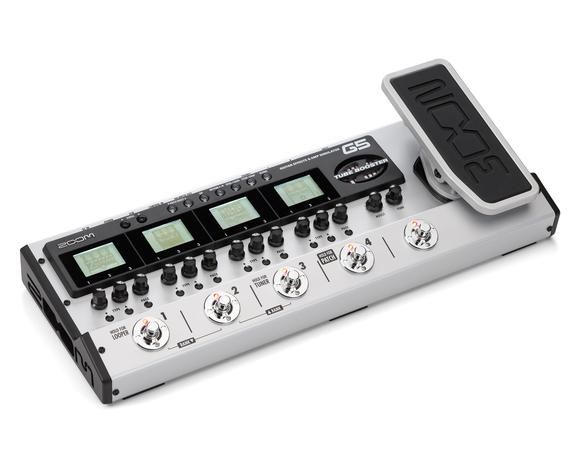

Zoom G5

Product Features:

• Guitar Amp Modeling Multi-Effects Pedalboard
• Tube Booster (12AX7 tube) for up to 16dB of amp overdrive
• 3D Z-pedal for multi-dimensional parameter control
• Four large LCD displays with intuitive amp and stompbox interface
• 123 stompbox presets and 22 amp models
• Simultaneous use of up to nine effects
• ZFX-IV effects processor
• Create and store up to 297 (99 banks x 3 patches) original tones
• Looper function with 60 seconds of phrase recording and overdubbing
• Integrated drum machine and auto-chromatic tuner
• USB audio interface for DAW recording
• Balanced XLR output and selectable modes for DI use
• Powered via AC adaptor (included)
• Includes Edit&Share and Steinberg Cubase LE recording software
• Also found as: Zoom G-5, Zoom g 5
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Specifications:

• Effect types: 125 types plus Z-Pedal effects
• Number of simultaneous effects: 9
• Number of user banks/patches: 3 patches x 99 banks
• Sampling frequency: 44.1kHz
• A/D conversion: 24-bit with 128x oversampling
• D/A conversion: 24-bit with 128x oversampling
• Signal processing: 32-bit floating point & 32-bit fixed point
• Frequency characteristics: 20-20 kHz +1 dB, -3 dB (10 kΩ load)
• Display: LCD x 4
• Input:
• Standard monaural phone jack
• Rated input level: -20dBm
• Input impedance: 1MΩ
• ACTIVE/PASSIVE (switch selectable)
• Output:
• (L/R):
• Standard monaural phone jack x 2
• Maximum output level: +5 dBm (with output load impedance of 10 kΩ or more)
• Phone:
• Standard stereo phone jack
• Maximum output level: 20 mW + 20 mW (into 32 Ω load)
• Balanced output:
• XLR connector
• Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD)
• PRE/POST (switch selectable)
• GND LIFT (switch selectable)
• Control input: For FP01/FP02/FS01
• Power: AC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16)
• Dimensions: 190mm(D) x 470mm(W) x 90mm(H)
• USB: USB Audio
• Weight: 3.1kg
• Options: FP01/FP02 expression pedal and FS01 foot switch
