Name: Crunch P1-1650.4 (Factory Refurbished)
Brand: Crunch
SKU: LS-p116504-RB
Price: 59.99 USD
Availability: Discontinued
Rating: 4.0000 (1 reviews)

Shop all Crunch

by Crunch

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

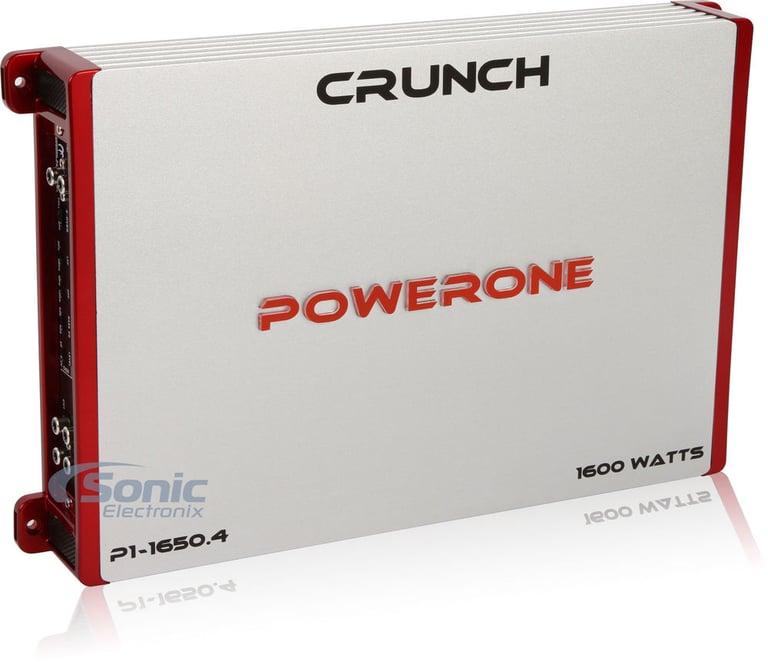

Crunch P1-1650.4 (Factory Refurbished) Image 1 — Crunch P1-1650.4 (Factory Refurbished)

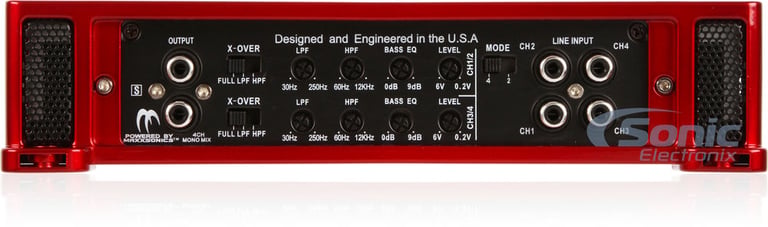

Crunch P1-1650.4 (Factory Refurbished) Image 2 — Crunch P1-1650.4 (Factory Refurbished)

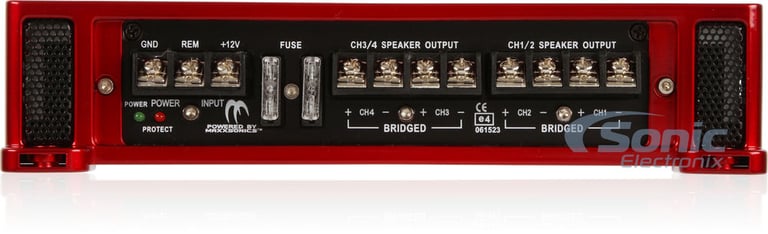

Crunch P1-1650.4 (Factory Refurbished) Image 3 — Crunch P1-1650.4 (Factory Refurbished)

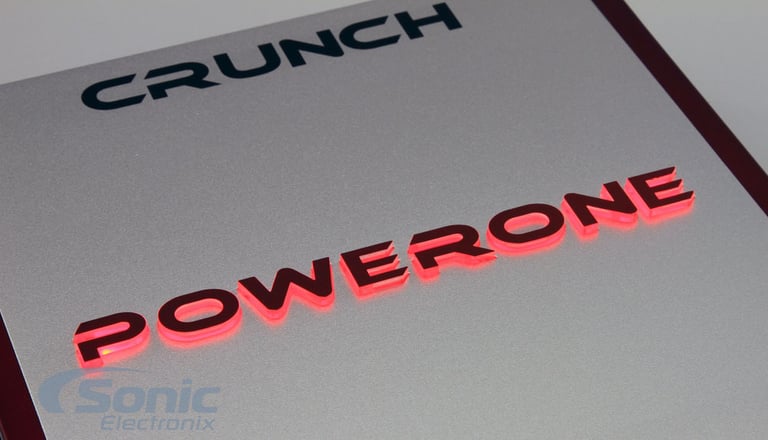

Crunch P1-1650.4 (Factory Refurbished) Image 4 — Crunch P1-1650.4 (Factory Refurbished)

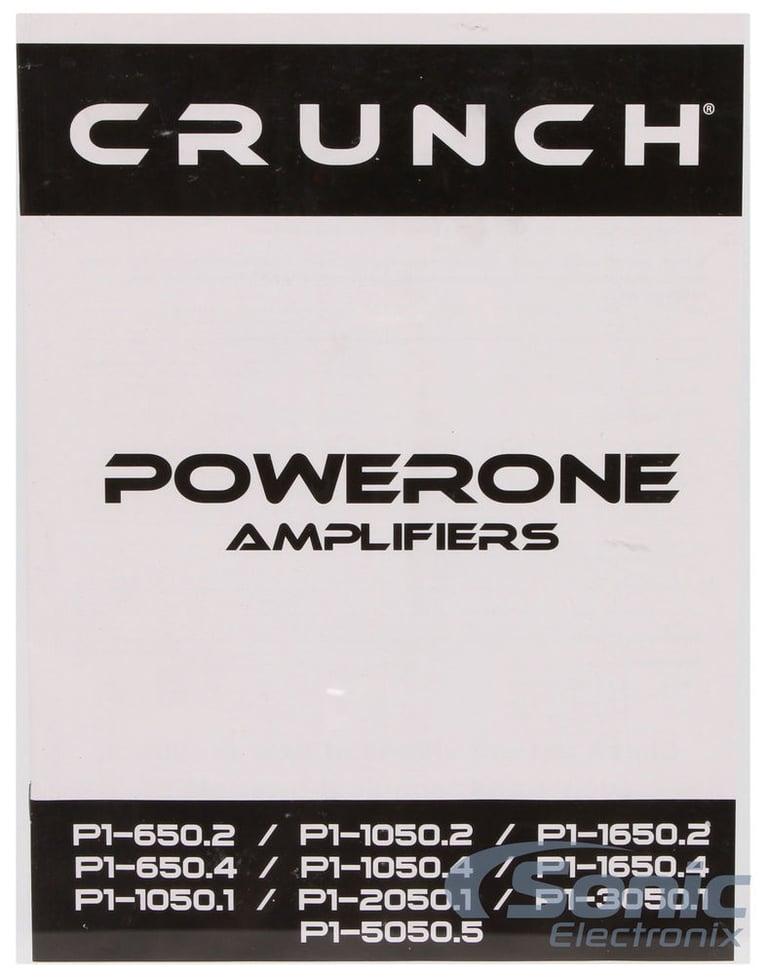

Crunch P1-1650.4 (Factory Refurbished) Image 5 — Crunch P1-1650.4 (Factory Refurbished)

Crunch P1-1650.4 (Factory Refurbished)-video

Product videos

Product highlights

• 4 ohm: 200 watts x 4-Chan.
• 2 ohm: 400 watts x 4-Chan.
• Bridged, 4 ohm: 800 watts x 2 chan.
• SEPP Class A/B Analog Amplifier
• Selectable crossover modes: FULL / LPF / HPF
• Signal to Noise Ration: >90 dB
• Total Harmonic Distortion (THD): <0.05%

Learn more about the LS-p116504-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

General Features

Power One Series 4-Channel Class A/B Car Amplifier
Max Power Rating:

4 ohm: 200 watts x 4 chan.
2 ohm: 400 watts x 4 chan.
Bridged, 4 ohm: 800 watts x 2 chan.

SEPP Class A/B analog amplifier
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Preamp RCA outputs to daisy chain multiple amps
4/3/2 channel operation
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Input sensitivity: 200mV - 6V
Frequency Response: 10 - 45,000 Hz
Total Harmonic Distortion (THD): <0.05%
Signal to Noise Ration: >90 dB
Selectable crossover modes: FULL / LPF / HPF
Variable low-pass filter: 30 - 250 Hz
Variable high-pass filter: 60 - 12,000 Hz
Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
Fuse Rating: 35A x 2
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 12-2/3"L x 9-1/8"W x 2-1/16"H
Authorized Internet Dealer
90 Day Sonic Electronix Warranty

Specifications & Details

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

200 watts x 4 channel

Peak Power @ 2 ohms

400 watts x 4 channel

Bridged Peak/Max Power

800 watts x 2 channel

Amplifier Specifications

Series

Power One Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

1600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 12000 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

>90 dB

Bass Boost

0 - 9 dB

Remote bass/level controller

Fuse Rating

35A x 2

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Crunch P1-1650.4 (Factory Refurbished) thumbnail image

Overall rating distribution

5 star		0%
4 star		100%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4
Value		4
Features		4
Design		4
Usability		4

Customer Reviews

Sort by:

Yes!

Awesome product works better than enticipated, great for the price.

By Adale on November 10, 2015 Checkmark Icon

Verified purchase

2 found this helpful

Report abuse
