See all parts that fit your 1950 E

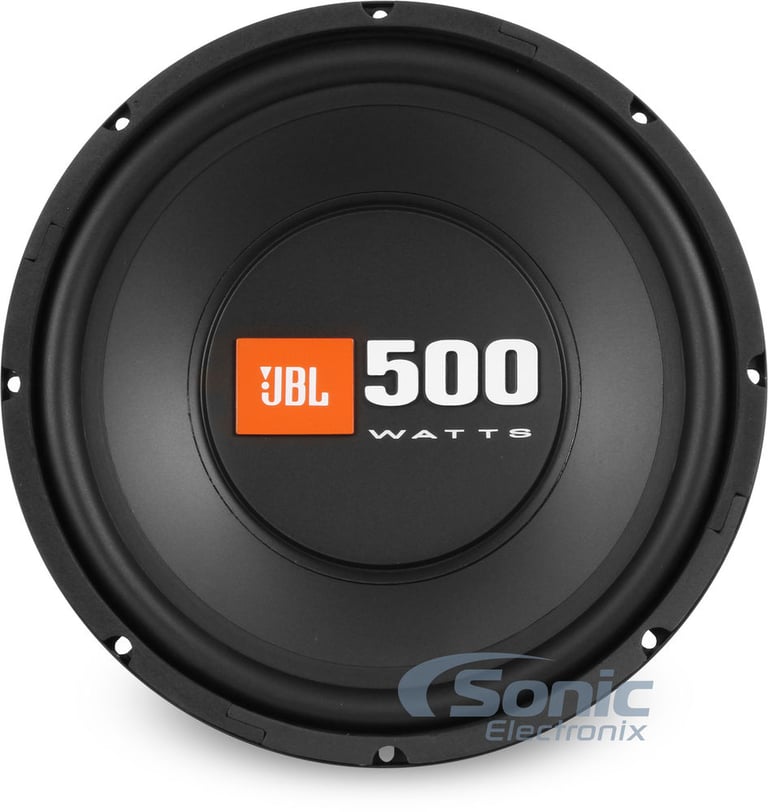

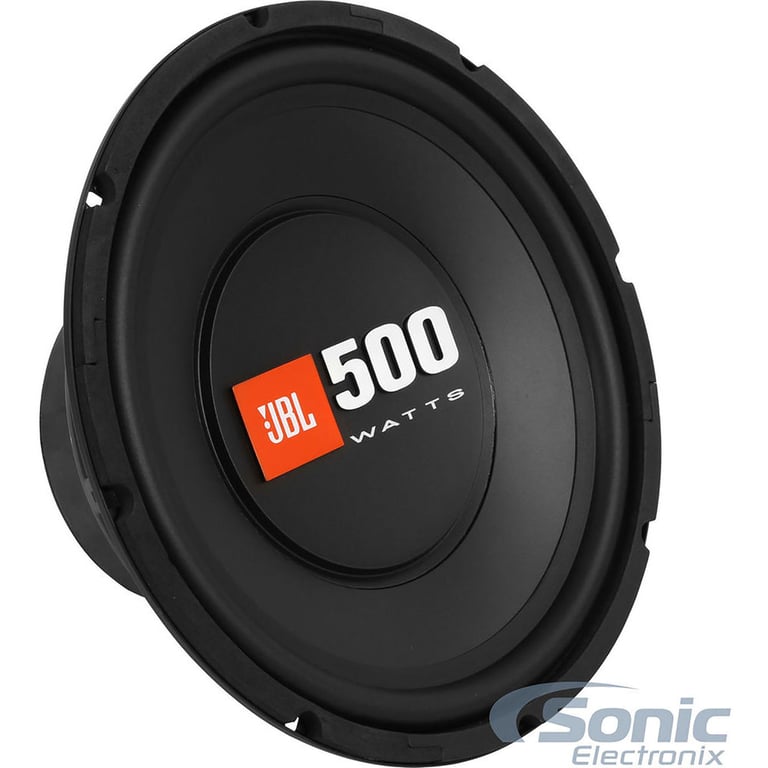

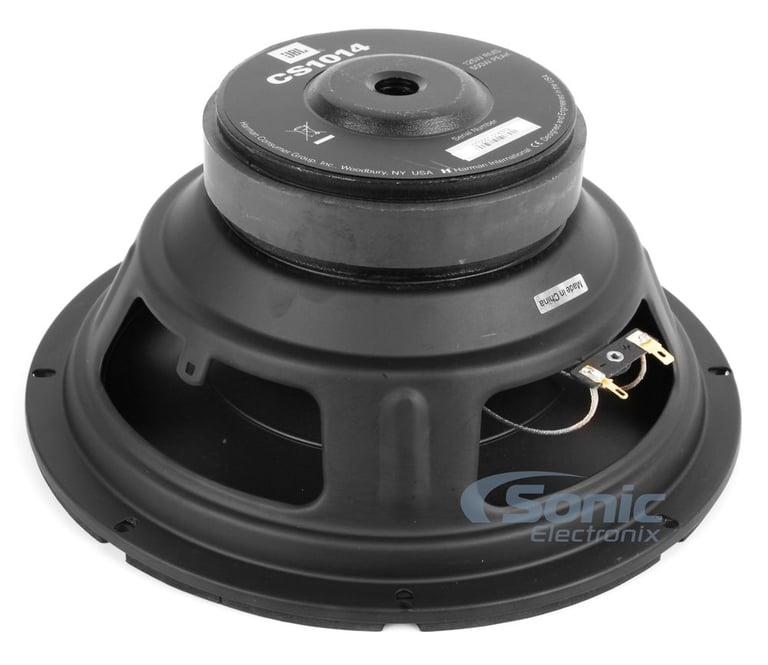

JBL CS1014

125W 10" CS Series Single 4 Ohm Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

• Peak Power: 500W
• RMS Power: 125W
• Impedance: 4 ohm
• Polypropylene Cone
• Rubber Surround
• Resonance Frequency (Fs): 30 Hz

Learn more about the cs1014

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65A-150 main

SSV Works US2-C65A-150

Loaded 8" Cage-Mount Speaker-Pods Enclosure with SSV Works Speakers

Product Highlights


• Peak Power: 500W
• RMS Power: 125W
• Impedance: 4 ohm
• Polypropylene Cone
• Rubber Surround
• Resonance Frequency (Fs): 30 Hz

Description


JBL brand icon

Authorized dealer



Hear The Rumble Of The Music, Not The Road.

With 500 watts of peak power handling, the JBL CS Series CS1014 subwoofer outperforms anything you may have heard before. Its polypropylene woofer cone is light as a feather, ensuring maximum efficiency and performance. A progressive spider provides exceptional control, reducing distortion at even the highest output levels.



The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 10" Single 4 Ohm CS Series Car Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 125 watts
  • Recommended power range: 50 - 150 watts RMS
  • Impedance: 4 ohm
  • High excursion, high BL motor
  • Polypropylene Cone
  • Rubber Surround
  • 1-1/2 Voice coil diameter
  • Frequency response: 45-200 Hz
  • Resonance Frequency (Fs): 30 Hz
  • Top-mount depth: 4-9/16"
  • Sensitivity: 90dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty


PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Tips for Installing the your subwoofer


Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL CS1014 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL CS1014 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL CS1014 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL CS1014 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
CS Series
Subwoofer Size
10"
Peak Power Handling
500 watts
RMS Power Handling
125 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1-1/2"
Frequency Response
45 - 200 Hz
Sensitivity
90 dB
Xmax (millimeters)
6.6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
.6 cubic feet
Optimum Sealed Box Volume
.9 cubic feet
Maximum Sealed Box Volume
1.1 cubic feet
Minimum Ported Box Volume
.65 cubic feet
Optimum Ported Box Volume
.9 cubic feet
Maximum Ported Box Volume
1.2 cubic feet
Top-Mount Depth (Mounting Depth)
4-9/16"
Cutout Diameter
9"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
53.8 liters
Total Speaker Q Value (Qts)
.44
Electrical Q Value (Qes)
.46
Electrical Resistance of Voice Coil (Re)
3.67 ohm
Mechanical Q Value (Qms)
8.34
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

CS1014

Weight:

8.00lbs

Internal SKU:

cs1014

Internal Product ID:

45050
