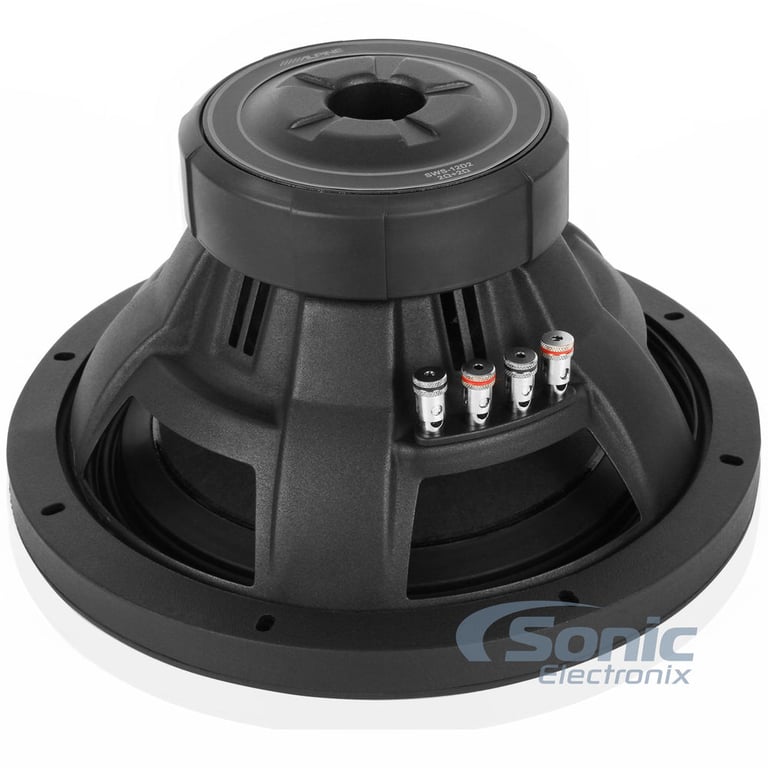

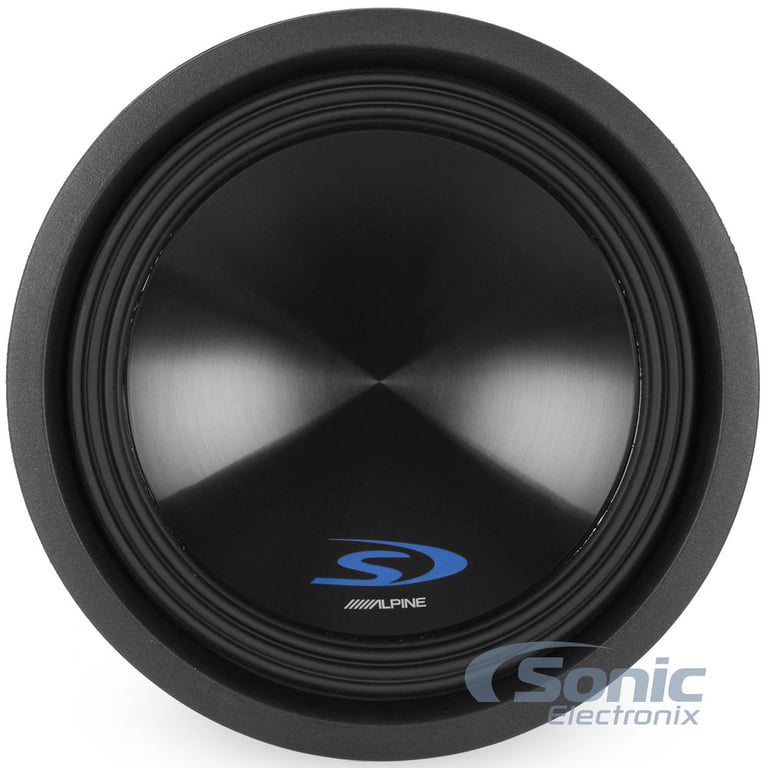

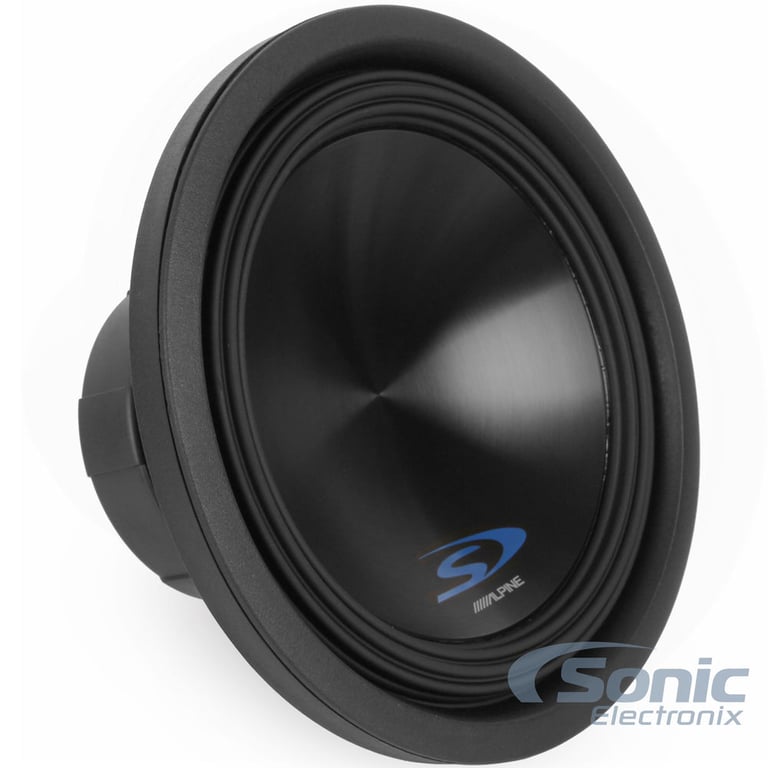

Alpine Type-S SWS-12D2

1500W Peak 12" Type-S Series Dual 2-Ohm High Performance Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

• 1500W Peak
• 500W RMS
• Dual 2-Ohm Voice Coil
• Kevlar Treated Pulp Cone

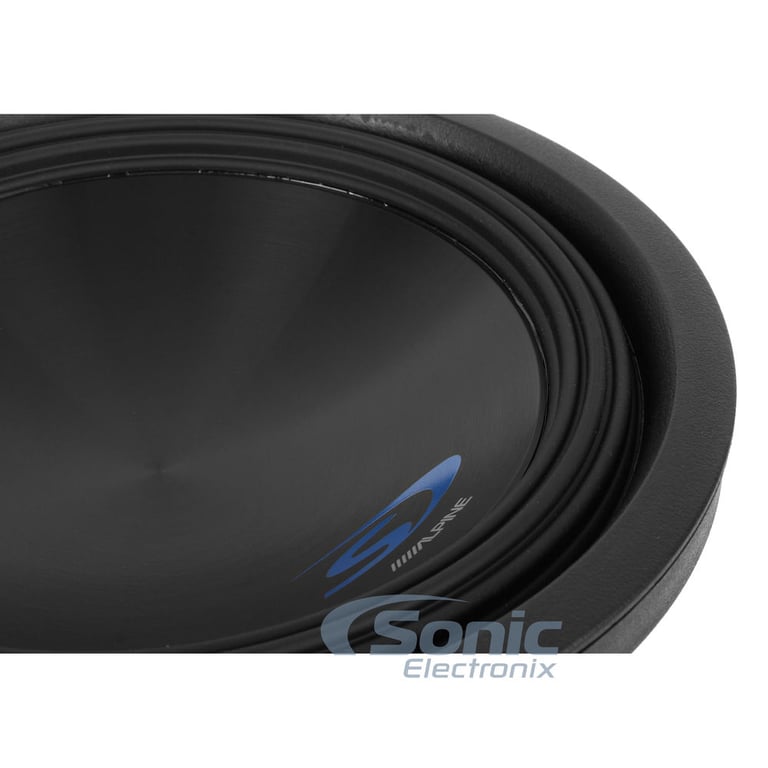

• Durable HAMR Santoprene™ Surround

Learn more about the sws12d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

s2w12d2 thumbnail

Alpine S2-W12D2

OUR PRICE: $215.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

GMSB356 main

American International GMSB356

6.5" to 6.75" Speaker Mounting Adapters for select 1997-2020 vehicles from Chevrolet, GMC, Pontiac

33
-58.38%

$9.99

List price $24.00

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Lowest price in 30 days
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-16.67%

$49.99

List price $59.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

44
-10.01%

$17.99

List price $19.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

Product Highlights


• 1500W Peak
• 500W RMS
• Dual 2-Ohm Voice Coil
• Kevlar Treated Pulp Cone
• Durable HAMR Santoprene™ Surround

Description


Alpine brand icon

Authorized dealer



General Features:

  • 12" Type-S Series Car Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 500 watts
  • Recommended power range: 150 - 500 watts RMS
  • Impedance: Dual 2 ohm
  • Kevlar treated pulp cone
  • Durable HAMR Santoprene surround
  • High strength steel frame
  • Progressive conex
  • 2.6" 5-Layer High-Temp Voice Coil
  • 64oz. Strontanium Ferrite magnet motor structure
  • 12" Protective 2-Piece Subwoofer Grille Available, sold separately:
  • Frequency response: 26-200 Hz
  • Resonance Frequency (Fs): 34Hz
  • Top-mount depth: 5-7/8"
  • Sensitivity: 86.4dB
  • CEA-2031 compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty




PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

Alpine S2-W12D2 thumbnail
(newest, current model)
Alpine S-W12D2 thumbnail
(previous model, replaced by Alpine S2-W12D2)
Alpine SWS-12D2 thumbnail
(previous model, replaced by Alpine S-W12D2)
Alpine SWS-1223D thumbnail
(previous model, replaced by Alpine Type-S SWS-12D2)
Alpine SWS-1222D thumbnail
(previous model, replaced by Alpine SWS-1223D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine Type-S SWS-12D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine Type-S SWS-12D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine Type-S SWS-12D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Alpine Type-S SWS-12D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Type-S Series
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.6"
Frequency Response
26 - 200 Hz
Sensitivity
86.4 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
Santoprene Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.65 cubic feet
Optimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
10-9/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34 Hz
Equivalent Compliance (Vas)
44 liters
Total Speaker Q Value (Qts)
0.61
Electrical Q Value (Qes)
0.66
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
8.37
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SWS-12D2

Weight:

15.00lbs

Internal SKU:

sws12d2

Internal Product ID:

45530

Product and How-to Videos


Customer Ratings & Reviews


Alpine Type-S SWS-12D2 thumbnail image

5 star
78%
4 star
17%
3 star
6%
2 star
0%
1 star
0%



Durability
4.4
Value
4.7
Features
4.7
Design
4.6
Usability
4.8

Customer Reviews

Sort by:

Loading...

Good

I bought two of the 12 inch type s subs and am happy with them. They arnt the loudest but are worth the money. Great for someone getting into the sub game

By Charlie on January 10, 2013

50 found this helpful


Alpine Subs

Worked great in my application, always have had good experience with Alpine products. The dual voice coil configuration makes it easy to order what you need to run your subs at 2 ohms.

By Brandon on July 23, 2013

49 found this helpful


Great sub and great price!

Alpine has never let me down. This subwoofer hits extremely hard. I have one powered by an alpine mrv-m500 wired at 4 ohms in a ported box. The amp is only at the normal output power setting and that's all I need. This sub is a great buy for anyone who wants the perfect amount of bass to not drown out the music completely. Don't get me wrong though, this sub is capable of doing that if you want it to.

By Steven on August 17, 2014

47 found this helpful


Yeaaaaa!

If u know me I like bass! I have 2 of these in the ground shaker 2 12 sqp
Box and it slams. I was surprised cause that's really nota big box. Imagine
A custom box! Other than that I have it hooked up to a brutis 1200 @ 2 ohms. Good subs.

By Dfife on February 25, 2013

46 found this helpful


subs

My boyfriend wanted these subs so i decided to buy them fir him hes happy with them

By lily on March 27, 2014

45 found this helpful


descent!

This speaker was second choice in regards of finding one that had high temp voice coils. I hooked it up to class d autotek1500d and dropped ohms to 1. I broke it in over three weeks and then as soon as she started banging good, it blew. It had great sound but maybe sealed box and hot summer day banging didn't go well? Either way can't really be mad it was good just not good enough for my application. Vented boxes keep speakers cooler just don't have that tight low I like so if you like sealed set up then get something that can handle the heat!

By oldschoolbasshead on September 2, 2013

45 found this helpful


Best subs around for the price

Started with a 10" alpine type E that is now in my girlfriends toyota celica. Bought 2 of these for my car and they sound amazing no matter what style of music im listening to. I couldnt say enough good things about these subs. Extremely satisfied with all alpime products, especially the type S subs.

By Jacob on August 21, 2013

45 found this helpful


It Alright

I have owned two of these both have broken on me. Thee first was my fault and the second was a factory issue but would not honor warrenty. They sounded awesome when they worked. I had only one hooked up at a time in a ported box with a alpine mrv500 amp.

By Tyler on August 10, 2013

45 found this helpful


bass shaking, hard hitting, deep low traveling bass by far!!!!!

I had just replaced 4 10" orion cobalt subwoofers in a 5 cubic foot box ported at 45hertz. with a sws12d2 subwoofer in a 1.5 cubic foot L vented wedge box tuned at 35.1 hertz. this thing hits as hard as my old 4 orion 10" and hits as low as the 4 10". for the price of this sws you get more then your money's worth!!! this sub slams hard in my hatch back!!! I've been thinking bout getting a sws15d2. don't get me wrong the 12 is loud n hits low. but im a bass head!!!! to the fullest!!!

By bass head!!! on November 12, 2012

46 found this helpful


excellent budget sub

Great service from the guys at sonic electronix as always. Sub is one of the best bangs for the buck. It sounds great paired with my hifonics amp. I can't imagine how it would sound if I built a tuned box

By Darius on March 27, 2014

42 found this helpful




BC166-01 small

Icom BC166-01

Drop-In Smart Charger Cup for Icom M7201 (ICMM7201)

$36.99

List price $49.99

27103 small

Shoptek Tools 27103

Heavy Duty Padlock, 2"

$4.99

List price $12.00

PD701P small

GPX PD701P - Pink

Portable DVD Player with Standard AC Charger & Mobile DC Car Power Adapter, Video Cable, and Remote

$69.99

List price $99.95

CD-W320 small

Case Logic CD-W320

336 CD/DVD Disc Holder Album (320 Disc Capacity Plus a 16 Disc Fast File Section)

$36.99

List price $51.99

FREEDOM150 small

Omega Freedom 150

Standard Car Alarm with Keyless Entry Security System and Two 4-Button Remote Transmitters

(8)

$37.99

List price $129.99

3MBVBC small

Install Bay 3MBVBC

3M Blue 16/14 Gauge Vinyl Butt Connectors

(1)

$16.99

List price $18.99

BBC22R small

Belva BBC22R

22/18 Gauge Red Butt Connectors, Nylon - 100 Pack

(5)

$3.99

List price $9.99

PLQB10 small

Pyle PLQB10 10" Quoobz Bandpass System

$59.99

List price $105.99

NPD-952 small

Naxa NPD-952

9" TFT LCD Swivel Screen Portable DVD Player with Built-In USB, and SD/MMC Card Input

$59.99

List price $99.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Mazda 3

2004 Audi TT

2014 Audi A5

2007 Honda Element

2016 Ford Edge

2016 Ford Transit Connect

1994 Cadillac DeVille

2012 Subaru Impreza

1996 Ford Taurus

1990 Mercury Sable

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
